MPN:
SV466FR

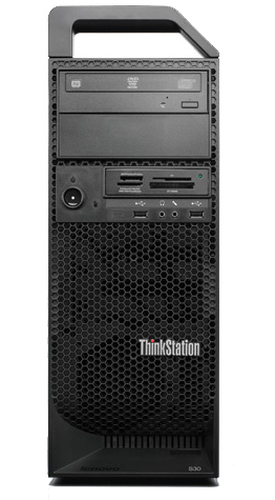

Lenovo ThinkStation S30 Intel® Xeon® E5 Family E5-1650 8 GB DDR3-SDRAM 2 TB HDD Windows 7 Professional Tower Workstation Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- ECC support
- Y
- Depth
- 483 mm
- Max case temperature (Tcase)
- 64 °C
- Width
- 175 mm
- Height
- 478 mm
- Weight
- 17500 g
- Line-in
- Y
- Bus type
- QPI
- DVI port
- N
1 / 5
Shopping actions
Overview
The Lenovo ThinkStation S30 Intel® Xeon® E5 Family E5-1650 8 GB DDR3-SDRAM 2 TB HDD Windows 7 Professional Tower Workstation Black features Intel Xeon E5 processor, 6 cores, up to 3.8 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
12 MB
Cores
6
Model
E5-1650
Processor line
Intel Xeon E5
Socket
LGA 2011 (Socket R)
Threads
12
Clock speed
3.2 GHz
Cache level
Smart Cache
Process node
32 nm
CPU brand
Intel
Boost clock
3.8 GHz
CPU operating modes
64-bit
TDP
130 W
Storage
2 SPECS
Capacity
2 TB
Storage
2 TB
Graphics
1 SPEC
Memory clock
1600 MHz
Physical
6 SPECS
Depth
483 mm
Width
175 mm
Height
478 mm
Weight
17500 g
Product type
Workstation
Colour
Black
Memory
4 SPECS
ECC support
Yes
Capacity
8 GB
Memory type
DDR3-SDRAM
Max memory
64 GB
Ports & Connectivity
3 SPECS
HDMI ports
0
USB 2.0 ports
10
Ethernet ports
1
Cooling
1 SPEC
Cooling type
Active
General
107 SPECS
Max case temperature (Tcase)
64 °C
Line-in
Yes
Bus type
QPI
DVI port
No
64-bit support
Yes
Line-out
Yes
Spindle speed
7200 rpm
PCI slots
1
Audio chip
Realtek ALC662
FSB Parity
No
Idle power states
Yes
Scalability
1S
Audio system
HD
Chassis type
Tower
Ethernet LAN
Yes
Power supply
800
Drive interface
SATA
Microphone input
Yes
Plug and Play
Yes
Storage media
HDD
Security lock slot
Yes
Memory channels
Quad-channel
Bus speed
0 GT/s
Display included
No
Drivers included
Yes
Intel ARK ID
64601
Processor series
Intel Xeon E5-1600
Headphone outputs
1
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
No
Operating altitude
-15.2 - 3048
Optical drive type
DVD±RW
Codename
Sandy Bridge EP
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Chipset
Intel C206
Number of 3.5" bays
1
Cable lock slot type
Kensington
Intel FDI Technology
No
Intel TSX-NI version
0.00
Number of 5.25" bays
1
Serial ports
1
Non-operating altitude
-15.2 - 10668
Integrated graphics
No
Processor package size
52.5 x 45.0
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
No
Ethernet LAN data rates
10,100,1000
Optical drives quantity
1
Intel Fast Memory Access
No
Intel Flex Memory Access
No
Number of HDDs installed
1
Intel Enhanced Halt State
Yes
PCI Express slots version
3.0
Storage temperature
-40 - 60
ECC memory support
Yes
Long-term availability
No
Operating system
Windows 7 Professional
PCI Express configurations
x4, x8, x16
Power supply input voltage
100 - 240
Instruction sets
AVX
Operating temperature
10 - 35
Eco certifications
EPEAT Gold,ENERGY STAR
Intel Clear Video Technology
No
Intel Demand Based Switching
Yes
Integrated GPU model
Not available
Power supply input frequency
50 - 60
Thunderbolt 3 ports quantity
0
OS architecture
64-bit
Intel Rapid Storage Technology
No
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
PCI Express x4 (Gen 2.x) slots
1
CPU multiplier (bus/core ratio)
38
PCI Express x16 (Gen 3.x) slots
3
Storage relative humidity (H-H)
20 - 90
Thermal monitoring
Yes
Operating humidity
20 - 80
Trusted Execution (TXT)
Yes
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
No
PCIe lanes
40
Memory types supported by processor
DDR3-SDRAM
Intel Dual Display Capable Technology
No
Virtualization (VT-x)
Yes
Intel® Wireless Display (Intel® WiDi)
No
Intel® My WiFi Technology (Intel® MWT)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
800,1066,1333,1600
Intel Identity Protection Technology version
0.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
51.2
Maximum internal memory supported by processor
375
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® Identity Protection Technology (Intel® IPT)
No
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
