Lenovo logo MPN: 30KB001SUS

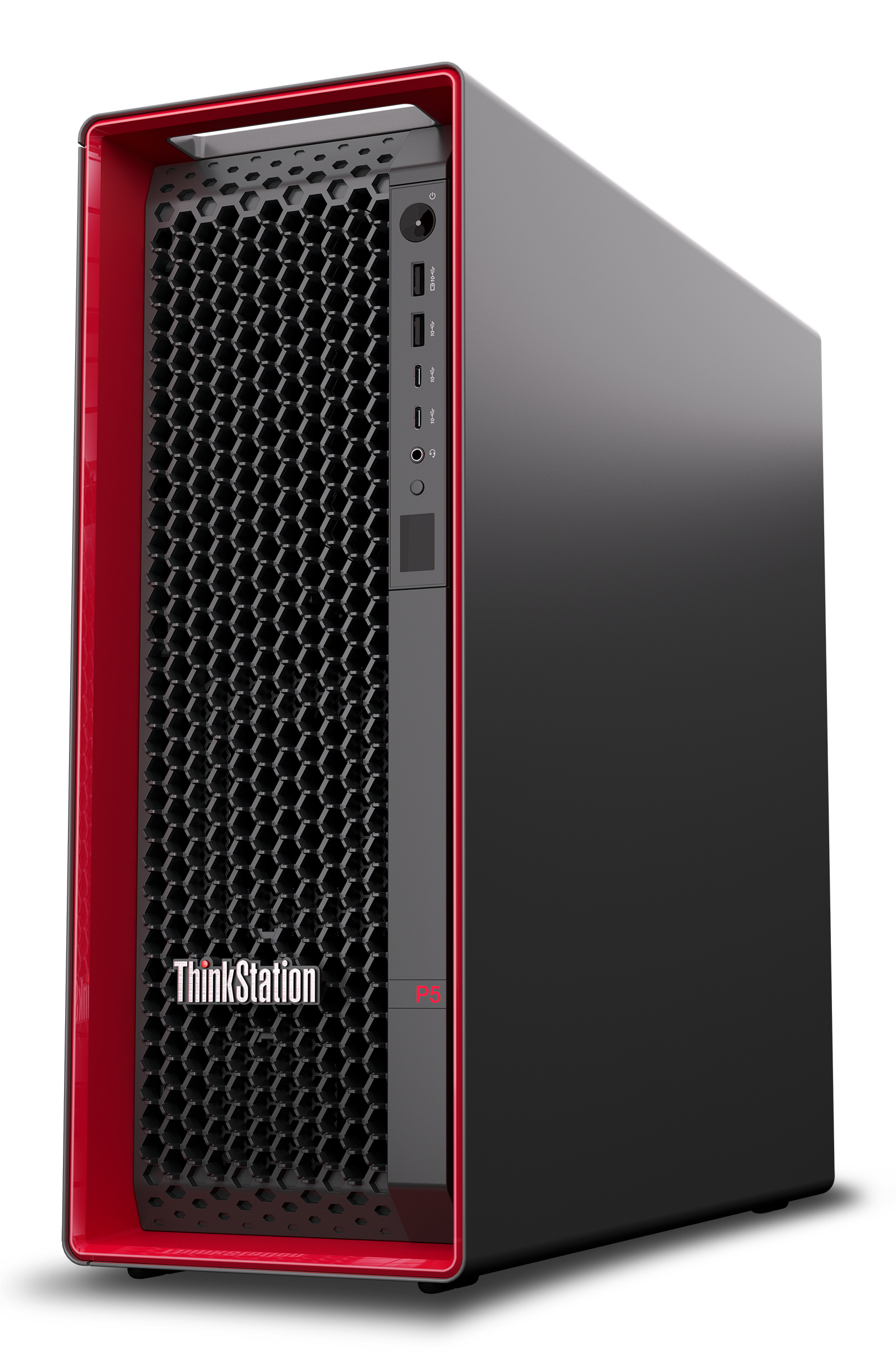

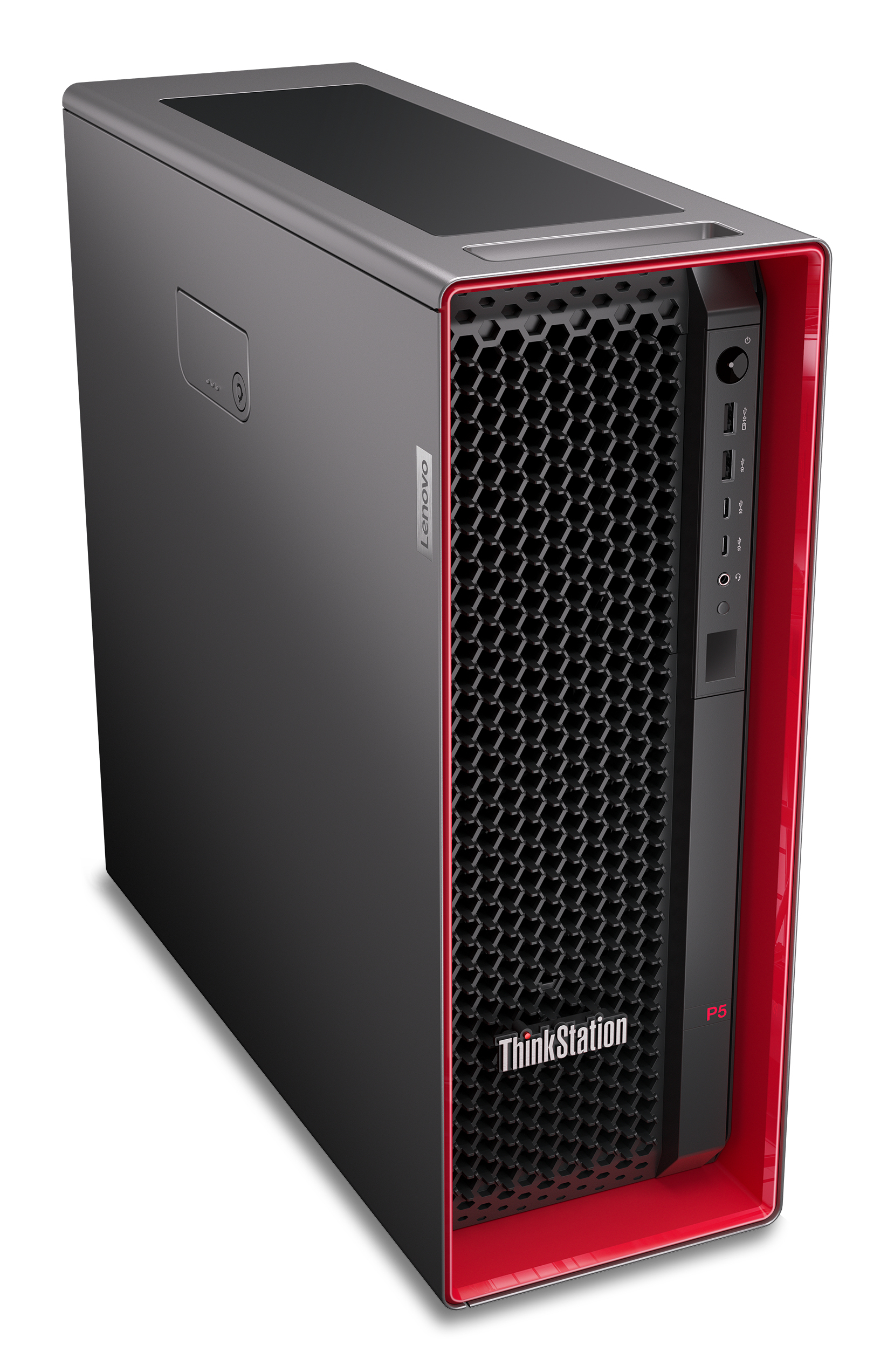

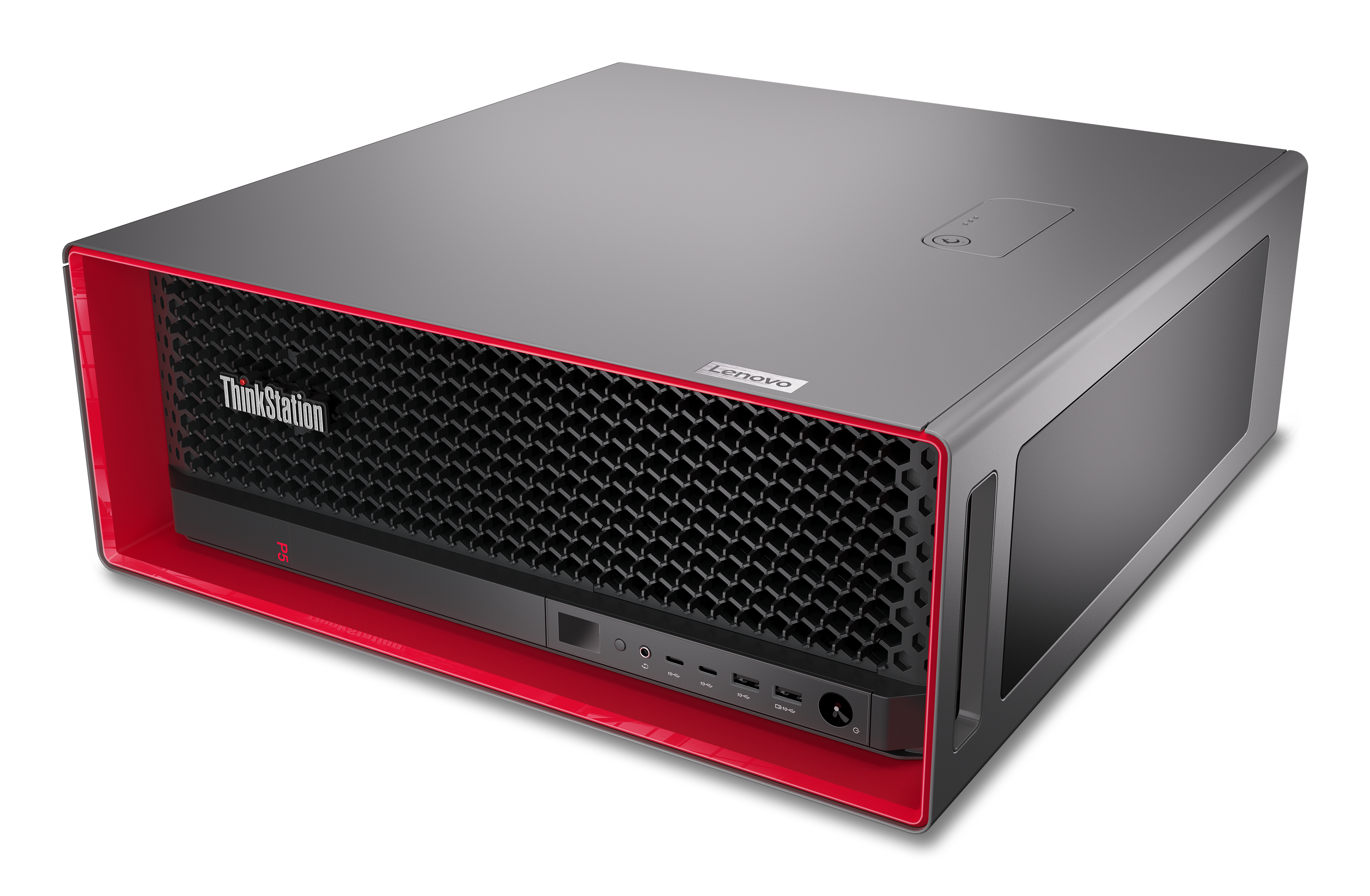

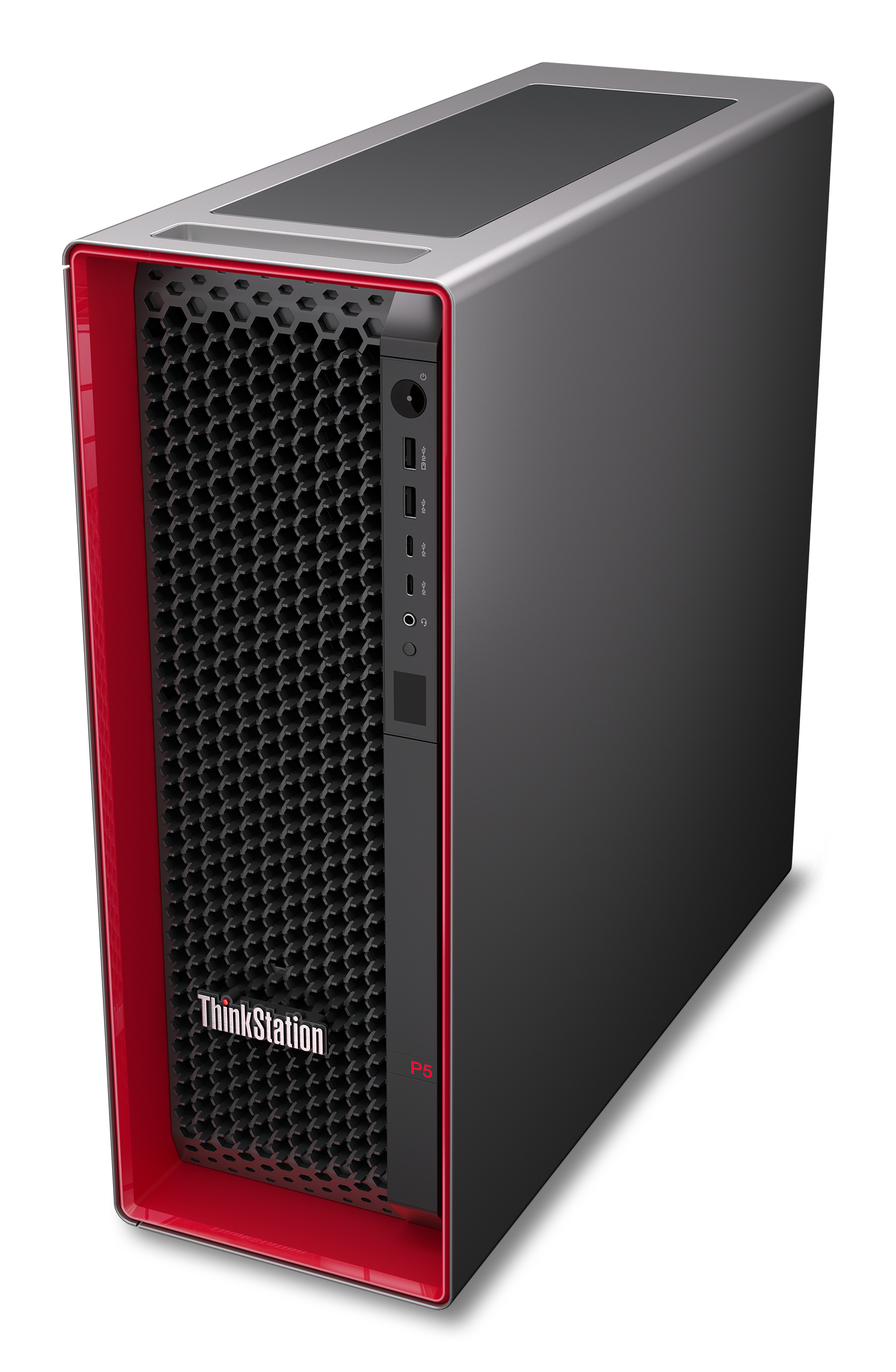

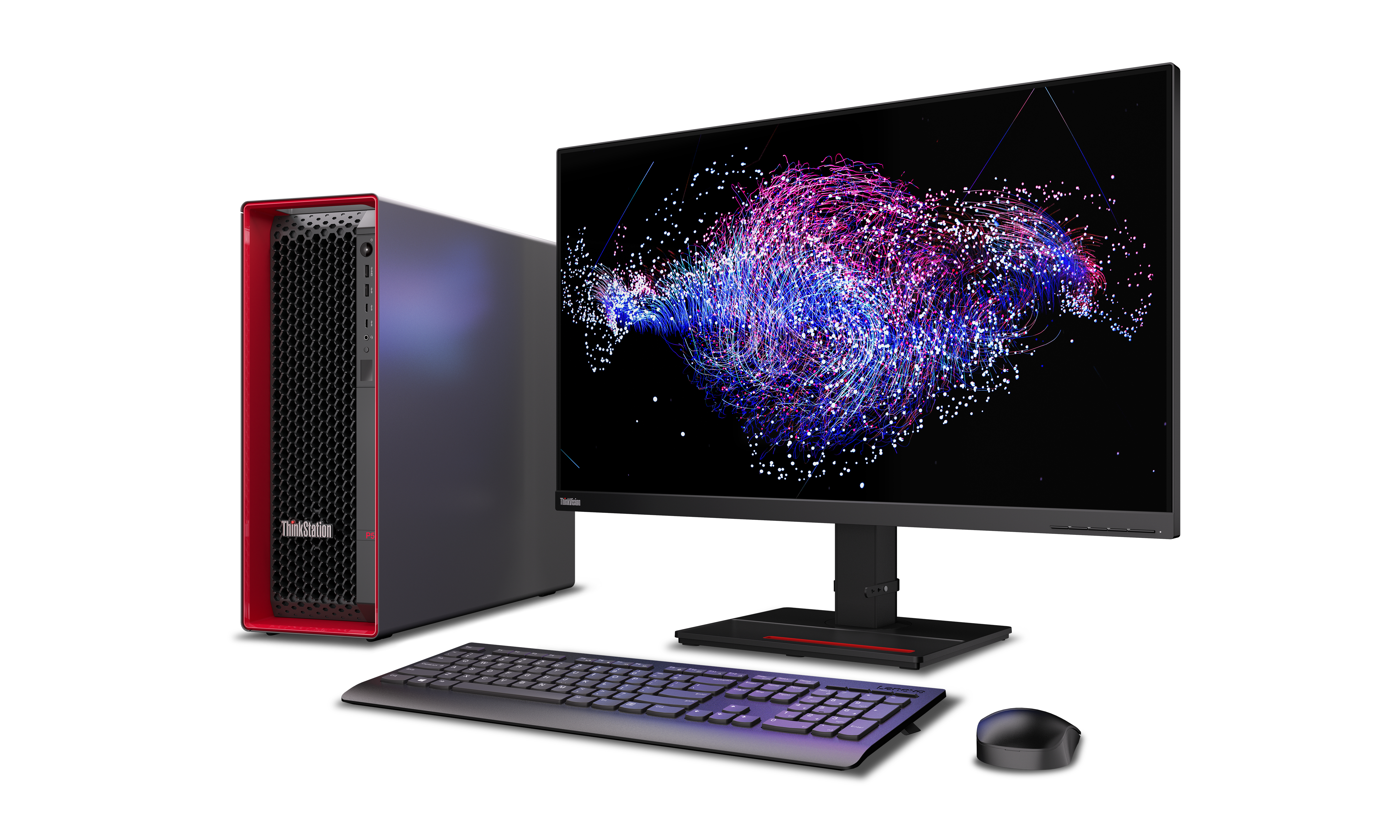

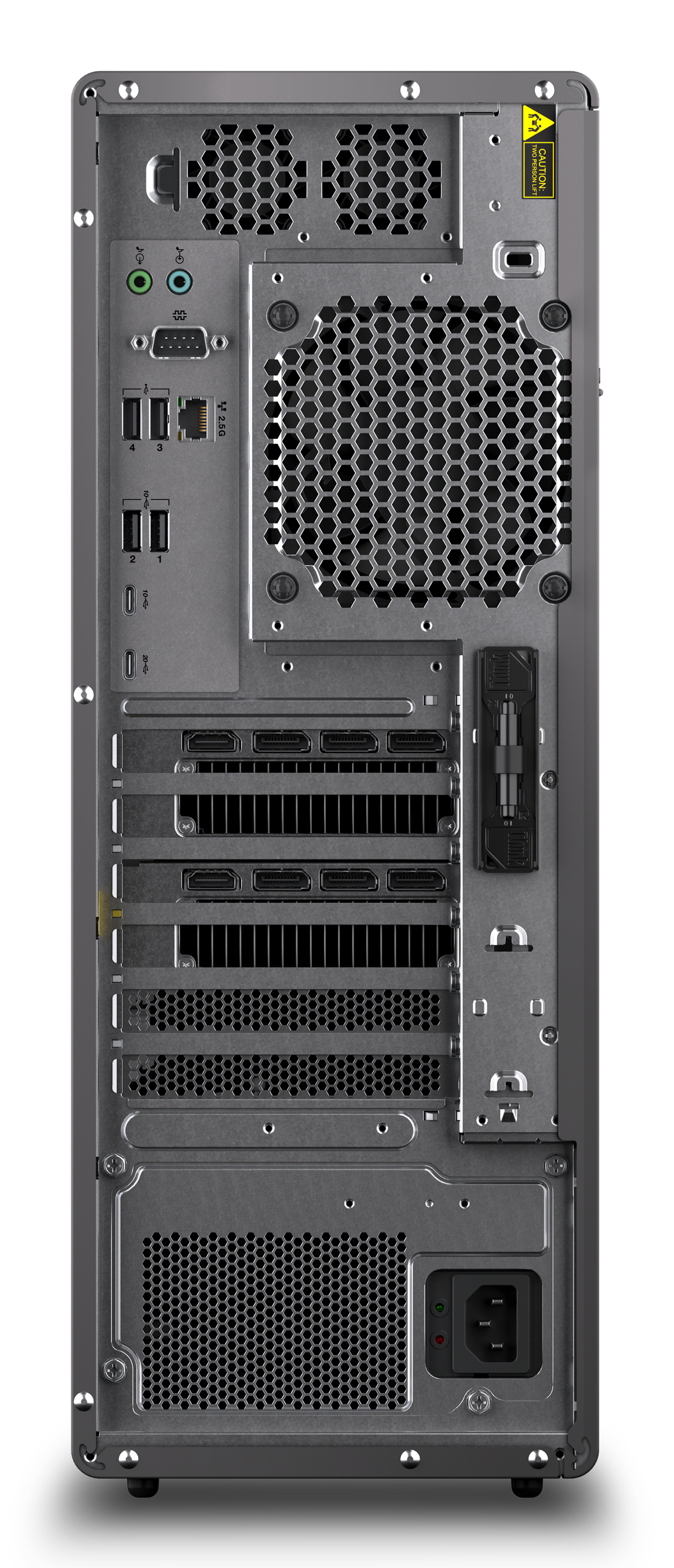

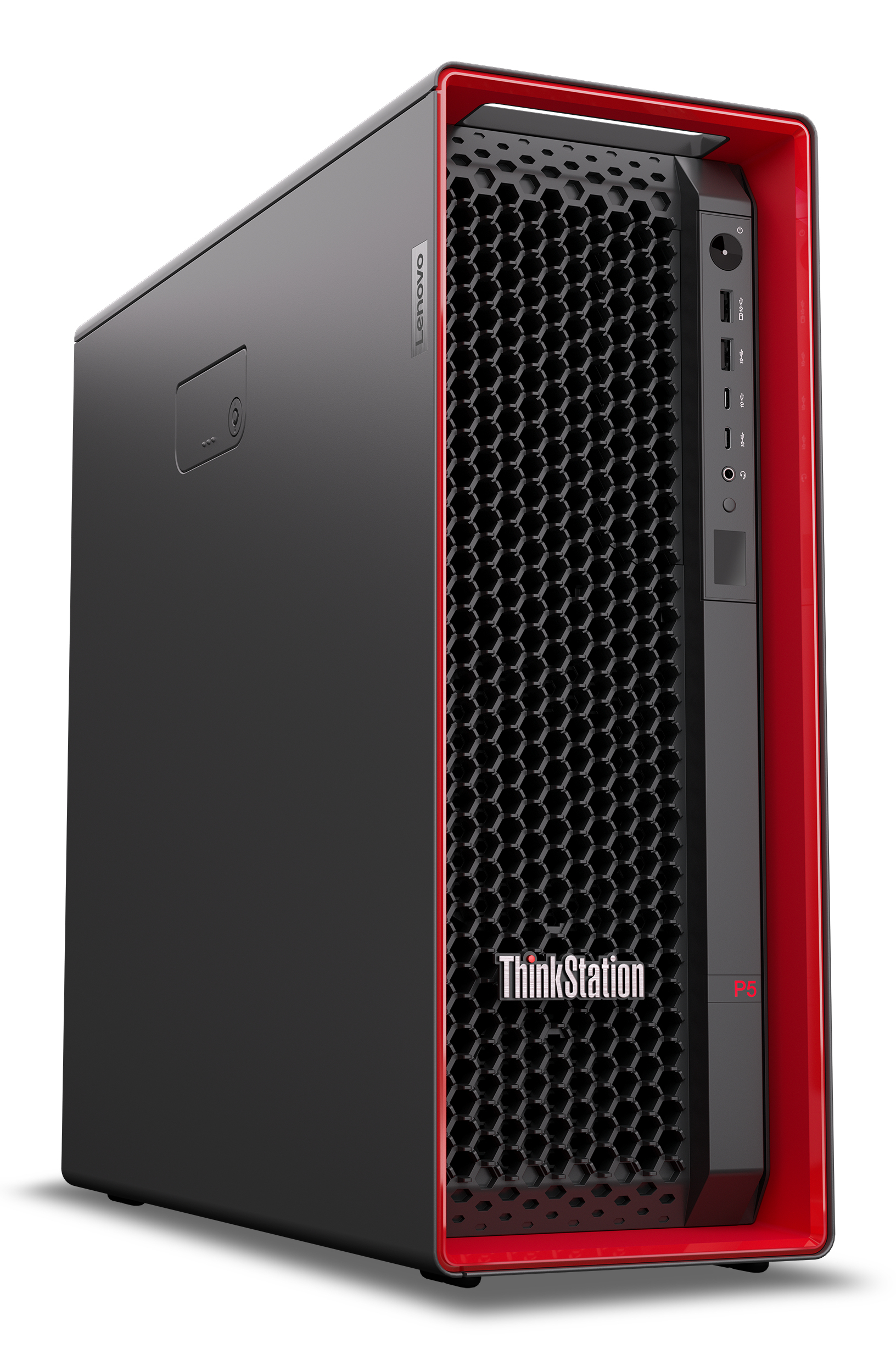

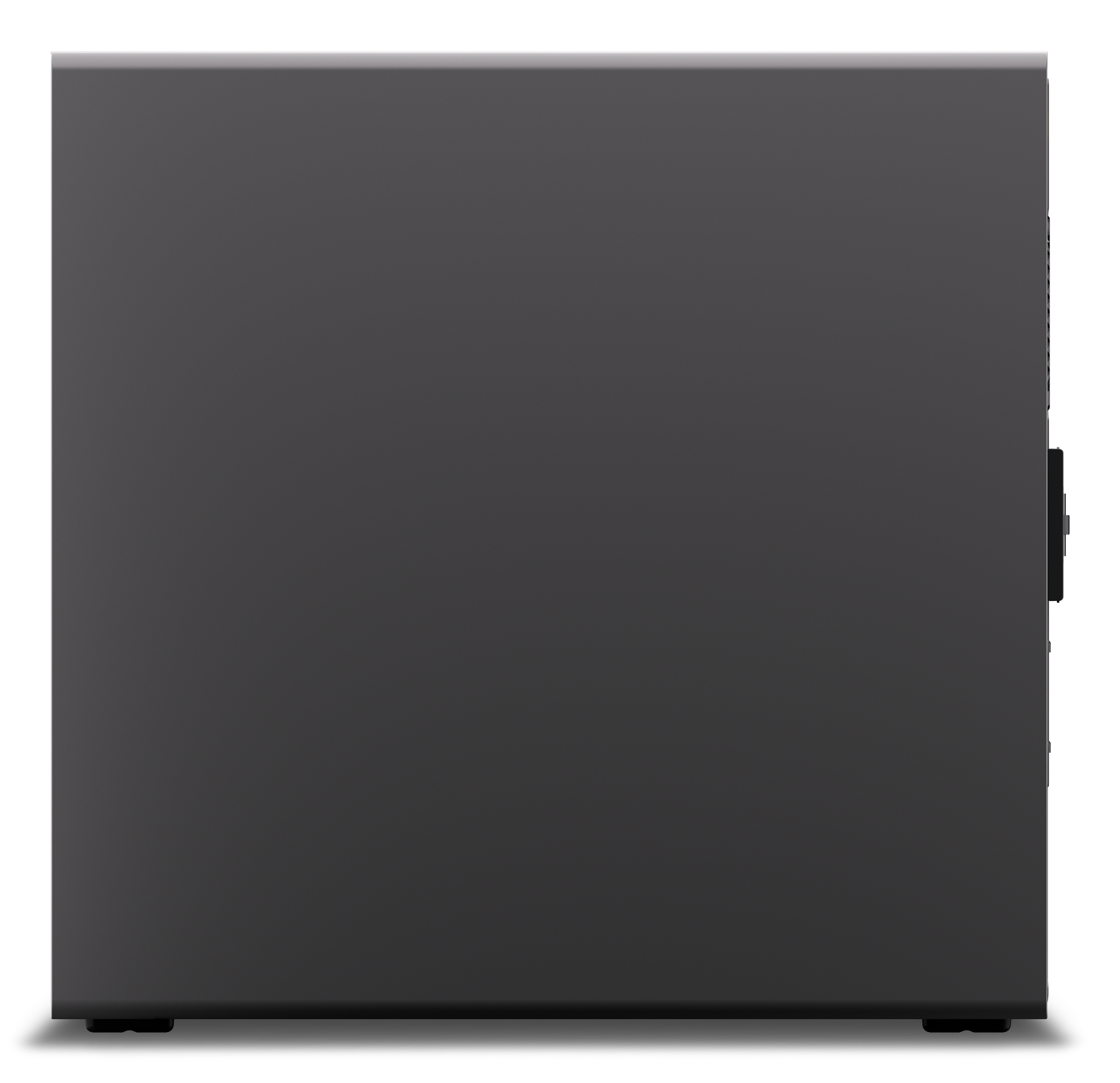

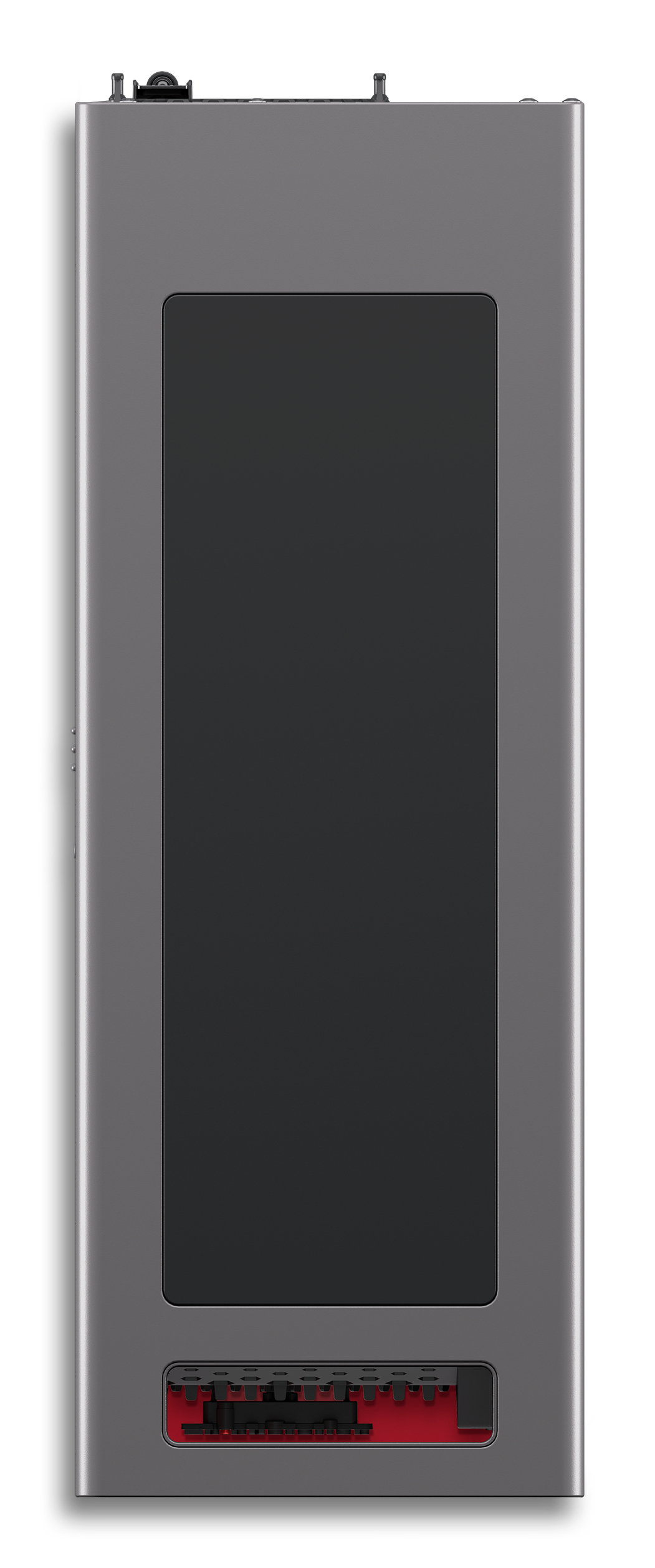

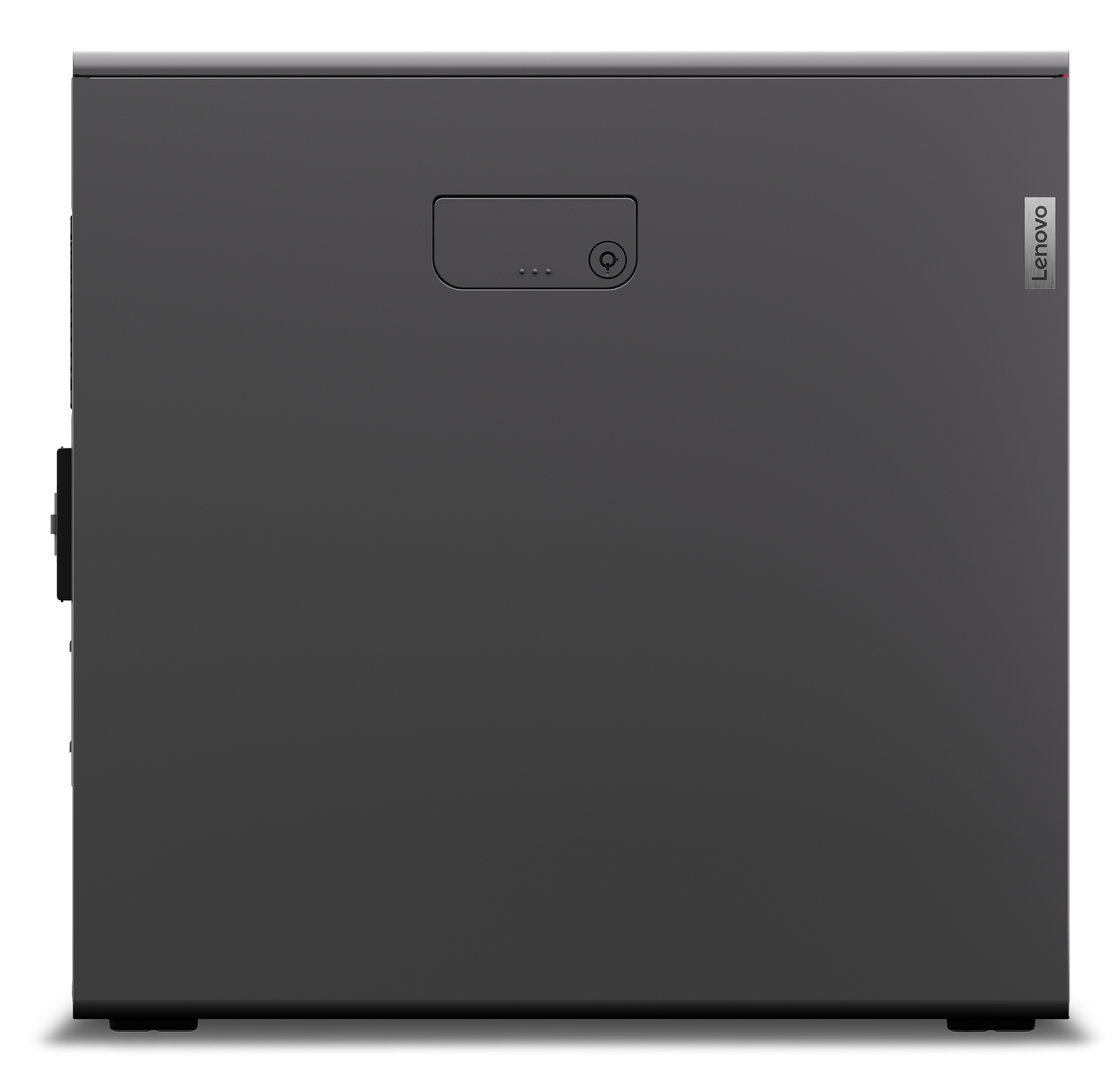

Lenovo ThinkStation P5 Gen 2 Intel® Xeon® 636 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A400 Windows 11 Pro for Workstations Tower Workstation Black

Released: Not on record
$4,767.93 from US · Amazon.com Updated 2 weeks ago Last updated Sep 3, 2026 03:14 UTC

Ratings & price sourced from Amazon.com (United States).

ECC support
Y
NVMe
Y
Depth
453.9 mm
Wi-Fi
Y
Width
165 mm
Height
440 mm
Volume
33
Weight
19000 g
Line-in
Y
View 98 specifications
1 / 11
Shopping actions
Check price on Amazon

Overview

THE INDUSTRY WORKHORSE
A Future-Ready Workstation With Engineering Excellence

The Lenovo ThinkStation P5 Gen 2 tower is a modular workstation built to accelerate modern workflows. Powered by Intel® Xeon® 600 processors and NVIDIA RTX PRO™ Blackwell GPUs, it delivers AI-ready performance and real-time visualization, handling compute-intensive tasks with utmost precision. Ideal for designers, engineers, and creatives alike.

MODULAR DESIGN
Tool-Free Design, Non-Stop Performance

The P5 Gen 2 tower’s tool-free, modular chassis and front-access, hot-swap storage make hardware upgrades fast, easy and smooth — without shutting down active workflows. Stay consistently productive while seamlessly adapting to evolving project demands.

ENTERPRISE-CLASS SECURITY
Comprehensive Data-Device Protection

For mission-critical and enterprise environments, layered protection isn't optional — it's essential. ThinkShield security offers end-to-end encryption while hardware-based Intel® protections prevent unauthorized access. BIOS and firmware safeguards play a crucial role in secure boot processes, maintaining system integrity and ensuring peace of mind.

ROBUST THERMAL MANAGEMENT
Built to Run Hard & Stay Cool

Enjoy uninterrupted system performance on the P5 Gen 2 workstation. Its unique air baffle design, large 3D hex ventilation openings, and Lenovo's patented tri-channel cooling system efficiently manages heat across CPUs and GPUs. Long renders, complex simulations, and intensive AI workloads won't slow it down or make it louder than it needs to be.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Technical Specifications

Processor

9 SPECS
Cache
48 MB
Cores
12
Model
636
Processor line
Intel Xeon
Socket
LGA 4710
Threads
24
Clock speed
3.5 GHz
CPU brand
Intel
Boost clock
4.7 GHz

Storage

3 SPECS
Capacity
1 TB
Form factor
M.2
Storage
1 TB

Ports & Connectivity

2 SPECS
USB 2.0 ports
2
Ethernet ports
1

Physical

6 SPECS
Depth
453.9 mm
Width
165 mm
Height
440 mm
Weight
19000 g
Product type
Workstation
Colour
Black

Memory

5 SPECS
ECC support
Yes
Capacity
32 GB
Buffered/registered memory
Registered (buffered)
Memory type
DDR5-SDRAM
Max memory
1000 GB

Graphics

2 SPECS
Memory clock
6400 MHz
VRAM
4 GB

Power

1 SPEC
Efficiency rating
80 PLUS Platinum

General

70 SPECS
NVMe
Yes
Wi-Fi
Yes
Volume
33
Line-in
Yes
Line-out
Yes
Bluetooth
Yes
Audio chip
Realtek ALC897-Q
Antenna type
2x2
Audio system
High Definition Audio
Chassis type
Tower
Ethernet LAN
Yes
M.2 SSD size
2280 (22 x 80 mm)
Memory slots
8x DIMM
Power supply
1000
SSD interface
PCI Express 5.0
Storage media
SSD
LAN controller
Intel I226-LM
Mouse included
Yes
Security lock slot
Yes
Efficient cores
0
Wi-Fi standard
Wi-Fi 7 (802.11be)
Display included
No
Bluetooth version
5.4
Keyboard included
Yes
Performance cores
12
Mouse connectivity
Wired
Number of speakers
1
Operating altitude
0 - 3048
Optical drive type
No
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Built-in speaker(s)
Yes
Maximum turbo power
204
Chipset
Intel W890
Password protection
Yes
Total SSDs capacity
1000
Cable lock slot type
Kensington
Processor base power
170
WLAN controller model
Intel Wi-Fi 7 BE200
Card reader
Yes
Dedicated graphics
Yes
Non-operating altitude
0 - 12192
Integrated graphics
No
Compliance certificates
RoHS
Ethernet LAN data rates
2500
Combo headphone/mic port
Yes
Number of SSDs installed
1
Password protection type
BIOS,Power on
Discrete GPU manufacturer
NVIDIA
Memory data transfer rate
6400
Operating system language
ENG-UK,ENG-US
Storage temperature
-40 - 60
Operating system
Windows 11 Pro for Workstations
Total Graphics Power (TGP)
50
Operating temperature
10 - 35
Dedicated GPU model
NVIDIA RTX A400
Memory layout (slots x size)
2 x 16
Integrated GPU model
Not available
Thunderbolt 3 ports quantity
0
Discrete graphics memory type
GDDR6
OS architecture
64-bit
Trusted Platform Module (TPM)
Yes
Storage relative humidity (H-H)
10 - 90
Operating humidity
20 - 80
Number of storage drives installed
1
Trusted Platform Module (TPM) version
2.0
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
3
Powered by Icecat

Market Value History

Sources

Icecat product datasheet

Product lifecycle

In production

Still listed as on-market by the manufacturer — actively sold and supported.

Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
