MPN:
30CF0030CA

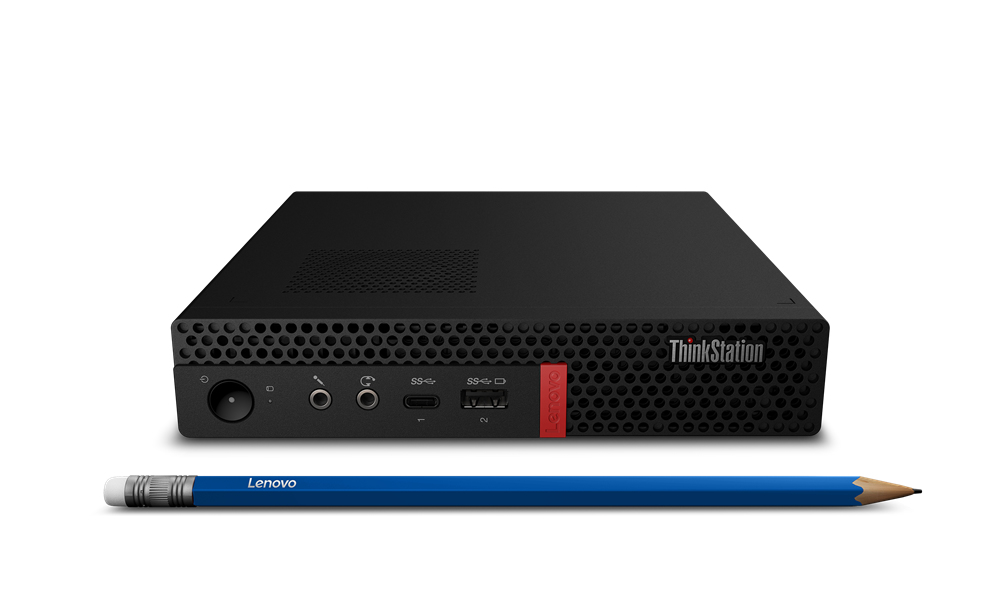

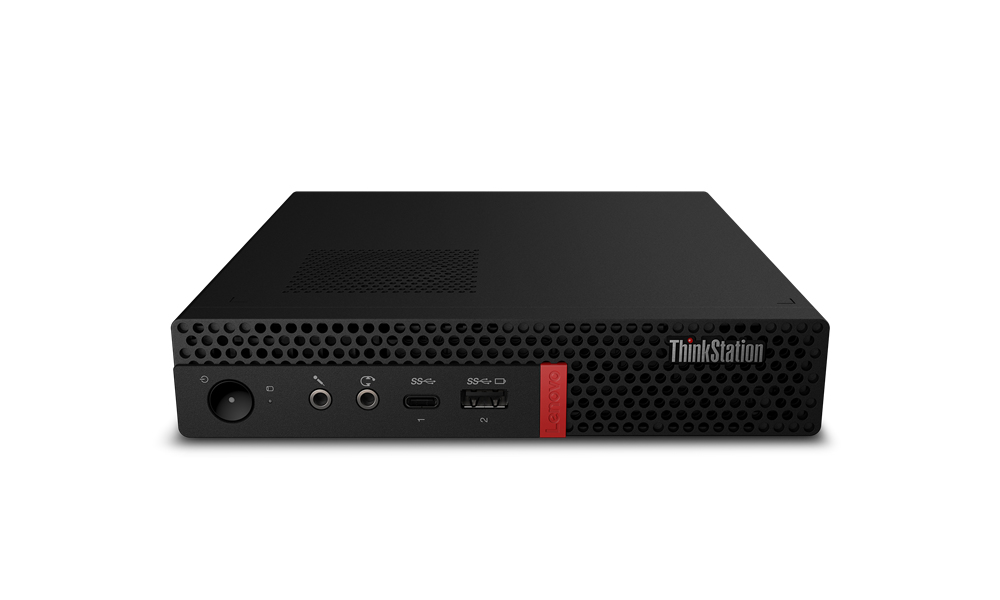

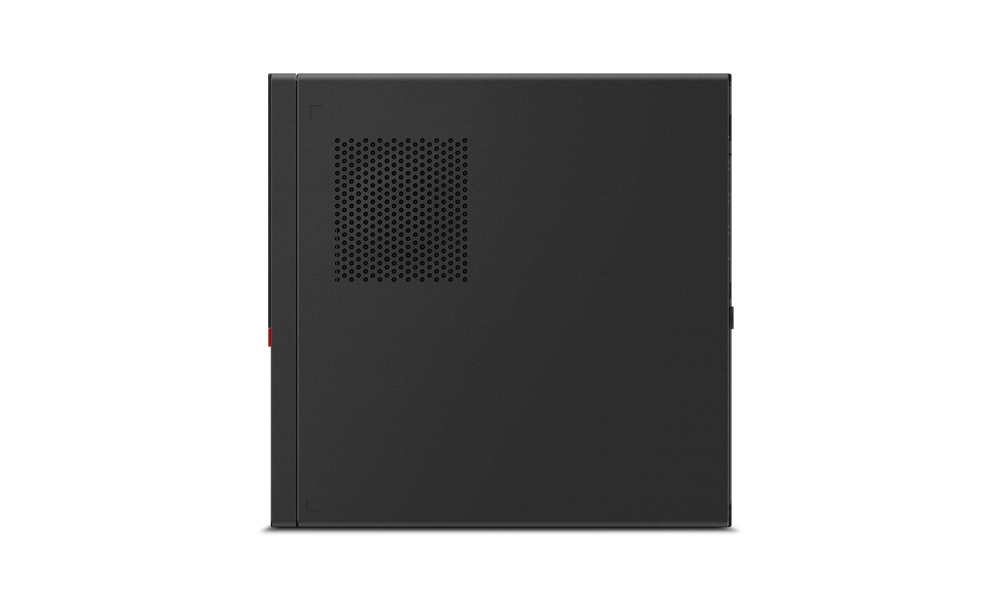

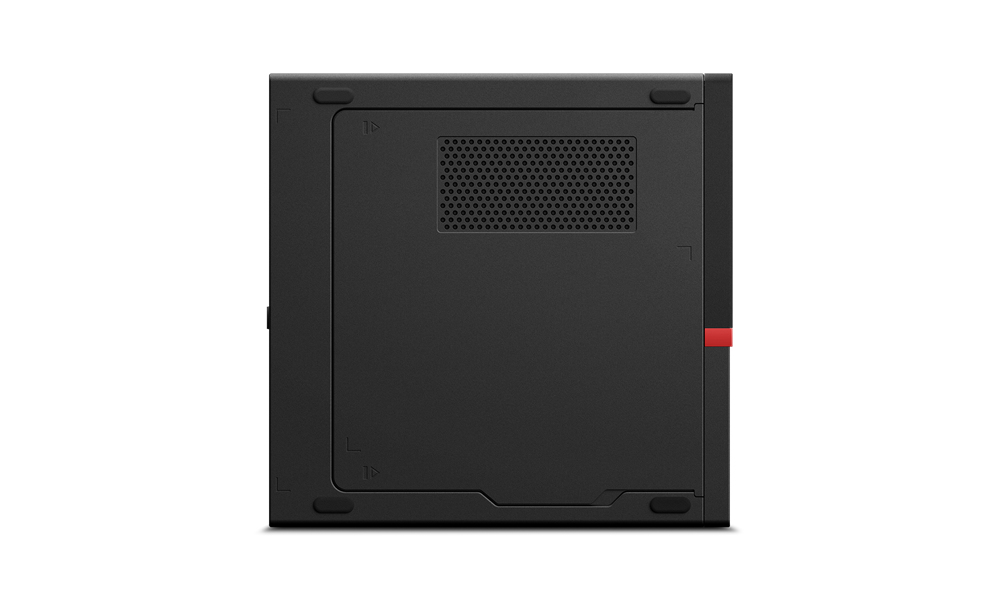

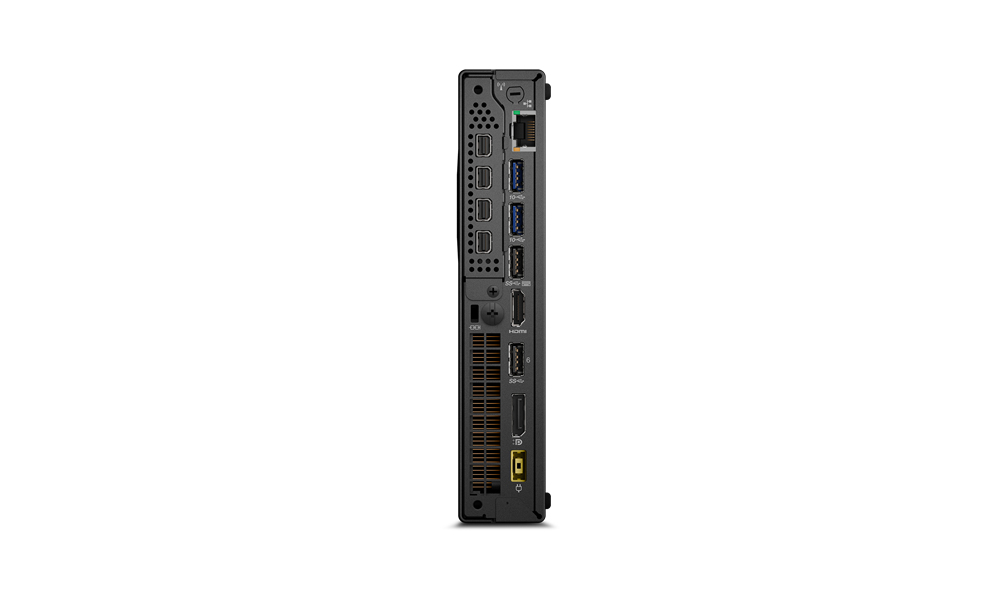

Lenovo ThinkStation P330 Intel® Core™ i7 i7-9700T 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® Quadro® P620 Windows 10 Pro Mini PC Workstation Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 182.9 mm
- Wi-Fi
- Y
- Width
- 36.5 mm
- Height
- 179 mm
- Volume
- Y
- Weight
- 1400 g
- Non-ECC
- Y
- DVI port
- N
- 64-bit support
- Y
1 / 6
Shopping actions
Overview
The Lenovo ThinkStation P330 Intel® Core™ i7 i7-9700T 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® Quadro® P620 Windows 10 Pro Mini PC Workstation Black features Intel Core i7 processor, 8 cores, up to 4.3 GHz boost and 2 GB of video memory. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
12 MB
Cores
8
Model
i7-9700T
Processor line
Intel Core i7
Socket
LGA 1151 (Socket H4)
Threads
8
Clock speed
2 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
4.3 GHz
CPU operating modes
64-bit
TDP
35 W
Memory
2 SPECS
Capacity
16 GB
Memory type
DDR4-SDRAM
Physical
6 SPECS
Depth
182.9 mm
Width
36.5 mm
Height
179 mm
Weight
1400 g
Product type
Workstation
Colour
Black
Ports & Connectivity
4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
0
Ethernet ports
1
Graphics
2 SPECS
Memory clock
2666 MHz
VRAM
2 GB
Storage
2 SPECS
Capacity
1 TB
Storage
1 TB
General
111 SPECS
Wi-Fi
Yes
Volume
1
Non-ECC
Yes
DVI port
No
64-bit support
Yes
Bluetooth
Yes
Tjunction
100
Audio chip
Realtek ALC233
Idle power states
Yes
Scalability
1S
Antenna type
2x2
Audio system
High Definition Audio
Chassis type
Mini PC
Ethernet LAN
Yes
Intel TSX-NI
Yes
Memory slots
2x SO-DIMM
Power supply
135
Microphone input
Yes
On/off button
Yes
Storage media
SSD
Mouse included
Yes
Memory channels
Dual-channel
Bus speed
8 GT/s
Wi-Fi standard
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Intel® OS Guard
Yes
Intel ARK ID
191048
Bluetooth version
5.0
Headphone outputs
1
Keyboard included
Yes
Cabling technology
10/100/1000Base-T(X)
Intel® Secure Key
Yes
Operating altitude
-15.2 - 3048
Optical drive type
No
Codename
Coffee Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Execute Disable (NX)
Yes
Chipset
Intel Q370
Password protection
Yes
Placement supported
Horizontal/Vertical
Total SSDs capacity
1000
Generation
Intel Core i7-9xxx
Water cooling system
No
Configurable TDP-down
25
WLAN controller model
Intel Dual Band Wireless-AC 9560
Card reader
No
Dedicated graphics
Yes
Non-operating altitude
-15.2 - 10668
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Ethernet LAN data rates
10,100,1000
Optical drives quantity
0
Combo headphone/mic port
Yes
Number of SSDs installed
1
Password protection type
Power on
On-board graphics card ID
0x3E98
PCI Express slots version
3.0
Storage temperature
-40 - 60
Long-term availability
No
Operating system
Windows 10 Pro
PCI Express configurations
1x16,2x8,1x8+2x4
Power supply input voltage
100 - 240
Instruction sets
SSE4.1,SSE4.2,AVX 2.0
VGA ports
0
Operating temperature
10 - 35
Eco certifications
EPEAT Gold,ENERGY STAR
Dedicated GPU model
NVIDIA Quadro P620
Intel Clear Video Technology
Yes
Integrated GPU model
Intel UHD Graphics 630
Thunderbolt 3 ports quantity
0
On-board graphics card family
Intel UHD Graphics
OS architecture
64-bit
Trusted Platform Module (TPM)
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2015A
Configurable TDP-down frequency
1.5
Storage relative humidity (H-H)
20 - 90
Thermal monitoring
Yes
Number of discrete graphics cards
1
Operating humidity
20 - 80
Trusted Execution (TXT)
Yes
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM
Maximum on-board graphics card memory
64
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2666
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
41.6
Maximum internal memory supported by processor
128
On-board graphics card dynamic frequency (max)
1200
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
