MPN:
30D10008US

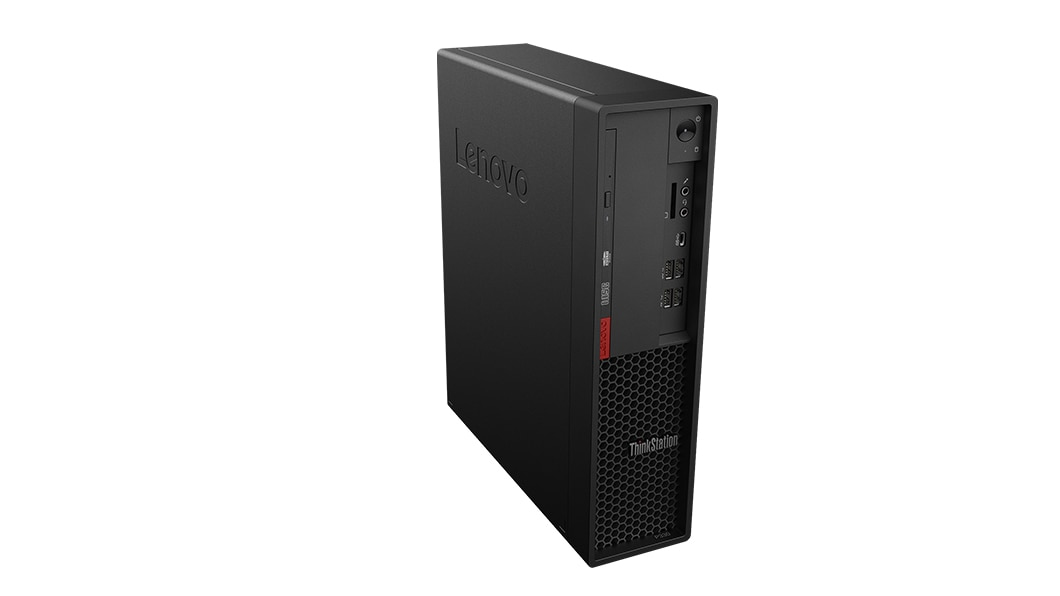

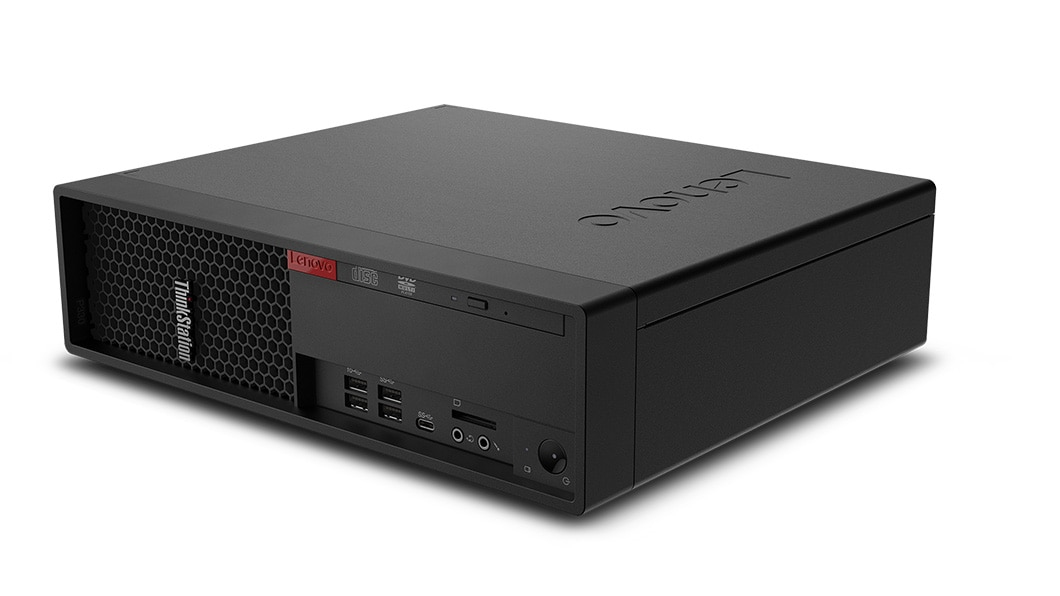

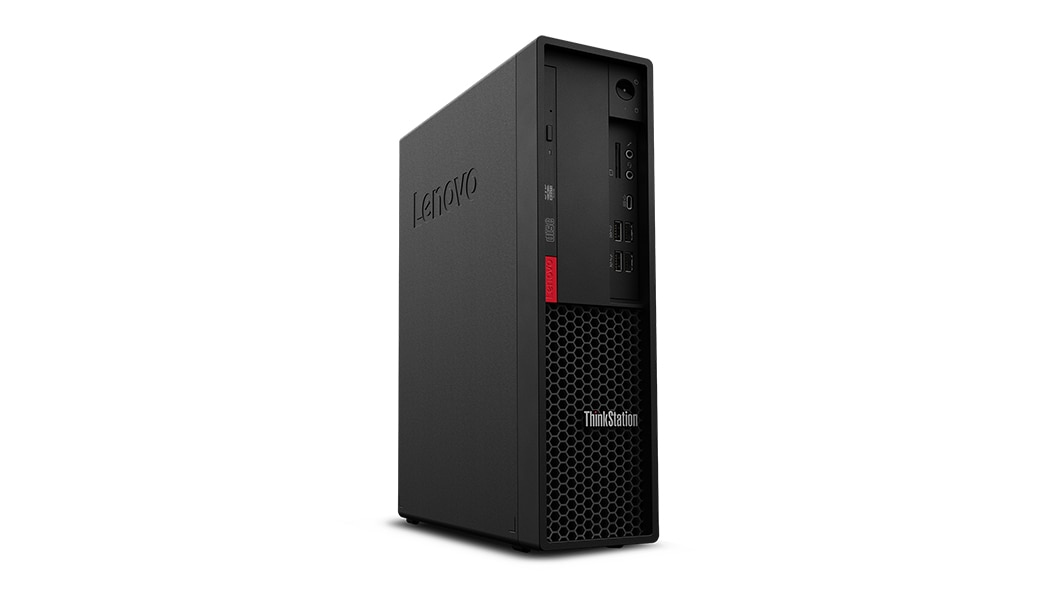

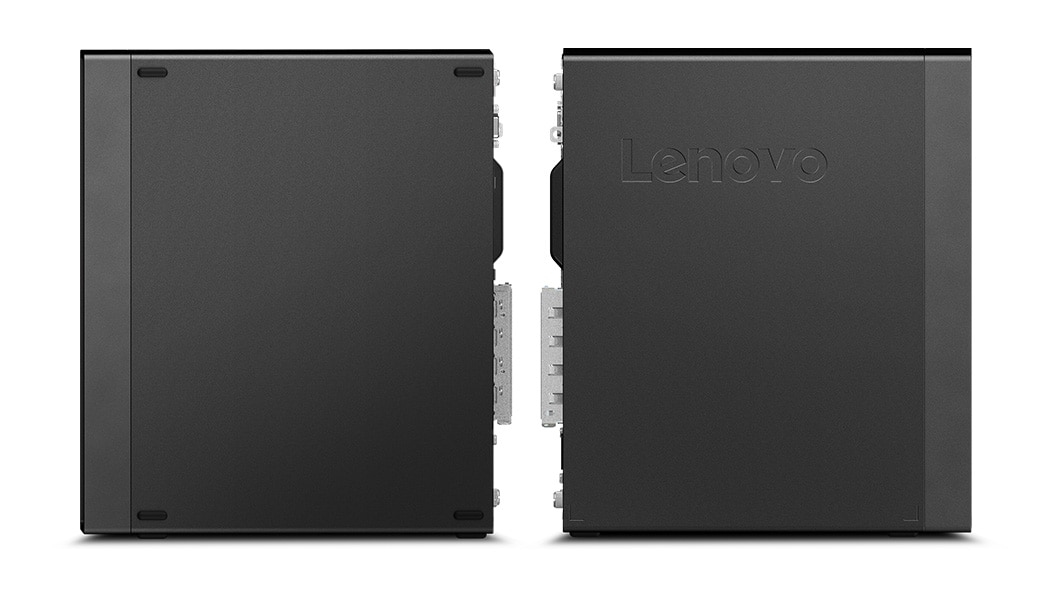

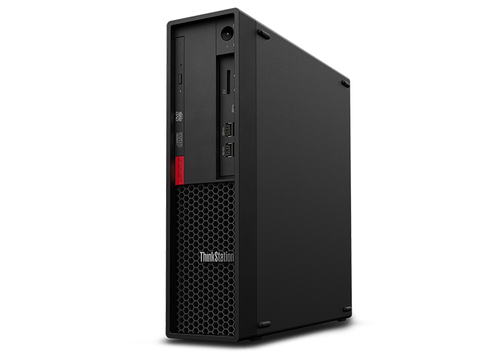

Lenovo ThinkStation P330 Intel® Core™ i5 i5-9400 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF Workstation Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 305.6 mm
- Wi-Fi
- N
- Width
- 92.5 mm
- Height
- 343.5 mm
- Manual included
- Y
- Volume
- 8.4
- Weight
- 6000 g
- Non-ECC
- Y
- Bus type
- DMI3
1 / 7
Shopping actions
Overview
The Lenovo ThinkStation P330 Intel® Core™ i5 i5-9400 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF Workstation Black features Intel Core i5 processor, 6 cores, up to 4.1 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Cache
9 MB
Cores
6
Model
i5-9400
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
6
Clock speed
2.9 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Front side bus
2666 MHz
Boost clock
4.1 GHz
CPU operating modes
64-bit
TDP
65 W
Ports & Connectivity
2 SPECS
USB 2.0 ports
2
Ethernet ports
1
Physical
6 SPECS
Depth
305.6 mm
Width
92.5 mm
Height
343.5 mm
Weight
6000 g
Product type
Workstation
Colour
Black
Memory
3 SPECS
Capacity
8 GB
Memory type
DDR4-SDRAM
Max memory
64 GB
Storage
2 SPECS
Capacity
256 GB
Storage
256 GB
Graphics
1 SPEC
Memory clock
2666 MHz
General
104 SPECS
Wi-Fi
No
Manual included
Yes
Volume
8.4
Non-ECC
Yes
Bus type
DMI3
DVI port
No
64-bit support
Yes
Line-out
Yes
Tjunction
100
Audio chip
Realtek ALC233
Idle power states
Yes
Scalability
1S
Audio system
High Definition Audio
Chassis type
SFF
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
4x DIMM
Power supply
260
Microphone input
Yes
SSD interface
M.2
Storage media
SSD
Memory channels
Dual-channel
Bus speed
8 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
134898
Headphone outputs
1
Cabling technology
10/100/1000Base-T(X)
Intel® Secure Key
Yes
Operating altitude
-15.2 - 3048
Optical drive type
No
Codename
Coffee Lake
Execute Disable (NX)
Yes
Chipset
Intel C246
Password protection
Yes
Placement supported
Horizontal/Vertical
Intel TSX-NI version
0.00
Generation
Intel Core i5-9xxx
Card reader
Yes
Dedicated graphics
No
Non-operating altitude
-15.2 - 10668
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compatible memory cards
SD
Compliance certificates
RoHS
Ethernet LAN data rates
10,100,1000
Combo headphone/mic port
Yes
Number of SSDs installed
1
Password protection type
Power on,Supervisor
Intel Enhanced Halt State
Yes
On-board graphics card ID
0X3E98/x92
PCI Express slots version
3.0
Storage temperature
-10 - 60
Long-term availability
No
Operating system
Windows 10 Pro
PCI Express configurations
1x8+2x4,1x16,2x8
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
Operating temperature
10 - 35
Eco certifications
EPEAT Gold,ENERGY STAR
Intel Clear Video Technology
Yes
Memory layout (slots x size)
1 x 8
Integrated GPU model
Intel UHD Graphics 630
Thunderbolt 3 ports quantity
0
On-board graphics card family
Intel UHD Graphics
OS architecture
64-bit
Trusted Platform Module (TPM)
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2015C
Storage relative humidity (H-H)
20 - 90
Thermal monitoring
Yes
Operating humidity
30 - 90
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM
Maximum on-board graphics card memory
64
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2666
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
41.6
Maximum internal memory supported by processor
128
On-board graphics card dynamic frequency (max)
1050
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
