MPN:
30AT0050MT-K620

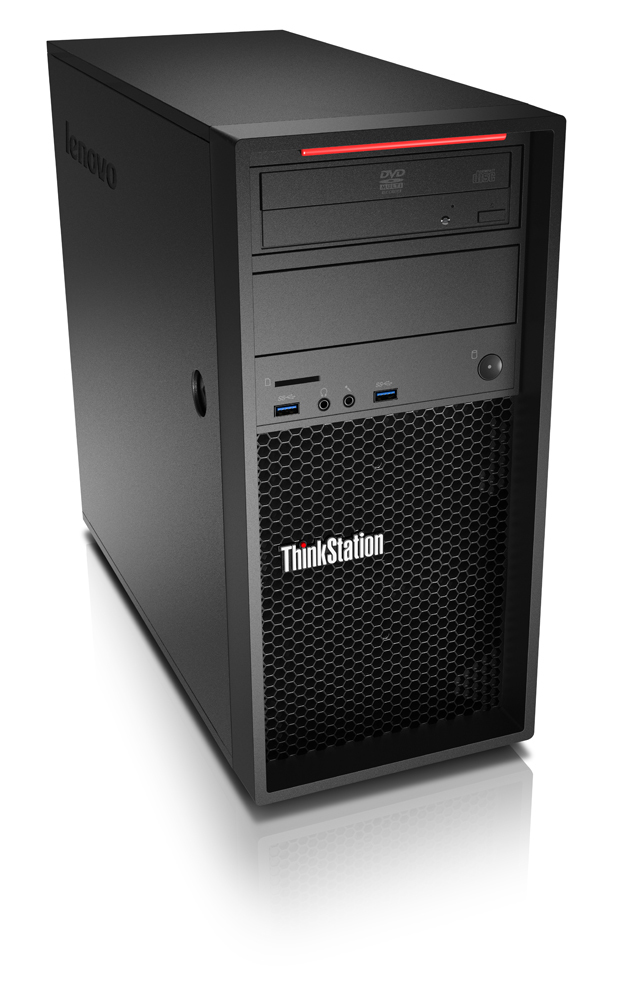

Lenovo ThinkStation P310 Intel® Xeon® E3 v5 E3-1245V5 DDR4-SDRAM NVIDIA® Quadro® K620 Windows 10 Pro Tower Workstation Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 426 mm
- Wi-Fi
- N
- Width
- 175 mm
- Height
- 376 mm
- Manual included
- Y
- Weight
- 13000 g
- Line-in
- Y
- Non-ECC
- Y
- Bus type
- DMI3
1 / 4
Shopping actions
Overview
The Lenovo ThinkStation P310 Intel® Xeon® E3 v5 E3-1245V5 DDR4-SDRAM NVIDIA® Quadro® K620 Windows 10 Pro Tower Workstation Black features Intel Xeon E3 v5 processor, 4 cores, up to 3.9 GHz boost and 2 GB of video memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
R0
Cache
8 MB
Cores
4
Model
E3-1245V5
Processor line
Intel Xeon E3 v5
Socket
LGA 1151 (Socket H4)
Threads
8
Clock speed
3.5 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.9 GHz
CPU operating modes
64-bit
TDP
80 W
Memory
2 SPECS
Memory type
DDR4-SDRAM
Max memory
64 GB
Physical
6 SPECS
Depth
426 mm
Width
175 mm
Height
376 mm
Weight
13000 g
Product type
Workstation
Colour
Black
Ports & Connectivity
4 SPECS
HDMI ports
0
DisplayPorts quantity
2
USB 2.0 ports
2
Ethernet ports
1
Graphics
2 SPECS
Memory clock
2133 MHz
VRAM
2 GB
General
108 SPECS
Wi-Fi
No
Manual included
Yes
Line-in
Yes
Non-ECC
Yes
Bus type
DMI3
DVI port
No
64-bit support
Yes
Line-out
Yes
Audio chip
Realtek ALC662
Idle power states
Yes
RAID levels
0,1,5,10
Scalability
1S
Audio system
High Definition Audio
Chassis type
Tower
Ethernet LAN
Yes
Intel TSX-NI
Yes
Memory slots
4x DIMM
RAID support
Yes
Certifications
GreenGuard
Microphone input
Yes
Mouse included
Yes
Included cables
AC
Memory channels
Dual-channel
Bus speed
8 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
88173
Processor series
Intel Xeon E3-1200 v5
Headphone outputs
1
Keyboard included
Yes
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
Yes
Intel® Secure Key
Yes
Optical drive type
DVD±RW
Codename
Skylake
AC adapter included
Yes
Execute Disable (NX)
Yes
Chipset
Intel C236
Number of 3.5" bays
2
Placement supported
Vertical
Intel TSX-NI version
1.00
Number of 5.25" bays
2
Serial ports
1
Card reader
Yes
Dedicated graphics
Yes
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Optical drives quantity
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x191D
PCI Express slots version
3.0
ECC memory support
Yes
Long-term availability
No
Graphics & IMC lithography
14
Operating system
Windows 10 Pro
PCI Express configurations
1x16,1x8+2x4,2x8
Power supply input voltage
100 - 240
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
VGA ports
1
Compatible processor series
Intel Core i3,Intel Core i5,Intel Core i7
Eco certifications
EPEAT Gold,ENERGY STAR
Dedicated GPU model
NVIDIA Quadro K620
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics P530
Power supply input frequency
50 - 60
Thunderbolt 3 ports quantity
0
Number of SATA III connectors
5
On-board graphics card family
Intel HD Graphics
Trusted Platform Module (TPM)
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
Thermal monitoring
Yes
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Maximum on-board graphics card memory
1
Memory voltage supported by processor
1.35
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
400
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel® Wireless Display (Intel® WiDi)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1333,1600,1866,2133
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1150
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
