MPN:
30AH004MUS

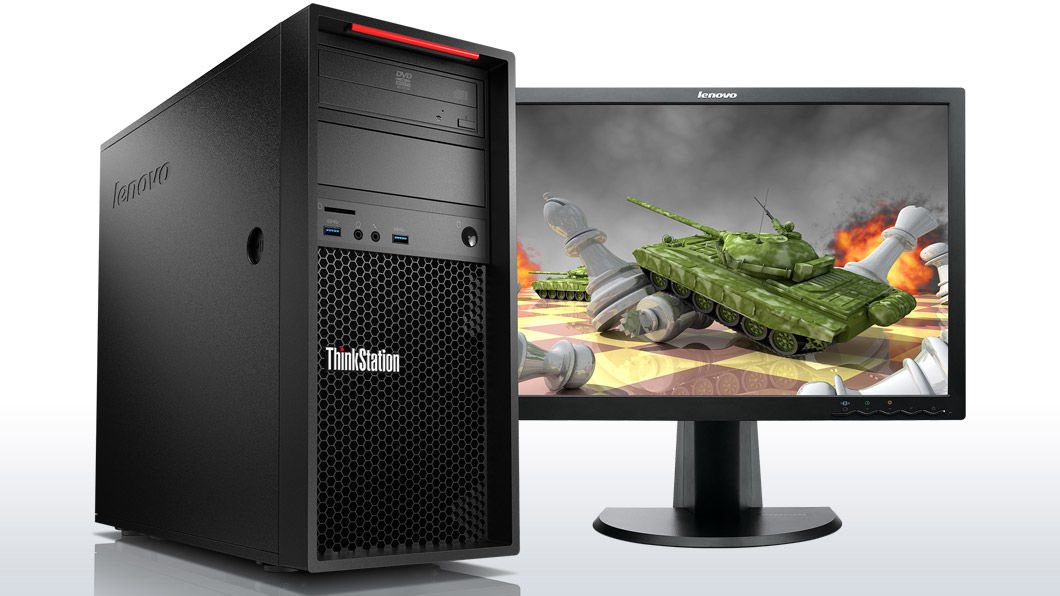

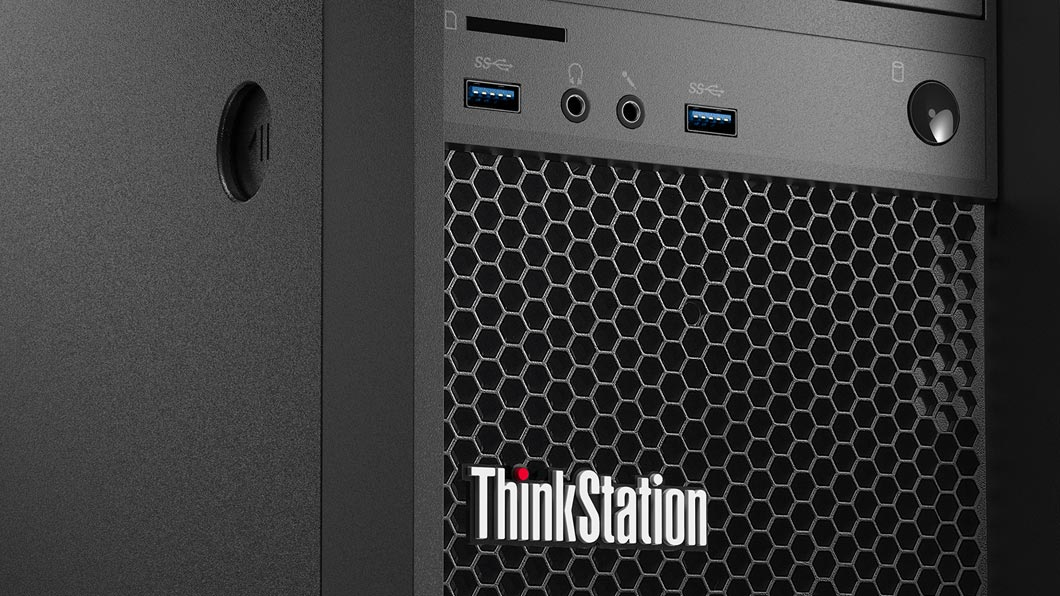

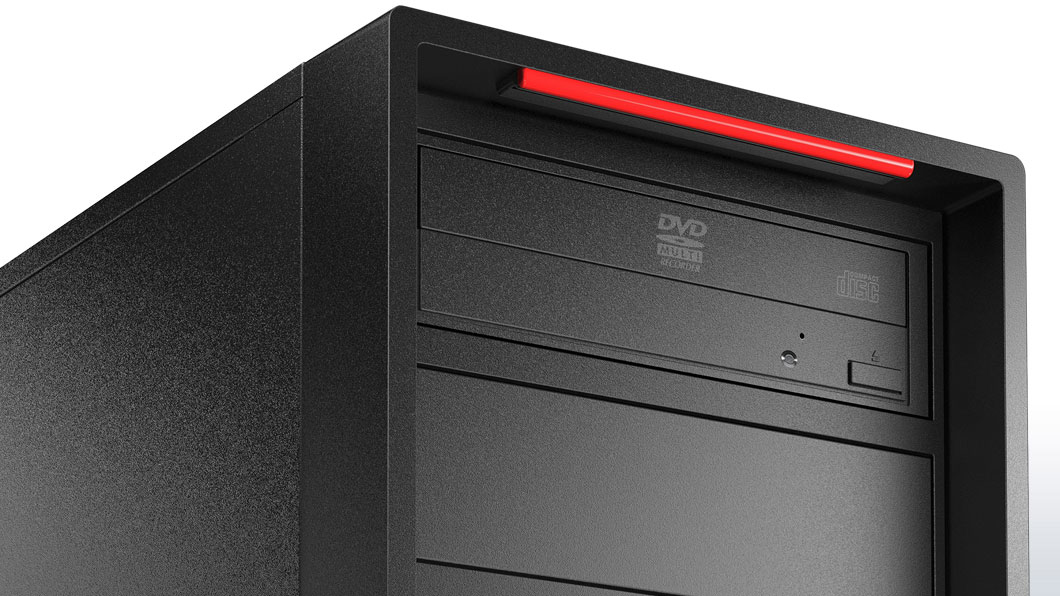

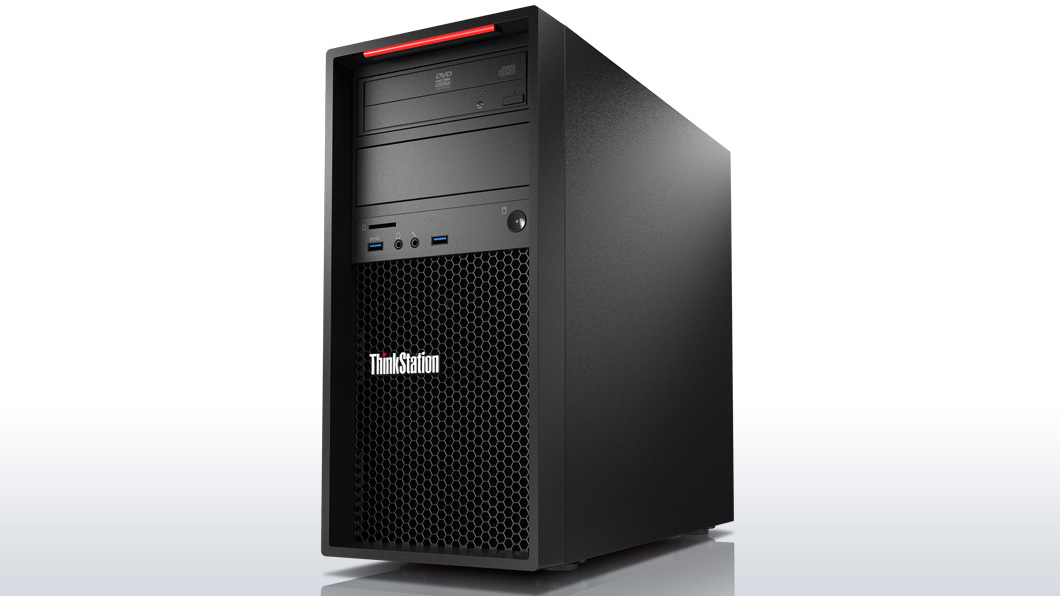

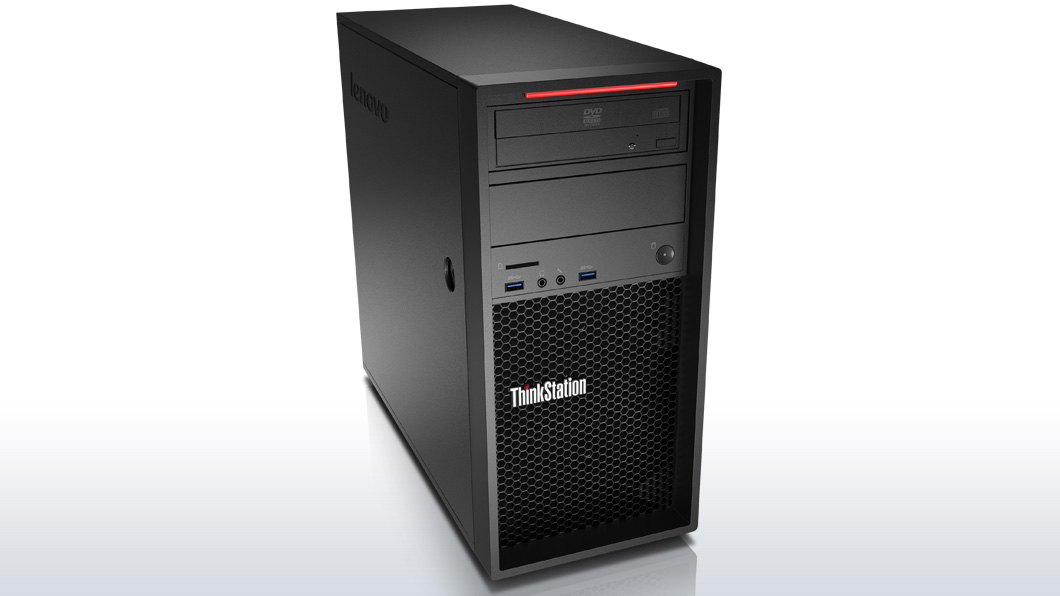

Lenovo ThinkStation P300 Tower Intel® Xeon® E3 V3 Family E3-1241V3 8 GB DDR3-SDRAM 1 TB HDD NVIDIA® Quadro® K620 Windows 7 Professional Workstation Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 426 mm
- Width
- 175 mm
- Height
- 376 mm
- Weight
- 13000 g
- Line-in
- Y
- Non-ECC
- Y
- Bus type
- DMI2
- Drive form factor
- 3.5
- 64-bit support
- Y
1 / 8
Shopping actions
Overview
The Lenovo ThinkStation P300 Tower Intel® Xeon® E3 V3 Family E3-1241V3 8 GB DDR3-SDRAM 1 TB HDD NVIDIA® Quadro® K620 Windows 7 Professional Workstation Black features Intel Xeon E3 v3 processor, 4 cores, up to 3.9 GHz boost and 2 GB of video memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
C0
Cache
8 MB
Cores
4
Model
E3-1241V3
Processor line
Intel Xeon E3 v3
Socket
LGA 1150 (Socket H3)
Threads
8
Clock speed
3.5 GHz
Cache level
Smart Cache
Process node
22 nm
CPU brand
Intel
Boost clock
3.9 GHz
CPU operating modes
32-bit,64-bit
TDP
80 W
Graphics
2 SPECS
Memory clock
1600 MHz
VRAM
2 GB
Physical
6 SPECS
Depth
426 mm
Width
175 mm
Height
376 mm
Weight
13000 g
Product type
Workstation
Colour
Black
Memory
3 SPECS
Capacity
8 GB
Memory type
DDR3-SDRAM
Max memory
32 GB
Ports & Connectivity
3 SPECS
DisplayPorts quantity
2
USB 2.0 ports
2
Ethernet ports
1
Storage
2 SPECS
Capacity
1 TB
Storage
1 TB
General
79 SPECS
Line-in
Yes
Non-ECC
Yes
Bus type
DMI2
Drive form factor
3.5
64-bit support
Yes
Line-out
Yes
Spindle speed
7200 rpm
Idle power states
Yes
Scalability
1S
Chassis type
Tower
Ethernet LAN
Yes
Intel TSX-NI
Yes
Memory slots
4x DIMM
Power supply
280
Drive interface
SATA III
Microphone input
Yes
Storage media
HDD
Memory channels
Dual-channel
Bus speed
5 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
80909
Processor series
Intel Xeon E3-1200 v3
Headphone outputs
1
Intel® Secure Key
Yes
Optical drive type
DVD±RW
Codename
Haswell
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Number of QPI links
0
Intel TSX-NI version
1.00
Serial ports
1
Card reader
Yes
Dedicated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
No
Intel Fast Memory Access
Yes
Intel Flex Memory Access
Yes
Number of HDDs installed
1
Intel Enhanced Halt State
Yes
PCI Express slots version
3.0
ECC memory support
Yes
Long-term availability
No
Graphics & IMC lithography
22
Operating system
Windows 7 Professional
PCI Express configurations
1x8,2x8,1x8+2x4
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
VGA ports
1
Eco certifications
EPEAT Gold,ENERGY STAR
Dedicated GPU model
NVIDIA Quadro K620
Memory layout (slots x size)
1 x 8
Integrated GPU model
Not available
OS architecture
64-bit
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2013D
Thermal monitoring
Yes
Intel I/O Acceleration Technology
Yes
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
PCIe lanes
16
Memory types supported by processor
DDR3-SDRAM
Virtualization (VT-x)
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
Yes
Memory clock speeds supported by processor
1333,1600
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
25.6
Maximum internal memory supported by processor
32
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
Intel Stable Image Platform Program (SIPP) version
1.00
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
