Lenovo logo MPN: 30GU002FUS

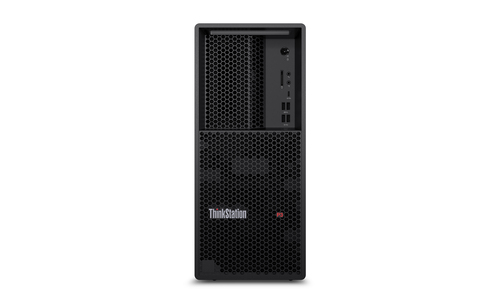

Lenovo ThinkStation P3 Intel® Core™ i9 i9-14900 128 GB DDR5-SDRAM 2 TB SSD NVIDIA RTX A4500 Windows 11 Pro Tower Workstation Black

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

NVMe
Y
Depth
370 mm
Wi-Fi
Y
Width
180 mm
Height
415 mm
Volume
27
Weight
13610 g
Line-out
Y
BIOS type
UEFI
View 108 specifications
1 / 9
Shopping actions
Check price on Amazon

Overview

Workstation might, desktop price

Designed by engineers for engineers, the Lenovo ThinkStation P3 Tower offers all the workhorse capabilities of a workstation for the price of a desktop. Built for tasks that require superior power and performance, it's equipped with Intel® Core™ processors with Intel vPro®, and supports professional NVIDIA® discrete graphics.

Delivering power & performance

The ThinkStation P3 Tower’s chassis has an advanced thermal design to promote extra power and performance, without overheating. It also comes with a choice of operating systems, including Windows 11 Pro and Linux®. In short, the P3 gives you the compute power to execute your visions, time and time again.

Configure it any which way

With three onboard DisplayPorts, plus the ability to configure up to eight more, the ThinkStation P3 Tower can support up to 12 independent displays. It also comes with a choice of operating systems, including Windows 11 Pro and Red Hat® Enterprise Linux®. And with heaps of speedy memory and SSD storage, plus five open PCIe slots, this workstation can be configured to tackle your most exacting workflows. It also comes with a USB mouse and keyboard.

Mission-critical performance, made easy

At the heart of every Lenovo ThinkStation is reliability. Proven to run in extreme conditions, the ThinkStation P3 Tower also boasts an array of independent software vendor (ISV) certifications. It's the perfect workstation for designers, engineers, and students looking for versatility, flexibility, and breakthrough performance to breeze through heavy workloads.

See the complete list of ISV certifications.

Security you can count on

The ThinkStation P3 Tower is protected with ThinkShield, a suite of hardware and software that work together to safeguard your workstation and data. This includes the discrete Trusted Platform Module (TPM) 2.0 to encrypt sensitive data, as well as various programs to prevent unauthorized access to the BIOS, plus self-healing software if the BIOS is corrupted or maliciously attacked. For extra peace of mind, it also supports Windows firmware updates.

Specifications may vary depending upon region / model.

Technical Specifications

Processor

8 SPECS
Cache
36 MB
Cores
24
Model
i9-14900
Processor line
Intel Core i9
Threads
32
Cache level
Smart Cache
CPU brand
Intel
Boost clock
5.8 GHz

Memory

3 SPECS
Capacity
128 GB
Memory type
DDR5-SDRAM
Max memory
128 GB

Graphics

2 SPECS
Memory clock
4400 MHz
VRAM
20 GB

Power

1 SPEC
Efficiency rating
80 PLUS Platinum

Physical

6 SPECS
Depth
370 mm
Width
180 mm
Height
415 mm
Weight
13610 g
Product type
Workstation
Colour
Black

Ports & Connectivity

4 SPECS
HDMI ports
1
DisplayPorts quantity
2
USB 2.0 ports
0
Ethernet ports
1

Storage

3 SPECS
Capacity
2 TB
Form factor
M.2
Storage
2 TB

General

81 SPECS
NVMe
Yes
Wi-Fi
Yes
Volume
27
Line-out
Yes
BIOS type
UEFI
Bluetooth
Yes
Audio chip
Realtek ALC897Q-CG
Antenna type
2x2
Audio system
High Definition Audio
Chassis type
Tower
Ethernet LAN
Yes
HDMI version
2.1
M.2 SSD size
2280 (22 x 80 mm)
Memory slots
4x DIMM
Power supply
750
Certifications
EPEAT Gold Registered ENERGY STAR 8.0 ErP Lot 3 TCO Certified 9.0 RoHS compliant
Microphone input
Yes
SSD interface
PCI Express 4.0
Storage media
SSD
LAN controller
Intel I219-LM
Mouse included
Yes
Security lock slot
Yes
Efficient cores
16
SSD memory type
TLC
Wi-Fi standard
Wi-Fi 6E (802.11ax)
Display included
No
Keyboard included
Yes
Performance cores
8
Cabling technology
10/100/1000Base-T(X)
Mouse connectivity
Wired
Number of speakers
1
Operating altitude
0 - 3048
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Built-in speaker(s)
Yes
DisplayPort version
1.4
Maximum turbo power
219
Chipset
Intel W680
Password protection
Yes
Placement supported
Vertical
Total SSDs capacity
2000
Cable lock slot type
Kensington
Processor base power
65
Generation
Intel Core i9-14xxx
Keyboard connectivity
Wired
WLAN controller model
Intel Wi-Fi 6E AX211
Card reader
Yes
Dedicated graphics
Yes
Non-operating altitude
0 - 12192
Integrated graphics
Yes
Ethernet LAN data rates
100,1000
Combo headphone/mic port
Yes
Number of SSDs installed
1
Password protection type
BIOS,Power on,Supervisor
Discrete GPU manufacturer
NVIDIA
On-board GPU manufacturer
Intel
Storage temperature
-40 - 60
Operating system
Windows 11 Pro
Power supply input voltage
100 - 240
Operating temperature
10 - 35
Dedicated GPU model
NVIDIA RTX A4500
Memory layout (slots x size)
4 x 32
Integrated GPU model
Intel UHD Graphics 770
Thunderbolt 3 ports quantity
0
WLAN controller manufacturer
Intel
Discrete graphics memory type
GDDR6
Efficient-core base frequency
1.5
On-board graphics card family
Intel UHD Graphics
OS architecture
64-bit
Trusted Platform Module (TPM)
Yes
Number of processors installed
1
Performance-core base frequency
2
Storage relative humidity (H-H)
10 - 90
Number of discrete graphics cards
1
Operating humidity
20 - 80
Efficient-core Max Turbo Frequency
4.3
Number of storage drives installed
1
Performance-core Max Turbo Frequency
5.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
