MPN:
RFED4UK

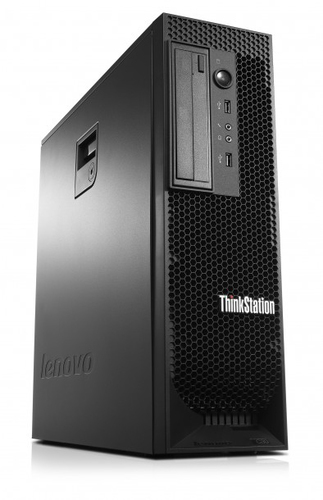

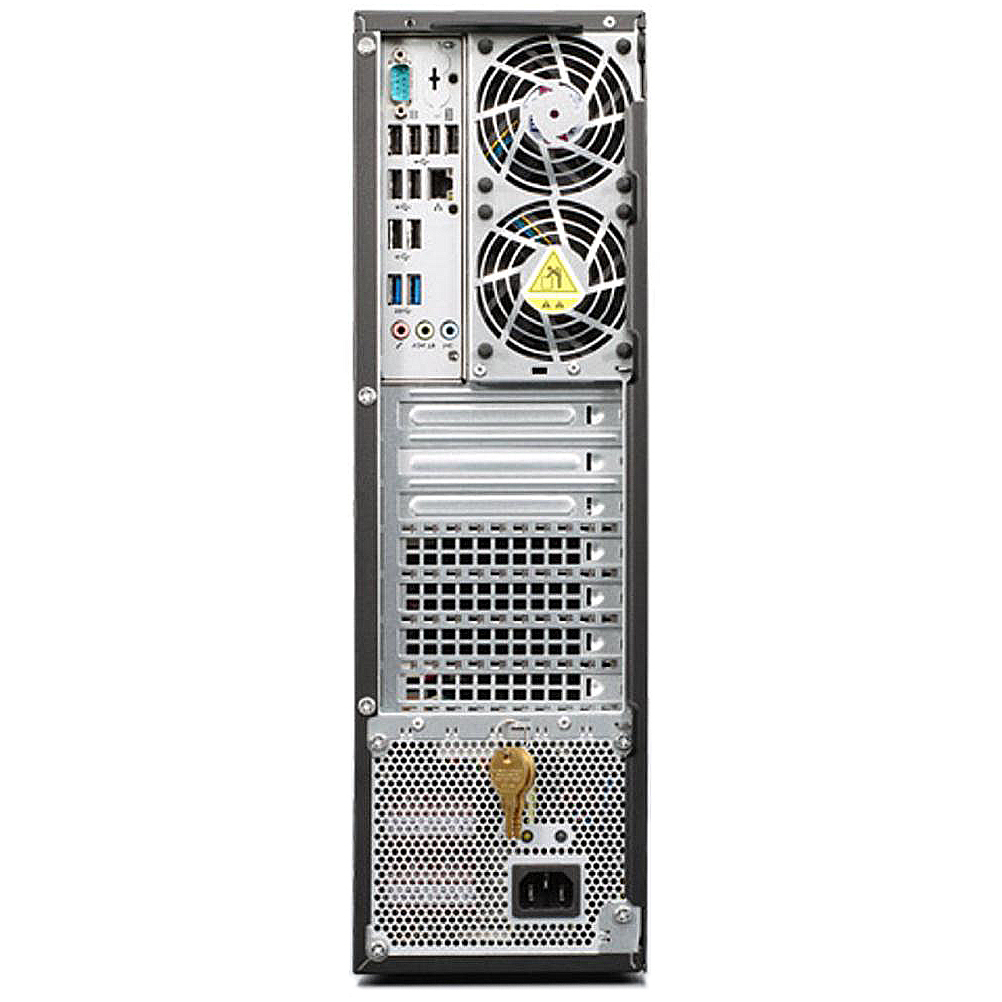

Lenovo ThinkStation C30 Intel® Xeon® E5 V2 Family E5-2630V2 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional SFF Workstation Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- ECC support
- Y
- Depth
- 130 mm
- Max case temperature (Tcase)
- 71 °C
- Wi-Fi
- N
- Width
- 427 mm
- Height
- 444 mm
- Weight
- 18500 g
- Line-in
- Y
- Bus type
- QPI
1 / 3
Shopping actions
Overview
The Lenovo ThinkStation C30 Intel® Xeon® E5 V2 Family E5-2630V2 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional SFF Workstation Black features Intel Xeon E5 v2 processor, 6 cores, up to 3.1 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
15 MB
Cores
6
Model
E5-2630V2
Processor line
Intel Xeon E5 v2
Socket
LGA 2011 (Socket R)
Threads
12
Clock speed
2.6 GHz
Cache level
Smart Cache
Process node
22 nm
CPU brand
Intel
Boost clock
3.1 GHz
CPU operating modes
64-bit
TDP
80 W
Ports & Connectivity
2 SPECS
USB 2.0 ports
10
Ethernet ports
1
Physical
6 SPECS
Depth
130 mm
Width
427 mm
Height
444 mm
Weight
18500 g
Product type
Workstation
Colour
Black
Memory
4 SPECS
ECC support
Yes
Capacity
8 GB
Memory type
DDR3-SDRAM
Max memory
64 GB
Storage
2 SPECS
Capacity
1 TB
Storage
1 TB
Graphics
1 SPEC
Memory clock
1333 MHz
General
105 SPECS
Max case temperature (Tcase)
71 °C
Wi-Fi
No
Line-in
Yes
Bus type
QPI
64-bit support
Yes
Line-out
Yes
PCI slots
2
FSB Parity
No
Idle power states
Yes
Scalability
2S
Audio system
HD
Chassis type
SFF
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
8x DIMM
Power supply
800
Drive interface
SATA
Microphone input
Yes
Storage media
HDD
Mouse included
No
Security lock slot
Yes
Memory channels
Quad-channel
Bus speed
7.2 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
75790
Processor series
Intel Xeon E5-2600 v2
Headphone outputs
1
Keyboard included
No
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
No
Intel® Secure Key
Yes
Optical drive type
DVD-RW
Codename
Ivy Bridge EP
Execute Disable (NX)
Yes
Chipset
Intel C602
Number of 3.5" bays
3
Number of QPI links
2
Cable lock slot type
Kensington
Intel FDI Technology
No
Intel TSX-NI version
0.00
Number of 5.25" bays
1
Water cooling system
No
Serial ports
1
Card reader
No
Integrated graphics
No
Processor package size
52.5 x 45
CPU configuration (max)
2
Compliance certificates
RoHS
Conflict-free minerals
No
Ethernet LAN data rates
10,100,1000
Optical drives quantity
1
Intel Fast Memory Access
No
Intel Flex Memory Access
No
Number of HDDs installed
1
Intel Enhanced Halt State
Yes
PCI Express slots version
3.0
ECC memory support
Yes
Long-term availability
Yes
Operating system
Windows 7 Professional
PCI Express configurations
x4, x8, x16
Instruction sets
AVX
Eco certifications
EPEAT Gold,ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
No
Intel Demand Based Switching
Yes
Memory layout (slots x size)
2 x 4
Integrated GPU model
Not available
OS architecture
64-bit
Intel Rapid Storage Technology
No
Intel Smart Connect Technology
No
Intel® InTru™ 3D Technology
No
Intel® Rapid Start Technology
No
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
PCI Express x4 (Gen 2.x) slots
1
PCI Express x16 (Gen 3.x) slots
3
Thermal monitoring
Yes
Physical Address Extension (PAE)
46
Intel® Smart Response Technology
No
Trusted Execution (TXT)
Yes
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
No
PCIe lanes
40
Memory types supported by processor
DDR3-SDRAM
Intel Dual Display Capable Technology
No
Virtualization (VT-x)
Yes
Intel® Wireless Display (Intel® WiDi)
No
Intel® My WiFi Technology (Intel® MWT)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
800,1066,1333,1600
Intel Identity Protection Technology version
0.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
51.2
Intel® Small Business Advantage (Intel® SBA)
No
Maximum internal memory supported by processor
768
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® Identity Protection Technology (Intel® IPT)
No
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
