MPN:
10MV000JUS

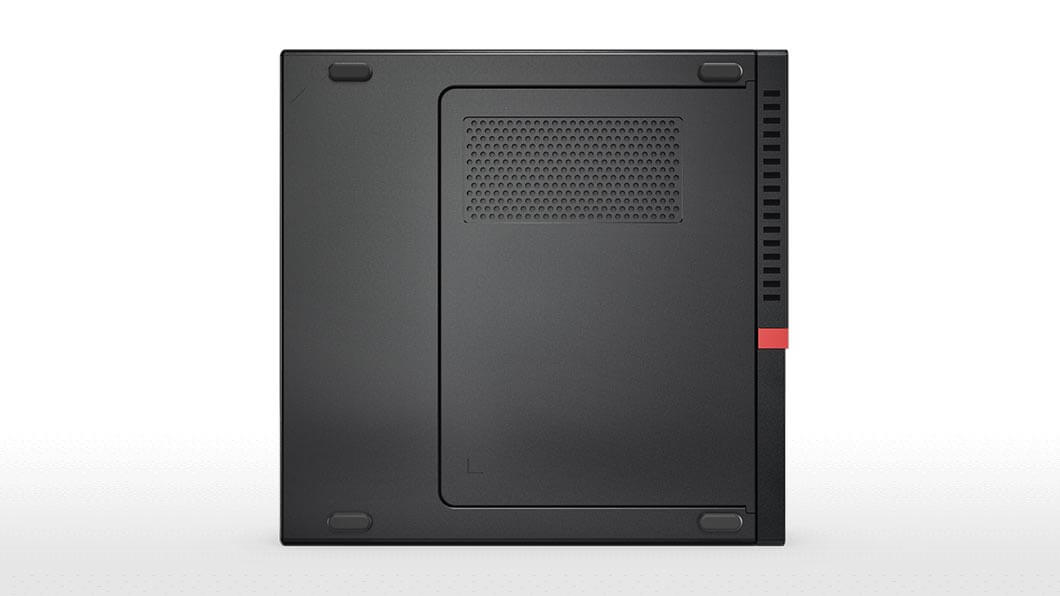

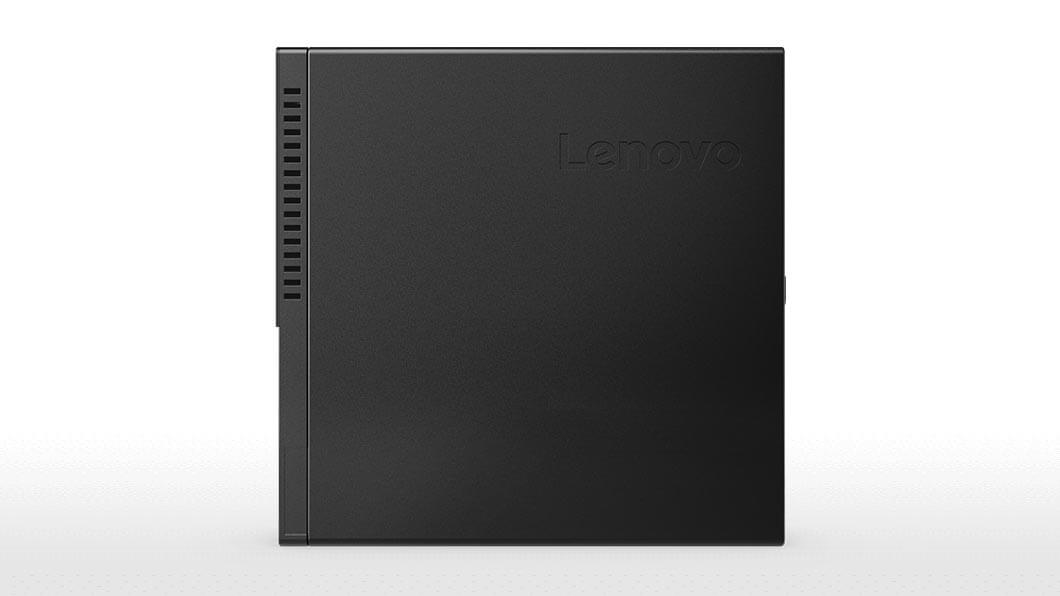

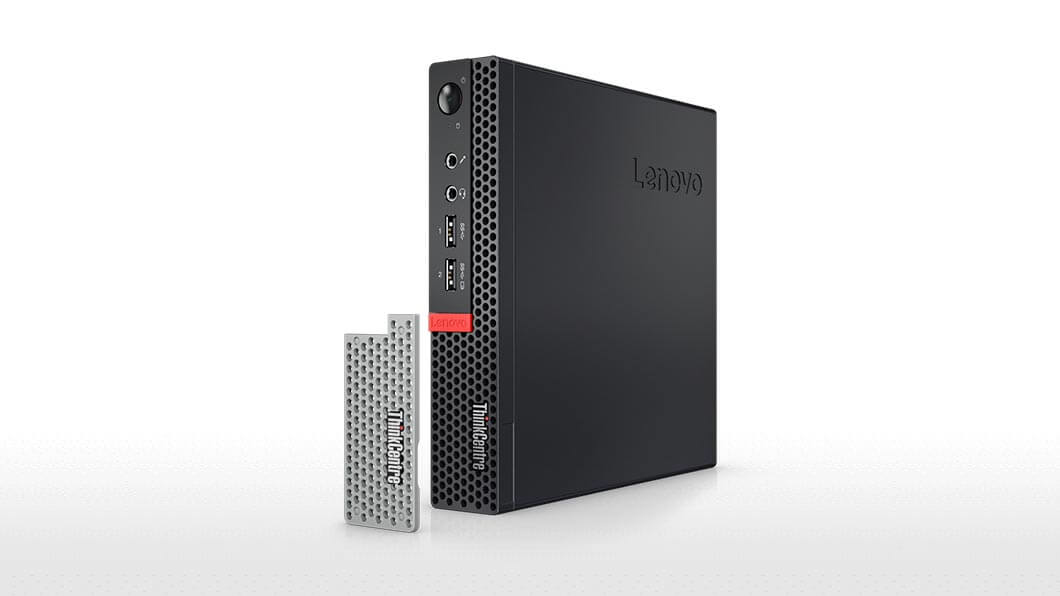

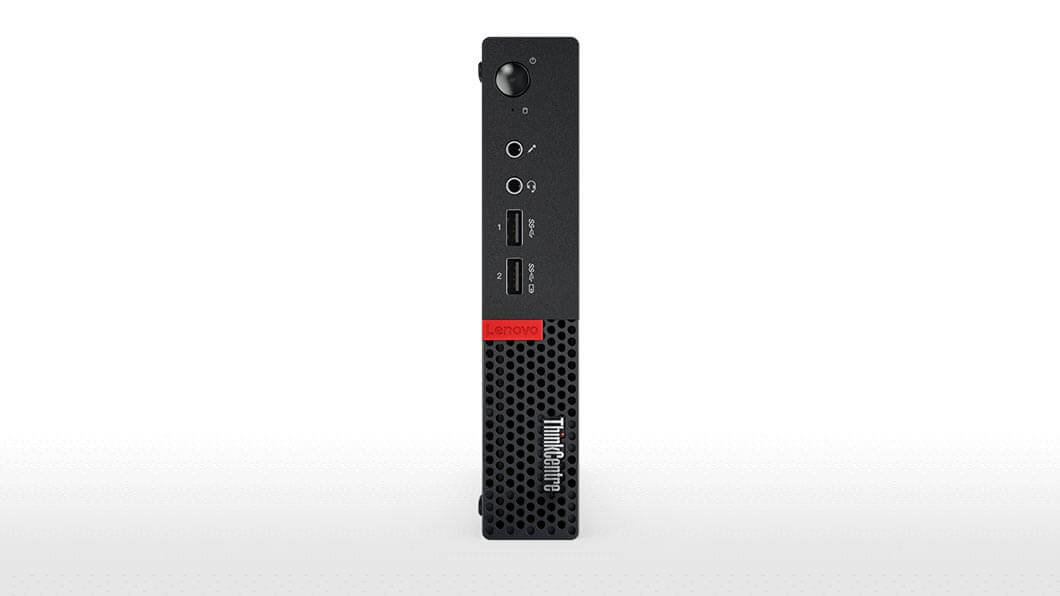

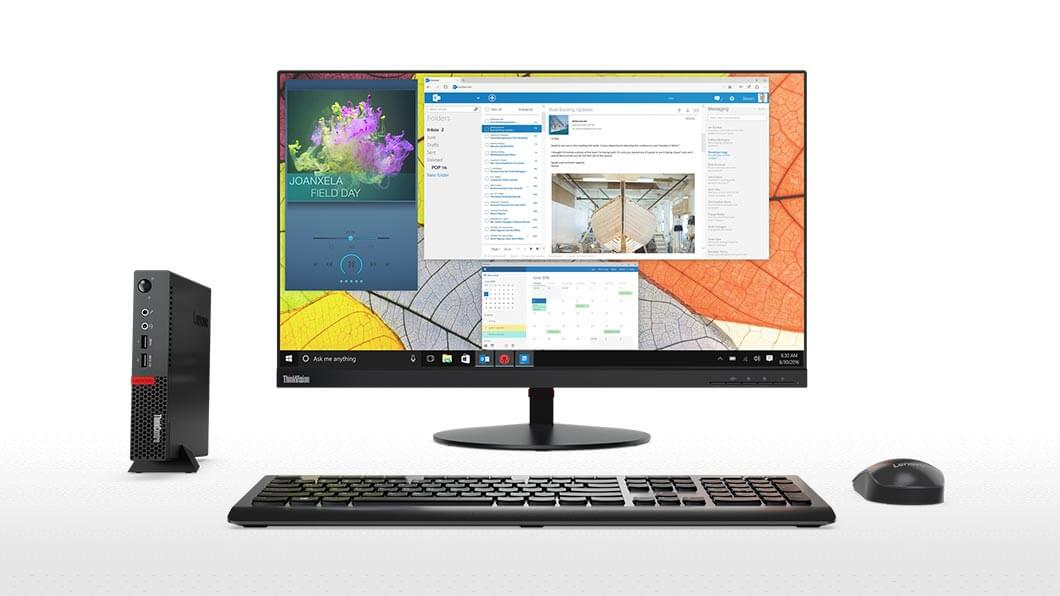

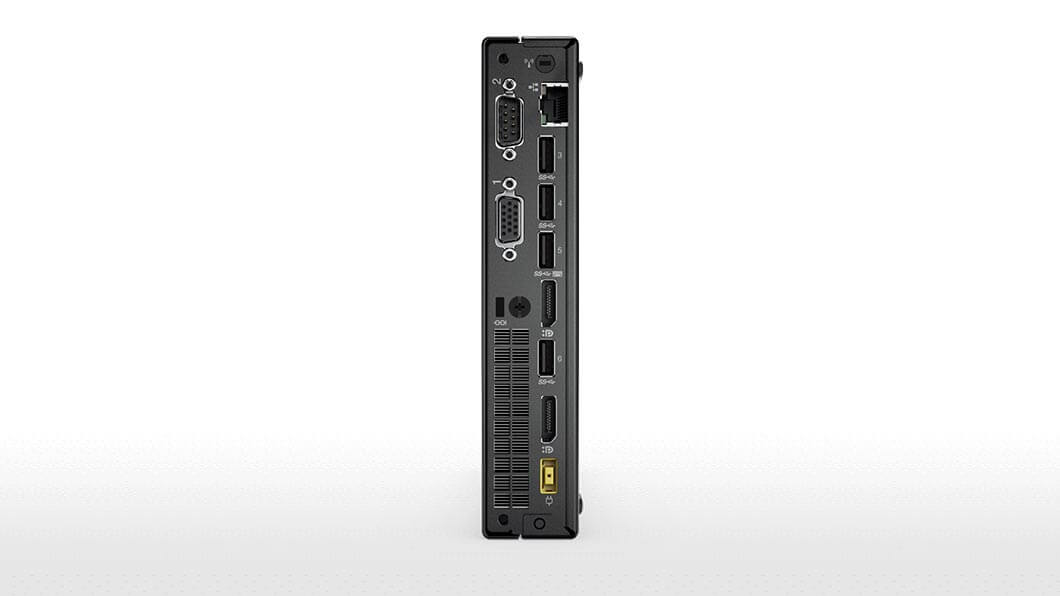

Lenovo ThinkCentre M910q Intel® Core™ i5 i5-7500T 4 GB DDR4-SDRAM 128 GB SSD Windows 10 Pro Mini PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 182.9 mm
- Wi-Fi
- Y
- Width
- 34.5 mm
- Height
- 179 mm
- Volume
- Y
- Weight
- 600 g
- Bus type
- DMI3
- 64-bit support
- Y
- Tjunction
- 80
1 / 8
Shopping actions
Overview
The Lenovo ThinkCentre M910q Intel® Core™ i5 i5-7500T 4 GB DDR4-SDRAM 128 GB SSD Windows 10 Pro Mini PC Black features Intel Core i5 processor, 4 cores, up to 3.3 GHz boost and 4 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
6 MB
Cores
4
Model
i5-7500T
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
4
Clock speed
2.7 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.3 GHz
CPU operating modes
64-bit
TDP
35 W
Storage
2 SPECS
Capacity
128 GB
Storage
128 GB
Physical
6 SPECS
Depth
182.9 mm
Width
34.5 mm
Height
179 mm
Weight
600 g
Product type
Mini PC (<= 3L)
Colour
Black
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR4-SDRAM
Max memory
32 GB
Ports & Connectivity
3 SPECS
DisplayPorts quantity
2
USB 2.0 ports
0
Ethernet ports
1
Graphics
1 SPEC
Memory clock
2400 MHz
General
80 SPECS
Wi-Fi
Yes
Volume
1
Bus type
DMI3
64-bit support
Yes
Tjunction
80
Idle power states
Yes
Scalability
1S
Chassis type
Mini PC
Intel TSX-NI
Yes
Power supply
65
SSD interface
M.2
Storage media
SSD
Memory channels
Dual-channel
Bus speed
8 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
97121
Bluetooth version
4.1
Intel® Secure Key
Yes
Optical drive type
No
Codename
Kaby Lake
Execute Disable (NX)
Yes
Number of QPI links
0
Placement supported
Horizontal/Vertical
Intel TSX-NI version
1.00
Generation
Intel Core i5-7xxx
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Conflict-free minerals
Yes
Combo headphone/mic port
Yes
Number of SSDs installed
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x5912
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
Yes
Operating system
Windows 10 Pro
PCI Express configurations
2x8,1x8+2x4
Instruction sets
AVX 2.0
Intel Clear Video Technology
Yes
Memory layout (slots x size)
1 x 4
Integrated GPU model
Intel HD Graphics 630
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Thermal solution specification
PCG 2015A
Configurable TDP-down frequency
1.7
Thermal monitoring
Yes
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Maximum on-board graphics card memory
64
Memory voltage supported by processor
1.35
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1333,1600,2133,2400
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1100
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
1.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
