MPN:
10MVS00X00

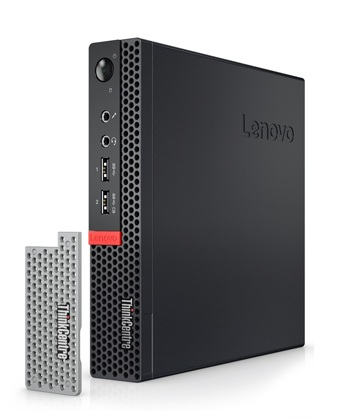

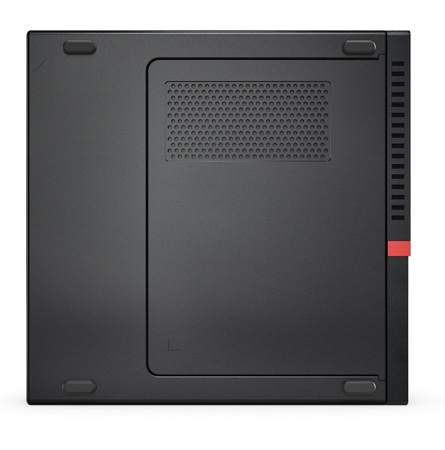

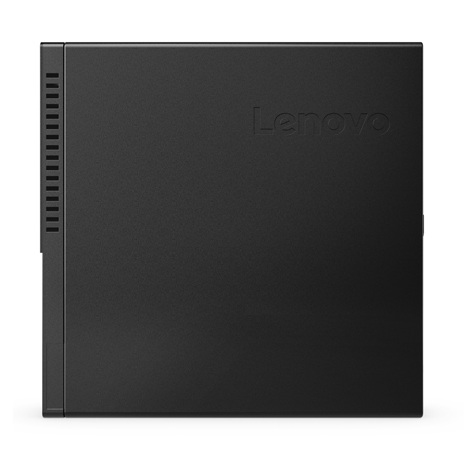

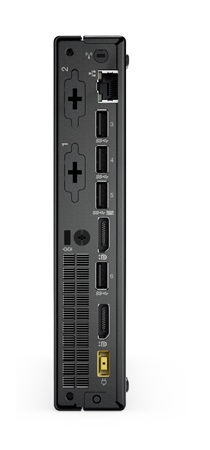

Lenovo ThinkCentre M910Q Intel® Core™ i5 i5-6400T 12 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Mini PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 182.9 mm
- Max case temperature (Tcase)
- 66 °C
- Width
- 179 mm
- Height
- 34.5 mm
- Manual included
- Y
- Volume
- Y
- Weight
- 1320 g
- Bus type
- DMI3
- DVI port
- N
1 / 6
Shopping actions
Overview
The Lenovo ThinkCentre M910Q Intel® Core™ i5 i5-6400T 12 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Mini PC Black features Intel Core i5 processor, 4 cores, up to 2.8 GHz boost and 12 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
R0
Cache
6 MB
Cores
4
Model
i5-6400T
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
4
Clock speed
2.2 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
2.8 GHz
CPU operating modes
64-bit
TDP
35 W
Storage
2 SPECS
Capacity
256 GB
Storage
256 GB
Physical
6 SPECS
Depth
182.9 mm
Width
179 mm
Height
34.5 mm
Weight
1320 g
Product type
Mini PC (<= 3L)
Colour
Black
Ports & Connectivity
4 SPECS
HDMI ports
0
DisplayPorts quantity
2
USB 2.0 ports
0
Ethernet ports
1
Memory
3 SPECS
Capacity
12 GB
Memory type
DDR4-SDRAM
Max memory
32 GB
Graphics
1 SPEC
Memory clock
2133 MHz
General
107 SPECS
Max case temperature (Tcase)
66 °C
Manual included
Yes
Volume
1
Bus type
DMI3
DVI port
No
64-bit support
Yes
Audio chip
ALC294
Idle power states
Yes
Scalability
1S
Chassis type
Mini PC
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2x SO-DIMM
Certifications
ErP Lot 3, GREENGUARD, TUV
Microphone input
Yes
SSD interface
SATA III
Storage media
SSD
Processor code
SR2BS
Memory channels
Dual-channel
Bus speed
8 GT/s
Display included
No
Drivers included
Yes
Intel® OS Guard
Yes
Intel ARK ID
88187
Processor series
Intel Core i5-6400 Desktop series
Headphone outputs
0
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
Yes
Intel® Secure Key
Yes
Codename
Skylake
Execute Disable (NX)
Yes
Chipset
Intel Q270
Password protection
Yes
Placement supported
Horizontal/Vertical
Intel TSX-NI version
0.00
Generation
Intel Core i5-6xxx
Card reader
No
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Combo headphone/mic port
Yes
Number of SSDs installed
1
Password protection type
HDD,Power on
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x1912
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
No
Graphics & IMC lithography
14
Operating system
Windows 10 Pro
PCI Express configurations
1x16,2x8,1x8+2x4
Power supply input voltage
100 - 240
Instruction sets
SSE4.2,AVX 2.0,SSE4.1
VGA ports
0
Eco certifications
EPEAT Gold,ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics 530
Power supply input frequency
50 - 60
Thunderbolt 3 ports quantity
0
OS architecture
64-bit
Trusted Platform Module (TPM)
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2015A
Thermal monitoring
Yes
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Maximum on-board graphics card memory
1.7
Memory voltage supported by processor
1.35
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
On-board graphics card burst frequency
950
Intel® Wireless Display (Intel® WiDi)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2133,1333,1600,1866
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Intel® Small Business Advantage (Intel® SBA)
Yes
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
950
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
