MPN:
10ED0000US

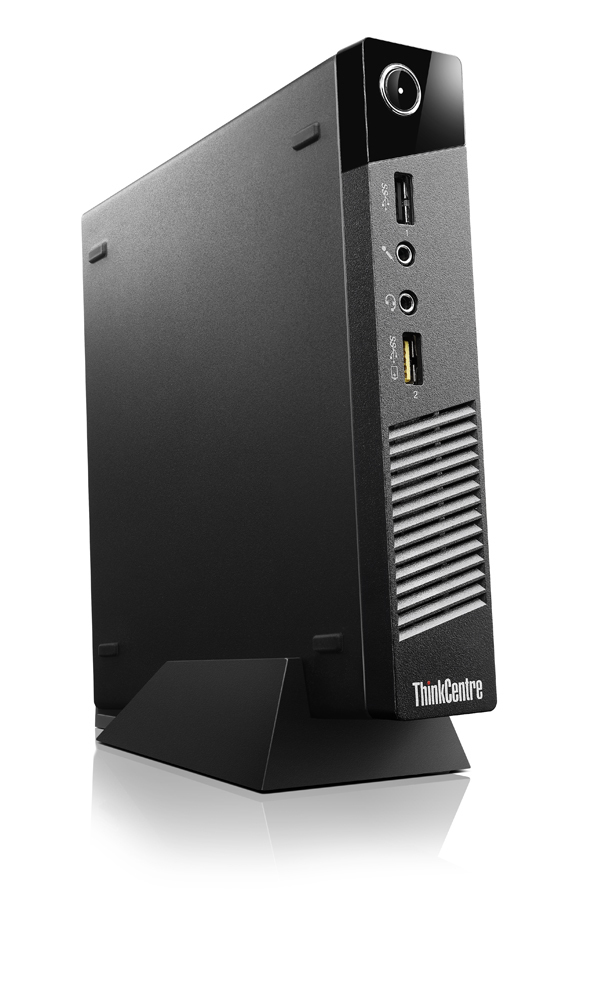

Lenovo ThinkCentre M53 Intel® Celeron® J1800 2 GB DDR3L-SDRAM 16 GB Flash Windows Embedded Standard 7 Mini PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 34.5 mm
- Wi-Fi
- Y
- Width
- 179 mm
- Height
- 182 mm
- Manual included
- Y
- Volume
- Y
- Weight
- 1300 g
- DVI port
- N
- 64-bit support
- Y
1 / 8
Shopping actions
Overview
The Lenovo ThinkCentre M53 Intel® Celeron® J1800 2 GB DDR3L-SDRAM 16 GB Flash Windows Embedded Standard 7 Mini PC Black features Intel Celeron processor, 2 cores, up to 2.58 GHz boost and 2 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
B3
Cache
1 MB
Cores
2
Model
J1800
Processor line
Intel Celeron
Socket
BGA 1170
Threads
2
Clock speed
2.41 GHz
Cache level
L2
Process node
22 nm
CPU brand
Intel
Boost clock
2.58 GHz
CPU operating modes
32-bit,64-bit
TDP
10 W
Graphics
1 SPEC
Memory clock
1600 MHz
Storage
1 SPEC
Storage
16 GB
Physical
6 SPECS
Depth
34.5 mm
Width
179 mm
Height
182 mm
Weight
1300 g
Product type
Mini PC (<= 3L)
Colour
Black
Ports & Connectivity
4 SPECS
HDMI ports
0
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
1
Memory
3 SPECS
Capacity
2 GB
Memory type
DDR3L-SDRAM
Max memory
8 GB
General
103 SPECS
Wi-Fi
Yes
Manual included
Yes
Volume
1
DVI port
No
64-bit support
Yes
Tjunction
105
FSB Parity
No
Audio system
HD
Chassis type
Mini PC
Ethernet LAN
Yes
Memory slots
1x SO-DIMM
Power supply
65
Microphone input
Yes
Storage media
Flash
Mouse included
Yes
Processor code
SR1SD
Stand included
Yes
Security lock slot
Yes
Included cables
AC
Memory channels
Dual-channel
Wi-Fi standard
802.11b,802.11g,Wi-Fi 4 (802.11n)
Display included
No
Intel ARK ID
78866
Processor series
Intel Celeron Processor J1000 series for Desktop
Headphone outputs
1
Keyboard included
Yes
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
No
Optical drive type
No
Codename
Bay Trail
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Execute Disable (NX)
Yes
Password protection
Yes
Placement supported
Horizontal/Vertical
Cable lock slot type
Kensington
Intel FDI Technology
No
Water cooling system
No
Intel segment tagging
Enterprise,Professional
Card reader
No
Integrated graphics
Yes
Processor package size
25 X 27
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Optical drives quantity
0
Intel Fast Memory Access
No
Intel Flex Memory Access
No
Password protection type
BIOS,User
Intel Enhanced Halt State
No
PCI Express slots version
2.0
ECC memory support
No
Long-term availability
No
Operating system
Windows Embedded Standard 7
PCI Express configurations
1x4
Power supply input voltage
100 - 240
VGA ports
1
Eco certifications
ENERGY STAR
Intel Clear Video Technology
No
Intel Demand Based Switching
No
Memory layout (slots x size)
1 x 2
Integrated GPU model
Intel HD Graphics
Power supply input frequency
50 - 60
On-board graphics card family
Intel HD Graphics
Intel Rapid Storage Technology
No
Intel Smart Connect Technology
No
Intel® InTru™ 3D Technology
No
Intel® Rapid Start Technology
No
Intel® Turbo Boost Technology
No
Number of processors installed
1
Thermal monitoring
No
Physical Address Extension (PAE)
36
Intel® Smart Response Technology
No
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
PCIe lanes
4
Memory types supported by processor
DDR3L-SDRAM
Intel Dual Display Capable Technology
No
On-board graphics card base frequency
688
Virtualization (VT-x)
Yes
Intel® Wireless Display (Intel® WiDi)
No
Intel® My WiFi Technology (Intel® MWT)
No
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
No
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
1333
Intel Identity Protection Technology version
0.00
Intel Small Business Advantage (SBA) version
0.00
Intel® AES New Instructions (Intel® AES-NI)
No
Intel® Small Business Advantage (Intel® SBA)
No
Intel® Virtualization Technology (Intel® VT)
VT-x
Maximum internal memory supported by processor
8
On-board graphics card dynamic frequency (max)
792
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Number of displays supported (on-board graphics)
2
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® Identity Protection Technology (Intel® IPT)
No
Directed I/O virtualization (VT-d)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
