MPN:
90HU00FSUK

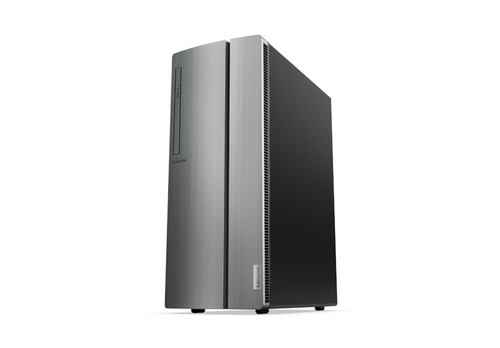

Lenovo IdeaCentre 510 Intel® Core™ i7 i7-9700 8 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Home Tower PC Black, Silver
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 285.2 mm
- Wi-Fi
- Y
- Width
- 145 mm
- Height
- 366.03 mm
- Volume
- 15
- Weight
- 5800 g
- DVI port
- N
- 64-bit support
- Y
- Bluetooth
- Y
1 / 7
Shopping actions
Overview
The Lenovo IdeaCentre 510 Intel® Core™ i7 i7-9700 8 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Home Tower PC Black, Silver features Intel Core i7 processor, 8 cores, up to 4.7 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
12 MB
Cores
8
Model
i7-9700
Processor line
Intel Core i7
Socket
LGA 1151 (Socket H4)
Threads
8
Clock speed
3 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
4.7 GHz
CPU operating modes
64-bit
TDP
65 W
Graphics
1 SPEC
Memory clock
2666 MHz
Storage
1 SPEC
Storage
1256 GB
Physical
6 SPECS
Depth
285.2 mm
Width
145 mm
Height
366.03 mm
Weight
5800 g
Product type
PC
Colour
Black,Silver
Memory
3 SPECS
Capacity
8 GB
Memory type
DDR4-SDRAM
Max memory
16 GB
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
4
Ethernet ports
1
General
101 SPECS
Wi-Fi
Yes
Volume
15
DVI port
No
64-bit support
Yes
Bluetooth
Yes
Tjunction
100
Audio chip
Realtek ALC233
Idle power states
Yes
Scalability
1S
Antenna type
1x1
Audio system
High Definition Audio
Chassis type
Tower
Ethernet LAN
Yes
Intel TSX-NI
Yes
Memory slots
2x DIMM
Power supply
180
Microphone input
Yes
Storage media
HDD+SSD
Mouse included
Yes
Security lock slot
Yes
Memory channels
Dual-channel
Bus speed
8 GT/s
Wi-Fi standard
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Housing material
Metal
Intel® OS Guard
Yes
Intel ARK ID
191792
Bluetooth version
4.0
Headphone outputs
1
Keyboard included
Yes
Cabling technology
10/100/1000Base-T(X)
Intel® Secure Key
Yes
Optical drive type
No
Codename
Coffee Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Execute Disable (NX)
Yes
Chipset
Intel B360
Password protection
Yes
Total HDDs capacity
1000
Total SSDs capacity
256
Cable lock slot type
Kensington
Generation
Intel Core i7-9xxx
Card reader
No
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Ethernet LAN data rates
10,100,1000
Combo headphone/mic port
Yes
Number of HDDs installed
1
Number of SSDs installed
1
Password protection type
HDD,Power on,Supervisor
On-board graphics card ID
0x3E98
PCI Express slots version
3.0
Long-term availability
No
Operating system
Windows 10 Home
PCI Express configurations
1x16,2x8,1x8+2x4
Power supply input voltage
100 - 240
Instruction sets
SSE4.1,SSE4.2,AVX 2.0
VGA ports
1
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel UHD Graphics 630
Power supply input frequency
50 - 60
Thunderbolt 3 ports quantity
0
On-board graphics card family
Intel UHD Graphics
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2015C
Thermal monitoring
Yes
Trusted Execution (TXT)
Yes
Number of storage drives installed
2
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM
Maximum on-board graphics card memory
64
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2666
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
41.6
Maximum internal memory supported by processor
128
On-board graphics card dynamic frequency (max)
1200
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
