MPN:
AX360AW

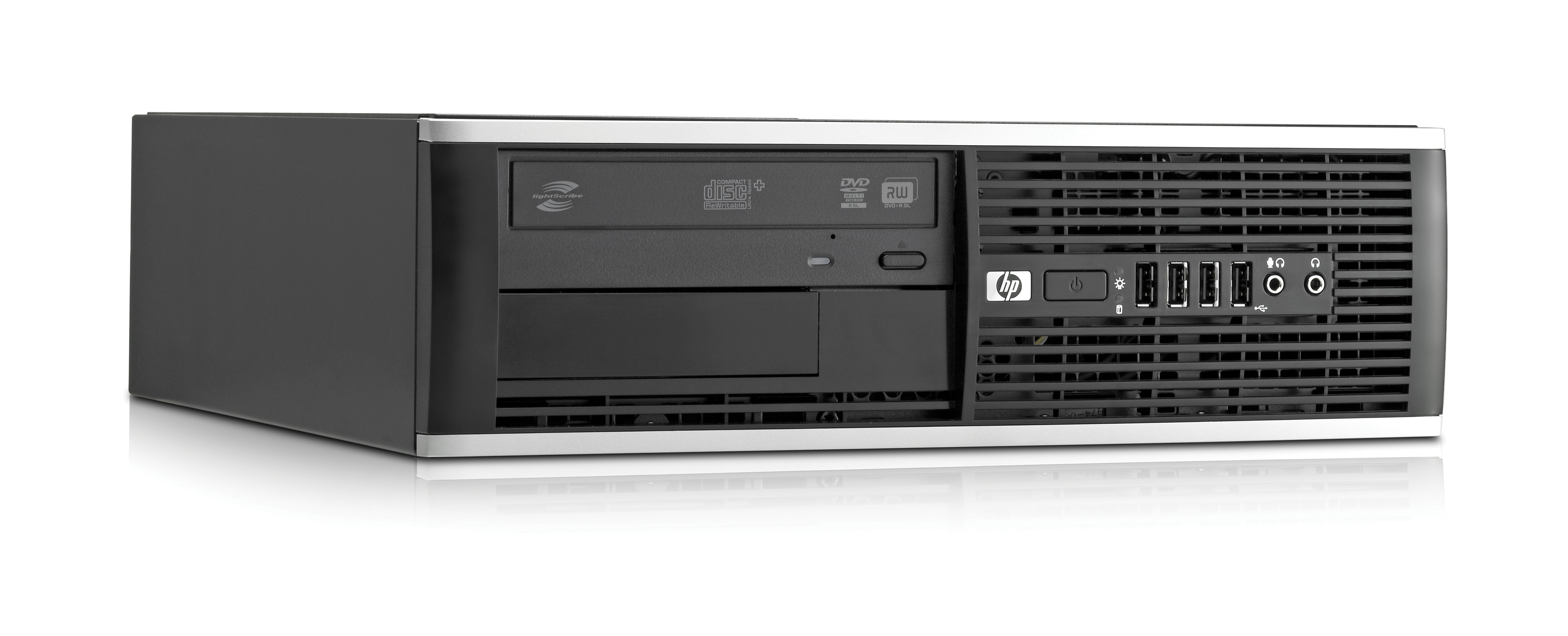

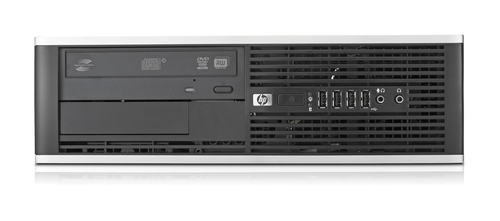

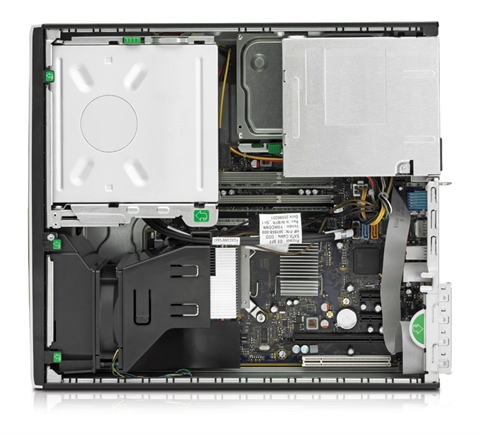

HP Compaq Pro Compaq 6005 Pro Small Form Factor PC (ENERGY STAR) B24 2 GB DDR3-SDRAM 250 GB AMD Radeon HD 4200 Windows XP Professional
Released: Nov 1, 2009
17 years ago
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 378 mm
- Wi-Fi
- N
- Width
- 337 mm
- Height
- 100 mm
- Weight
- 7260 g
- DVI port
- N
- Spindle speed
- 7200 rpm
- Drive bays
- 1 external 13,3 cm (5.25"), 1 external 8,9 cm (3.5") 1 internal 8,9 cm (3.5")
- Driver LAN
- Microsoft Windows 7, Genuine Windows Vista Home Basic, FreeDos, Linux
1 / 6
Shopping actions
Overview
The HP Compaq Pro Compaq 6005 Pro Small Form Factor PC (ENERGY STAR) B24 2 GB DDR3-SDRAM 250 GB AMD Radeon HD 4200 Windows XP Professional features 2 GB of memory, DDR3-SDRAM, a 250 GB hard drive and 250 GB of storage. Full verified specifications are listed below.
Technical Specifications
Processor
5 SPECS
Cache
2 MB
Model
B24
Bundled software
On some models only (not included with FreeDOS): HP Software Agent, HP Support Assistant, HP Systems Software Manager, HP Vision Diagnostics, HP Power Manager, HP Backup and Recovery Manager (only with Windows custom downgrade to Windows XP), Computrace Enabler for Desktops (select countries), SRS Premium Sound Software for HP Thin USB Powered Speakers (select models), Corel WinDVD (select models), DASH 1.1 Manageability
Optional preloaded software, only for certain configurations: Microsoft Office 2007 Basic, Microsoft Office 2007 Personal, Microsoft Office 2007 Professional, McAfee Total Protection Anti-Virus with 60 day trial Subscription, Roxio Creator Business (select models), Firefox-HP Virtual Browser, Microsoft Office 2007 Small Business Edition, Microsoft Internet Explorer, PDF Complete
Clock speed
3 GHz
Cache level
L2
Ports & Connectivity
4 SPECS
HDMI ports
0
PS/2 ports
2
USB 2.0 ports
10
Ethernet ports
1
Graphics
1 SPEC
Memory clock
1333 MHz
Logistics & Packaging
1 SPEC
Country of origin
China
Physical
5 SPECS
Depth
378 mm
Width
337 mm
Height
100 mm
Weight
7260 g
Product type
PC
Memory
2 SPECS
Capacity
2 GB
Memory type
DDR3-SDRAM
Storage
2 SPECS
Capacity
250 GB
Storage
250 GB
Power
1 SPEC
Power consumption (typical)
240 W
General
59 SPECS
Wi-Fi
No
DVI port
No
Spindle speed
7200 rpm
I/O ports

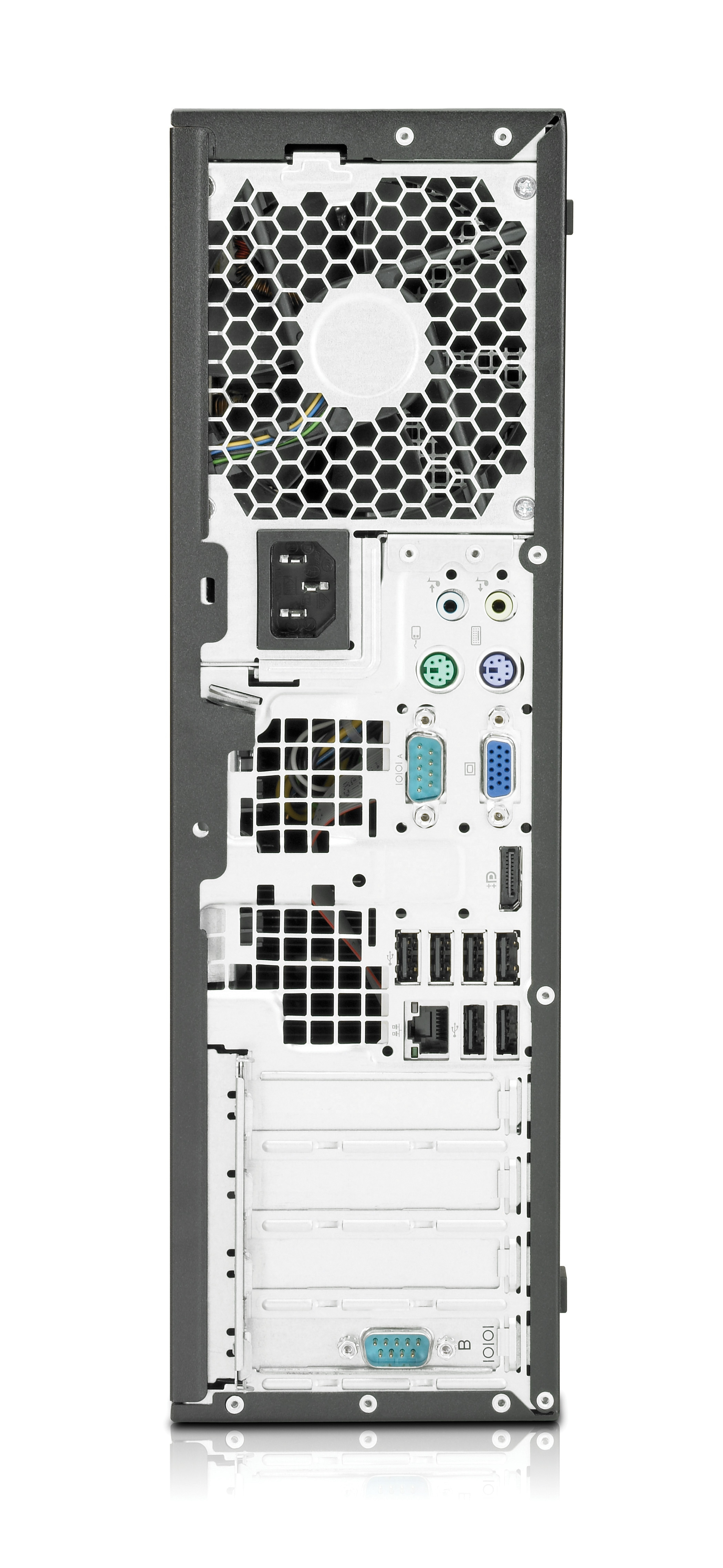

Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 optional parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, 1 Display Port; Front: 4 USB 2.0, audio ports
Drive bays
1 external 13,3 cm (5.25"), 1 external 8,9 cm (3.5")
1 internal 8,9 cm (3.5")
Driver LAN
Microsoft Windows 7, Genuine Windows Vista Home Basic, FreeDos, Linux
Multimedia
Integrated High Definition audio with Realtek 2 channel ALC261 codec
LightScribe
Yes
Minimum RAM
1 GB
Audio system
Integrated High Definition audio with Realtek ALC261 codec, internal PC speaker
Ethernet LAN
Yes
Certifications
ENERGY STAR qualified, EPEAT Gold and 89% efficient power supply; HP Power Manager 2.0
Drive interface
SATA
Keyboard type
HP PS/2 Standard Keyboard
Microphone input
Yes
Audio included
Integrated High Definition audio with Realtek ALC261 codec, internal PC speaker
Cache external
2048
Diskette drive
Optional HP Media Card Reader 22-in-1
Memory upgrade
8 GB
Security lock slot
Yes
Expansion slots
1 low profile PCI, 2 low profile PCI Express x1, 1 low profile PCI Express x16
Pointing device
HP PS/2 Optical Scroll Mouse
Size (imperial)
13.30
Display included
No
Headphone outputs
1
Security features
HP Business PC Security Lock Kit, Solenoid Hood Lock / Sensor
Weight (imperial)
Starting at 16.0 lb
Optical drive type
DVD Super Multi
Power requirements
Input voltage 100 – 240 / 115-230 VAC, 50/60 Hz, 47 – 63 Hz, active PFC (89% High Efficiency)
Operating Voltage Range: 100 – 240 VAC; Rated Voltage Range: 115 – 230 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current 80 Plus: 4 A; System Heat Dissipation 80 Plus: Typical 315 btu/hr (79 kg-cal/hr), Maximum 1260 btu/hr (317 kg-cal/hr; Power Supply Fan: Variable speed fan, Power Consumption in ES Mode – Suspend to RAM (S3) (Instantly Available PC): <4 W
Storage drive type
250 GB 7200 rpm SATA 3.0 Gb/s NCQ, Smart IV
250 GB
Video adapter, bus
PCI Express x16
HDD controller type
SATA (7200 rpm)
Chipset
AMD 785G
Networking features
Integrated Broadcom NetXtreme Gigabit Ethernet BCM 5761
Built-in TV tuner
No
Video card features
3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; Integrated 400 MHz RAMDAC; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color Depth: 32 bits/pixel; Multi-display Support: dual monitor support facilitated via one VGA port and one DisplayPort integrated on the back plane of the system board and presented as part of the rear I/O set of interfaces
Integrated ATI Radeon HD 4200 Graphics
<85 Hz @ 1920x1440, 75 Hz @ 2048x1536
Cable lock slot type
Kensington
Maximum HDD capacity
80
Serial ports
1
Card reader
No
Floppy drive installed
No
Manageability features
\
Non-operating altitude
9144
Integrated graphics
Yes
Parallel ports
0
Remote control
No
Storage drive controller
SATA 3.5Gb/s NCQ SMART IV
Storage temperature
-30 - 60
FireWire ports
0
Operating system
Windows XP Professional
VGA ports
1
Minimum storage drive space
64
Operating temperature
50 - 95
Compatible OS
Windows XP Professional (available through downgrade rights from Genuine Windows Vista Business), FreeDOS
Dedicated GPU model
AMD Radeon HD 4200
Memory layout (slots x size)
2 x 1
Security management description
Integrated 1.2 TPM Embedded Security Chip (except for Russia); HP Business PC Security Lock Kit, Solenoid Hood Lock / Sensor
Storage relative humidity (H-H)
5 - 95
Operating humidity
10 - 90
