MPN:
PRJ:P0558P0001ES

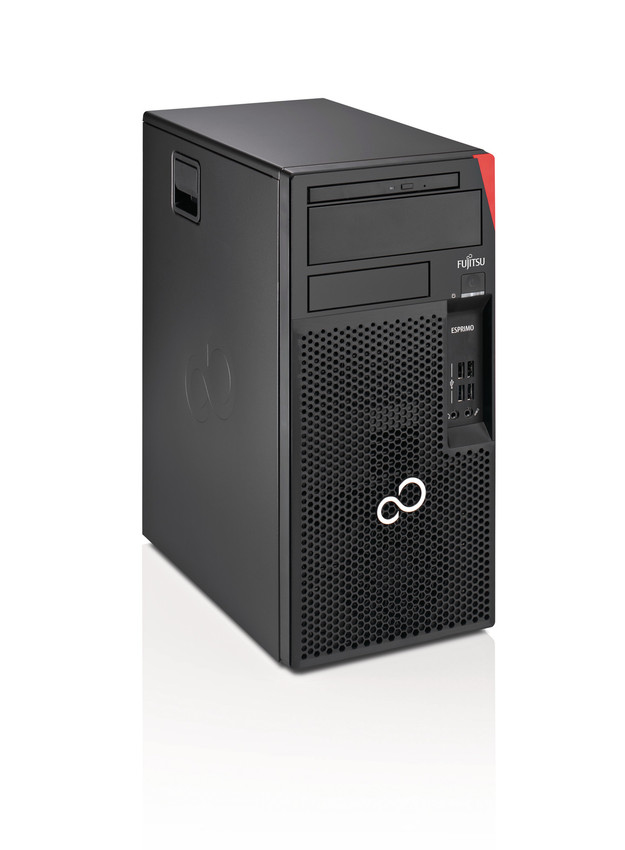

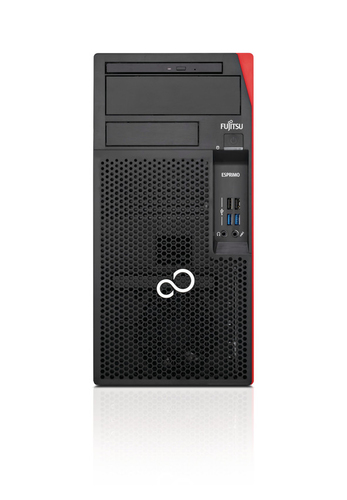

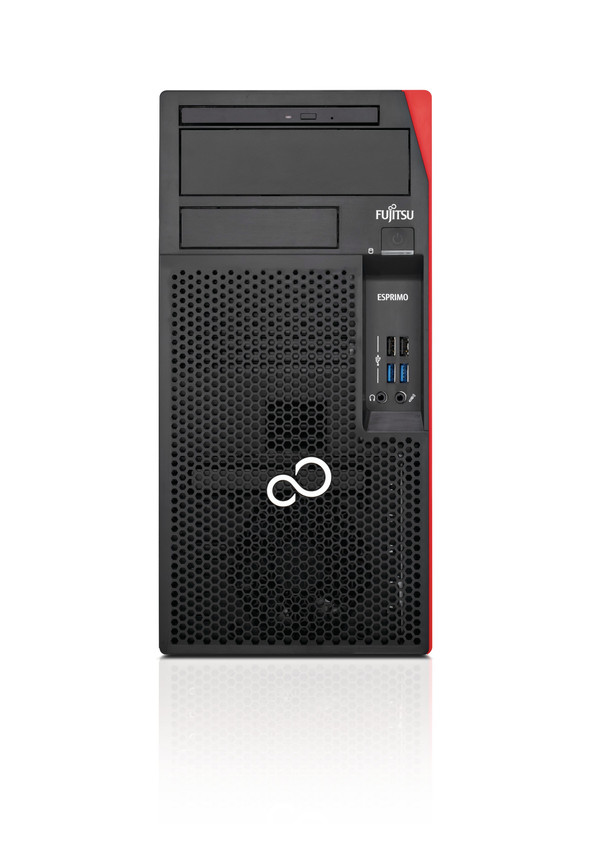

Fujitsu ESPRIMO P558 Intel® Core™ i5 i5-8500 8 GB DDR4-SDRAM 1 TB HDD Windows 10 Pro Micro Tower PC Black, Red
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 304 mm
- Wi-Fi
- N
- Width
- 180 mm
- Height
- 375 mm
- Manual included
- Y
- Weight
- 7000 g
- Line-in
- Y
- Non-ECC
- Y
- Bus type
- DMI3
1 / 4
Shopping actions
Overview
The Fujitsu ESPRIMO P558 Intel® Core™ i5 i5-8500 8 GB DDR4-SDRAM 1 TB HDD Windows 10 Pro Micro Tower PC Black, Red features Intel Core i5 processor, 6 cores, up to 4.1 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
9 MB
Cores
6
Model
i5-8500
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
6
Clock speed
3 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
4.1 GHz
CPU operating modes
64-bit
TDP
65 W
Memory
3 SPECS
Capacity
8 GB
Memory type
DDR4-SDRAM
Max memory
32 GB
Physical
6 SPECS
Depth
304 mm
Width
180 mm
Height
375 mm
Weight
7000 g
Product type
PC
Colour
Black,Red
Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
2
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
1
Storage
2 SPECS
Capacity
1 TB
Storage
1 TB
Graphics
1 SPEC
Memory clock
2666 MHz
General
132 SPECS
Wi-Fi
No
Manual included
Yes
Line-in
Yes
Non-ECC
Yes
Bus type
DMI3
DVI port
Yes
Drive form factor
3.5
64-bit support
Yes
Line-out
Yes
BIOS type
UEFI AMI
Spindle speed
7200 rpm
Tjunction
100
Audio chip
Realtek ALC671
DC-in jack
Yes
Idle power states
Yes
Scalability
1S
Audio system
High Definition Audio
Chassis type
Micro Tower
Ethernet LAN
Yes
Intel TSX-NI
Yes
Memory slots
2x DIMM
Power supply
210
Windows keys
Yes
Certifications
CE, FCC Class B, cTUVus, WEEE, Microsoft Operating Systems (HCT / HCL entry / WHQL), CEL
Drive interface
SATA III
Microphone input
Yes
On/off button
Yes
Storage media
HDD
Mouse included
Yes
Security lock slot
Yes
Memory channels
Dual-channel
Bus speed
8 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
129939
Headphone outputs
1
Keyboard included
Yes
Cabling technology
10/100/1000Base-T(X)
Intel® Secure Key
Yes
Optical drive type
No
Codename
Coffee Lake
Execute Disable (NX)
Yes
Chipset
Intel H310
Number of 2.5" bays
1
Number of 3.5" bays
3
Password protection
Yes
Placement supported
Vertical
Power cord included
Yes
Total HDDs capacity
1000
Cable lock slot type
Kensington
Intel TSX-NI version
1.00
Number of 5.25" bays
2
PCI Express x1 slots
1
Generation
Intel Core i5-8xxx
Audio channels
5.1
Card reader
No
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Combo headphone/mic port
No
Number of HDDs installed
1
Password protection type
BIOS,HDD,Supervisor,User
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x3E92
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
Yes
FireWire ports
0
Operating system
Windows 10 Pro
PCI Express configurations
1x16,1x8+2x4,2x8
Power supply input voltage
100 - 240
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
Thunderbolt ports quantity
0
VGA ports
0
Operating temperature
10 - 35
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel UHD Graphics 630
Power supply input frequency
50 - 60
Thunderbolt 2 ports quantity
0
Thunderbolt 3 ports quantity
0
Number of SATA III connectors
3
On-board graphics card family
Intel UHD Graphics
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
PCI Express x4 (Gen 2.x) slots
1
Thermal solution specification
PCG 2015C
PCI Express x16 (Gen 3.x) slots
1
Thermal monitoring
Yes
Total number of SATA connectors
3
Operating humidity
5 - 85
Trusted Execution (TXT)
Yes
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM
Maximum on-board graphics card memory
64
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Mouse included on selected markets only
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Keyboard included on selected markets only
Yes
Memory clock speeds supported by processor
2666
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
41.6
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1100
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
1.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
