MPN:
VFY:P0556P13A5TR

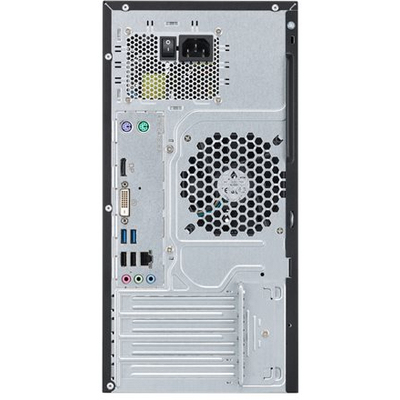

Fujitsu ESPRIMO P556/E85+ Intel® Core™ i3 i3-6100 DDR4-SDRAM Desktop PC Black, Red
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 425 mm
- Max case temperature (Tcase)
- 65 °C
- Wi-Fi
- N
- Width
- 175 mm
- Height
- 353 mm
- Weight
- 9000 g
- Line-in
- Y
- Bus type
- DMI3
- DVI port
- Y
1 / 4
Shopping actions
Overview
The Fujitsu ESPRIMO P556/E85+ Intel® Core™ i3 i3-6100 DDR4-SDRAM Desktop PC Black, Red features Intel Core i3 processor, 2 cores, up to 3.7 GHz boost and DDR4-SDRAM. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
S0
Cache
3 MB
Cores
2
Model
i3-6100
Processor line
Intel Core i3
Socket
LGA 1151 (Socket H4)
Threads
4
Clock speed
3.7 GHz
Cache level
L3
Process node
14 nm
CPU brand
Intel
Boost clock
3.7 GHz
CPU operating modes
64-bit
TDP
51 W
Graphics
1 SPEC
Memory clock
2133 MHz
Physical
6 SPECS
Depth
425 mm
Width
175 mm
Height
353 mm
Weight
9000 g
Product type
PC
Colour
Black,Red
Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
2
DisplayPorts quantity
1
USB 2.0 ports
6
Ethernet ports
1
Memory
2 SPECS
Memory type
DDR4-SDRAM
Max memory
32 GB
General
122 SPECS
Max case temperature (Tcase)
65 °C
Wi-Fi
No
Line-in
Yes
Bus type
DMI3
DVI port
Yes
64-bit support
Yes
Line-out
Yes
BIOS type
UEFI AMI
Audio chip
Realtek ALC671
FSB Parity
No
Idle power states
Yes
Scalability
1S
Chassis type
Desktop
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2x DIMM
Power supply
280
Certifications
WEEE, HCT, WHQL, CCC, FCC B, cCSAus
Microphone input
Yes
Processor code
SR2HG
Security lock slot
Yes
Memory channels
Dual-channel
Bus speed
8 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
90729
Processor series
Intel Core i3-6100 series
Headphone outputs
1
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
Yes
Intel® Secure Key
Yes
Codename
Skylake
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Chipset
Intel H110
Number of 3.5" bays
3
Password protection
Yes
Placement supported
Vertical
Cable lock slot type
Kensington
Intel FDI Technology
No
Intel TSX-NI version
0.00
Number of 5.25" bays
2
PCI Express x1 slots
2
Generation
Intel Core i3-6xxx
Audio channels
5.1
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Intel Fast Memory Access
No
Intel Flex Memory Access
No
Password protection type
BIOS,HDD,Supervisor,User
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x1912
PCI Express slots version
3.0
ECC memory support
Yes
Long-term availability
Yes
Graphics & IMC lithography
14
PCI Express configurations
1x16,1x8+2x4,2x8
Power supply input voltage
100 - 240
Instruction sets
SSE4.1,SSE4.2
VGA ports
0
Operating temperature
10 - 35
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Intel Demand Based Switching
No
Integrated GPU model
Intel HD Graphics 530
Power supply input frequency
50 - 60
Thunderbolt 3 ports quantity
0
On-board graphics card family
Intel HD Graphics
On-board graphics card memory
1.782
Intel Rapid Storage Technology
No
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
No
Number of processors installed
1
Thermal solution specification
PCG 2015C
PCI Express x16 (Gen 3.x) slots
1
Thermal monitoring
Yes
On-board graphics card 4K support
Yes
Operating humidity
5 - 85
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Intel Dual Display Capable Technology
No
Maximum on-board graphics card memory
1.7
Memory voltage supported by processor
1.35
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® My WiFi Technology (Intel® MWT)
No
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
1333,1600,1866,2133
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Intel® Small Business Advantage (Intel® SBA)
Yes
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1050
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
