MPN:
O704MTI5S450W7P3W

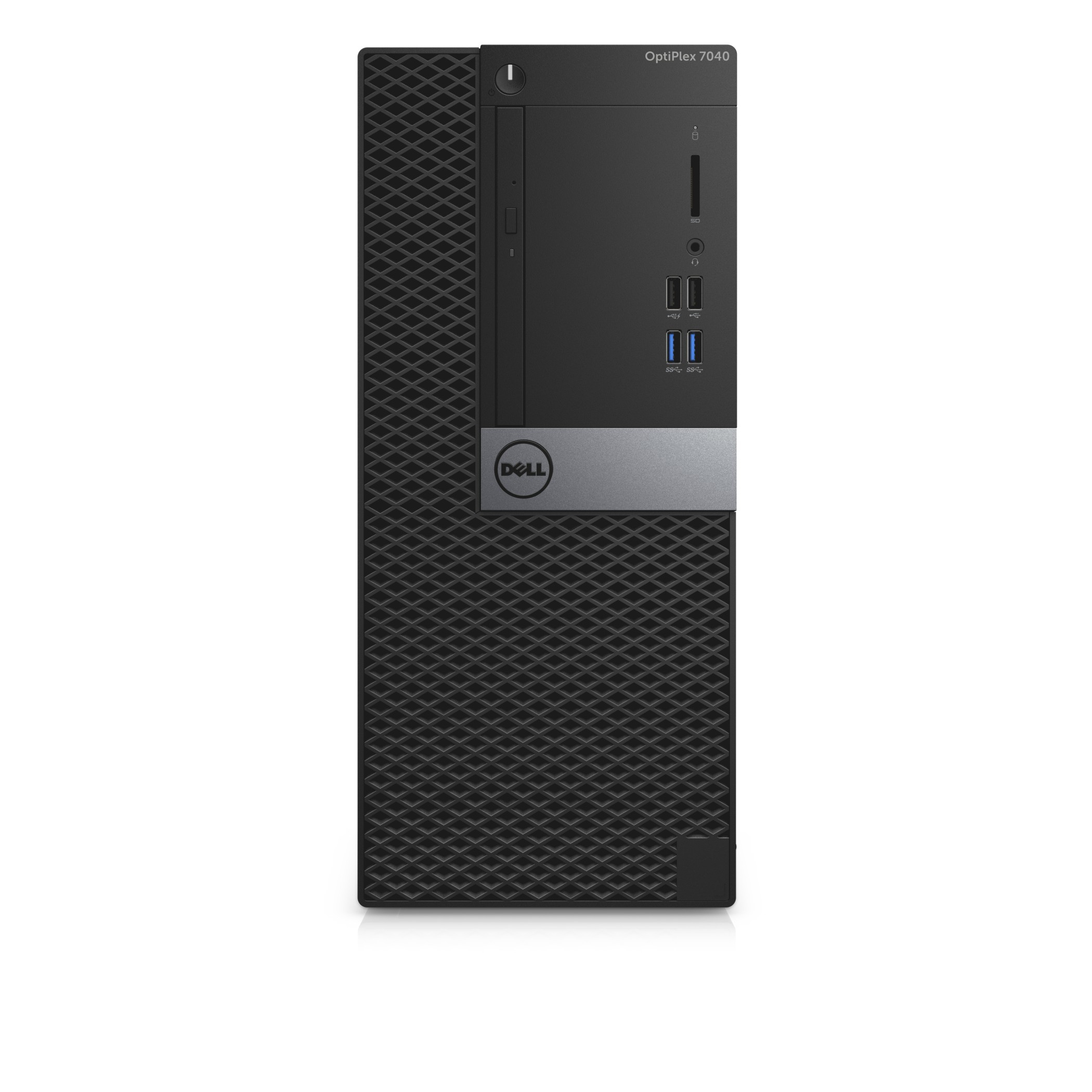

DELL OptiPlex 7040 Intel® Core™ i5 i5-6500 4 GB DDR4-SDRAM 500 GB HDD Windows 7 Professional Mini Tower PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 274 mm
- Max case temperature (Tcase)
- 71 °C
- Wi-Fi
- N
- Width
- 154 mm
- Height
- 350 mm
- Manual included
- Y
- Weight
- 8000 g
- Line-in
- Y
- Non-ECC
- Y
Shopping actions
Overview
The DELL OptiPlex 7040 Intel® Core™ i5 i5-6500 4 GB DDR4-SDRAM 500 GB HDD Windows 7 Professional Mini Tower PC Black features Intel Core i5 processor, 4 cores, up to 3.6 GHz boost and 4 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
R0
Cache
6 MB
Cores
4
Model
i5-6500
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
4
Clock speed
3.2 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.6 GHz
CPU operating modes
64-bit
TDP
65 W
Storage
2 SPECS
Capacity
500 GB
Storage
500 GB
Graphics
1 SPEC
Memory clock
2133 MHz
Physical
6 SPECS
Depth
274 mm
Width
154 mm
Height
350 mm
Weight
8000 g
Product type
PC
Colour
Black
Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
2
DisplayPorts quantity
2
USB 2.0 ports
4
Ethernet ports
1
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR4-SDRAM
Max memory
32 GB
General
130 SPECS
Max case temperature (Tcase)
71 °C
Wi-Fi
No
Manual included
Yes
Line-in
Yes
Non-ECC
Yes
Bus type
DMI3
DVI port
No
Drive form factor
2.5
64-bit support
Yes
Line-out
Yes
Spindle speed
7200 rpm
PCI slots
1
Idle power states
Yes
Scalability
1S
Audio system
HD
Chassis type
Mini Tower
Ethernet LAN
Yes
Intel TSX-NI
Yes
Memory slots
4x DIMM
Power supply
240
Certifications
CECP, WEEE
Drive interface
SATA
Microphone input
Yes
Storage media
HDD
Processor code
SR2BX
Trial software
McAfee, Microsoft Office
Security lock slot
Yes
Included cables
AC
Memory channels
Dual-channel
Bus speed
8 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
88184
Processor series
Intel Core i5-6500 Desktop series
Headphone outputs
1
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
Yes
Intel® Secure Key
Yes
Operating altitude
-15.2 - 3048
Optical drive type
DVD±RW
Codename
Skylake
AC adapter included
Yes
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Chipset
Intel Q170
Number of 2.5" bays
2
Number of 3.5" bays
1
Password protection
Yes
Placement supported
Vertical
Intel TSX-NI version
1.00
PCI Express x1 slots
1
Generation
Intel Core i5-6xxx
Water cooling system
No
Intel segment tagging
Enterprise,Small Business
PCI Express x16 slots
2
Non-operating altitude
-15.2 - 10668
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Optical drives quantity
1
Number of HDDs installed
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
1912
Operating system language
ESP
PCI Express slots version
3.0
Recovery operating system
Windows 10 Pro
Storage temperature
-40 - 65
ECC memory support
No
Long-term availability
Yes
Graphics & IMC lithography
14
Operating system
Windows 7 Professional
PCI Express configurations
1x16,2x8,1x8+2x4
Power supply input voltage
100 - 240
Instruction sets
SSE4.2,AVX 2.0,SSE4.1
VGA ports
0
Compatible processor series
Intel Core i3,Intel Core i5,Intel Core i7
Operating temperature
5 - 35
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Memory layout (slots x size)
1 x 4
Integrated GPU model
Intel HD Graphics 530
Power supply input frequency
50 - 60
On-board graphics card family
Intel HD Graphics
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2015C
Storage relative humidity (H-H)
5 - 95
Thermal monitoring
Yes
Operating humidity
20 - 80
Trusted Execution (TXT)
Yes
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Maximum on-board graphics card memory
1.74
Memory voltage supported by processor
1.35
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel® Wireless Display (Intel® WiDi)
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2133,1333,1600,1866
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1050
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
1.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
