MPN:
90PD01J8-M23430

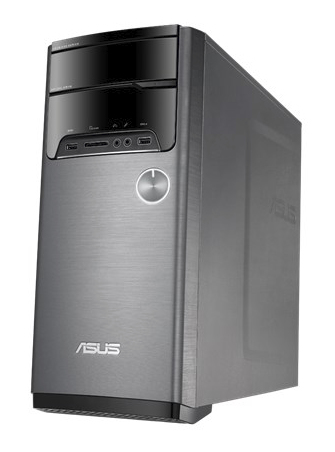

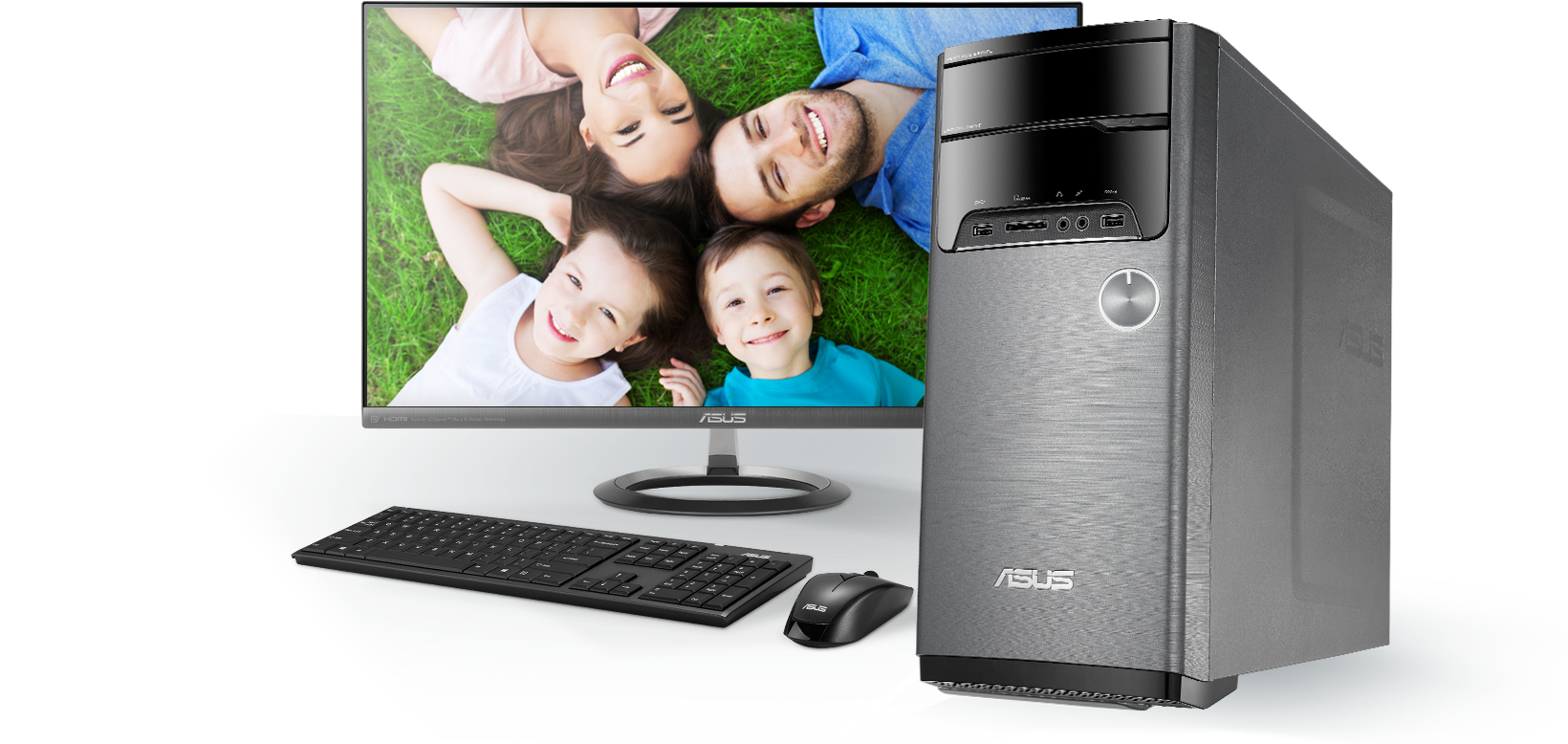

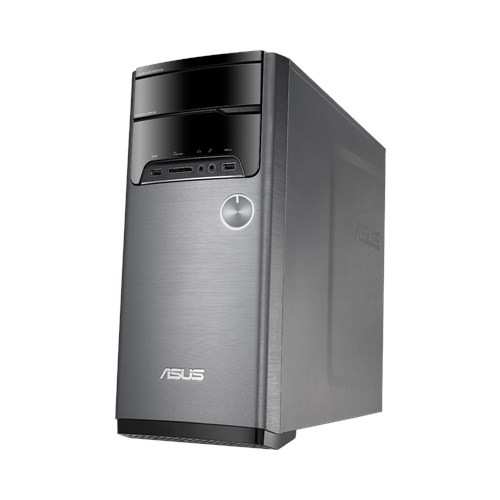

ASUS VivoPC M32CD-K-DE023T Intel® Core™ i5 i5-7400 8 GB DDR4-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForce® GTX 1050 Windows 10 Home Tower PC Black, Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 408.5 mm
- Wi-Fi
- Y
- Width
- 176 mm
- Height
- 380 mm
- Weight
- 8290 g
- Line-in
- Y
- Bus type
- DMI3
- DVI port
- N
- 64-bit support
- Y
1 / 4
Shopping actions
Overview
The ASUS VivoPC M32CD-K-DE023T Intel® Core™ i5 i5-7400 8 GB DDR4-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForce® GTX 1050 Windows 10 Home Tower PC Black, Grey features Intel Core i5 processor, 4 cores, up to 3.5 GHz boost and 2 GB of video memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
B0
Cache
6 MB
Cores
4
Model
i5-7400
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
4
Clock speed
3 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.5 GHz
CPU operating modes
64-bit
TDP
65 W
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
2
Ethernet ports
1
Graphics
1 SPEC
VRAM
2 GB
Physical
6 SPECS
Depth
408.5 mm
Width
176 mm
Height
380 mm
Weight
8290 g
Product type
PC
Colour
Black,Grey
Memory
3 SPECS
Capacity
8 GB
Memory type
DDR4-SDRAM
Max memory
16 GB
Storage
3 SPECS
Capacity
1 TB
Capacity
128 GB
Storage
1128 GB
Logistics & Packaging
3 SPECS
Package depth
495 mm
Package width
240 mm
Package height
500 mm
General
95 SPECS
Wi-Fi
Yes
Line-in
Yes
Bus type
DMI3
DVI port
No
64-bit support
Yes
Tjunction
100
Idle power states
Yes
Scalability
1S
Chassis type
Tower
Ethernet LAN
Yes
Intel TSX-NI
No
Microphone input
Yes
Storage media
HDD+SSD
Processor code
SR32W
Memory channels
Dual-channel
Bus speed
8 GT/s
Wi-Fi standard
Wi-Fi 5 (802.11ac)
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
97147
Processor series
Intel Core i5-7400 Desktop Series
Headphone outputs
1
Intel® Secure Key
Yes
Optical drive type
DVD±RW
Codename
Kaby Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Execute Disable (NX)
Yes
Chipset
Intel H110
Number of QPI links
0
Intel TSX-NI version
0.00
Generation
Intel Core i5-7xxx
Water cooling system
No
Audio channels
7.1
PCI Express x16 slots
1
Card reader
Yes
Dedicated graphics
Yes
Mini PCI Express slots
1
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compatible memory cards
MMC,MS PRO,Memory Stick (MS),SD,SDHC
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Optical drives quantity
1
Number of HDDs installed
1
Number of SSDs installed
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
5912
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
No
Operating system
Windows 10 Home
PCI Express configurations
1x16,1x8+2x4,2x8
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
VGA ports
1
Dedicated GPU model
NVIDIA GeForce GTX 1050
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics 630
Thunderbolt 3 ports quantity
0
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2015C
Thermal monitoring
Yes
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Maximum on-board graphics card memory
64
Memory voltage supported by processor
1.35
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1333,1600,2133,2400
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1000
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
