MPN:
90MS00S1-M00410

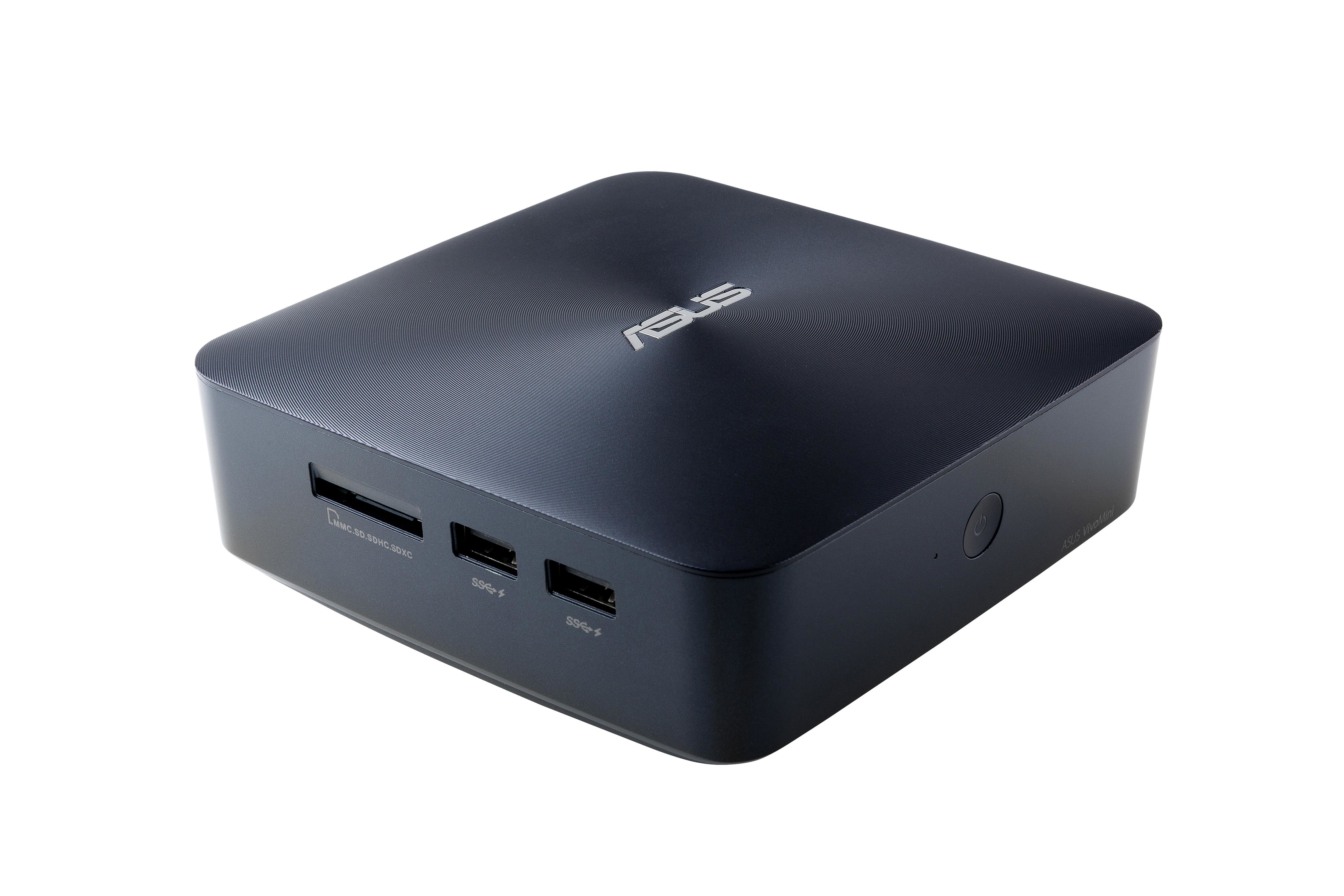

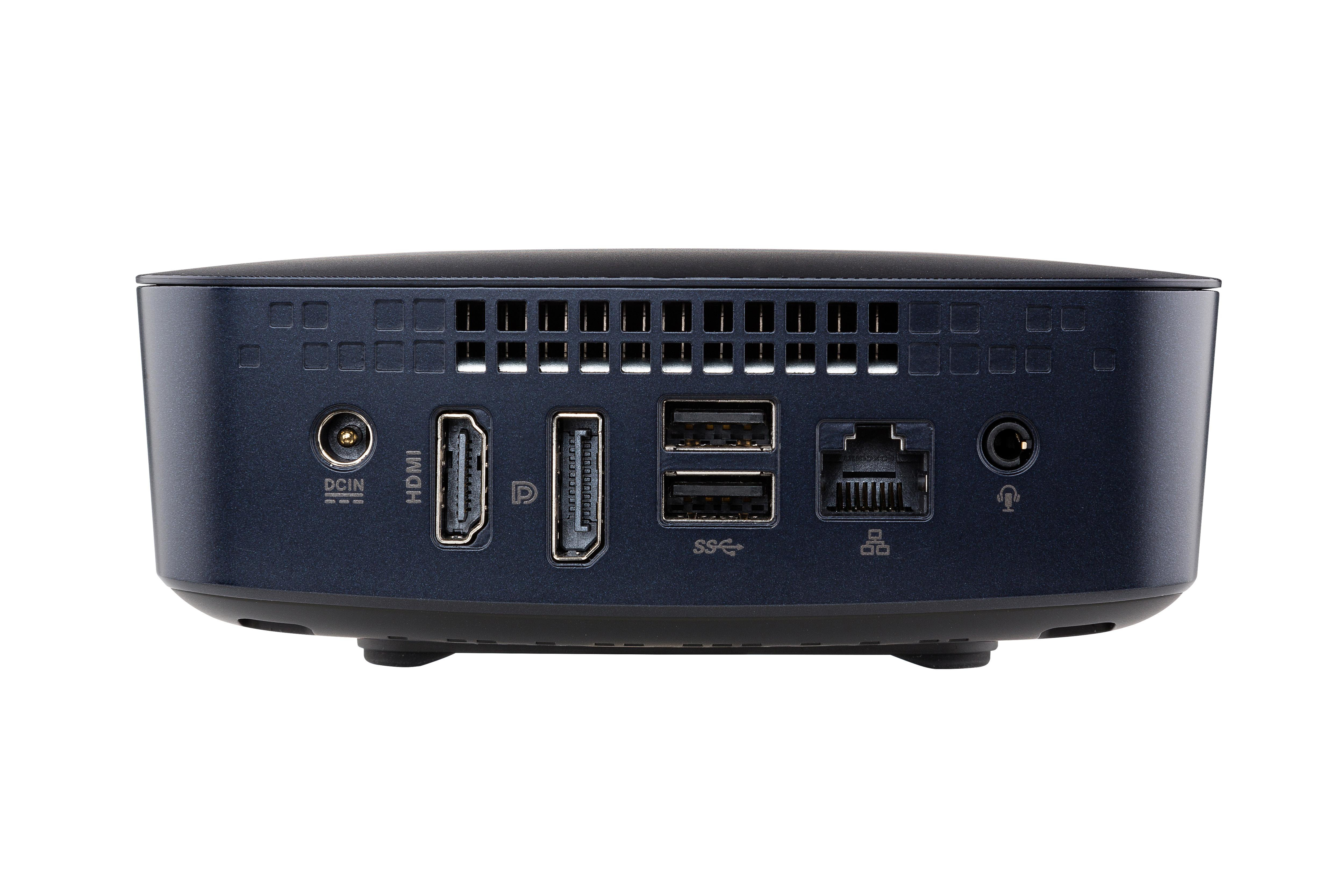

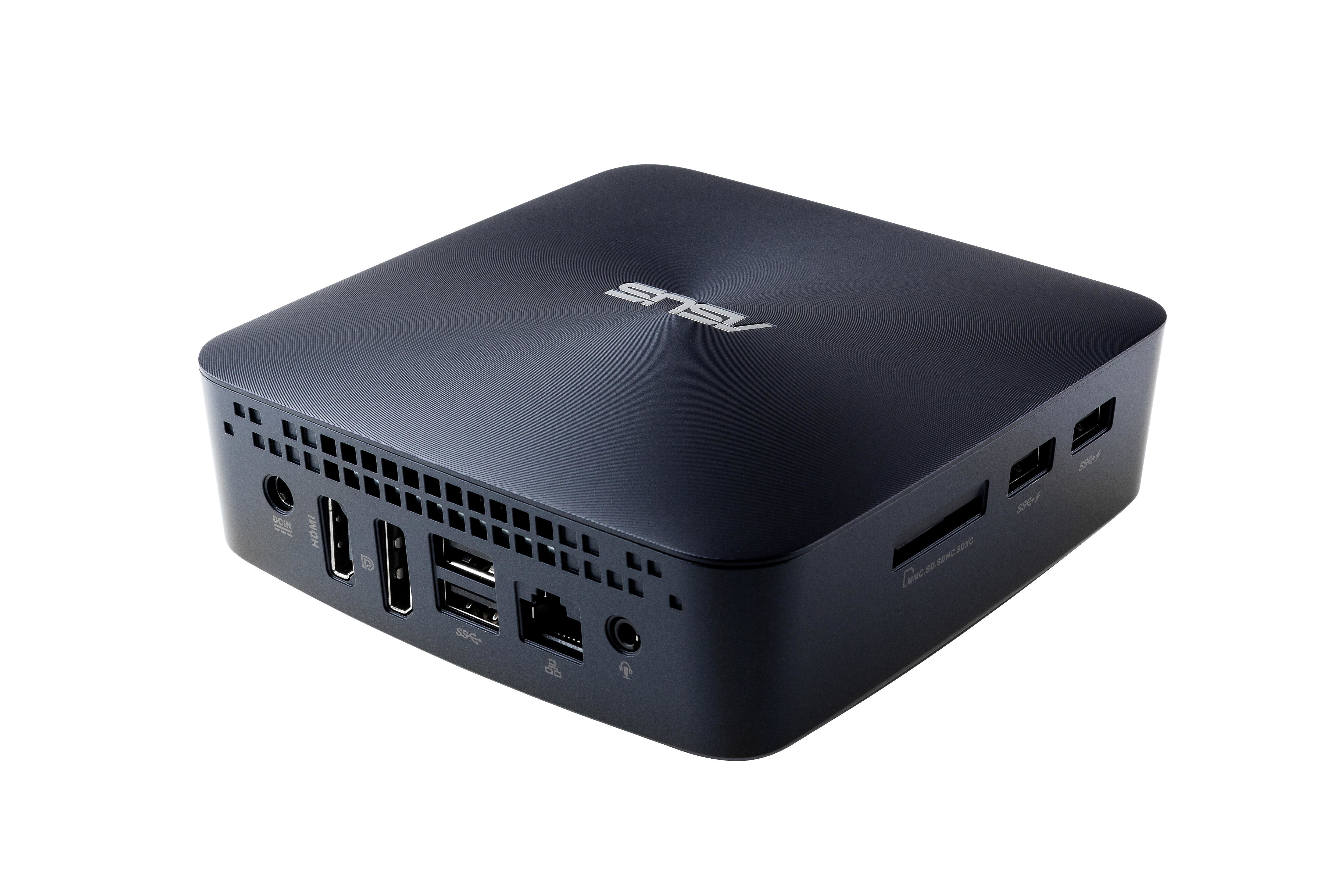

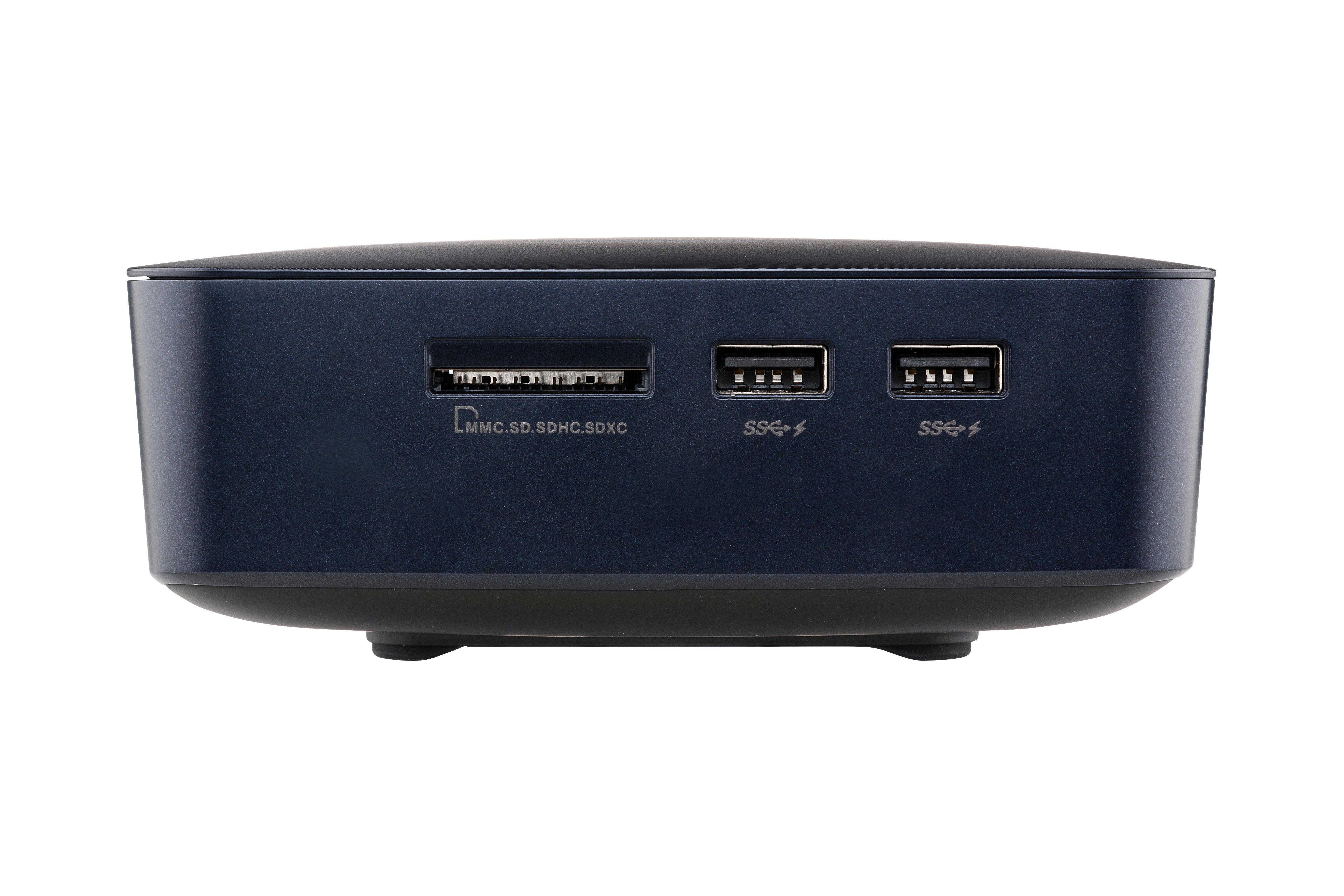

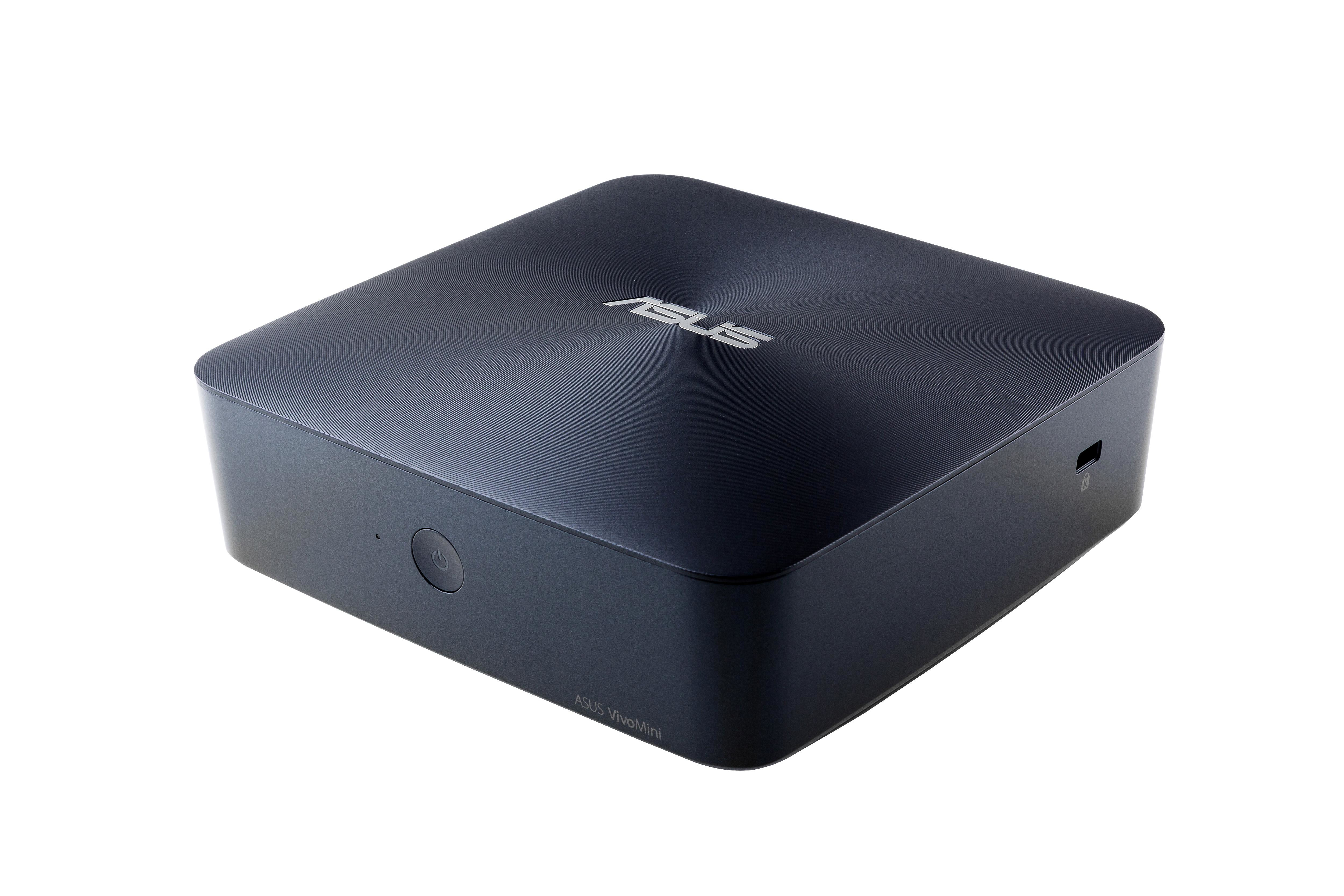

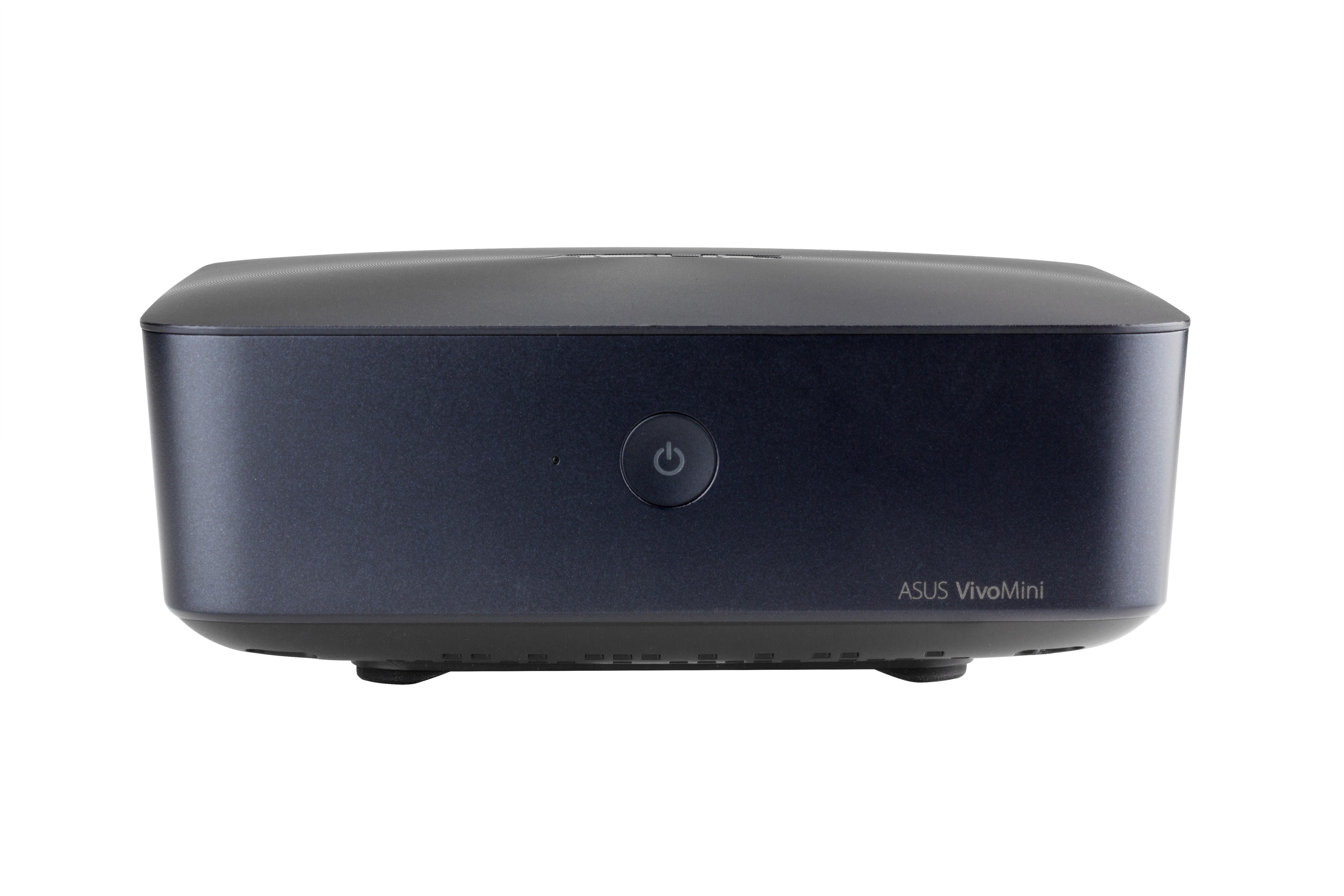

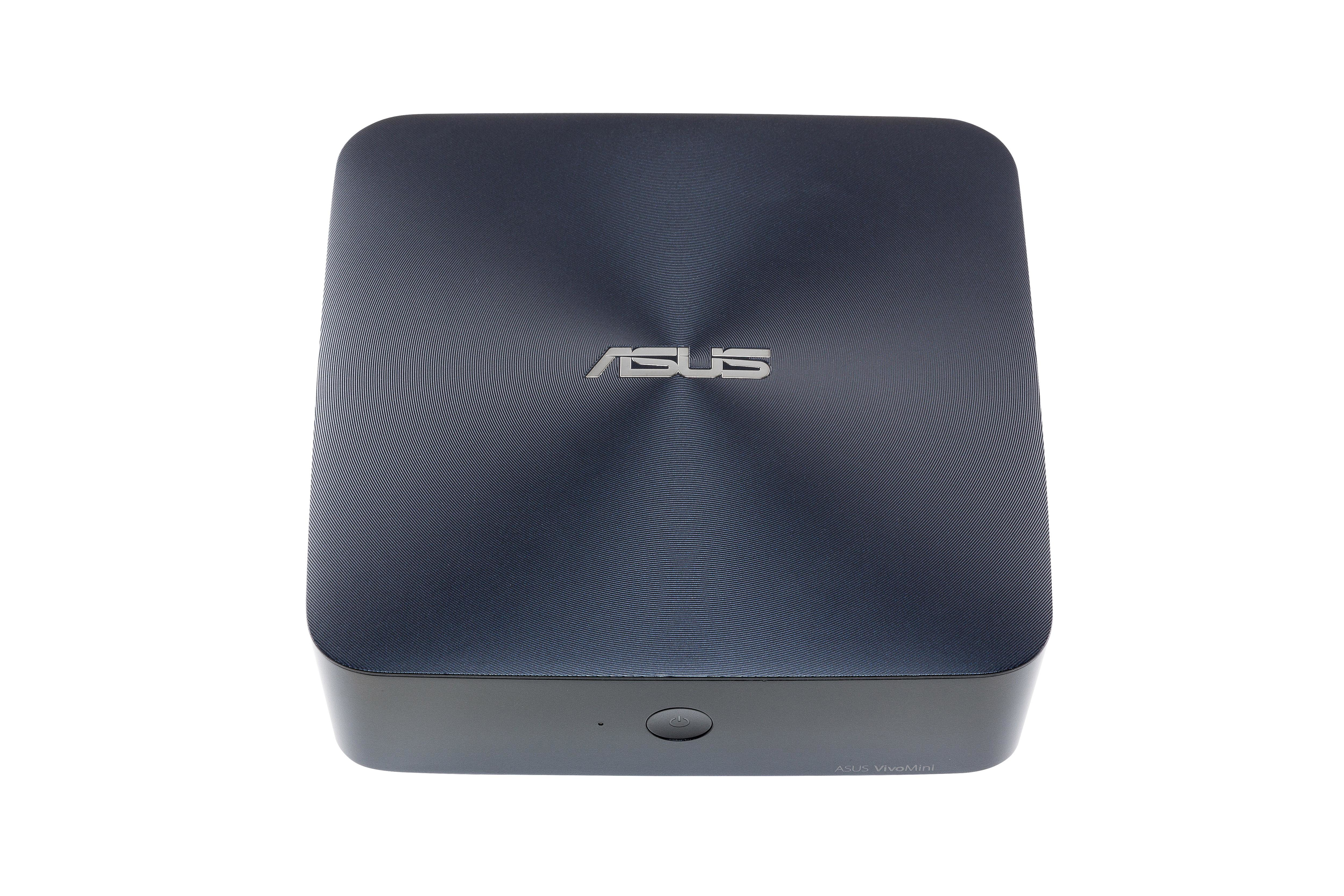

ASUS VivoMini UN65H-M041Z Intel® Core™ i3 i3-6100U 4 GB DDR3L-SDRAM 128 GB SSD Windows 10 Home Mini PC Blue
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 131 mm
- Wi-Fi
- Y
- Width
- 131 mm
- Height
- 52 mm
- Volume
- 0.8
- Weight
- 700 g
- Bus type
- QPI
- DVI port
- N
- 64-bit support
- Y
1 / 9
Shopping actions
Overview
The ASUS VivoMini UN65H-M041Z Intel® Core™ i3 i3-6100U 4 GB DDR3L-SDRAM 128 GB SSD Windows 10 Home Mini PC Blue features Intel Core i3 processor, 2 cores, 4 GB of memory and DDR3L-SDRAM. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Stepping
D1
Cache
3 MB
Cores
2
Model
i3-6100U
Processor line
Intel Core i3
Socket
BGA 1356
Threads
4
Clock speed
2.3 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
CPU operating modes
64-bit
TDP
15 W
Storage
2 SPECS
Capacity
128 GB
Storage
128 GB
Graphics
1 SPEC
Memory clock
1600 MHz
Physical
6 SPECS
Depth
131 mm
Width
131 mm
Height
52 mm
Weight
700 g
Product type
Mini PC (<= 3L)
Colour
Blue
Ports & Connectivity
4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
0
Ethernet ports
1
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR3L-SDRAM
Max memory
16 GB
General
108 SPECS
Wi-Fi
Yes
Volume
0.8
Bus type
QPI
DVI port
No
64-bit support
Yes
Bluetooth
Yes
Tjunction
100
DC-in jack
Yes
Idle power states
Yes
Chassis type
Mini PC
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2x SO-DIMM
Power supply
65
Certifications
BSMI/CE/FCC/UL/CCC/Energy Star/WiFi/RF/VCCI
Microphone input
No
Storage media
SSD
Processor code
SR2EU
Security lock slot
Yes
Memory channels
Dual-channel
Bus speed
4 GT/s
Wi-Fi standard
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
88180
Processor series
Intel Core i3-6100 series
Bluetooth version
4.0
Headphone outputs
0
Intel® Insider™
Yes
Intel® Secure Key
Yes
Optical drive type
No
Codename
Skylake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Cable lock slot type
Kensington
Intel TSX-NI version
1.00
Generation
Intel Core i3-6xxx
Configurable TDP-down
7.5
Card reader
Yes
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
42 X 24
CPU configuration (max)
1
Compatible memory cards
MMC,SD,SDHC,SDXC
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Optical drives quantity
0
Combo headphone/mic port
Yes
Intel Flex Memory Access
Yes
Number of SSDs installed
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
1916
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
Yes
Graphics & IMC lithography
14
Operating system
Windows 10 Home
PCI Express configurations
1x4,4x1
Instruction sets
SSE4.1,SSE4.2,AVX 2.0
VGA ports
0
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics 520
Thunderbolt 3 ports quantity
0
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
No
Number of processors installed
1
Configurable TDP-down frequency
0.8
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
12
Memory types supported by processor
DDR3L-SDRAM,LPDDR3-SDRAM,DDR4-SDRAM
Maximum on-board graphics card memory
1.74
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
300
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Smart Response Technology version
1.00
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1866,2133,1600
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Intel® Small Business Advantage (Intel® SBA)
Yes
Maximum internal memory supported by processor
32
On-board graphics card dynamic frequency (max)
1000
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
