MPN:
90PF00W1-M09430

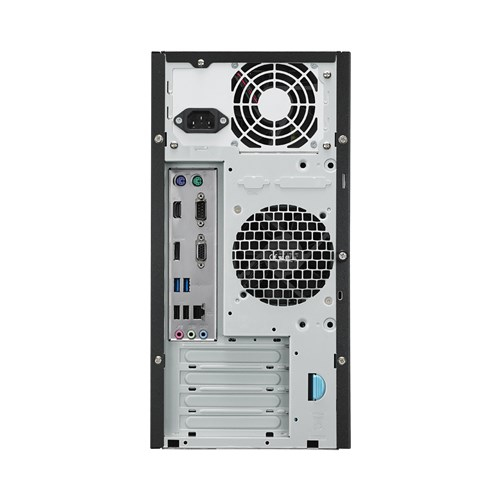

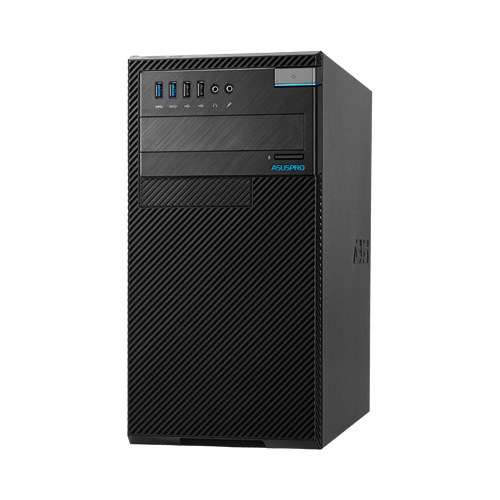

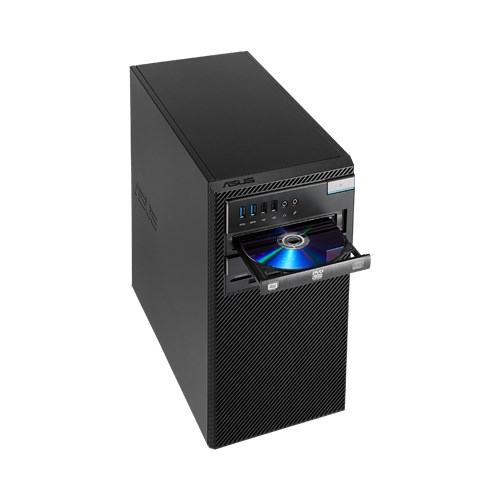

ASUS Pro Series D520MT-I564000650 Intel® Core™ i5 i5-6400 4 GB DDR4-SDRAM 1 TB HDD Mini Tower PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 364 mm
- Max case temperature (Tcase)
- 71 °C
- Width
- 185 mm
- Height
- 410 mm
- Weight
- 11000 g
- Bus type
- DMI3
- DVI port
- N
- 64-bit support
- Y
- Stepping
- R0
1 / 4
Shopping actions
Overview
The ASUS Pro Series D520MT-I564000650 Intel® Core™ i5 i5-6400 4 GB DDR4-SDRAM 1 TB HDD Mini Tower PC Black features Intel Core i5 processor, 4 cores, up to 3.3 GHz boost and 4 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
R0
Cache
6 MB
Cores
4
Model
i5-6400
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
4
Clock speed
2.7 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.3 GHz
CPU operating modes
64-bit
TDP
65 W
Logistics & Packaging
3 SPECS
Package depth
490 mm
Package width
295 mm
Package height
520 mm
Graphics
1 SPEC
Memory clock
2133 MHz
Physical
6 SPECS
Depth
364 mm
Width
185 mm
Height
410 mm
Weight
11000 g
Product type
PC
Colour
Black
Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
2
DisplayPorts quantity
1
USB 2.0 ports
4
Ethernet ports
1
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR4-SDRAM
Max memory
32 GB
Storage
2 SPECS
Capacity
1 TB
Storage
1 TB
General
96 SPECS
Max case temperature (Tcase)
71 °C
Bus type
DMI3
DVI port
No
64-bit support
Yes
Idle power states
Yes
Scalability
1S
Chassis type
Mini Tower
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2x DIMM
Certifications
BSMI/CB/CE/FCC/UL/CCC/Energy Star/EPEAT /CECP/RCM
Microphone input
Yes
Storage media
HDD
Processor code
SR2BY
Security lock slot
Yes
Memory channels
Dual-channel
Bus speed
8 GT/s
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
88185
Processor series
Intel Core i5-6400 Desktop series
Headphone outputs
1
Intel® Insider™
Yes
Intel® Secure Key
Yes
Optical drive type
DVD-RW
Codename
Skylake
AC adapter included
No
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Chipset
Intel H110
Cable lock slot type
Kensington
Intel TSX-NI version
0.00
Generation
Intel Core i5-6xxx
Serial ports
1
Card reader
Yes
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compatible memory cards
CF,MMC,MS Duo,MS Micro (M2),MS PRO,MS PRO Duo,Memory Stick (MS),MicroDrive,MicroSD (TransFlash),MiniMMC,MiniSD,RS-MMC,SD,SDHC
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Optical drives quantity
1
Number of HDDs installed
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
1912
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
No
Graphics & IMC lithography
14
Operating system
No
PCI Express configurations
1x16,2x8,1x8+2x4
Instruction sets
SSE4.2,AVX 2.0,SSE4.1
VGA ports
1
Eco certifications
EPEAT Gold,ENERGY STAR
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics 530
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2015C
Thermal monitoring
Yes
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Maximum on-board graphics card memory
64
Memory voltage supported by processor
1.35
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel® Wireless Display (Intel® WiDi)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2133,1333,1600,1866
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
950
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
