MPN:
CHROMEBOX3-N3293U

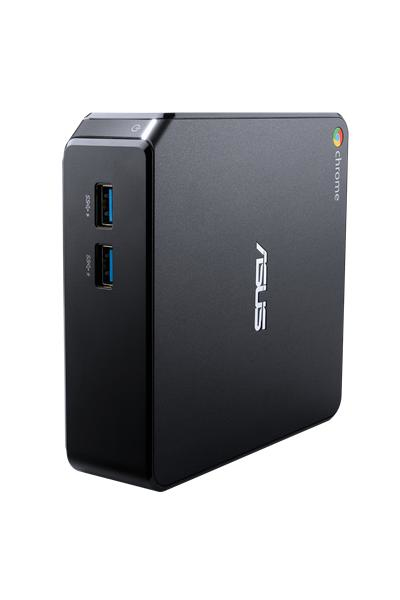

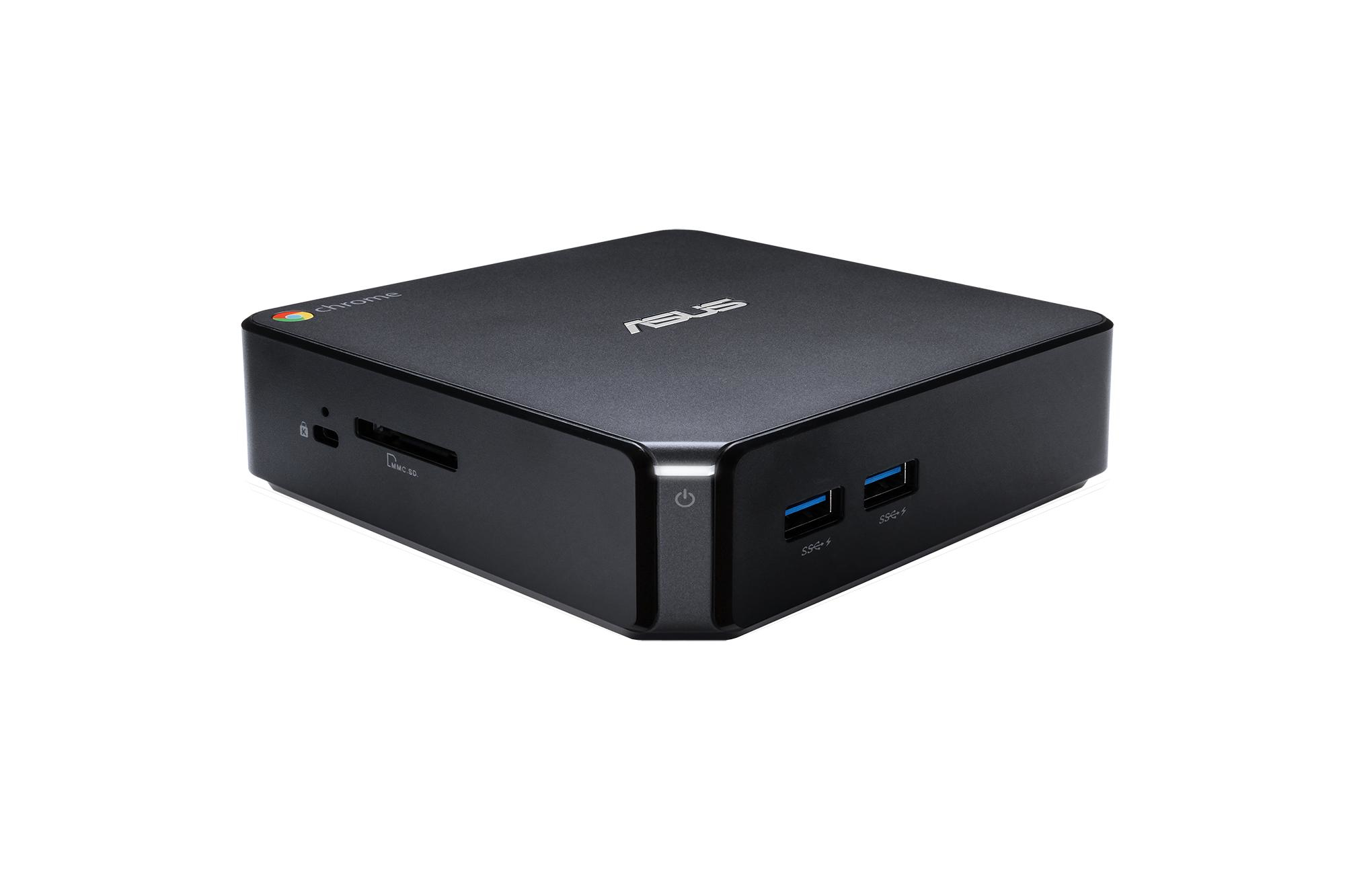

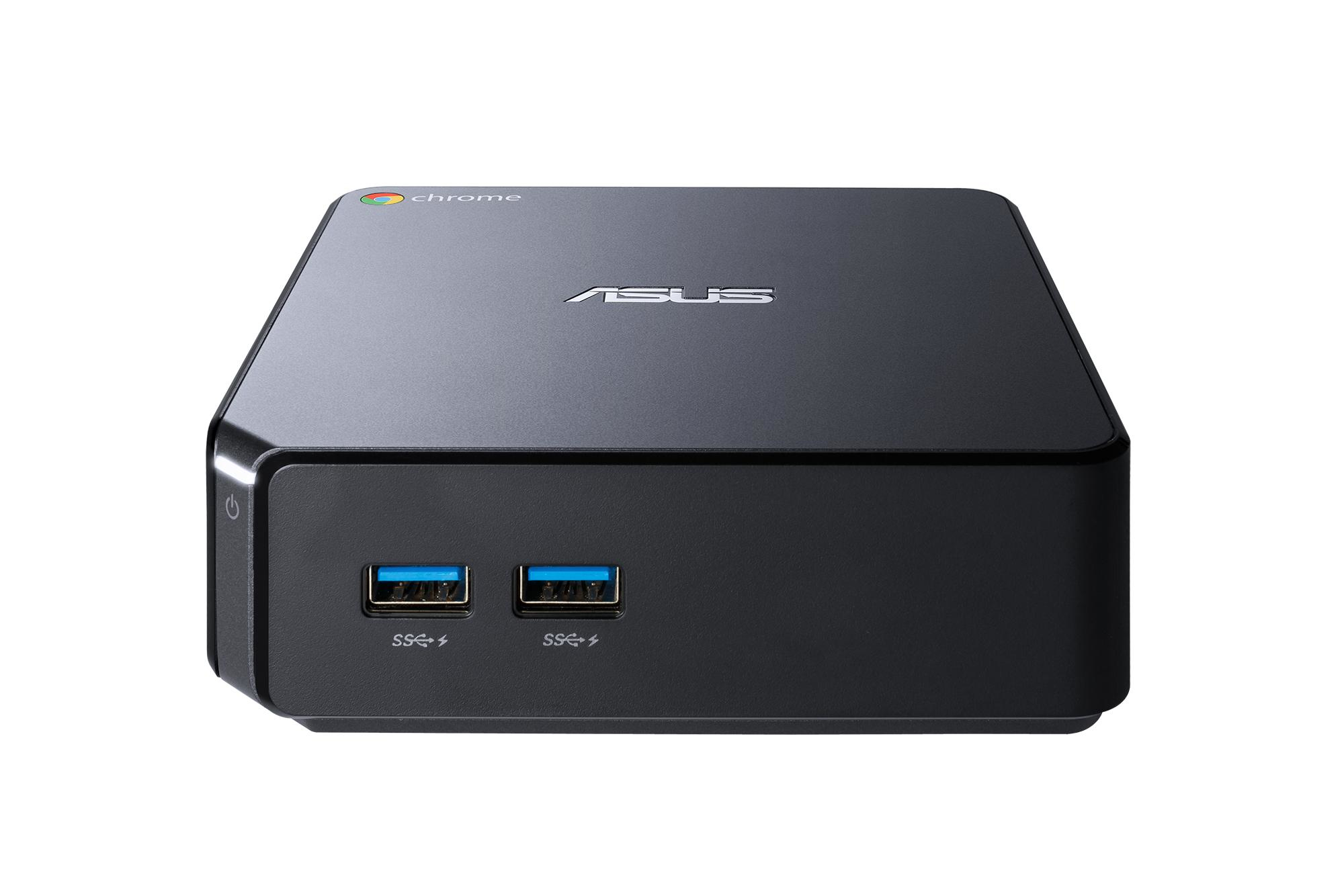

ASUS Chromebox CHROMEBOX3-N3293U PC/workstation Intel® Core™ i3 i3-8130U 8 GB 64 GB SSD ChromeOS Mini PC Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 148.5 mm
- Wi-Fi
- Y
- Width
- 148.5 mm
- Height
- 40 mm
- Manual included
- Y
- Weight
- 1000 g
- DVI port
- N
- 64-bit support
- Y
- Bluetooth
- Y
1 / 6
Shopping actions
Overview
The ASUS Chromebox CHROMEBOX3-N3293U PC/workstation Intel® Core™ i3 i3-8130U 8 GB 64 GB SSD ChromeOS Mini PC Grey features Intel Core i3 processor, 2 cores, up to 3.4 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
12 SPECS
Cache
4 MB
Cores
2
Model
i3-8130U
Processor line
Intel Core i3
Threads
4
Clock speed
2.2 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.4 GHz
CPU operating modes
64-bit
TDP
15 W
Storage
2 SPECS
Capacity
64 GB
Storage
64 GB
Physical
6 SPECS
Depth
148.5 mm
Width
148.5 mm
Height
40 mm
Weight
1000 g
Product type
Mini PC (<= 3L)
Colour
Grey
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
0
Ethernet ports
1
Memory
2 SPECS
Capacity
8 GB
Max memory
16 GB
General
84 SPECS
Wi-Fi
Yes
Manual included
Yes
DVI port
No
64-bit support
Yes
Bluetooth
Yes
Tjunction
100
Idle power states
Yes
Chassis type
Mini PC
Ethernet LAN
Yes
Intel TSX-NI
No
Certifications
BSMI/CB/CE/FCC/UL/Energy Star/RCM/VCCI
Microphone input
No
Storage media
SSD
Bus speed
4 GT/s
Wi-Fi standard
802.11a,802.11b,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
137977
Bluetooth version
4.2
Headphone outputs
0
Intel® Secure Key
Yes
Optical drive type
No
Codename
Kaby Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
AC adapter included
Yes
Execute Disable (NX)
Yes
Power cord included
Yes
Total SSDs capacity
64
VESA mount included
Yes
Generation
Intel Core i3-8xxx
Configurable TDP-down
10
Card reader
Yes
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
42 x 42
CPU configuration (max)
1
Ethernet LAN data rates
10,100,1000
Combo headphone/mic port
Yes
Intel Flex Memory Access
Yes
Number of SSDs installed
1
PCI Express slots version
3.0
Long-term availability
No
Operating system
ChromeOS
PCI Express configurations
1x2+2x1,1x4,2x2,4x1
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
VGA ports
0
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel UHD Graphics 620
Thunderbolt 3 ports quantity
0
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Configurable TDP-down frequency
0.8
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
PCIe lanes
12
Memory types supported by processor
DDR4-SDRAM,LPDDR3-SDRAM
Maximum on-board graphics card memory
32
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
300
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2133,2400
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Maximum internal memory supported by processor
32
On-board graphics card dynamic frequency (max)
1000
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
