MPN:
DT.SYYEG.037

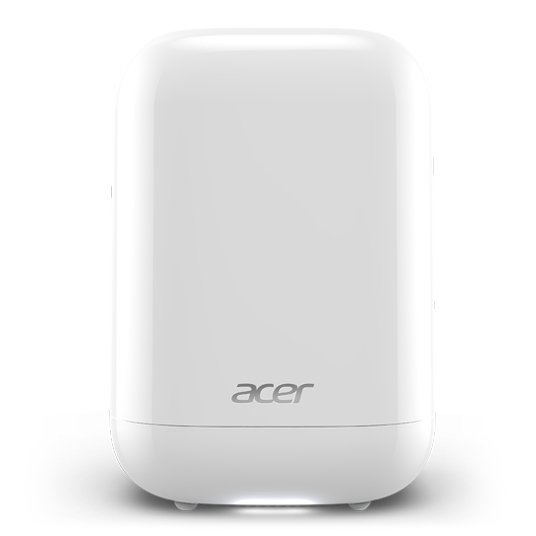

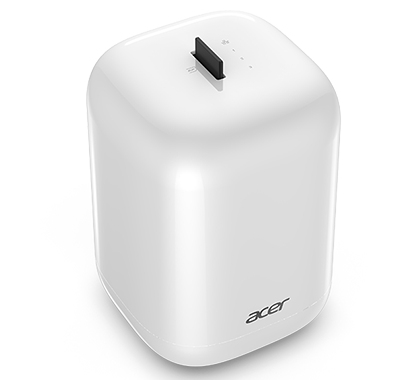

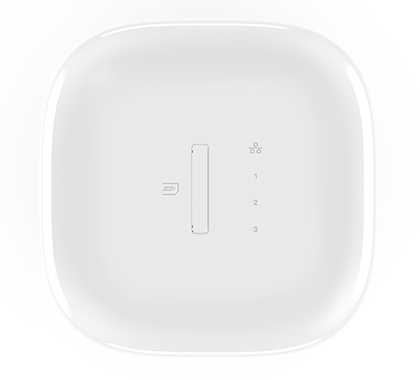

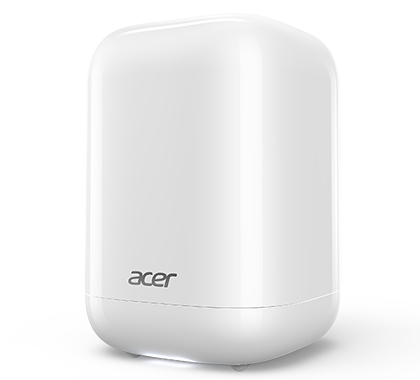

Acer Revo RL85 Intel® Core™ i5 i5-5200U 4 GB DDR3L-SDRAM 2.12 TB HDD+SSD Windows 10 Home Mini PC White
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 106.5 mm
- Wi-Fi
- Y
- Width
- 106.5 mm
- Height
- 155 mm
- Manual included
- Y
- Volume
- 3
- Bus type
- DMI2
- DVI port
- N
- 64-bit support
- Y
1 / 5
Shopping actions
Overview
The Acer Revo RL85 Intel® Core™ i5 i5-5200U 4 GB DDR3L-SDRAM 2.12 TB HDD+SSD Windows 10 Home Mini PC White features Intel Core i5 processor, 2 cores, up to 2.7 GHz boost and 4 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
F0
Cache
3 MB
Cores
2
Model
i5-5200U
Processor line
Intel Core i5
Socket
BGA 1168
Threads
4
Clock speed
2.2 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
2.7 GHz
CPU operating modes
32-bit,64-bit
TDP
15 W
Storage
3 SPECS
Capacity
1 TB
Capacity
128 GB
Storage
2128 GB
Physical
5 SPECS
Depth
106.5 mm
Width
106.5 mm
Height
155 mm
Product type
Mini PC (<= 3L)
Colour
White
Ports & Connectivity
4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR3L-SDRAM
Max memory
8 GB
General
103 SPECS
Wi-Fi
Yes
Manual included
Yes
Volume
3
Bus type
DMI2
DVI port
No
64-bit support
Yes
Line-out
Yes
Bluetooth
Yes
Spindle speed
5400 rpm
Tjunction
105
Idle power states
Yes
Chassis type
Mini PC
Ethernet LAN
Yes
Power supply
65
Certifications
BSMI, VCCI, CCC, CE, FCC, CB
Drive interface
SATA
Microphone input
No
Storage media
HDD+SSD
Processor code
SR23Y
Memory channels
Dual-channel
Bus speed
5 GT/s
Wi-Fi standard
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
85212
Processor series
Intel Core i5-5200 Mobile series
Headphone outputs
1
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
Yes
Intel® Secure Key
Yes
Optical drive type
No
Codename
Broadwell
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Execute Disable (NX)
Yes
Placement supported
Vertical
Intel FDI Technology
Yes
Generation
Intel Core i5-5xxx
Configurable TDP-down
7.5
Card reader
Yes
Dedicated graphics
No
Mini PCI Express slots
1
Integrated graphics
Yes
Processor package size
40 x 24 x 1.3
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Intel Fast Memory Access
Yes
Intel Flex Memory Access
Yes
Number of HDDs installed
2
Number of SSDs installed
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x1616
PCI Express slots version
2.0
Long-term availability
No
Graphics & IMC lithography
14
Operating system
Windows 10 Home
PCI Express configurations
4x1,2x4
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
VGA ports
0
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics 5500
Thunderbolt 3 ports quantity
0
On-board graphics card family
Intel HD Graphics
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Configurable TDP-down frequency
0.6
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Number of storage drives installed
3
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
12
Memory types supported by processor
DDR3L-SDRAM,LPDDR3-SDRAM
Maximum on-board graphics card memory
16
On-board graphics card base frequency
300
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
11.2
Intel Smart Response Technology version
1.00
Intel® Wireless Display (Intel® WiDi)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1333,1600
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
25.6
Intel® Small Business Advantage (Intel® SBA)
Yes
Maximum internal memory supported by processor
16
On-board graphics card dynamic frequency (max)
900
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
