MPN:
DT.C04EH.004

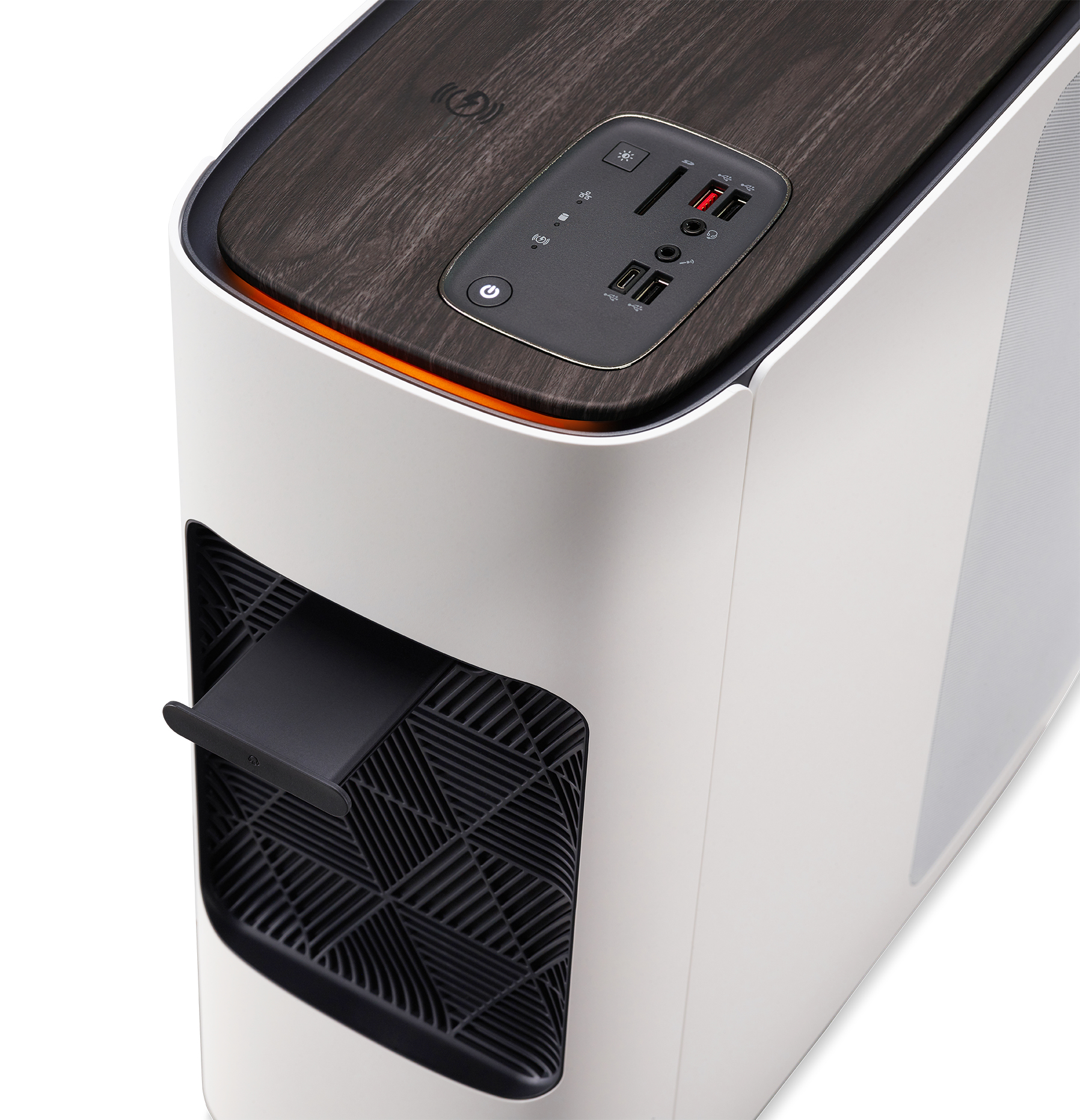

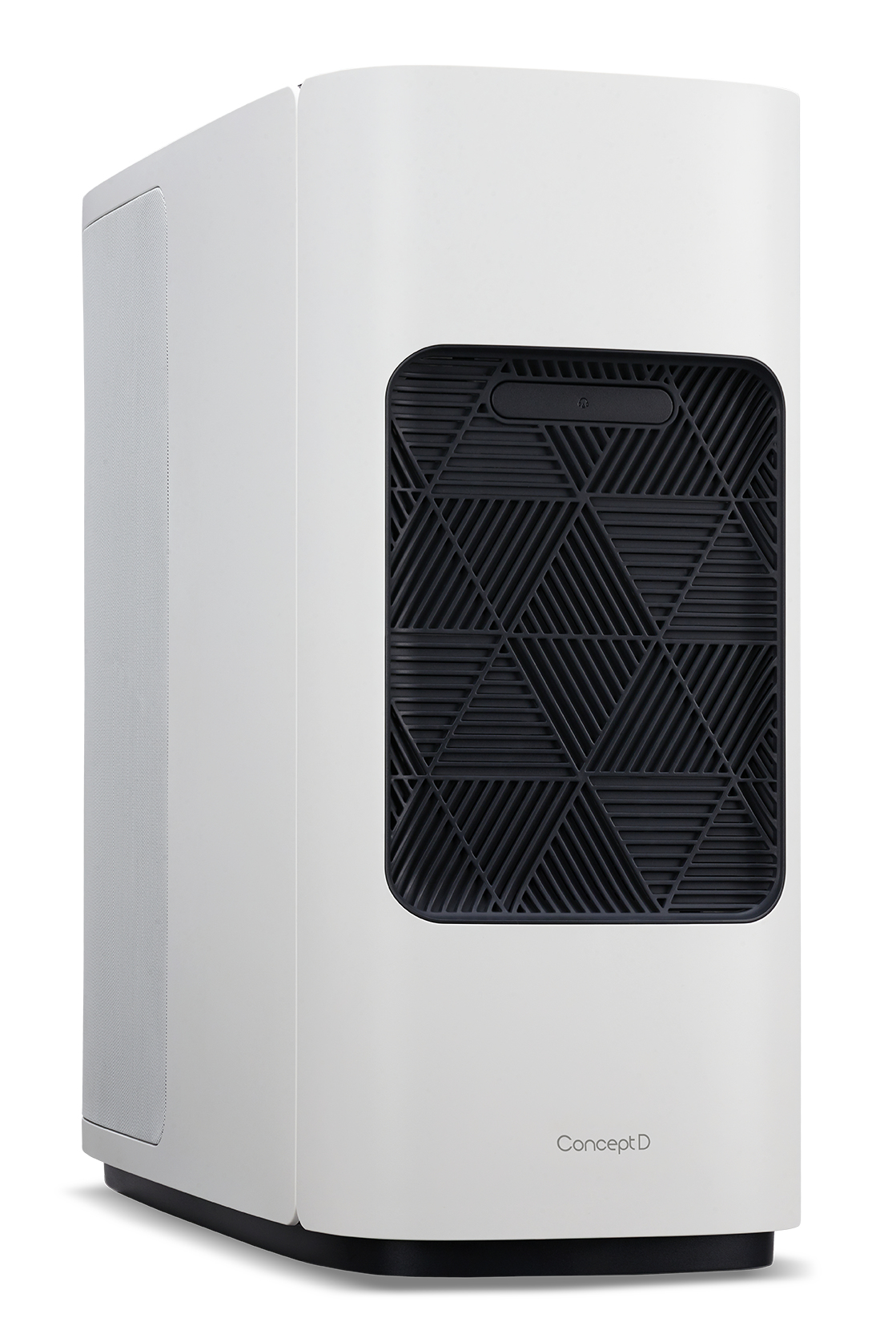

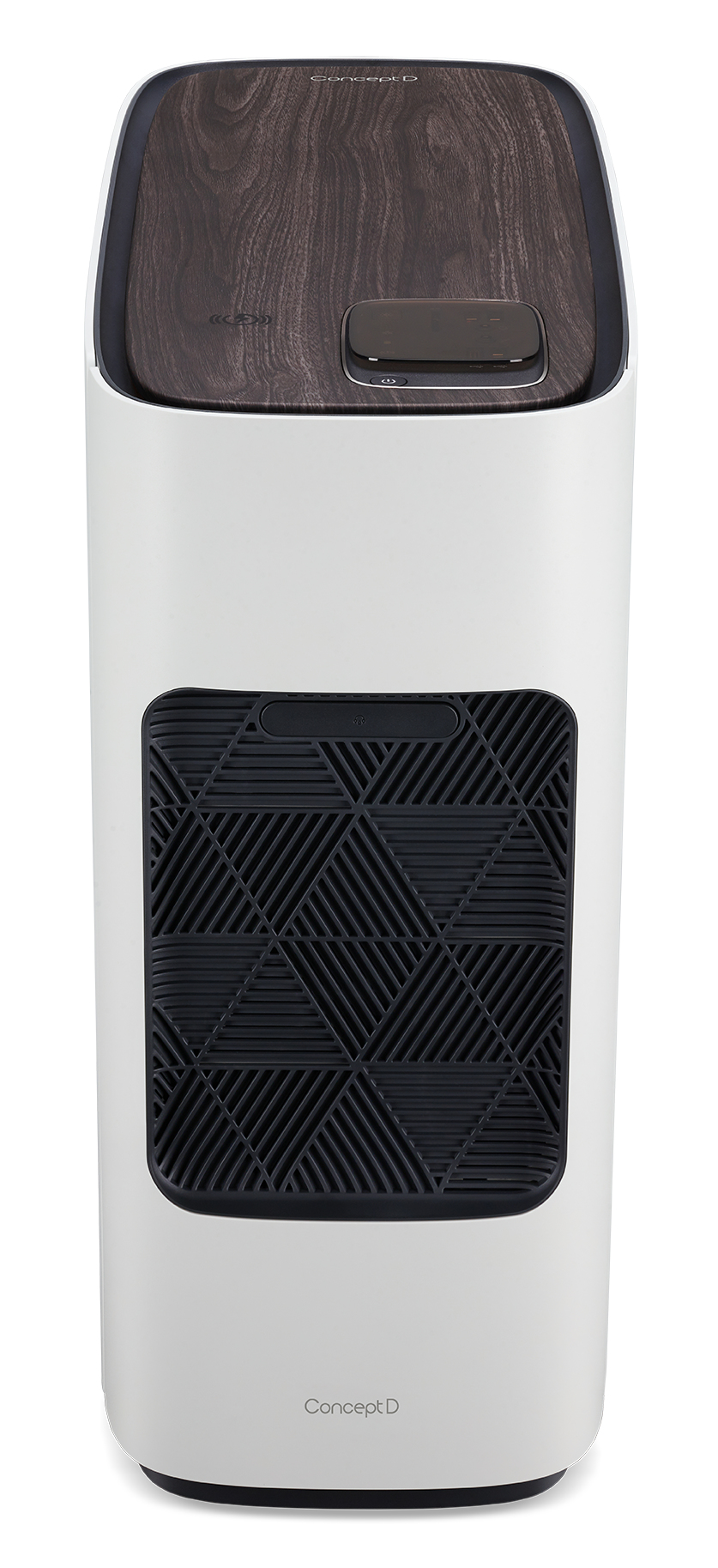

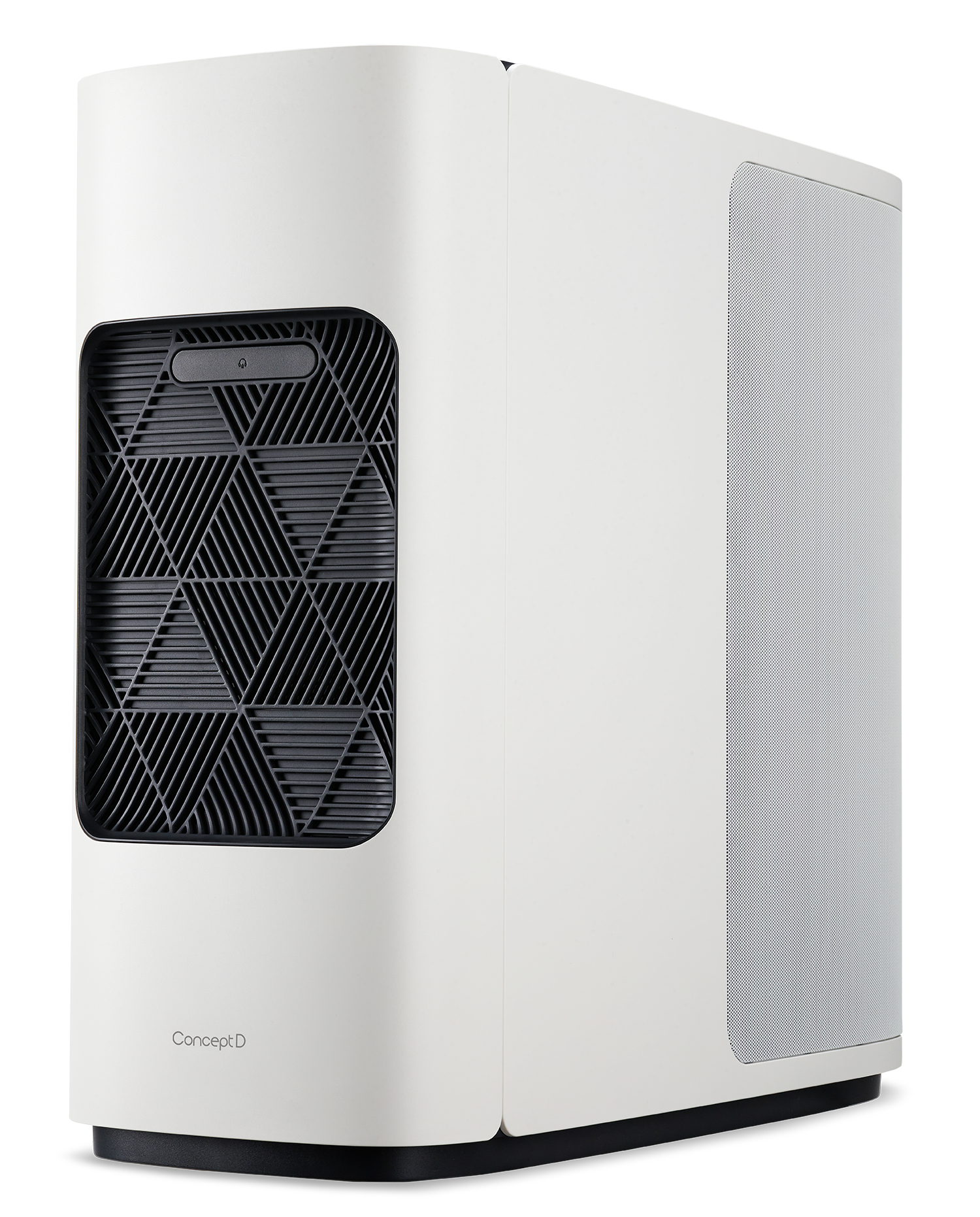

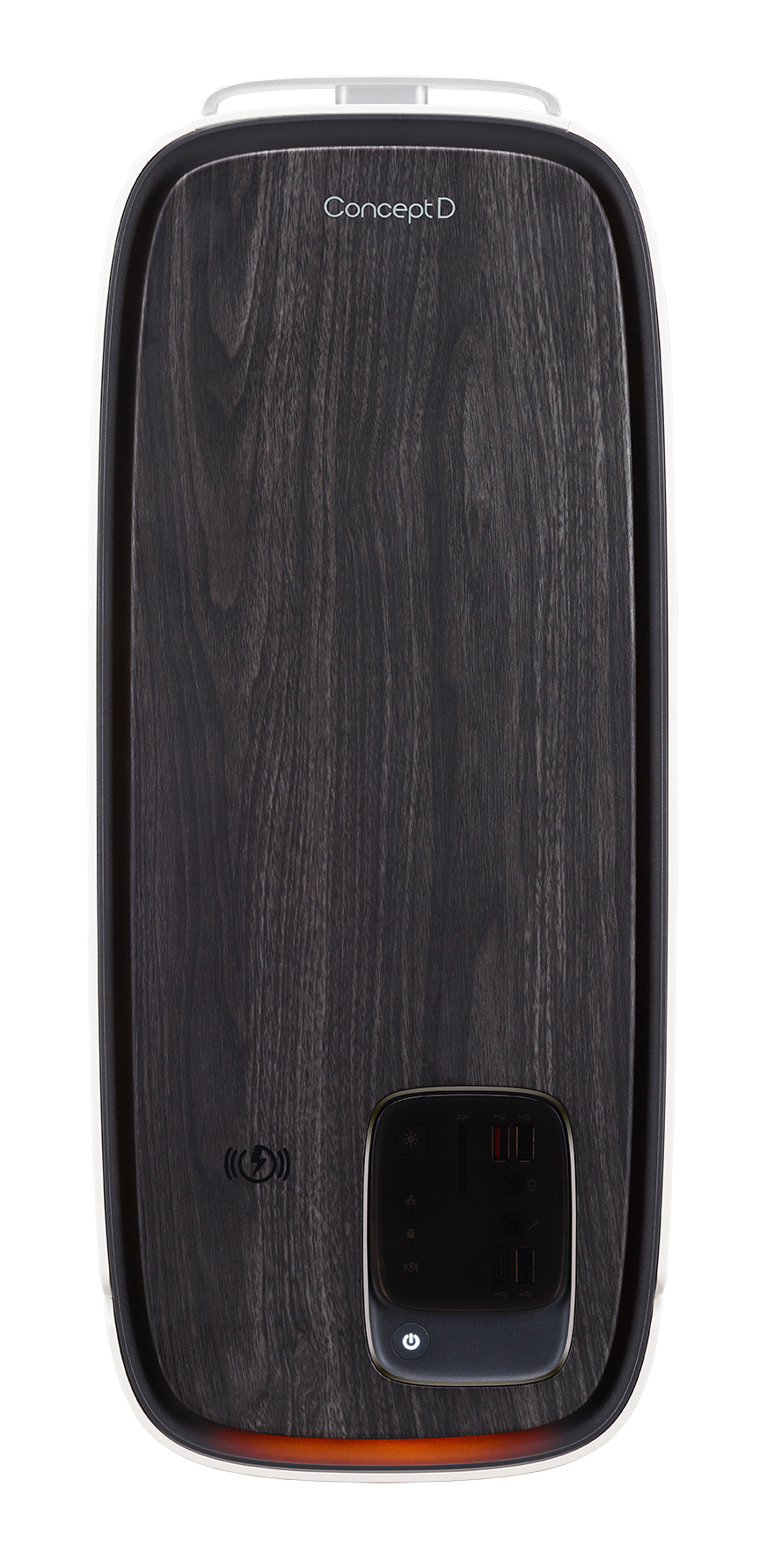

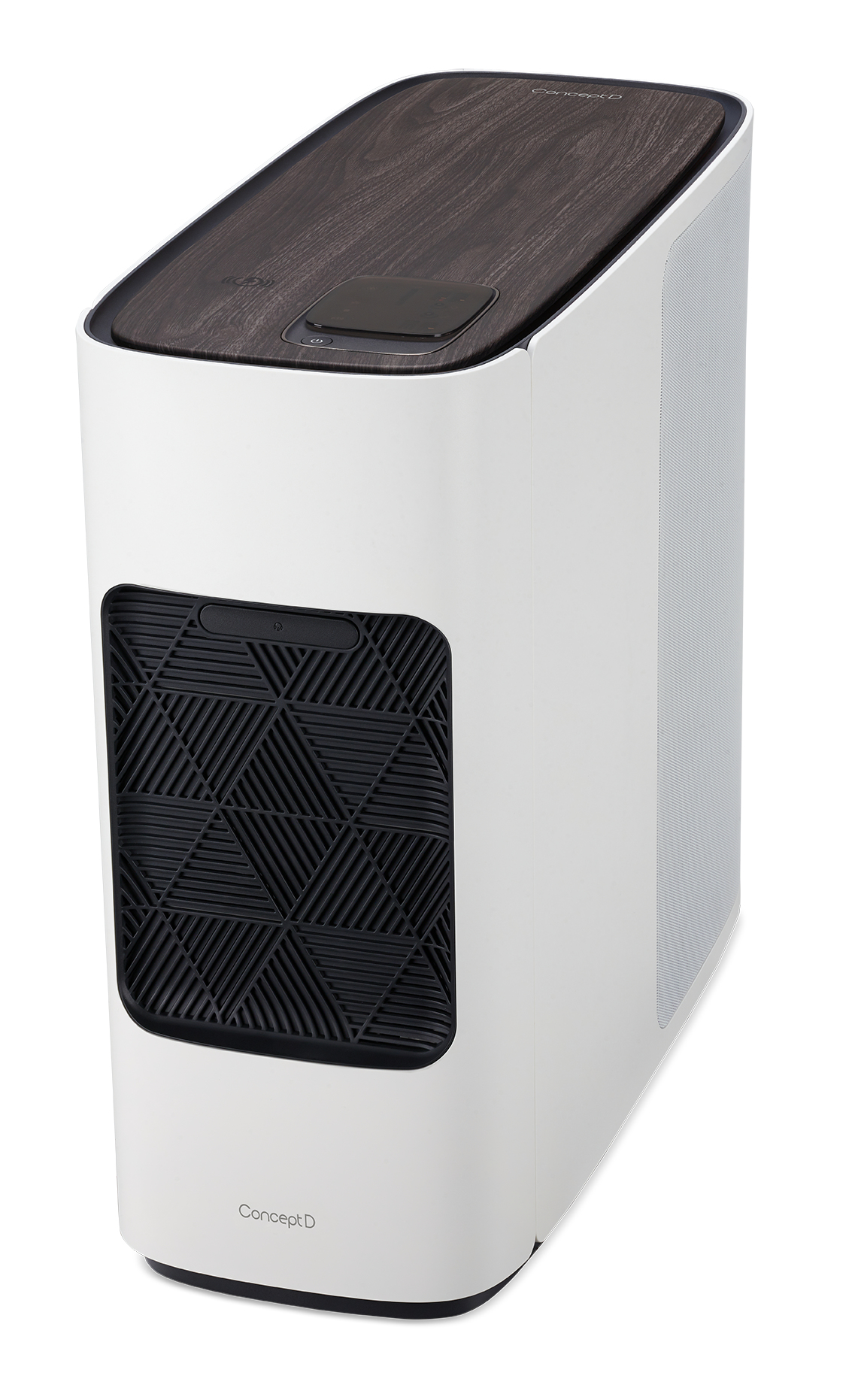

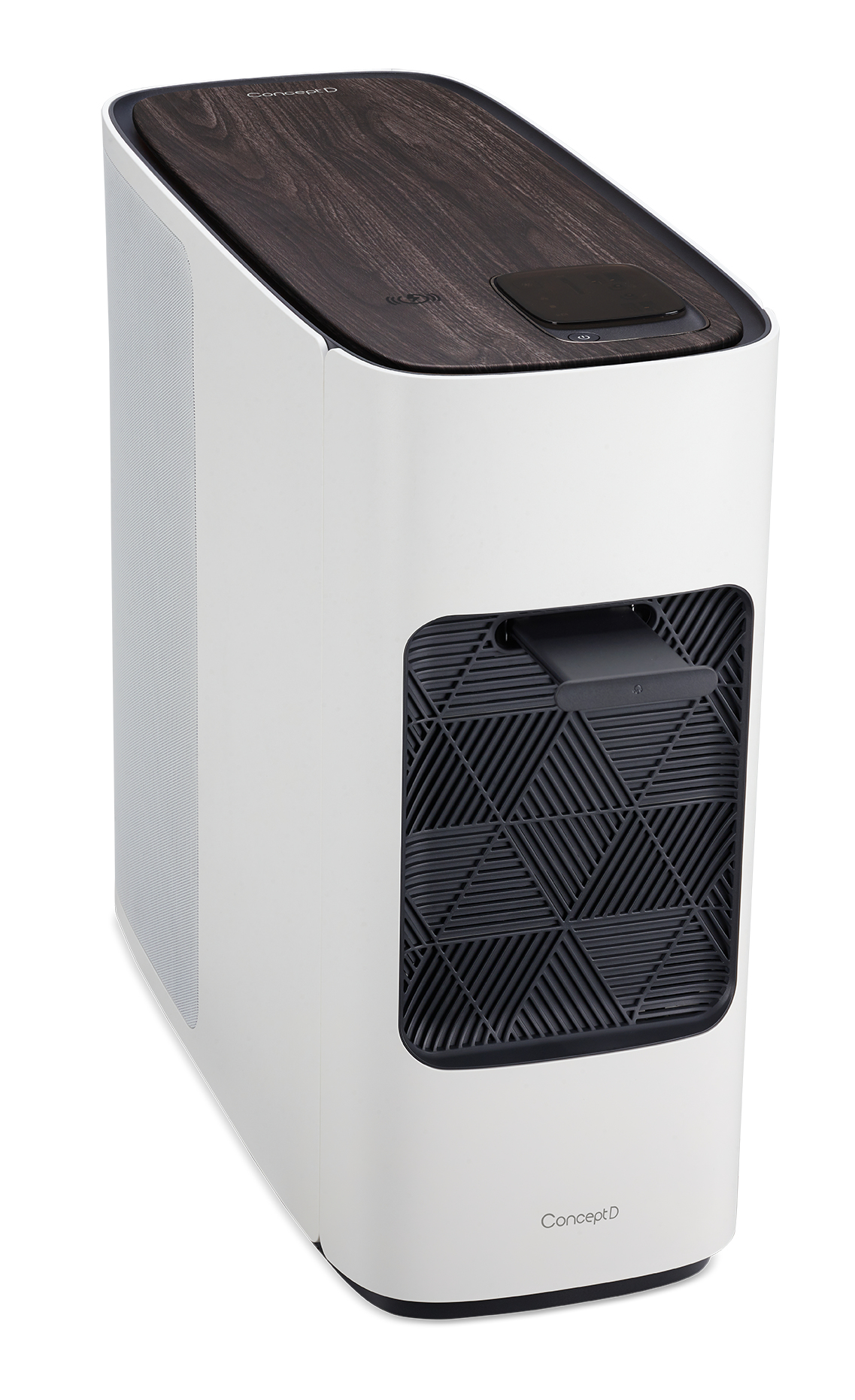

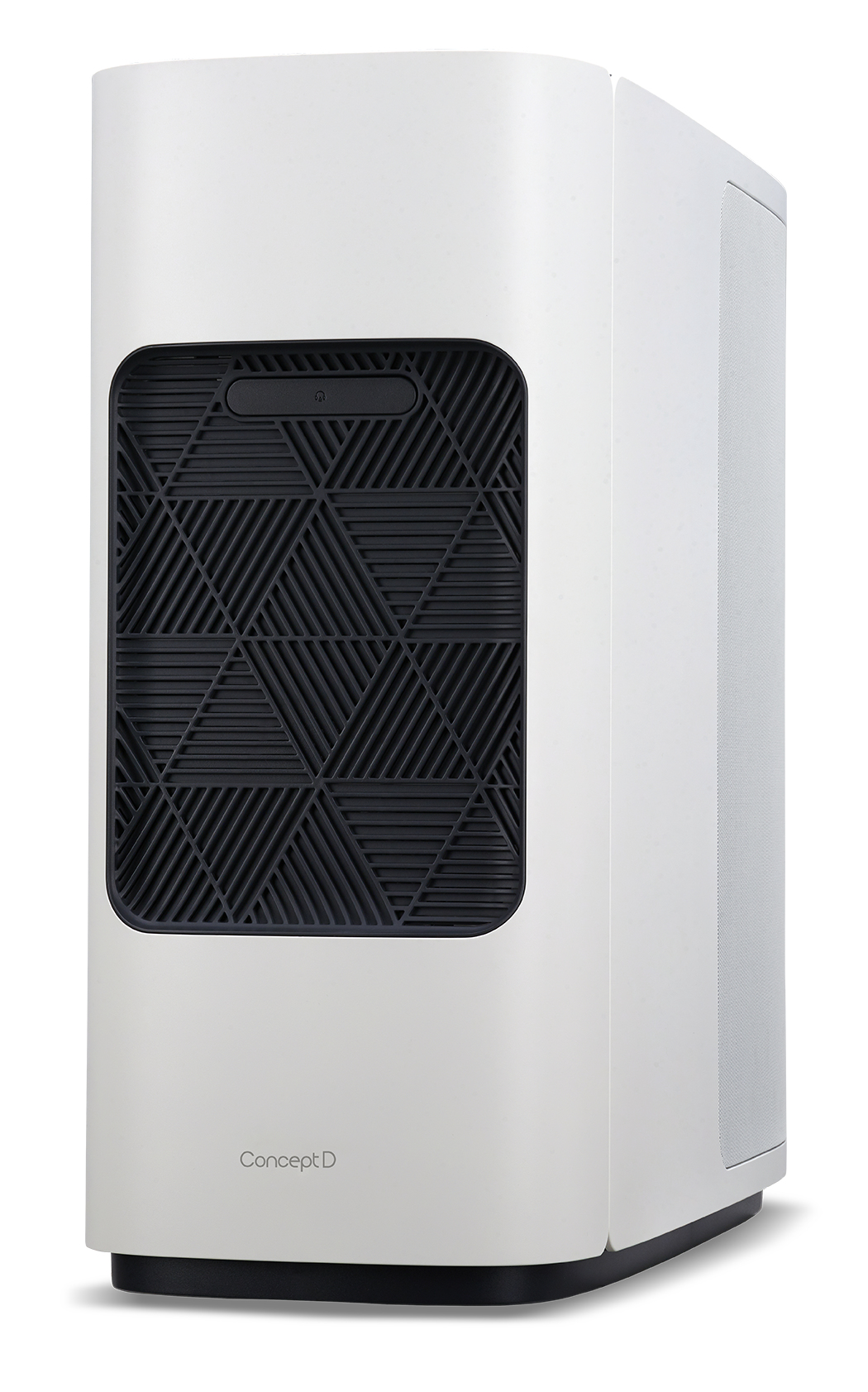

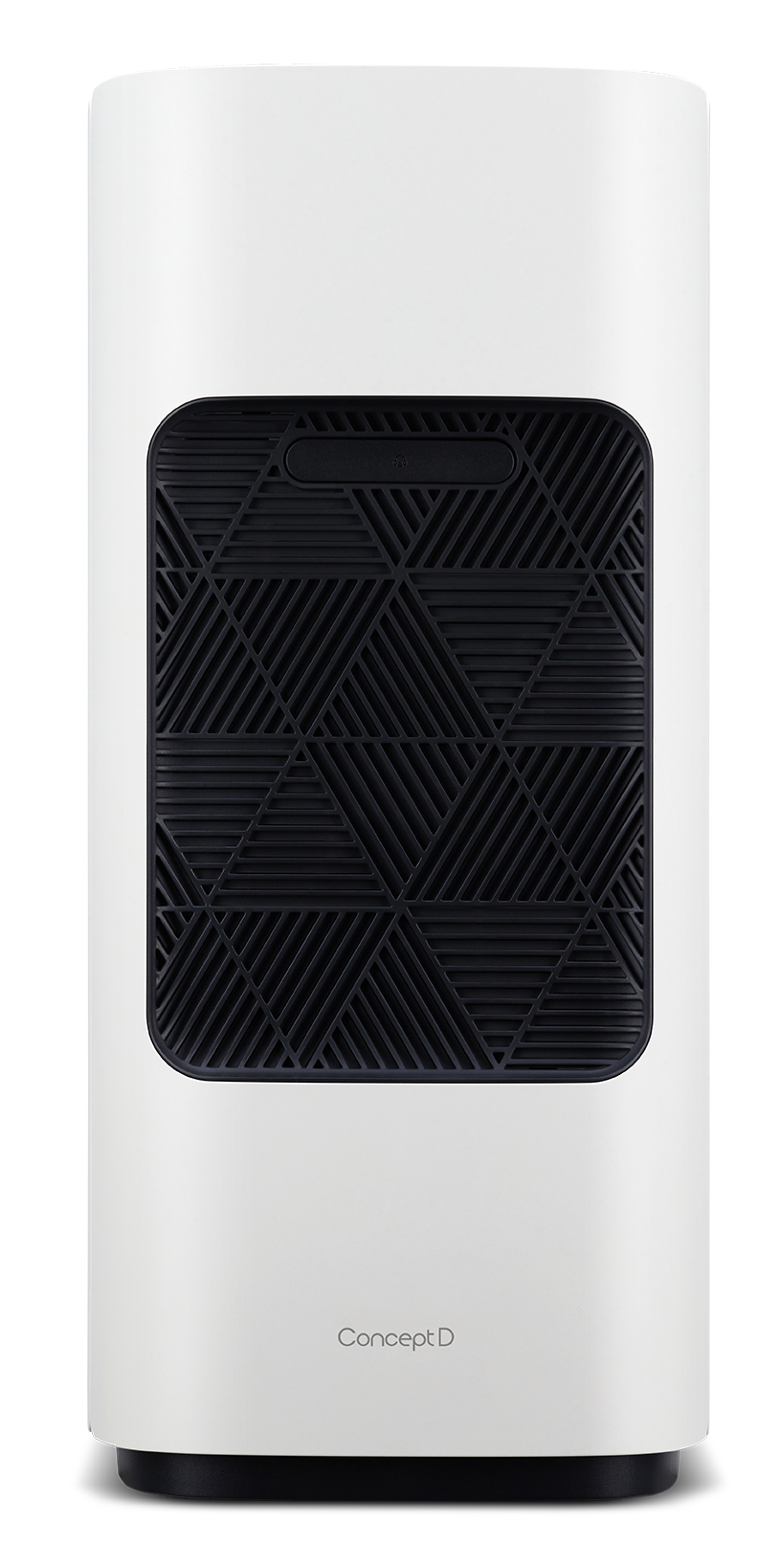

Acer ConceptD 700 iX9264Q Intel Xeon E E-2288G 64 GB DDR4-SDRAM 1 TB SSD NVIDIA Quadro RTX 4000 Windows 10 Pro Tower Workstation White
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- NVMe
- Y
- Depth
- 476 mm
- Max case temperature (Tcase)
- 67.3 °C
- Wi-Fi
- Y
- Width
- 204 mm
- Height
- 439 mm
- Weight
- 9000 g
- Line-in
- Y
- DVI port
- N
1 / 10
Shopping actions
Overview
The Acer ConceptD 700 iX9264Q Intel Xeon E E-2288G 64 GB DDR4-SDRAM 1 TB SSD NVIDIA Quadro RTX 4000 Windows 10 Pro Tower Workstation White features Intel Xeon E processor, 8 cores, up to 5 GHz boost, 8 GB of video memory and NVMe support. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
16 MB
Cores
8
Model
E-2288G
Processor line
Intel Xeon E
Socket
LGA 1151 (Socket H4)
Threads
16
Clock speed
3.7 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
5 GHz
CPU operating modes
64-bit
TDP
95 W
Memory
3 SPECS
Capacity
64 GB
Memory type
DDR4-SDRAM
Max memory
64 GB
Physical
6 SPECS
Depth
476 mm
Width
204 mm
Height
439 mm
Weight
9000 g
Product type
Workstation
Colour
White

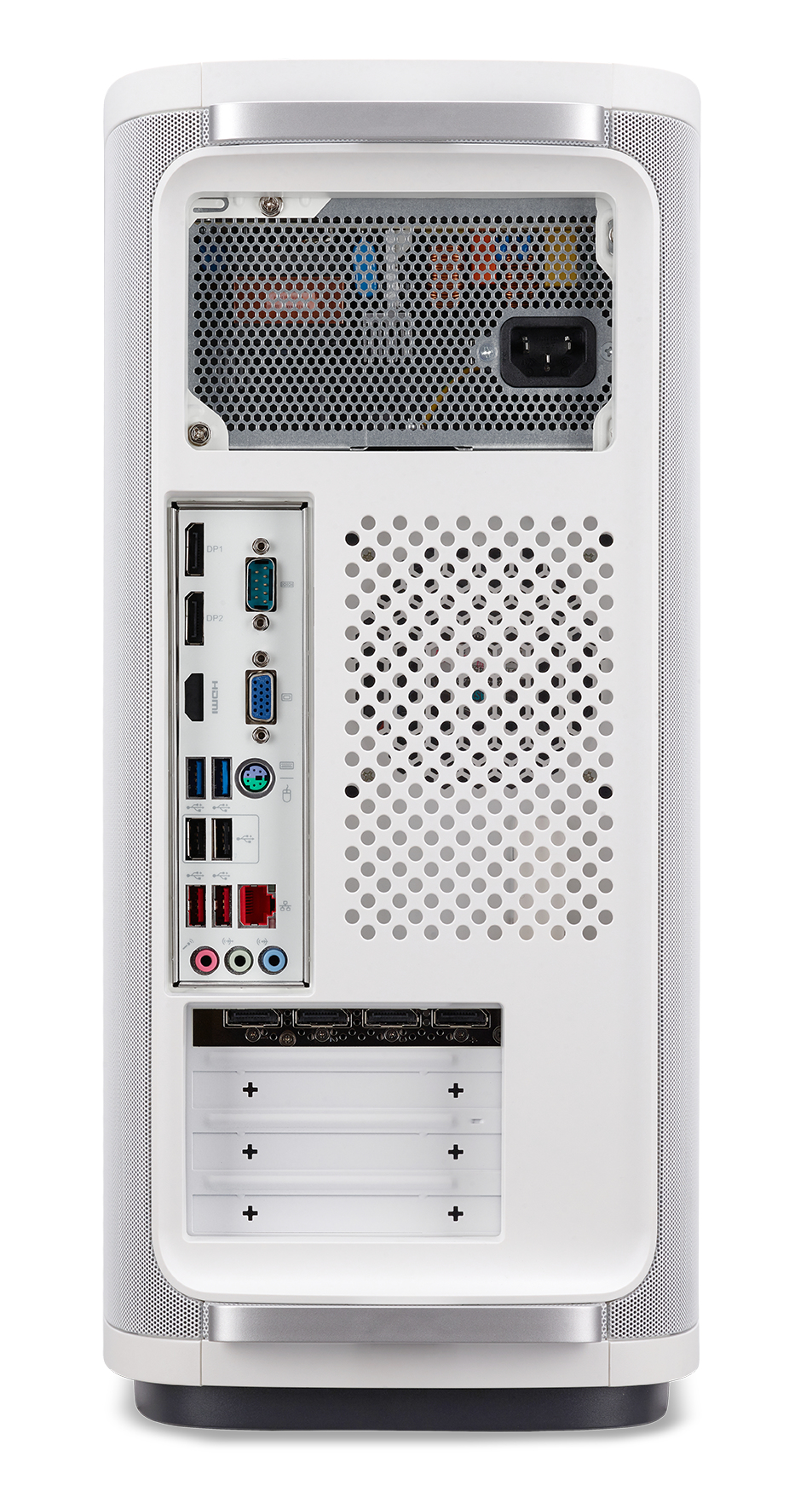

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
1
DisplayPorts quantity
2
USB 2.0 ports
4
Ethernet ports
1
Storage
2 SPECS
Capacity
1 TB
Storage
1 TB
Graphics
1 SPEC
VRAM
8 GB
General
87 SPECS
NVMe
Yes
Max case temperature (Tcase)
67.3 °C
Wi-Fi
Yes
Line-in
Yes
DVI port
No
64-bit support
Yes
Line-out
Yes
Bluetooth
Yes
PCI slots
1
Tjunction
100
Idle power states
Yes
Scalability
1S
Antenna type
2x2
Audio system
High Definition Audio
Chassis type
Tower
Ethernet LAN
Yes
Intel TSX-NI
Yes
Power supply
500
Microphone input
Yes
SSD interface
NVMe,PCI Express
Storage media
SSD
Wi-Fi standard
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
193743
Bluetooth version
5.0
Intel® Secure Key
Yes
Optical drive type
No
Codename
Coffee Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Execute Disable (NX)
Yes
Total SSDs capacity
1000
Audio channels
5.1
PCI Express x16 slots
1
WLAN controller model
Intel Dual Band Wireless-AC 9560
Card reader
Yes
Dedicated graphics
Yes
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compatible memory cards
SD
Compliance certificates
RoHS
Ethernet LAN data rates
10,100,1000
Combo headphone/mic port
Yes
Number of SSDs installed
1
On-board GPU manufacturer
Intel
On-board graphics card ID
0x3E9A
PCI Express slots version
3.0
Long-term availability
No
Operating system
Windows 10 Pro
PCI Express configurations
1x16,2x8,1x8+2x4
Instruction sets
SSE4.1,SSE4.2,AVX 2.0
VGA ports
1
Dedicated GPU model
NVIDIA Quadro RTX 4000
Intel Clear Video Technology
Yes
Integrated GPU model
Intel UHD Graphics P630
Thunderbolt 3 ports quantity
0
Discrete graphics memory type
GDDR6
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal monitoring
Yes
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM
Maximum on-board graphics card memory
128
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2666
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Maximum internal memory supported by processor
128
On-board graphics card dynamic frequency (max)
1200
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
