MPN:
DT.SRPEG.033

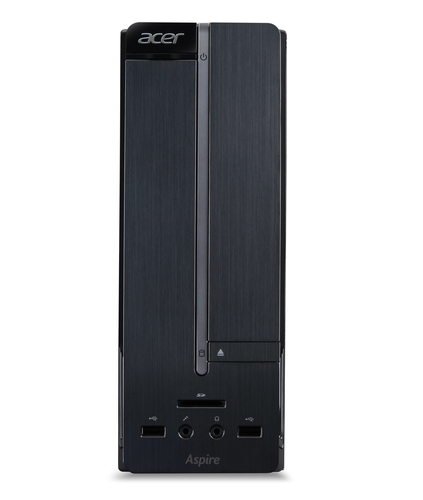

Acer Aspire XC-605 Intel® Core™ i7 i7-4770 16 GB DDR3-SDRAM 1 TB HDD Windows 8 SFF PC Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 367 mm
- Max case temperature (Tcase)
- 72.72 °C
- Wi-Fi
- Y
- Width
- 100 mm
- Height
- 269.5 mm
- Bus type
- DMI2
- DVI port
- N
- Drive form factor
- 3.5
- 64-bit support
- Y
1 / 3
Shopping actions
Overview
The Acer Aspire XC-605 Intel® Core™ i7 i7-4770 16 GB DDR3-SDRAM 1 TB HDD Windows 8 SFF PC Black features Intel Core i7 processor, 4 cores, up to 3.9 GHz boost and 16 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
C0
Cache
8 MB
Cores
4
Model
i7-4770
Processor line
Intel Core i7
Socket
LGA 1150 (Socket H3)
Threads
8
Clock speed
3.4 GHz
Cache level
Smart Cache
Process node
22 nm
CPU brand
Intel
Boost clock
3.9 GHz
CPU operating modes
64-bit
TDP
84 W
Storage
2 SPECS
Capacity
1 TB
Storage
1 TB
Physical
5 SPECS
Depth
367 mm
Width
100 mm
Height
269.5 mm
Product type
PC
Colour
Black
Memory
3 SPECS
Capacity
16 GB
Memory type
DDR3-SDRAM
Max memory
16 GB
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
4
Ethernet ports
1
Graphics
1 SPEC
Memory clock
1600 MHz
General
113 SPECS
Max case temperature (Tcase)
72.72 °C
Wi-Fi
Yes
Bus type
DMI2
DVI port
No
Drive form factor
3.5
64-bit support
Yes
Spindle speed
7200 rpm
DC-in jack
No
Idle power states
Yes
Scalability
1S
Chassis type
SFF
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2x DIMM
Power supply
220
Certifications
PC2001, BSMI, VCCI, CCC, CE, FCC, CB
Microphone input
Yes
Storage media
HDD
Mouse included
Yes
Processor code
SR149
Included cables
AC
Memory channels
Dual-channel
S/PDIF out port
No
Bus speed
5 GT/s
Wi-Fi standard
802.11a,802.11b,802.11g
Display included
No
Intel® OS Guard
Yes
Intel ARK ID
75122
Processor series
Intel Core i7-4700 Desktop series
Keyboard included
Yes
Cabling technology
10/100/1000Base-T(X)
Intel® Insider™
Yes
Intel® Secure Key
Yes
Optical drive type
DVD Super Multi
Codename
Haswell
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Placement supported
Vertical
Intel FDI Technology
Yes
Intel TSX-NI version
0.00
PCI Express x1 slots
1
Generation
Intel Core i7-4xxx
Water cooling system
No
Audio channels
5.1
PCI Express x16 slots
1
Dedicated graphics
No
Mini PCI Express slots
1
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Optical drives quantity
1
Combo headphone/mic port
No
Number of HDDs installed
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x412
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
No
Graphics & IMC lithography
22
Operating system
Windows 8
PCI Express configurations
1x16,2x8,1x8+2x4
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
VGA ports
1
Dedicated GPU model
Not available
Memory layout (slots x size)
2 x 8
Integrated GPU model
Intel HD Graphics 4600
Thunderbolt 3 ports quantity
0
On-board graphics card family
Intel HD Graphics
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Number of processors installed
1
Thermal solution specification
PCG 2013D
Thermal monitoring
Yes
Trusted Execution (TXT)
Yes
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3-SDRAM
Maximum on-board graphics card memory
2
Memory voltage supported by processor
1.5
On-board graphics card OpenGL version
4.3
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
11.2/12
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
Yes
Memory clock speeds supported by processor
1333,1600
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
25.6
Maximum internal memory supported by processor
32
On-board graphics card dynamic frequency (max)
1200
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
1.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
