MSI logo MPN: CUBI N ADL N100 BB

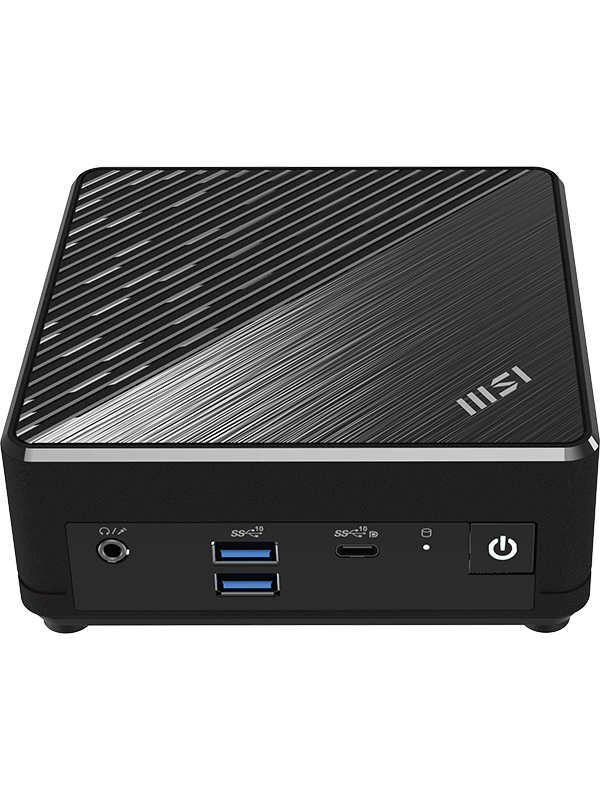

MSI Cubi N ADL Intel N100 Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), UHD Graphics/Type C/HDMI/DisplayPort/Dual LAN/WiFi 5/BT 5.1/VESA

Released: Jan 1, 2024 3 years ago
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

NVMe
Y

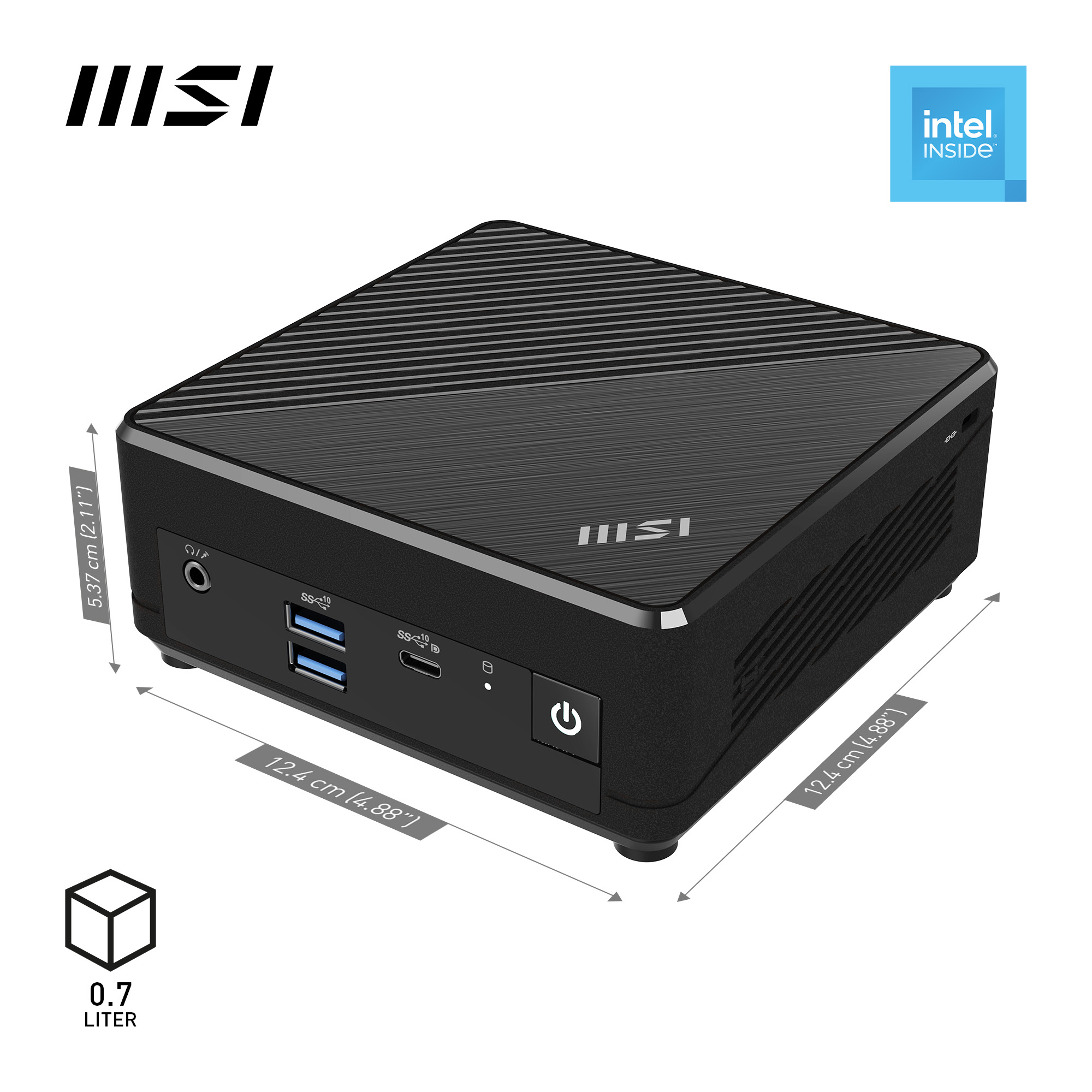

Depth
124 mm
Wi-Fi
Y
Width
124 mm
Height
53.7 mm
Weight
540 g
DVI port
N
Bluetooth
Y
DC-in jack
Y
View 85 specifications
1 / 27
Shopping actions
Check price on Amazon

Overview

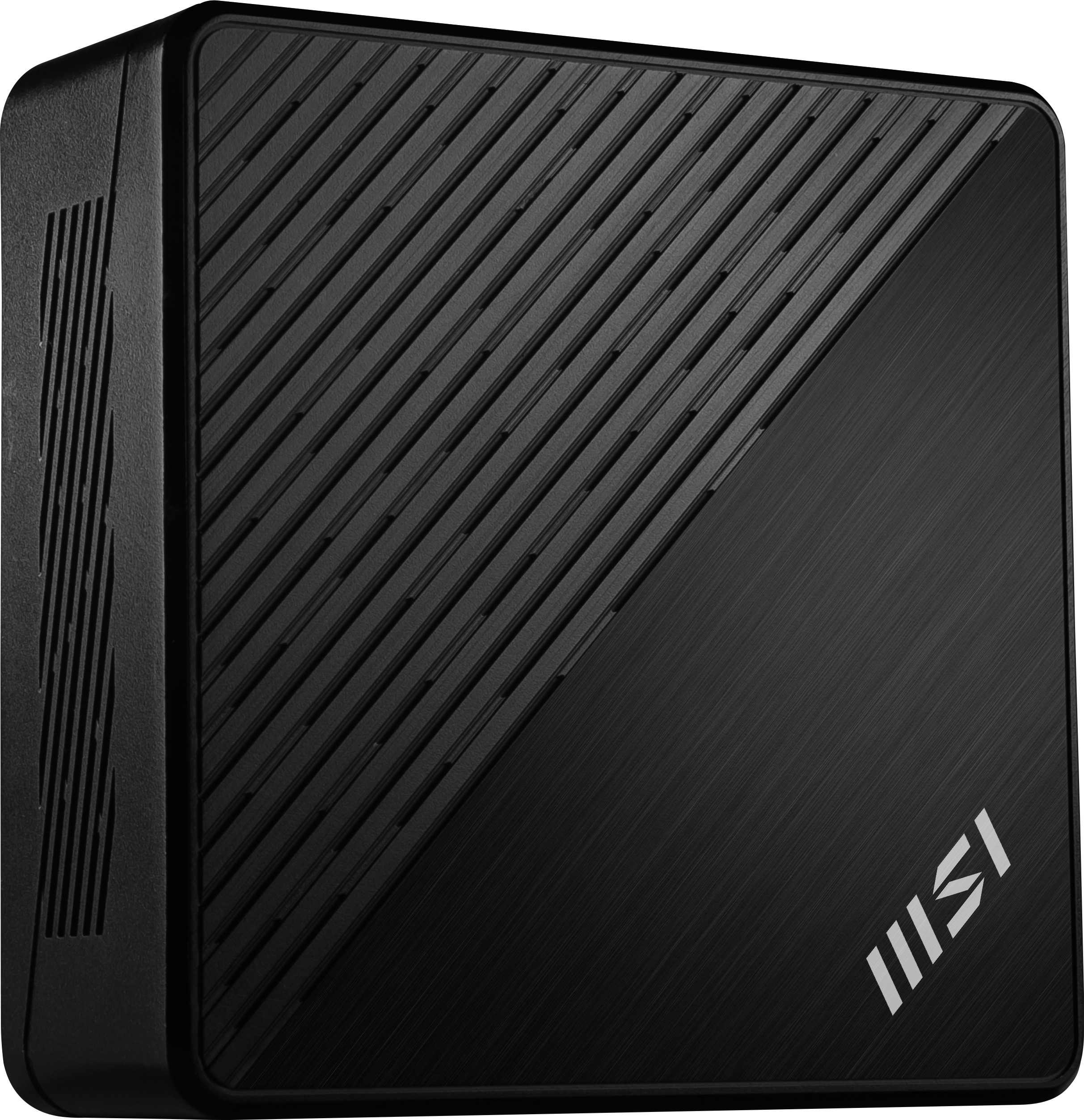

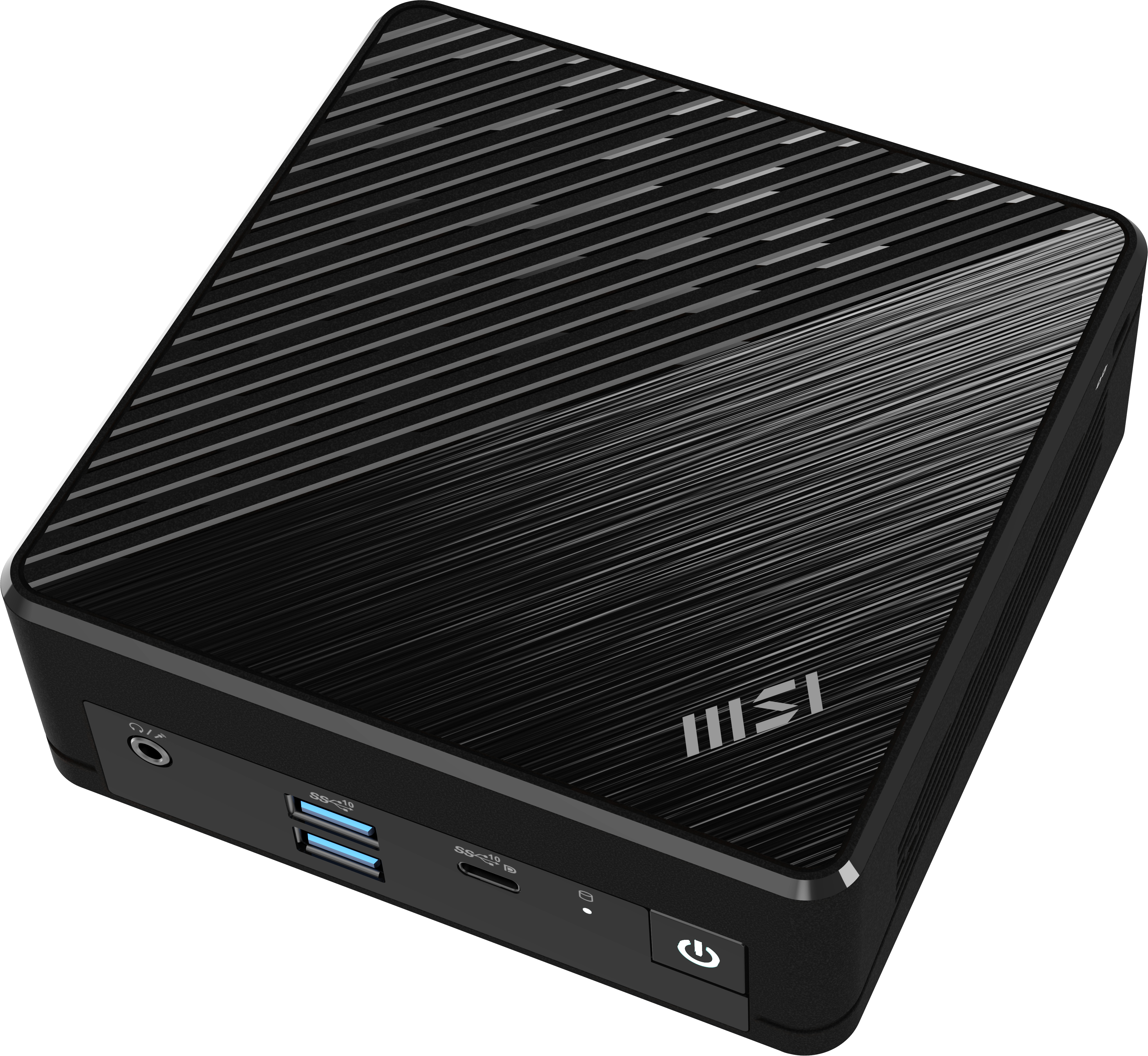

"Cubi N ADL: The Energy Efficient Mini-PC

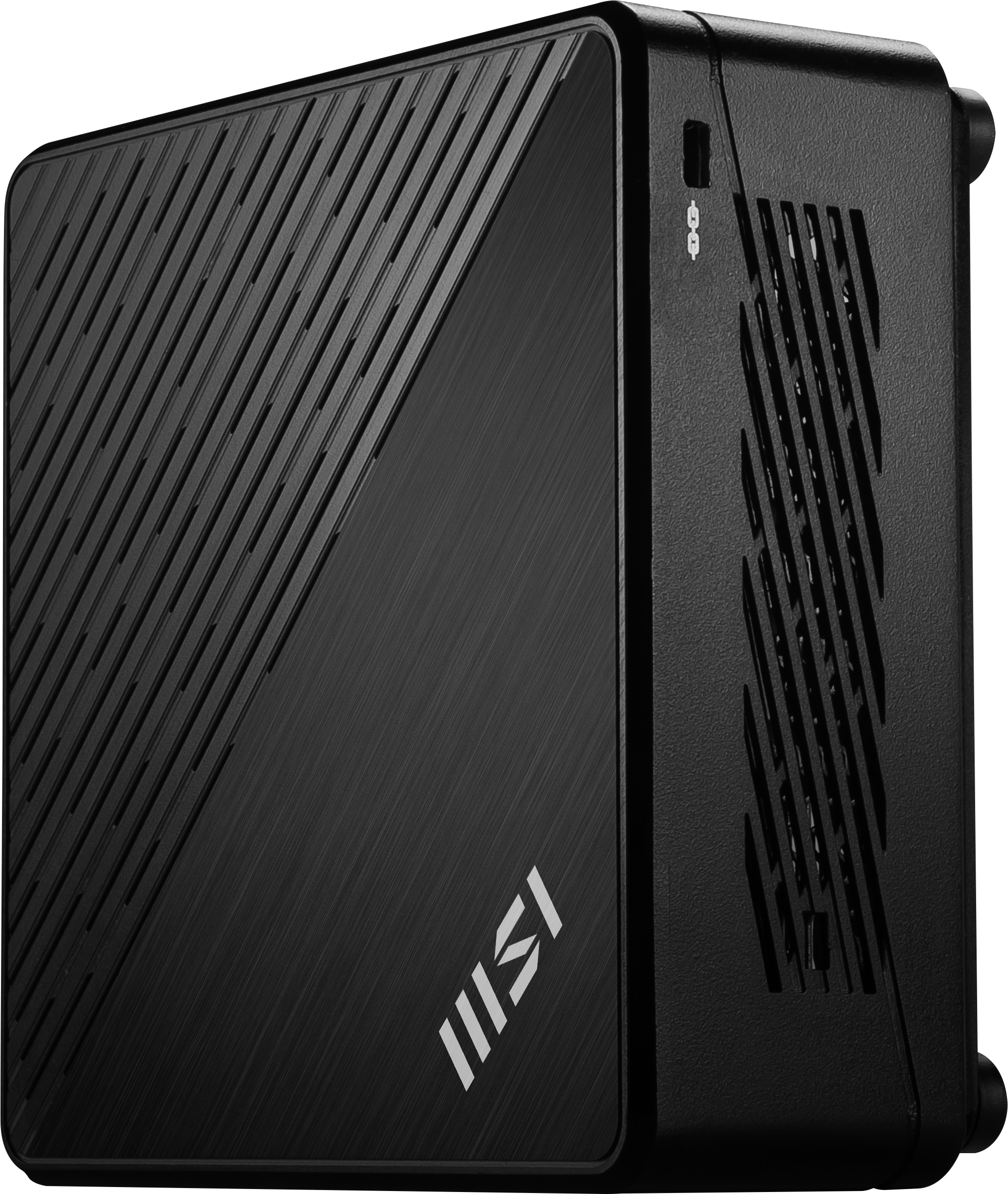

The MSI Cubi N ADL is a small yet powerful mini-desktop with an incredibly compact 0.66L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).

The Cubi N ADL N100 BB configuration is a barebone equipped with an Intel N100 processor, allowing upto 16GB of DDR4-3200MHz memory, either M.2 / 2.5' SSD storage, Intel Wi-Fi 9462 & Bluetooth 5.1 connectivity.

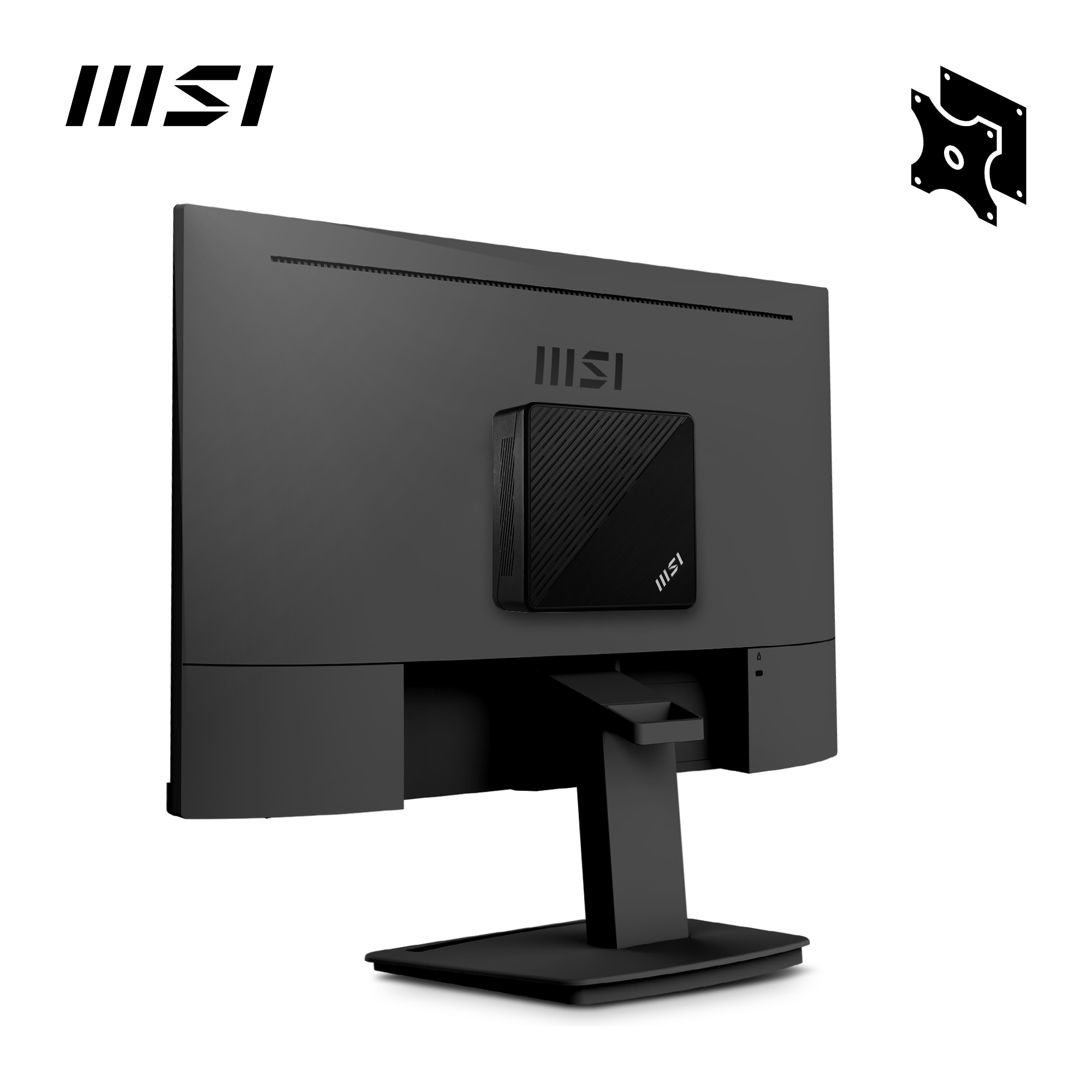

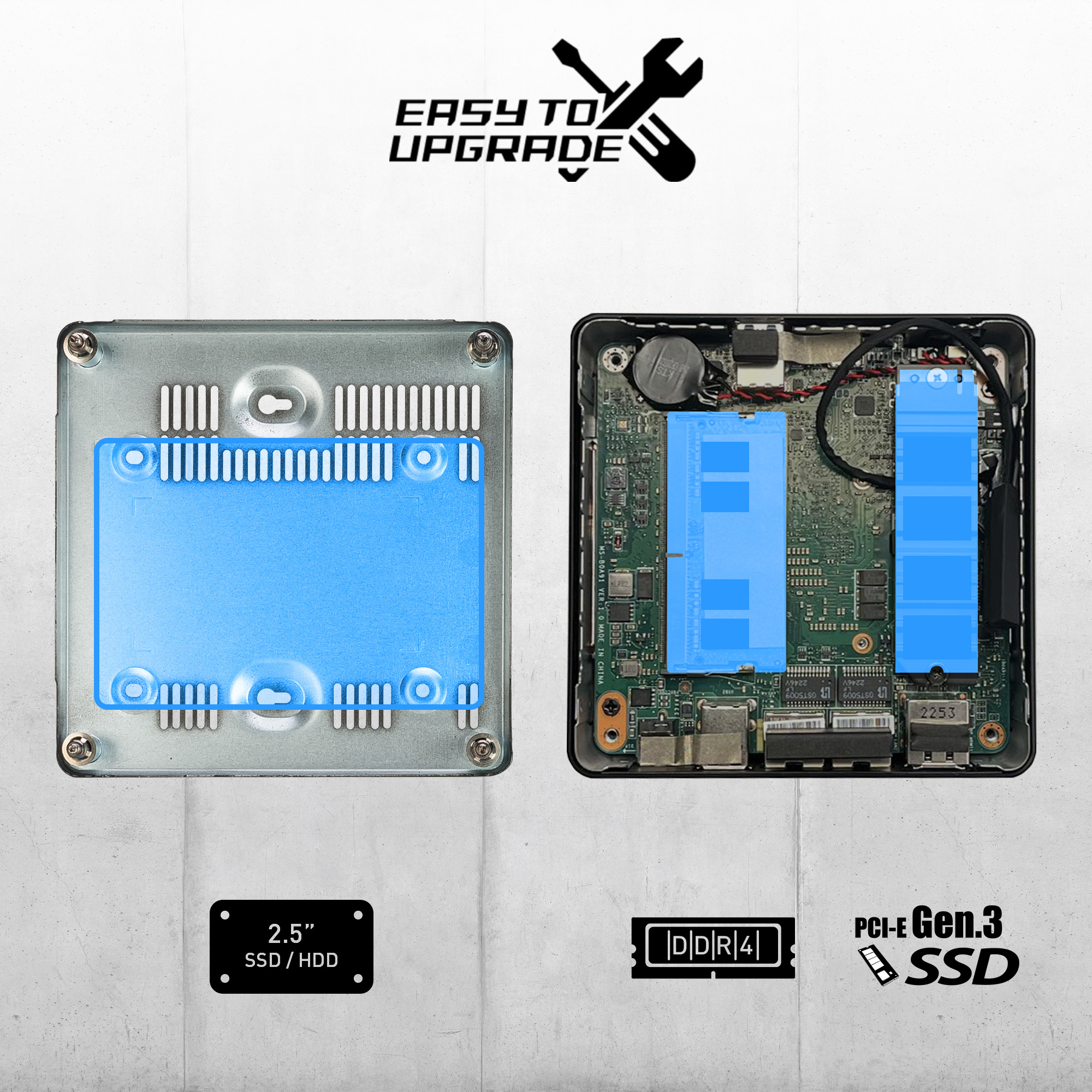

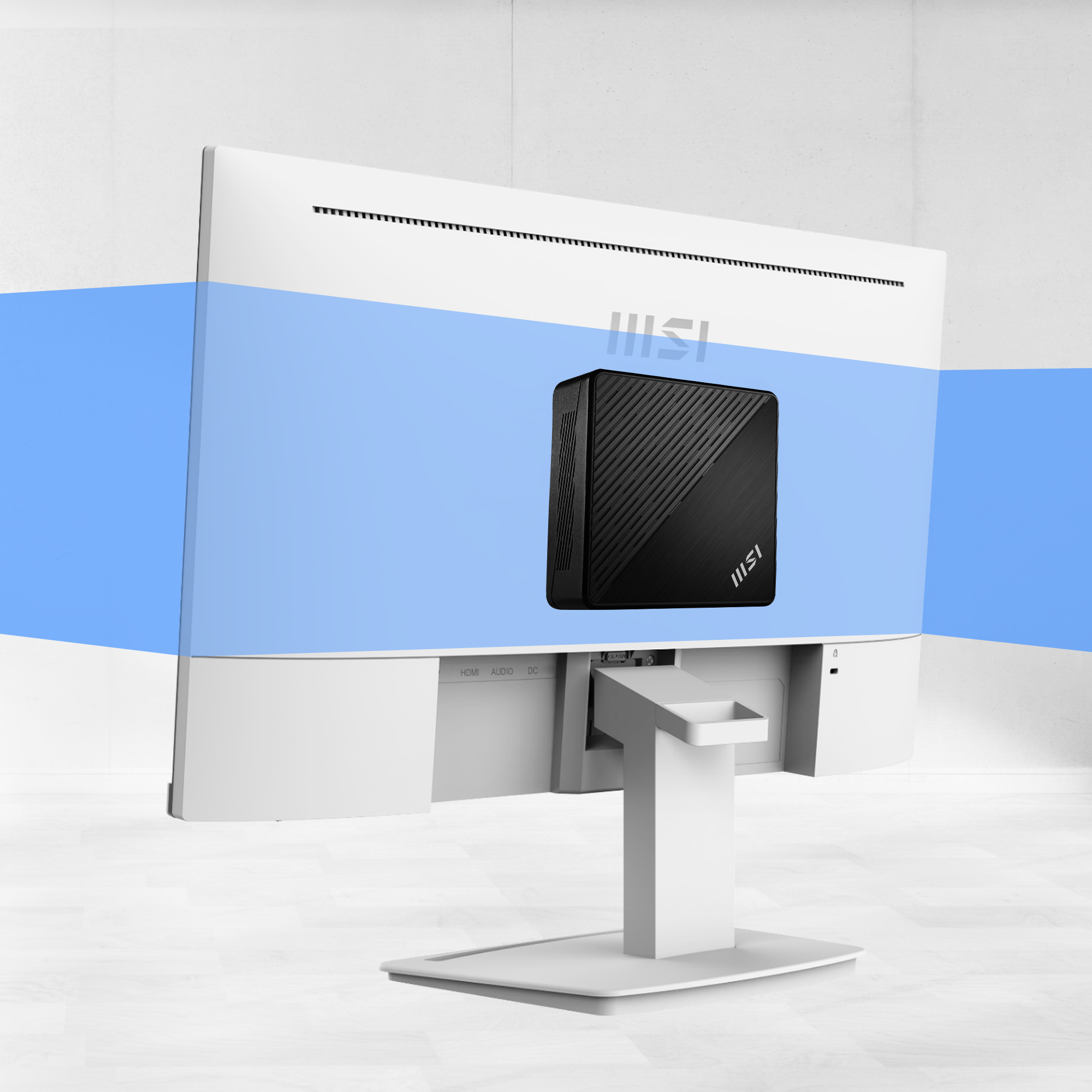

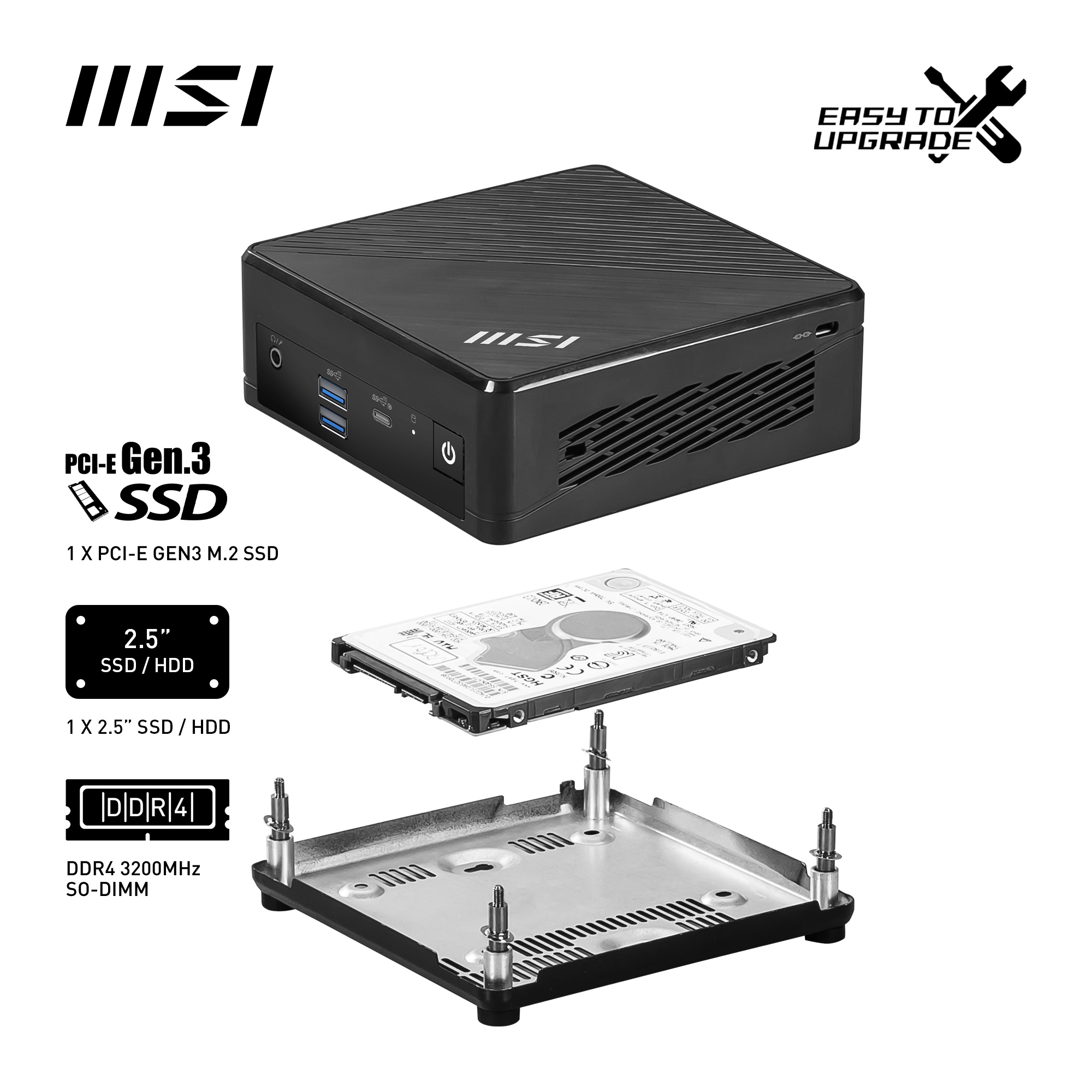

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 16 GB of system memory (1 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.

Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi N ADL is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

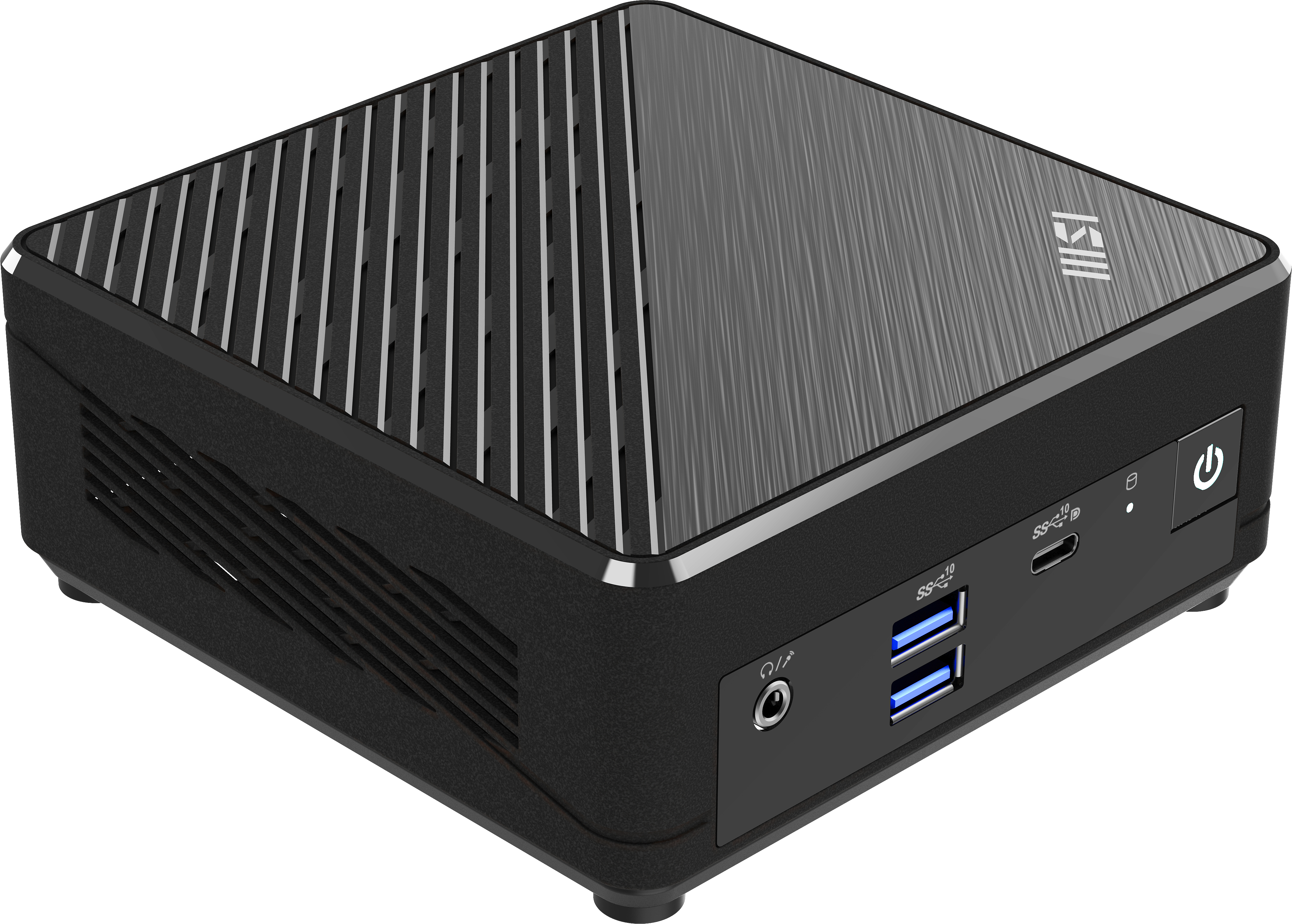

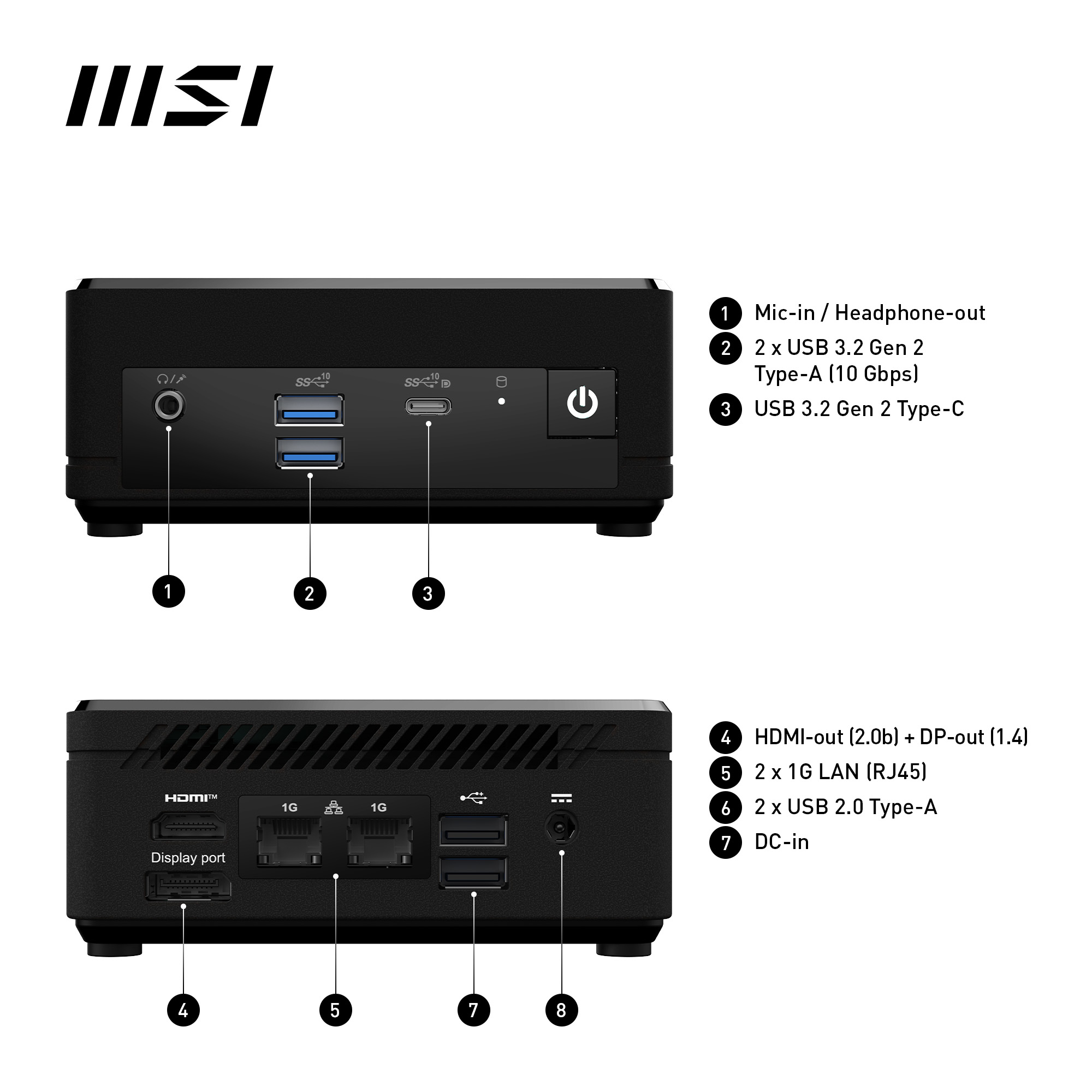

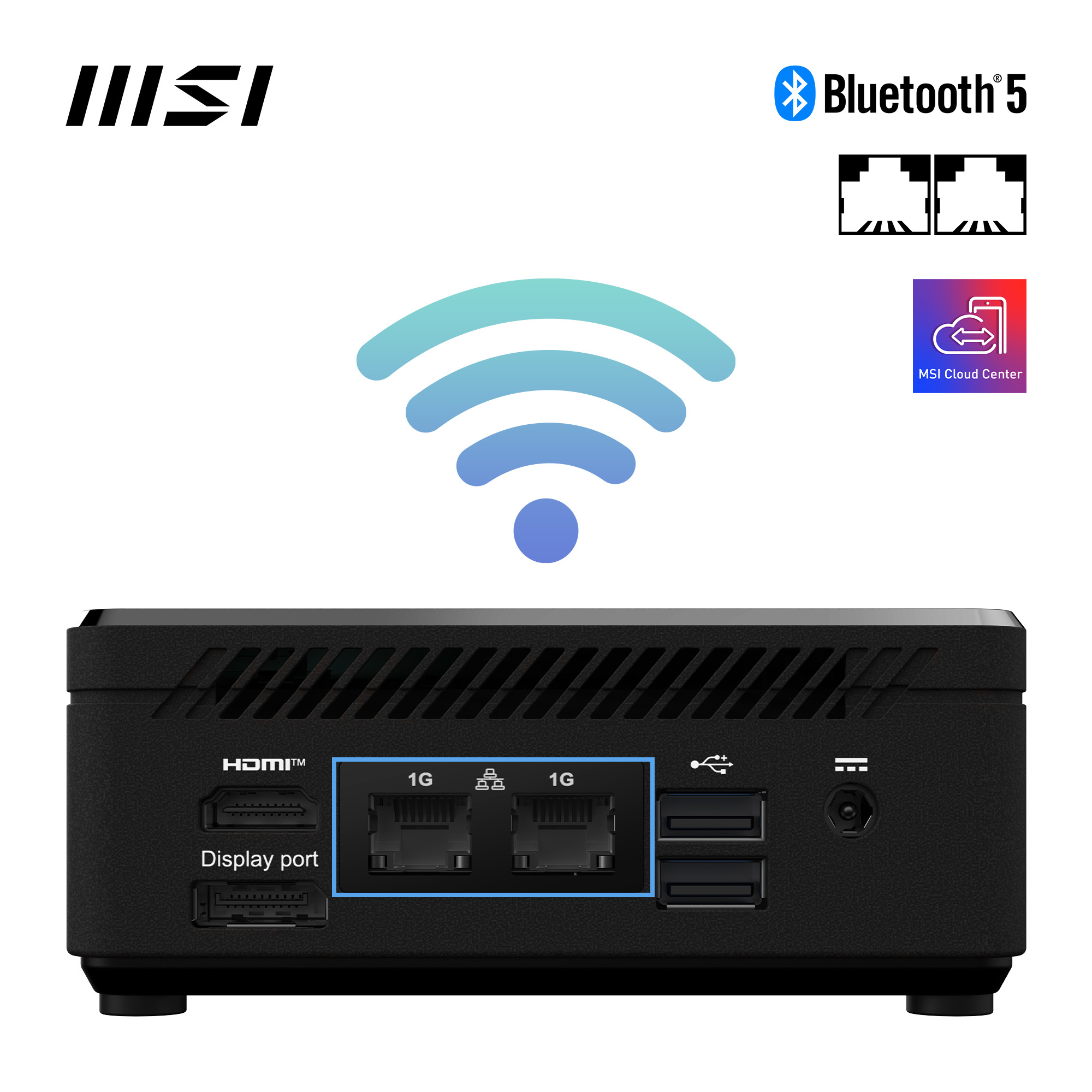

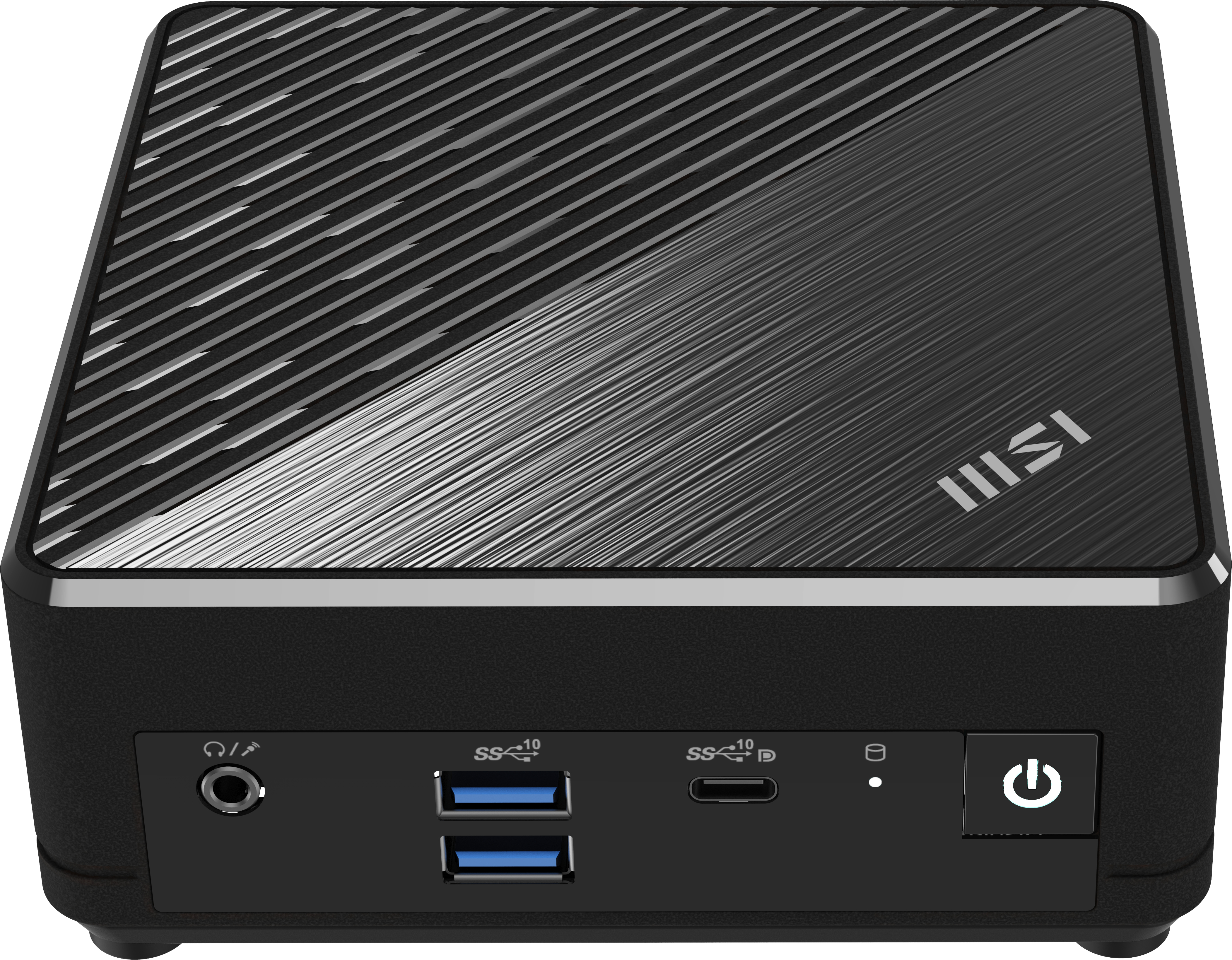

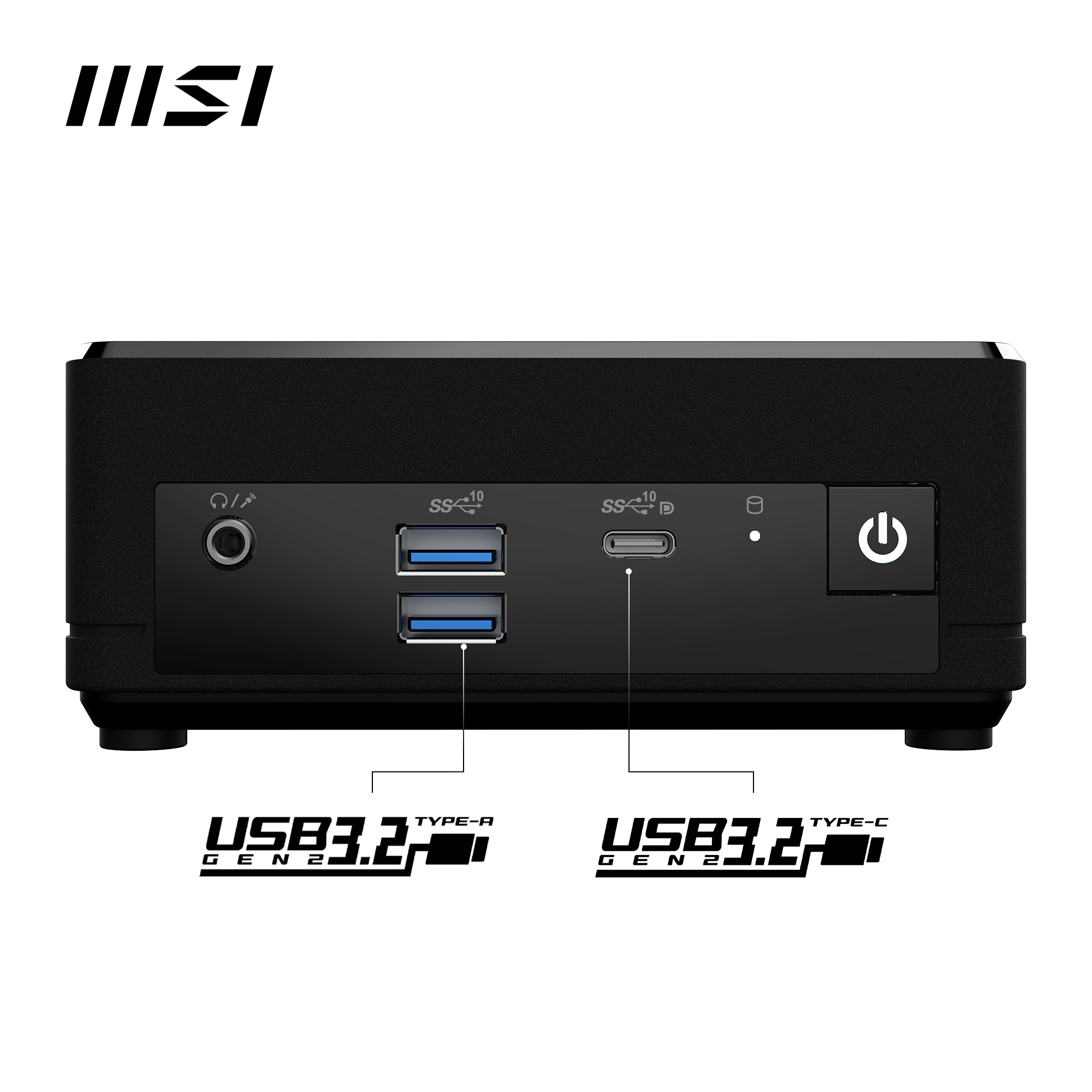

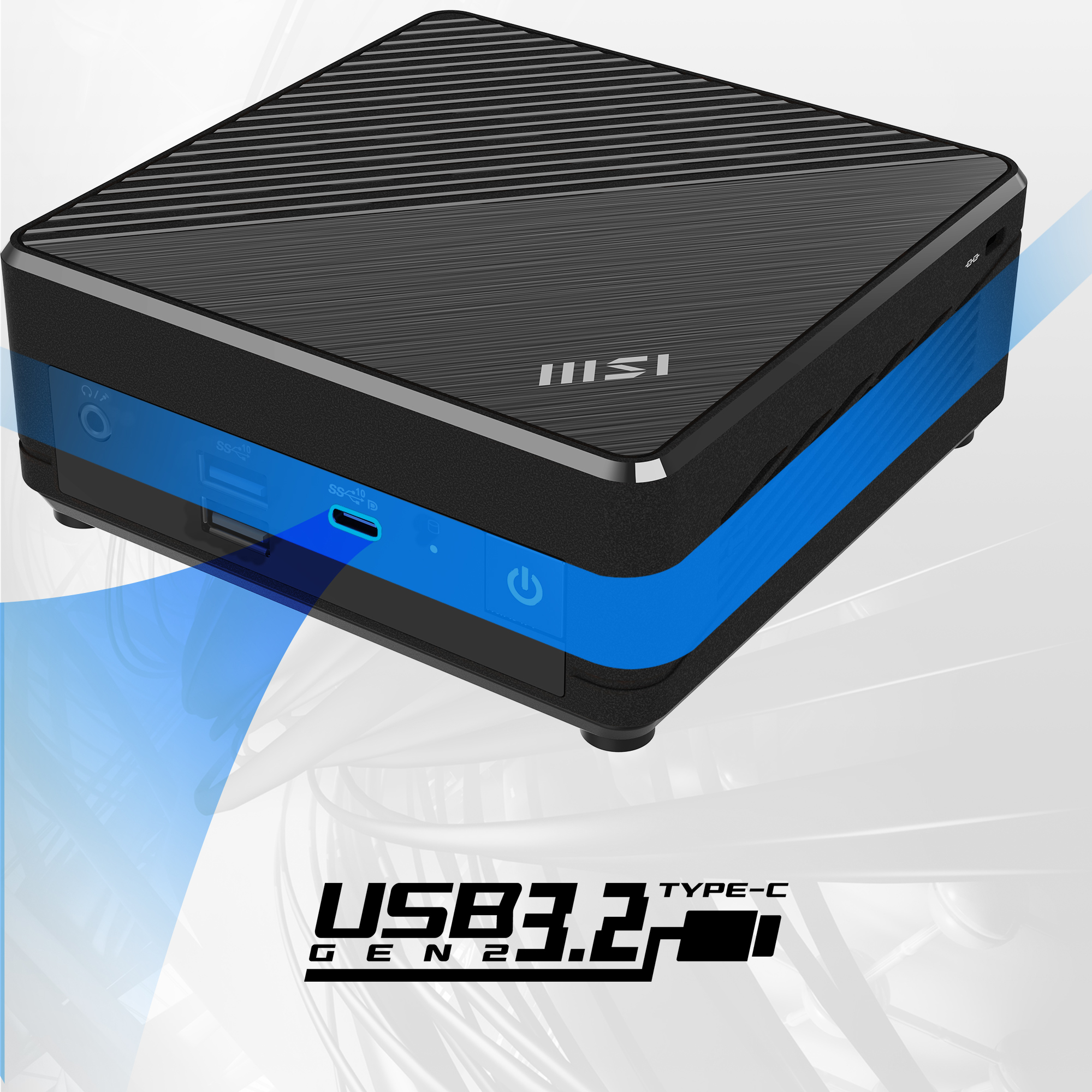

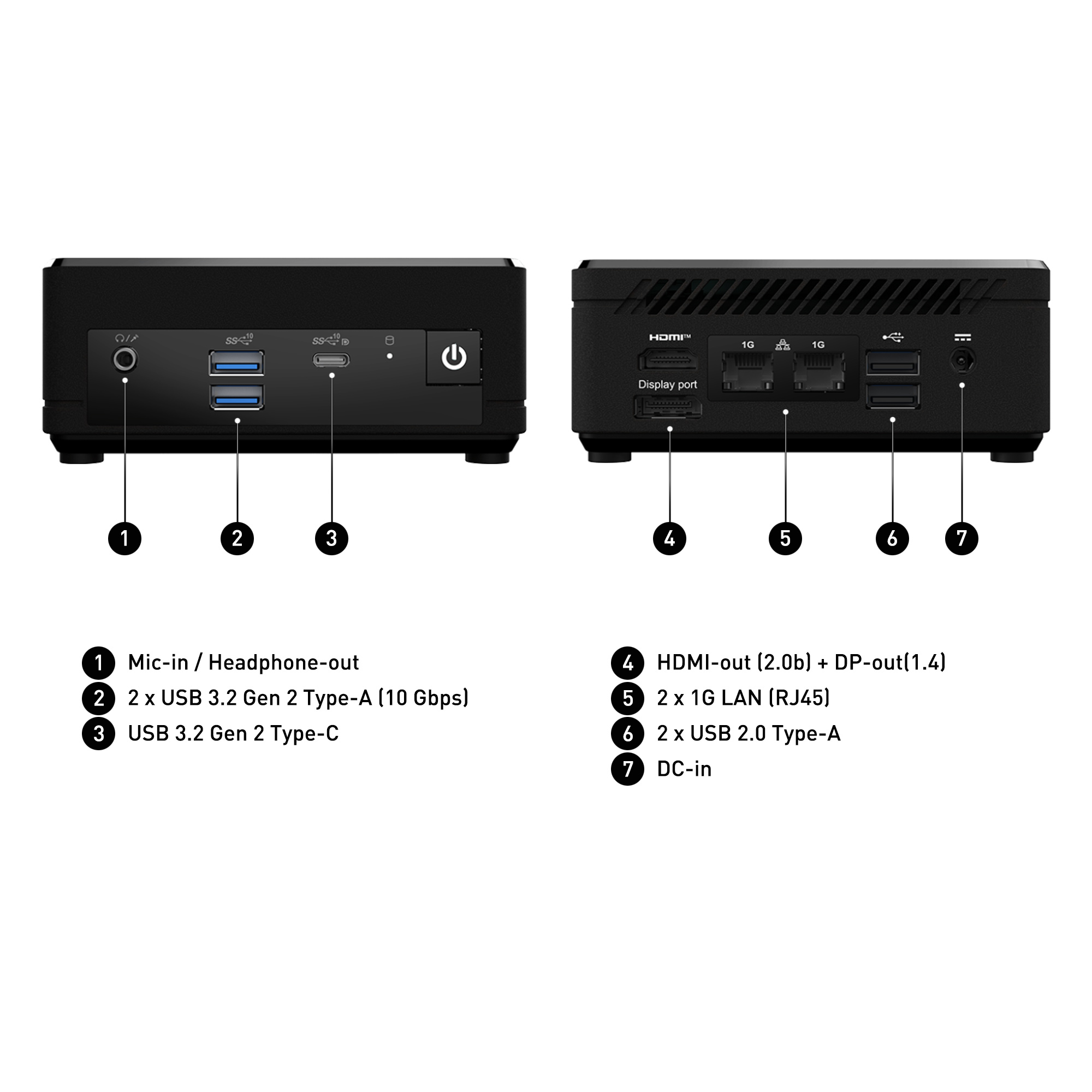

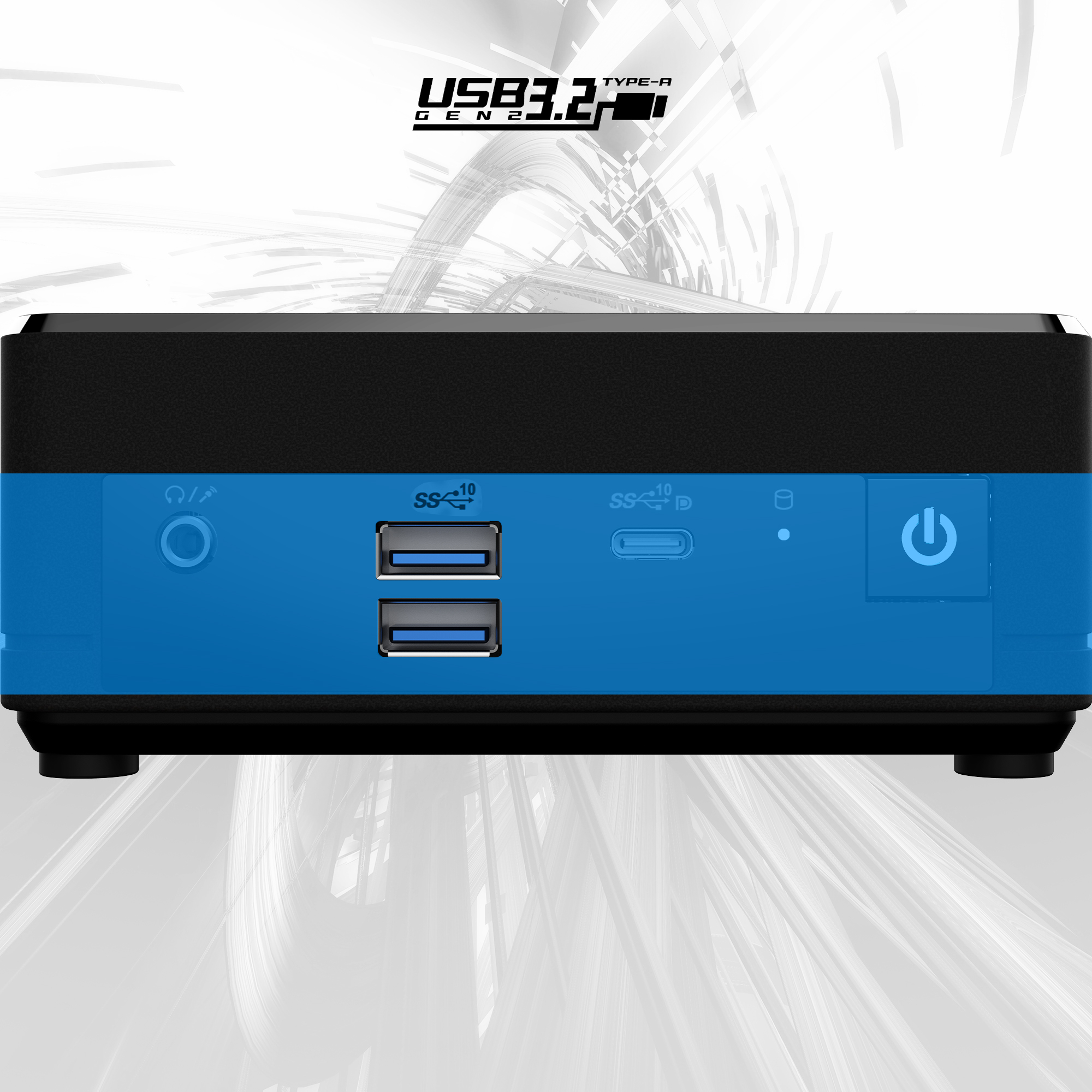

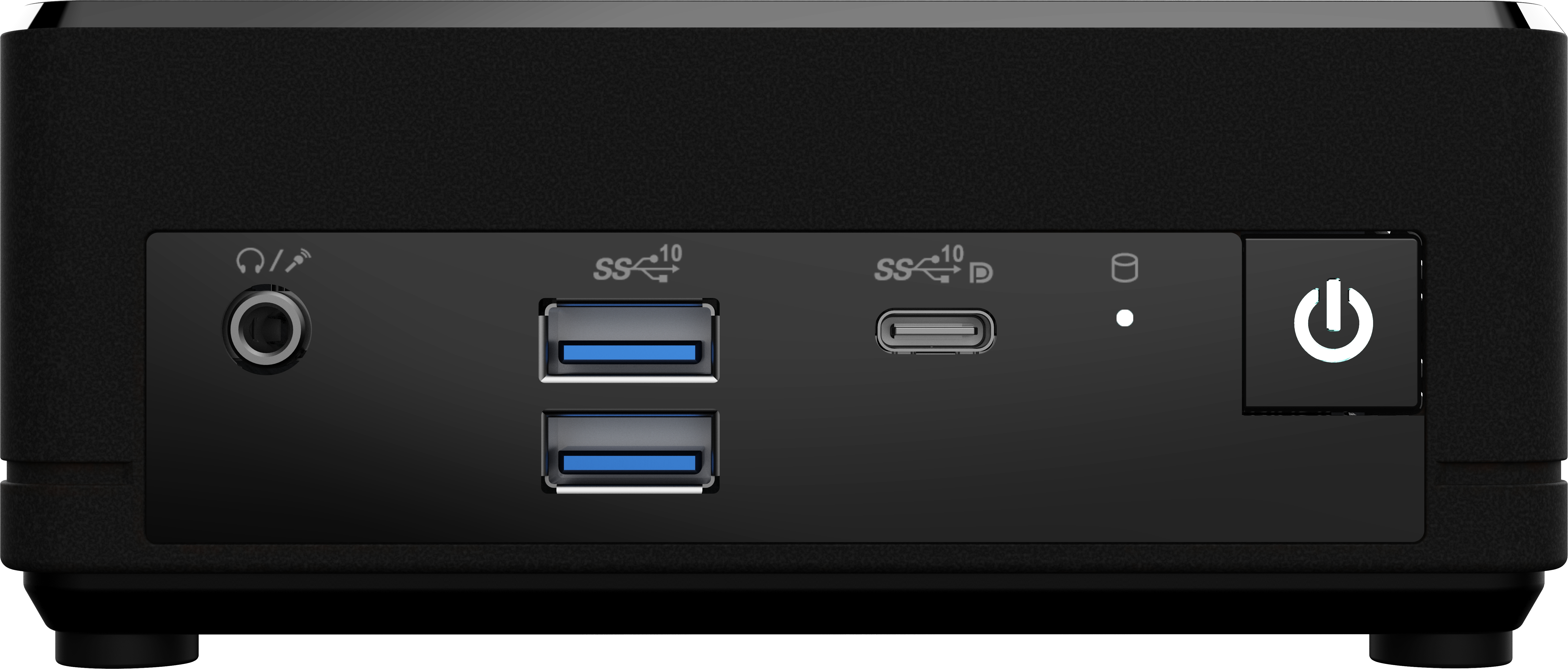

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, USB 3.2 Gen 2 Type-C (DP Alt.) and dual USB 3.2 Gen 2 Type-A ports. The rear I/O features dual 1Gbps ethernet LAN ports, HDMI 2.1, DisplayPort 1.4, and dual USB 2.0 ports."

Technical Specifications

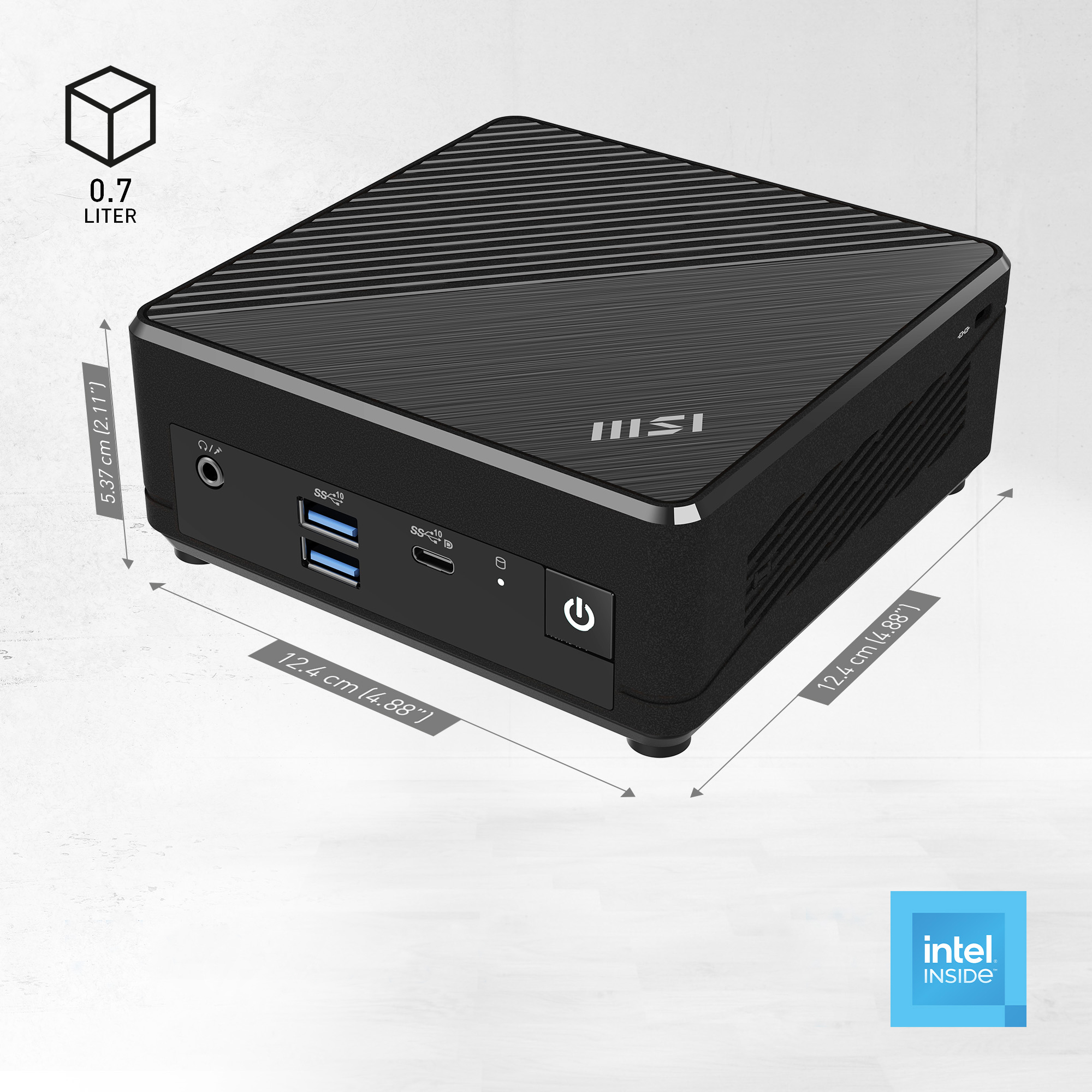

Physical

7 SPECS
Depth
124 mm
Width
124 mm
Height
53.7 mm
Weight
540 g
Product type
Mini PC (<= 3L) barebone
Colour
Black
Form factor
NUC

Logistics & Packaging

5 SPECS
Package depth
220 mm
Package width
205 mm
Package height
94 mm
Package weight
1390 g
Country of origin
China

Storage

1 SPEC
Form factor
2.5"

Cooling

1 SPEC
Cooling type
Active

Processor

6 SPECS
Cores
4
Model
N100
Threads
4
Clock speed
3.4 GHz
Process node
10 nm
CPU brand
Intel

Ports & Connectivity

5 SPECS
HDMI ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
2

Memory

2 SPECS
Memory slots
1
Max memory
16 GB

General

58 SPECS
NVMe
Yes
Wi-Fi
Yes
DVI port
No
Bluetooth
Yes
DC-in jack
Yes
Chassis type
0.66L sized PC
Ethernet LAN
Yes
HDMI version
2.1
Power supply
65
On/off switch
Yes
VESA mounting
Yes
LAN controller
Realtek RTL8111H
Mouse included
No
Security lock slot
Yes
Warranty period
2
Wi-Fi standard
Wi-Fi 5 (802.11ac)
Display included
No
Drivers included
Yes
Housing material
Plastic
Bluetooth version
5.1
Keyboard included
No
Memory slots type
SO-DIMM
Power supply type
External AC adapter
Quick start guide
Yes
Built-in processor
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
AC adapter included
Yes
Built-in speaker(s)
No
DisplayPort version
1.4
Chipset
Intel SoC
Power cord included
Yes
Cable lock slot type
Kensington
Graphics card family
Intel
WLAN controller model
Intel Dual Band Wireless-AC 9462
Integrated graphics
Yes
Number of M.2 (M) slots
1
Storage drive interface
M.2,Serial ATA III
Combo headphone/mic port
Yes
Mini HDMI ports quantity
0
Panel mounting interface
75 x 75,100 x 100
Mini DisplayPorts quantity
0
VGA ports
0
Compatible processor series
Intel Processor N
USB4 Gen 2x2 ports quantity
0
Number of displays supported
3
Number of power supply units
1
Integrated GPU model
Intel UHD Graphics
Storage drive sizes supported
2.5,M.2
Supported memory clock speeds
3200
Supported storage drive types
HDD & SSD
Number of processors supported
1
Internal USB 2.0 ports quantity
0
Number of storage drives supported
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity
0
