MPN:
ISYNUC6HI508240NOS

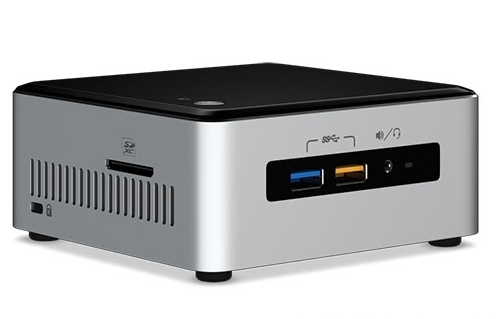

ISY NUC 6H UCFF Black, Silver i5-6260U LGA 1356 (Socket B2) 1.8 GHz
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 111 mm
- Wi-Fi
- Y
- Width
- 115 mm
- Height
- 48 mm
- 64-bit support
- Y
- BIOS type
- EEPROM
- Bluetooth
- Y
- DC-in jack
- Y
- Idle power states
- Y
1 / 2
Shopping actions
Overview
The ISY NUC 6H UCFF Black, Silver i5-6260U LGA 1356 (Socket B2) 1.8 GHz features Intel Core i5 processor, 2 cores, up to 2.9 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
10 SPECS
Cores
2
Model
i5-6260U
Processor line
Intel Core i5
Socket
LGA 1356 (Socket B2)
Threads
4
Clock speed
1.8 GHz
Process node
14 nm
CPU brand
Intel
Boost clock
2.9 GHz
TDP
15 W
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
0
Ethernet ports
1
Physical
5 SPECS
Depth
111 mm
Width
115 mm
Height
48 mm
Product type
Mini PC (<= 3L) barebone
Colour
Black,Silver
Memory
3 SPECS
Capacity
8 GB
Memory slots
2
Max memory
32 GB
Cooling
1 SPEC
Cooling type
Active
General
83 SPECS
Wi-Fi
Yes
64-bit support
Yes
BIOS type
EEPROM
Bluetooth
Yes
DC-in jack
Yes
Idle power states
Yes
RAID levels
0,1
Chassis type
UCFF
Ethernet LAN
Yes
HDMI version
1.4b
Intel TSX-NI
No
Power supply
65
Conflict-Free
Yes
VESA mounting
Yes
LED indicators
Yes
Security lock slot
Yes
Memory channels
Dual-channel
Intel® OS Guard
Yes
Intel ARK ID
91160
Bluetooth version
4.1
Intel Visual BIOS
Yes
Memory slots type
SO-DIMM
Power supply type
External AC adapter
Built-in processor
Yes
Intel® Insider™
Yes
Intel® Secure Key
Yes
Codename
Skylake
DisplayPort version
1.2
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Cable lock slot type
Kensington
Graphics card family
Intel
Generation
Intel Core i5-6xxx
Audio channels
7.1
Card reader
Yes
Integrated graphics
Yes
Storage drive capacity
240
Supported memory types
DDR4-SDRAM
CPU configuration (max)
1
Compatible memory cards
SDHC
Storage drive interface
M.2,Serial ATA III
Combo headphone/mic port
Yes
Intel Flex Memory Access
Yes
AC adapter output voltage
19 V
Intel Express BIOS update
Yes
PCI Express slots version
3.0
Storage temperature
-20 - 70
Long-term availability
No
Mini DisplayPorts quantity
1
PCI Express configurations
1x2+2x1,1x4,2x2,4x1
VGA ports
0
Operating temperature
0 - 35
Intel Clear Video Technology
Yes
Max graphics memory
1700 GB
Integrated GPU model
Intel Iris Graphics 540
Storage drive sizes supported
2.5
Supported memory clock speeds
1866,2133
Supported storage drive types
HDD & SSD
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Near Field Communication (NFC)
No
Number of processors supported
1
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Linux distributions supported
Yes
Trusted Execution (TXT)
No
Number of storage drives supported
2
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
Windows versions supported
Yes
Virtualization (VT-x)
Yes
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Small Business Advantage (Intel® SBA)
Yes
Intel® Virtualization Technology (Intel® VT)
VT-d,VT-x
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
