MPN:
ISYNUC4C2H-BASE
ISY 4H UCFF Black, Silver N2820 BGA 1170 2.13 GHz
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wi-Fi
- Y
- 64-bit support
- Y
- L2 cache
- 1 MB
- BIOS type
- EEPROM
- Bluetooth
- Y
- DC-in jack
- Y
- Idle power states
- Y
- Chassis type
- UCFF
- Cooling type
- Active
Shopping actions
Overview

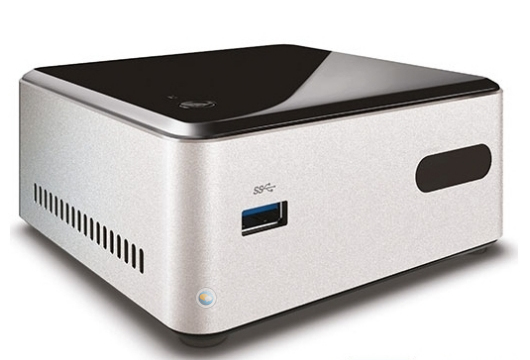

The ISY 4H UCFF Black, Silver N2820 BGA 1170 2.13 GHz features Intel Celeron processor, 2 cores, up to 2.39 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
10 SPECS
Cores
2
Model
N2820
Processor line
Intel Celeron
Socket
BGA 1170
Threads
2
Clock speed
2.13 GHz
Process node
22 nm
CPU brand
Intel
Boost clock
2.39 GHz
TDP
7.5 W
Cooling
1 SPEC
Cooling type
Active
Memory
3 SPECS
Voltage
1.35 V
Capacity
8 GB
Max memory
8 GB
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
2
Ethernet ports
1
Physical
3 SPECS
Product type
Mini PC (<= 3L) barebone
Colour
Black,Silver
Form factor
UCFF
General
73 SPECS
Wi-Fi
Yes
64-bit support
Yes
L2 cache
1 MB
BIOS type
EEPROM
Bluetooth
Yes
DC-in jack
Yes
Idle power states
Yes
Chassis type
UCFF
Ethernet LAN
Yes
HDMI version
1.4a
Power supply
36
Certifications
UL 60950-1, CAN / CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, FCC 47 CFR Title I, Part 15 A / B, ICES-003, EN 55022, EN 55024, EN 55022, VCCI V-3, V-4, KN-2, KN-24, CNS 13438, CISPR 22, RoHS
Conflict-Free
Yes
VESA mounting
Yes
LED indicators
Yes
Security lock slot
Yes
Memory channels
Single-channel
BIOS memory size
64 MB
Processor series
Intel Celeron Processor N2000 series for Mobile
Bluetooth version
4.0
Headphone outputs
1
Memory slots type
SO-DIMM
Power supply type
External AC adapter
Quick start guide
Yes
Built-in processor
Yes
Intel® Insider™
No
Codename
Bay Trail
AC adapter included
Yes
Execute Disable (NX)
Yes
Power cord included
Yes
Cable lock slot type
Kensington
Graphics card family
Intel
PC health monitoring
Temperature
Audio channels
7.1
Memory bandwidth (max)
8.53 GB/s
Mini PCI Express slots
1
Integrated graphics
Yes
Supported memory types
DDR3L-SDRAM
CPU configuration (max)
1
Panel mounting interface
75 x 75,100 x 100
AC adapter output voltage
12 V
PCI Express slots version
2.0
Storage temperature
-20 - 70
Long-term availability
No
Operating system
No
VGA ports
0
Compatible processor series
Intel Celeron
Operating temperature
0 - 50
Number of displays supported
1
Integrated GPU model
Intel HD Graphics
Storage drive sizes supported
2.5
Supported memory clock speeds
1066,1333,1600
Supported storage drive types
HDD & SSD
Intel Rapid Storage Technology
No
Intel Smart Connect Technology
Yes
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
No
Number of processors supported
1
Linux distributions supported
Yes
Number of storage drives supported
1
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
No
Windows versions supported
Yes
Virtualization (VT-x)
Yes
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® AES New Instructions (Intel® AES-NI)
No
Intel® Virtualization Technology (Intel® VT)
VT-x
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® Identity Protection Technology (Intel® IPT)
No
Directed I/O virtualization (VT-d)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
No
