MPN:
X5063XA

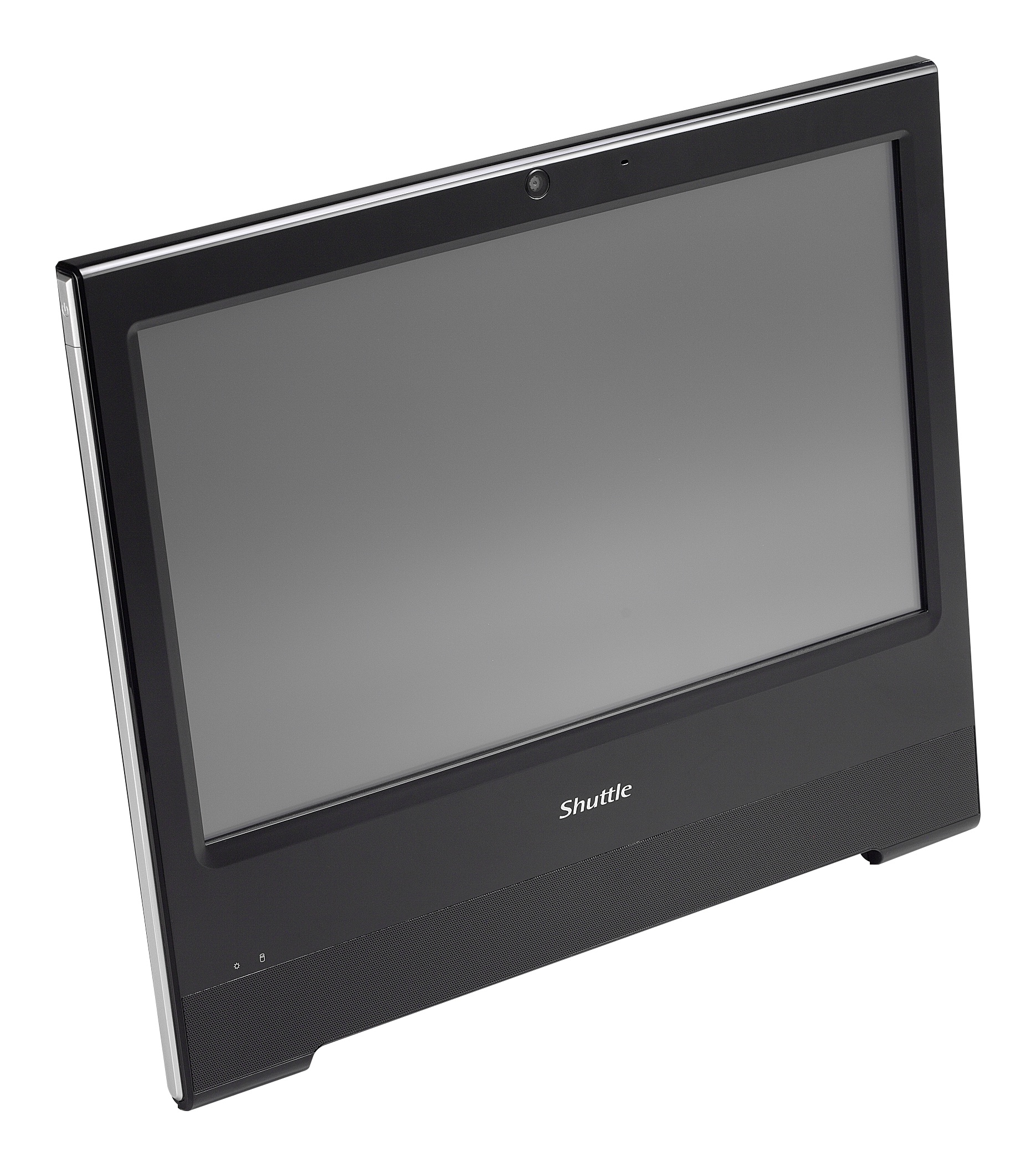

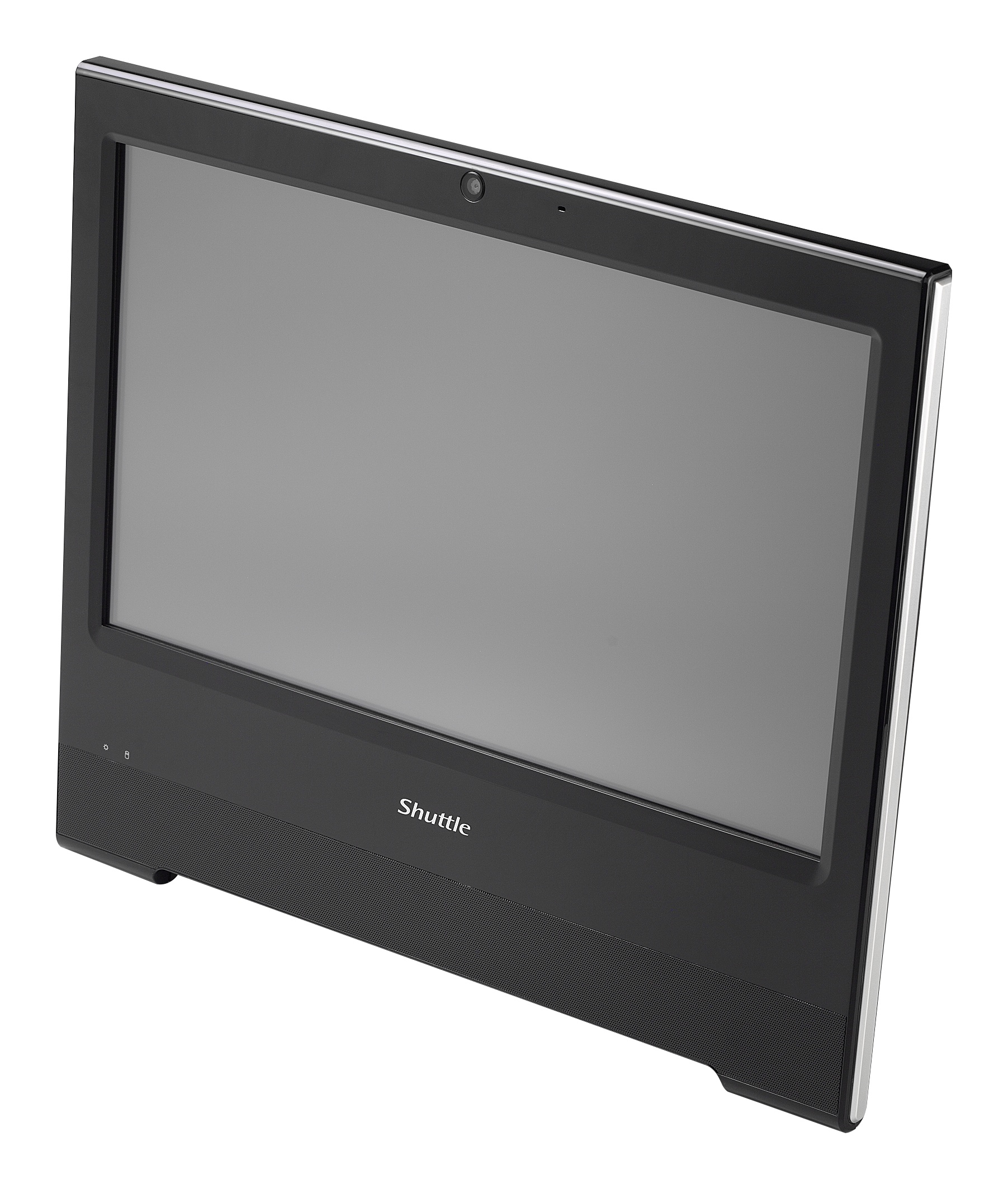

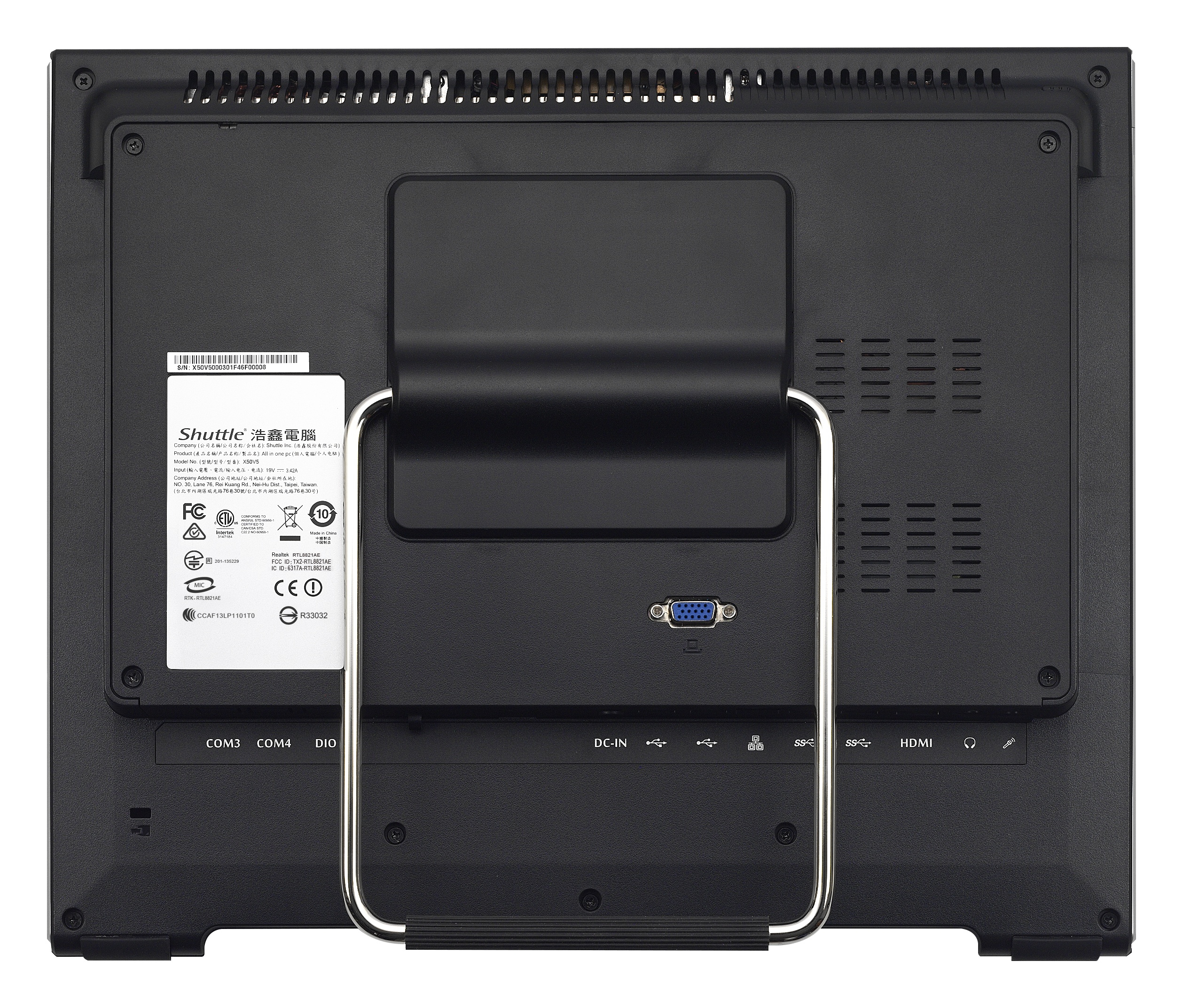

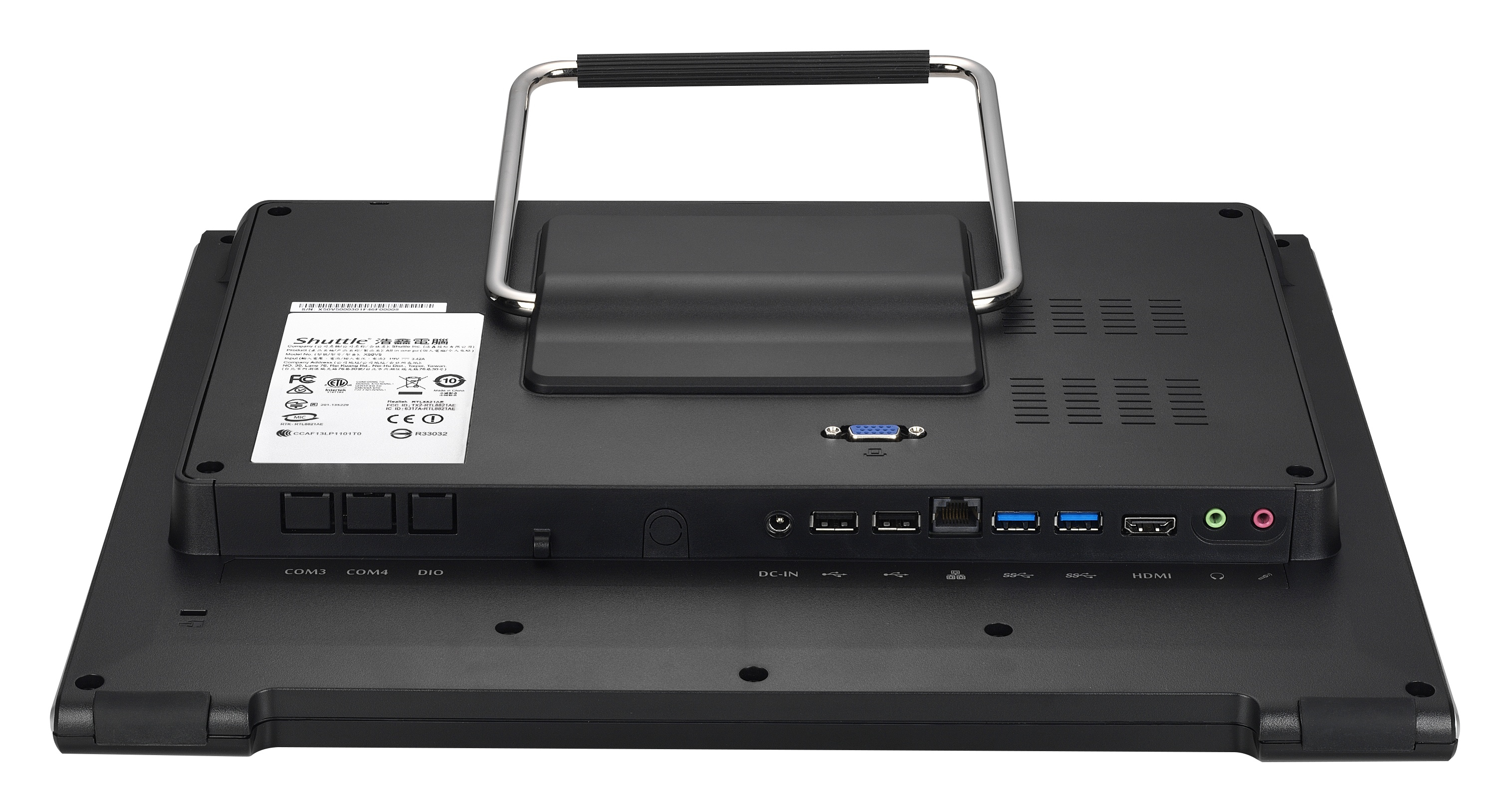

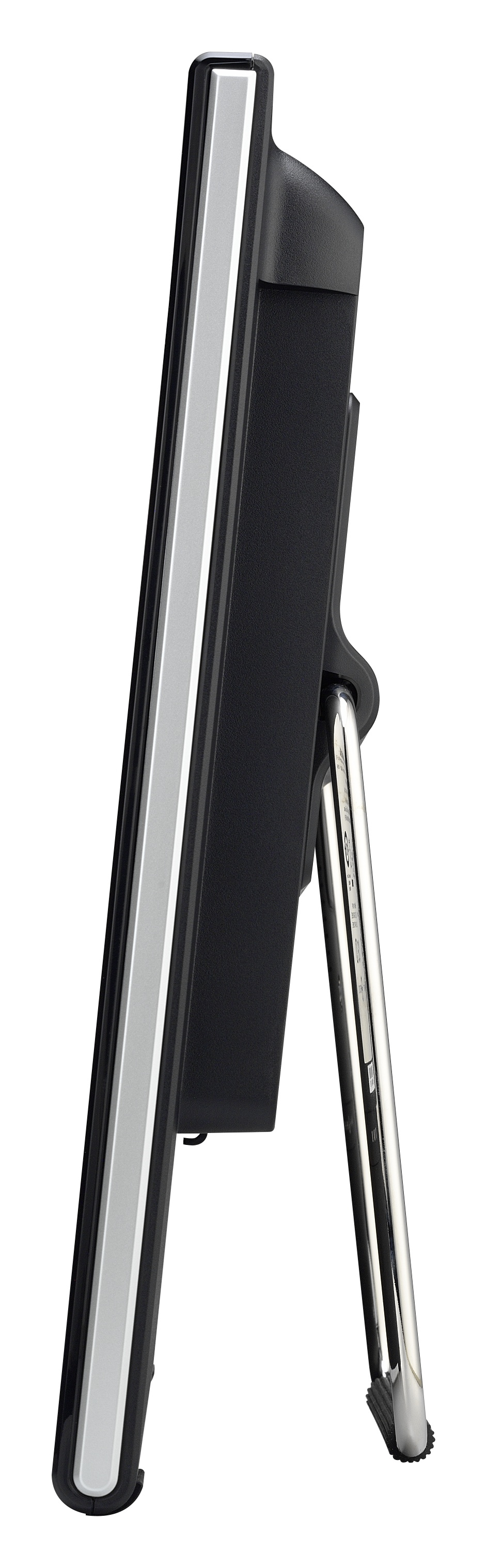

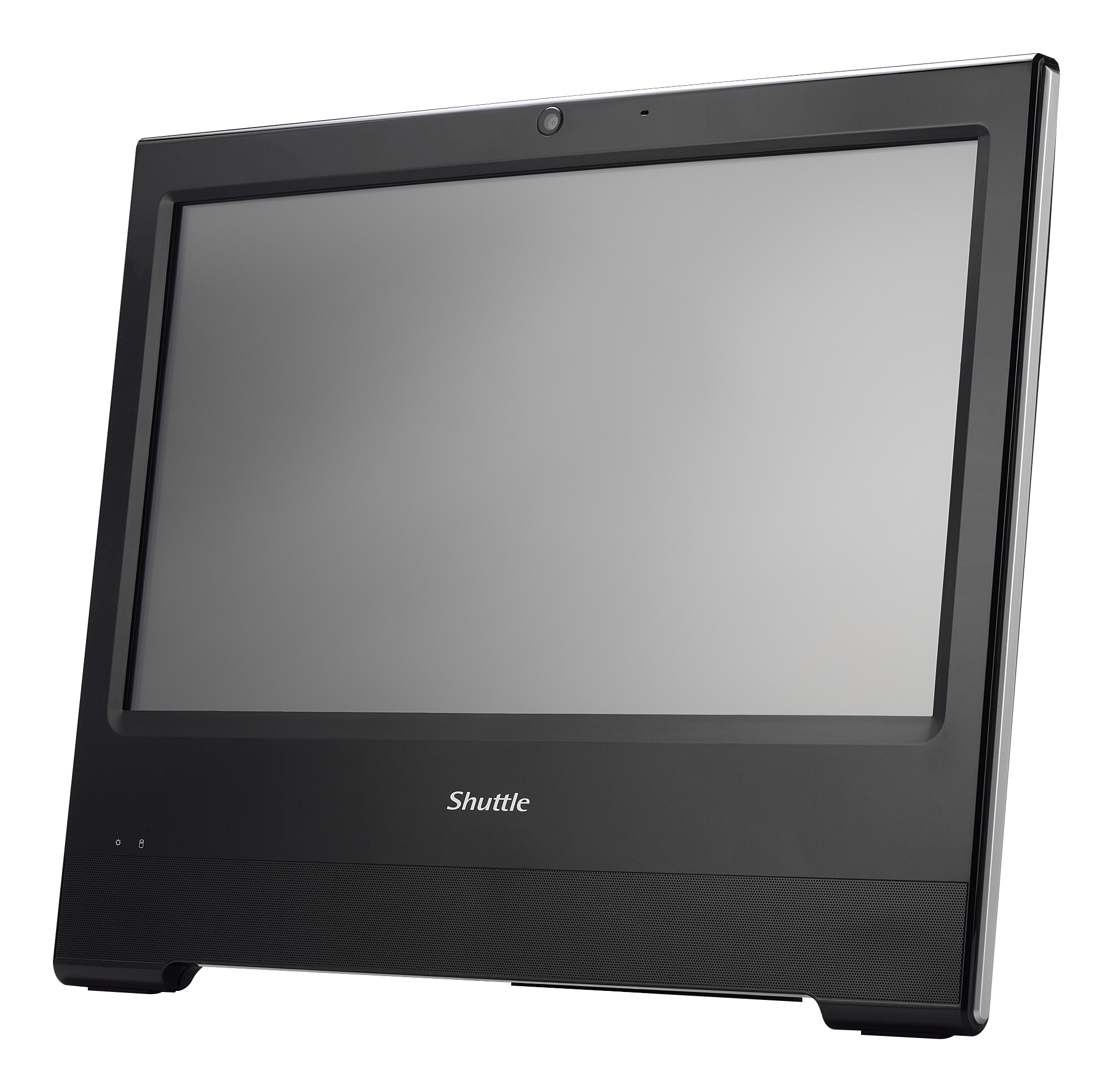

Shuttle XPC X5063XA Fanless All-in-One PC 15.6″ Touchscreen
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 15.6"
- Resolution
- 1366 x 768
- Processor line
- Intel Core i3
- Clock speed
- 2.4 GHz
- Capacity
- 8 GB
- Storage
- 120 GB
- 3D
- N
- Wi-Fi
- Y
- Display type
- HD
1 / 9
Shopping actions
Overview
The Shuttle XPC X5063XA Fanless All-in-One PC 15.6″ Touchscreen features Intel Core i3 processor, 2 cores, 8 GB of memory and DDR4-SDRAM. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Stepping
H0
Cache
3 MB
Cores
2
Model
i3-7100U
Processor line
Intel Core i3
Socket
BGA 1356
Threads
4
Clock speed
2.4 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
CPU operating modes
64-bit
TDP
15 W
Storage
2 SPECS
Capacity
120 GB
Storage
120 GB
Physical
2 SPECS
Product type
All-in-One PC
Colour
Black
Display
6 SPECS
Display type
HD
Touchscreen
Yes
LED backlight
Yes
Screen size
15.6"
Resolution
1366 x 768
Aspect ratio
16:9
Memory
4 SPECS
Capacity
8 GB
Form factor
DIMM/SO-DIMM
Memory type
DDR4-SDRAM
Max memory
32 GB
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
4
Ethernet ports
1
Graphics
1 SPEC
Memory clock
2133 MHz
Logistics & Packaging
1 SPEC
Package weight
4800 g
General
131 SPECS
3D
No
Wi-Fi
Yes
Bus type
OPI
64-bit support
Yes
Bluetooth
No
Tjunction
100
Audio chip
Realtek ALC269
Idle power states
Yes
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2
Pen included
No
Screen shape
Flat screen
Autonomy mode
No
Certifications
CE, FCC, BSMI, CB, BSMI, ETL
Microphone input
Yes
Storage media
SSD
Mouse included
No
Processor code
SR2ZW
Wall mountable
Yes
Built-in camera
Yes
Security lock slot
Yes
Bus speed
4 GT/s
Wi-Fi standard
802.11a,802.11b,802.11g
AC adapter power
65 W
Drivers included
Yes
Intel® OS Guard
Yes
Intel ARK ID
95442
Total megapixels
2
Touch technology
Multi-touch
Camera resolution
1600 x 1200
Headphone outputs
1
Keyboard included
No
Memory slots type
SO-DIMM
Quick start guide
Yes
Depth (with stand)
42
Detachable display
No
Display brightness
220
Intel® Insider™
Yes
Intel® Secure Key
Yes
Number of speakers
2
Optical drive type
No
Codename
Kaby Lake
Width (with stand)
391
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Height (with stand)
327
Power cord included
Yes
Weight (with stand)
3600
AC adapter frequency
50/60
Cable lock slot type
Kensington
Intel TSX-NI version
0.00
Generation
Intel Core i3-7xxx
Configurable TDP-down
7.5
Card reader
Yes
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
42 x 24
CPU configuration (max)
1
Compatible memory cards
SD
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
AC adapter input voltage
100 - 240
Intel Flex Memory Access
Yes
Number of SSDs installed
1
AC adapter output current
3.42 A
AC adapter output voltage
19 V
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x5916
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
Yes
Graphics & IMC lithography
14
Operating system
No
PCI Express configurations
1x2+2x1,1x4,2x2,4x1
Instruction sets
AVX 2.0,SSE4.2
Thunderbolt ports quantity
0
VGA ports
1
Operating temperature
0 - 40
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Memory layout (slots x size)
1 x 8
Integrated GPU model
Intel HD Graphics 620
Thunderbolt 3 ports quantity
0
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
No
Configurable TDP-down frequency
0.8
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Operating humidity
10 - 90
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
12
Memory types supported by processor
DDR3L,DDR4-SDRAM,LPDDR3-SDRAM
Maximum on-board graphics card memory
32
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
300
Virtualization (VT-x)
Yes
Memory channels supported by processor
Dual
On-board graphics card DirectX version
12.0
Intel Smart Response Technology version
1.00
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1600,1866,2133
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Intel® Small Business Advantage (Intel® SBA)
Yes
Maximum internal memory supported by processor
32
On-board graphics card dynamic frequency (max)
1000
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
