MPN:
X 5020TA PLUS BLACK

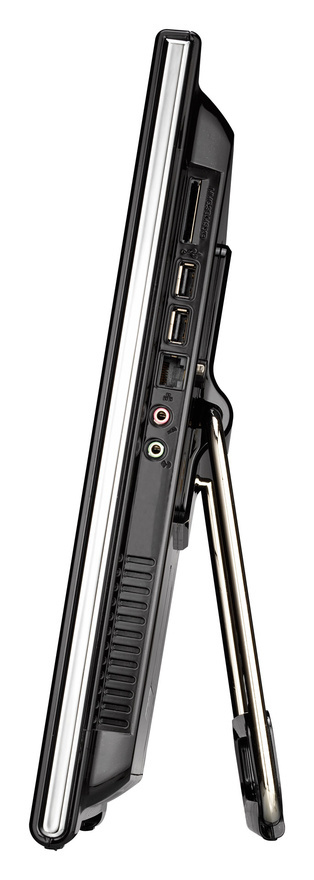

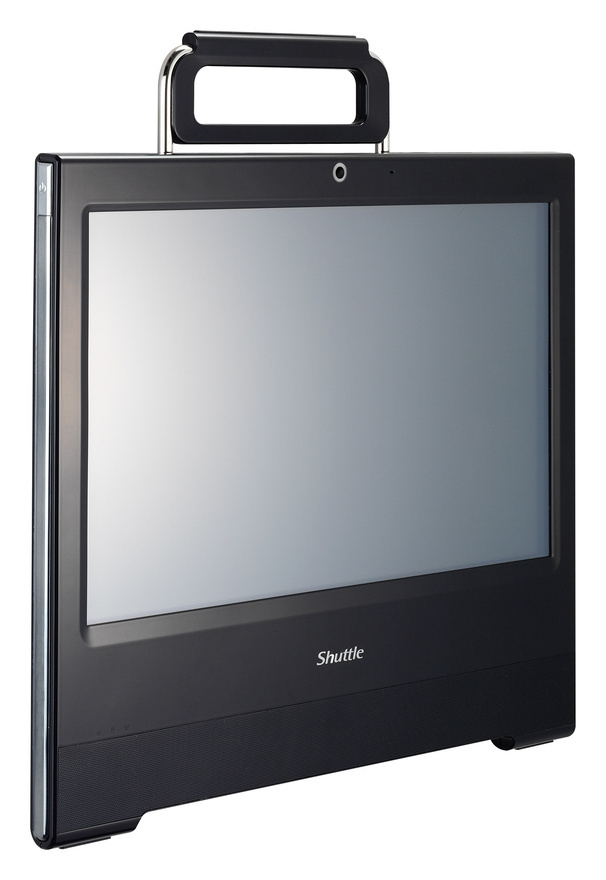

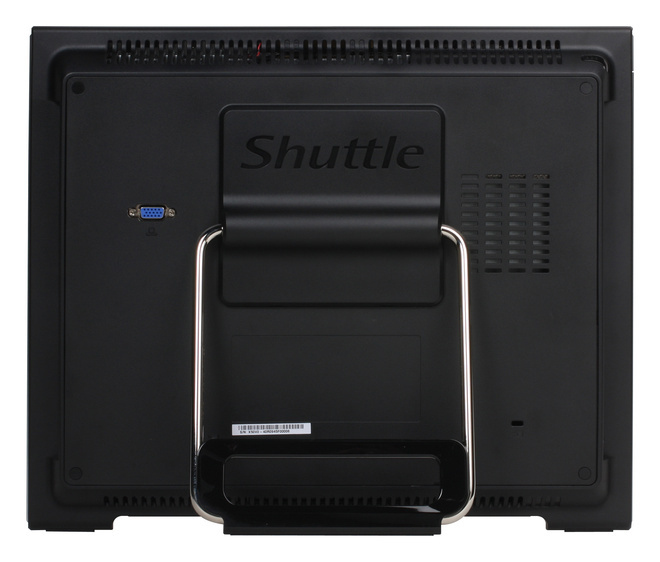

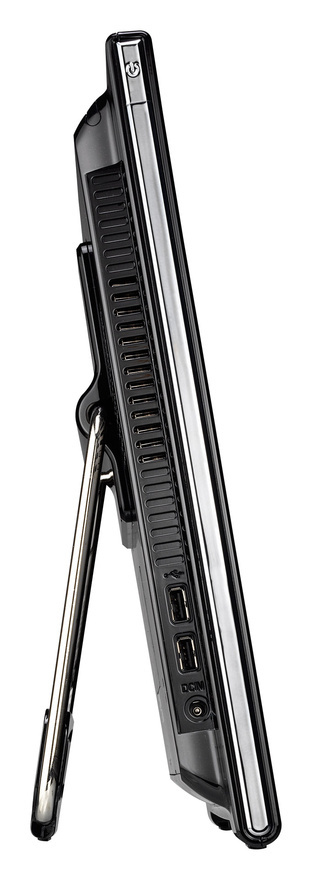

Shuttle XPC X 5020TA Plus Intel Atom® D525 39.6 cm (15.6″) 1366 x 768 pixels Touchscreen All-in-One PC 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 15.6"
- Resolution
- 1366 x 768
- Processor line
- Intel Atom
- Clock speed
- 1.8 GHz
- Capacity
- 2 GB
- Storage
- 320 GB
- 3D
- N
- Wi-Fi
- Y
- Full HD
- N
1 / 6
Shopping actions
Overview
The Shuttle XPC X 5020TA Plus Intel Atom® D525 39.6 cm (15.6″) 1366 x 768 pixels Touchscreen All-in-One PC 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black features Intel Atom processor, 2 cores, 2 GB of memory and DDR3-SDRAM. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Stepping
B0
Cache
1 MB
Cores
2
Model
D525
Processor line
Intel Atom
Socket
BGA 559
Threads
4
Clock speed
1.8 GHz
Cache level
L2
Process node
45 nm
CPU brand
Intel
CPU operating modes
64-bit
TDP
13 W
Physical
2 SPECS
Product type
All-in-One PC
Colour
Black
Display
6 SPECS
Display type
Not supported
Touchscreen
Yes
LED backlight
Yes
Screen size
15.6"
Resolution
1366 x 768
Aspect ratio
16:9
Memory
3 SPECS
Capacity
2 GB
Memory type
DDR3-SDRAM
Max memory
4 GB
Ports & Connectivity
3 SPECS
HDMI ports
0
USB 2.0 ports
4
Ethernet ports
1
Storage
1 SPEC
Storage
320 GB
General
107 SPECS
3D
No
Wi-Fi
Yes
Full HD
No
Bus type
DMI
64-bit support
Yes
L2 cache
1 MB
Bluetooth
No
Tjunction
100
DC-in jack
Yes
FSB Parity
No
Idle power states
No
Multi-touch
No
Audio system
HD
Ethernet LAN
Yes
Autonomy mode
No
BIOS password
Yes
Certifications
CE, FCC, BSMI, R&TT
Drive interface
SATA
Microphone input
Yes
Storage media
HDD
Mouse included
No
Processor code
SLBXC
Built-in camera
Yes
Security lock slot
Yes
Wi-Fi standard
802.11b,802.11g,Wi-Fi 4 (802.11n)
64-bit computing
Yes
AC adapter power
40 W
Drivers included
Yes
Intel ARK ID
49490
Processor series
Intel Atom D500 series
Total megapixels
2
Touch technology
Single-touch
Headphone outputs
1
Keyboard included
No
Depth (with stand)
36
Intel® Insider™
No
Optical drive type
No
Codename
Pineview
Width (with stand)
391.3
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Height (with stand)
327
Chipset
Intel NM10 Express
Power cord included
Yes
Die size
87 mm²
Weight (with stand)
3600
AC adapter frequency
50/60
Cable lock slot type
Kensington
Intel FDI Technology
No
Serial ports
2
Card reader
Yes
Integrated graphics
Yes
Processor package size
22 x 22
Compatible memory cards
SD,SDHC,SDXC
Compliance certificates
RoHS
Conflict-free minerals
No
Ethernet LAN data rates
10,100
Storage drive interface
Serial ATA
AC adapter input voltage
100 - 240
Intel Fast Memory Access
No
Intel Flex Memory Access
No
Number of HDDs installed
1
AC adapter output current
2.1 A
AC adapter output voltage
19 V
Intel Enhanced Halt State
No
ECC memory support
No
Long-term availability
Yes
Operating system
Windows 7 Home Premium
Instruction sets
SSE2,SSE3,SSSE3
Thunderbolt ports quantity
0
VGA ports
1
Operating temperature
0 - 35
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
No
Intel Demand Based Switching
No
Memory layout (slots x size)
1 x 2
OS architecture
32-bit
Intel Rapid Storage Technology
No
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
No
Thermal monitoring
No
Physical Address Extension (PAE)
32
Operating humidity
0 - 60
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
No
Intel® Quick Sync Video Technology
No
Memory types supported by processor
DDR3 800 (SODIMM only); DDR2 667/800
Transistor count
176
Intel Dual Display Capable Technology
No
Virtualization (VT-x)
No
Memory channels supported by processor
Single
Intel® Wireless Display (Intel® WiDi)
No
Intel® My WiFi Technology (Intel® MWT)
No
Intel VT-x with Extended Page Tables (EPT)
No
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® AES New Instructions (Intel® AES-NI)
No
Memory bandwidth supported by processor (max)
6.4
Maximum internal memory supported by processor
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Directed I/O virtualization (VT-d)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
