MPN:
PAT-X05073TA2

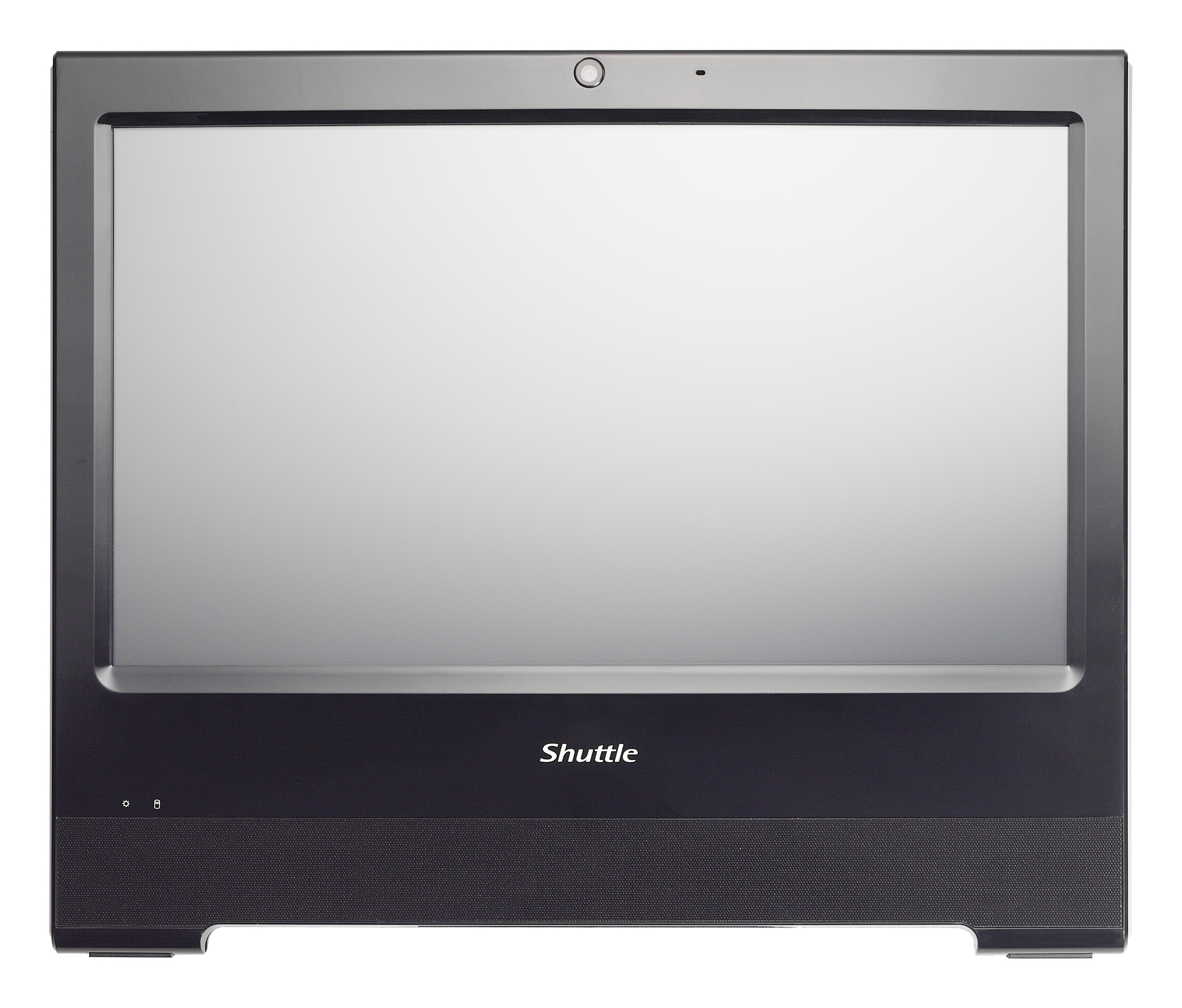

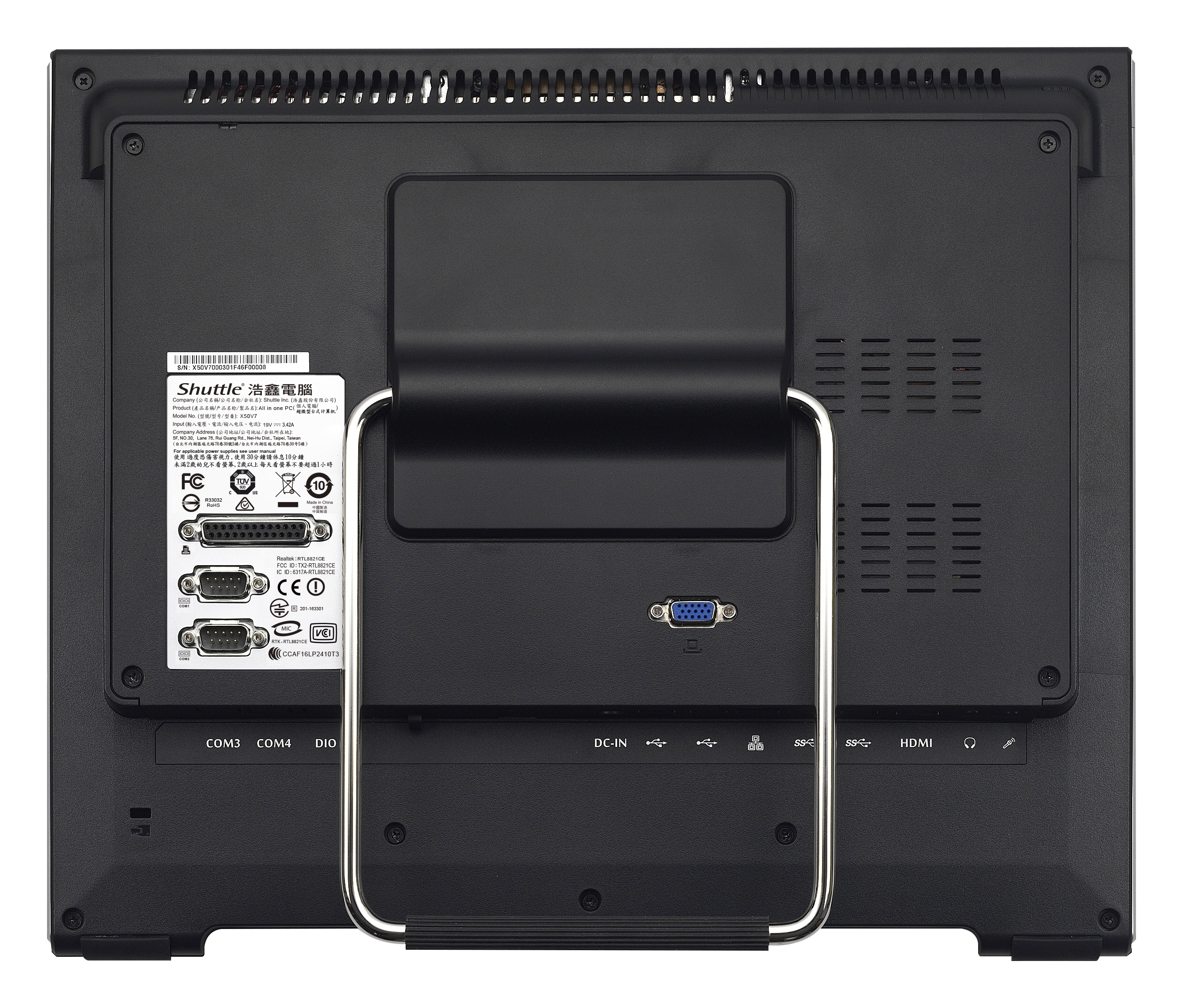

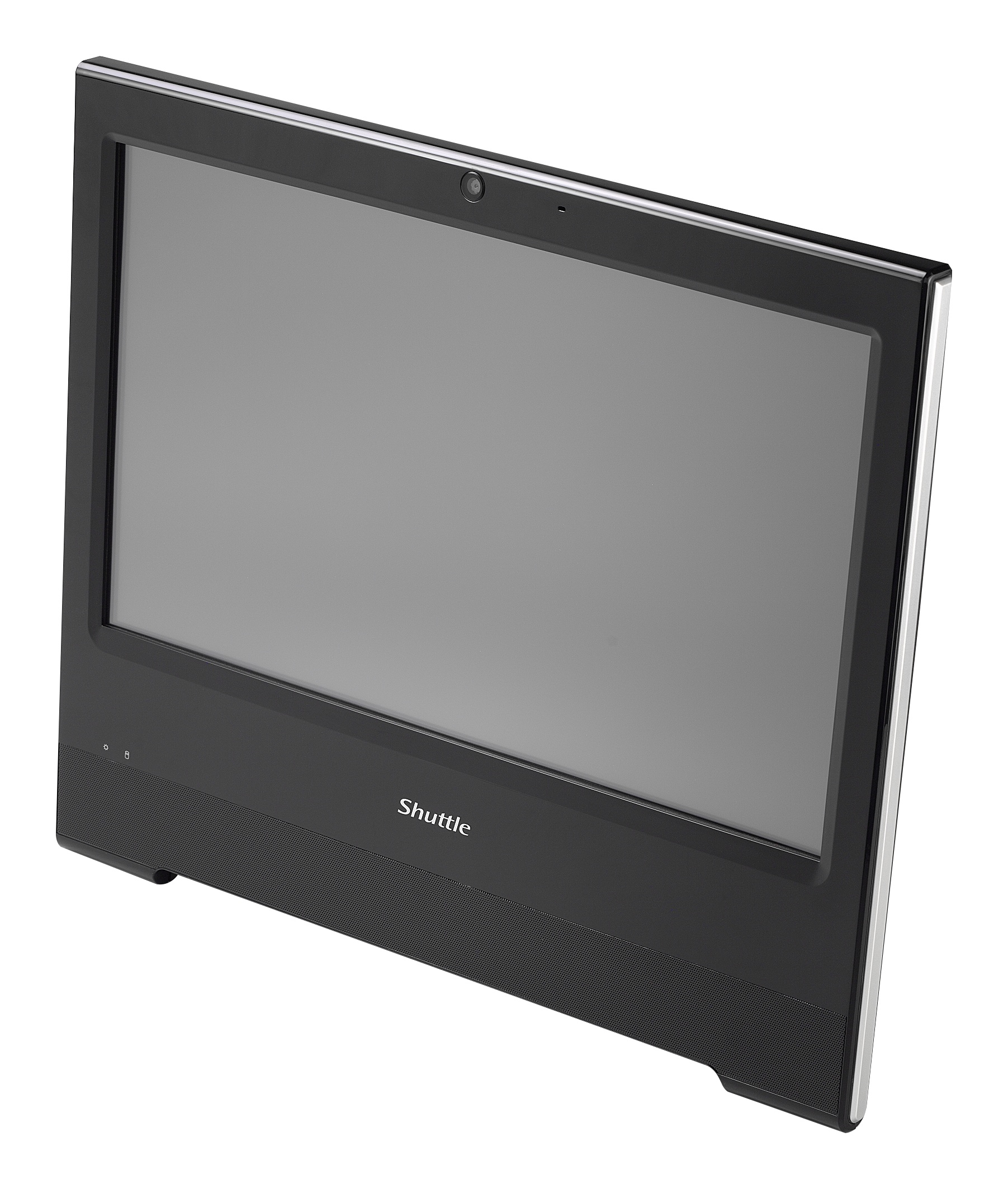

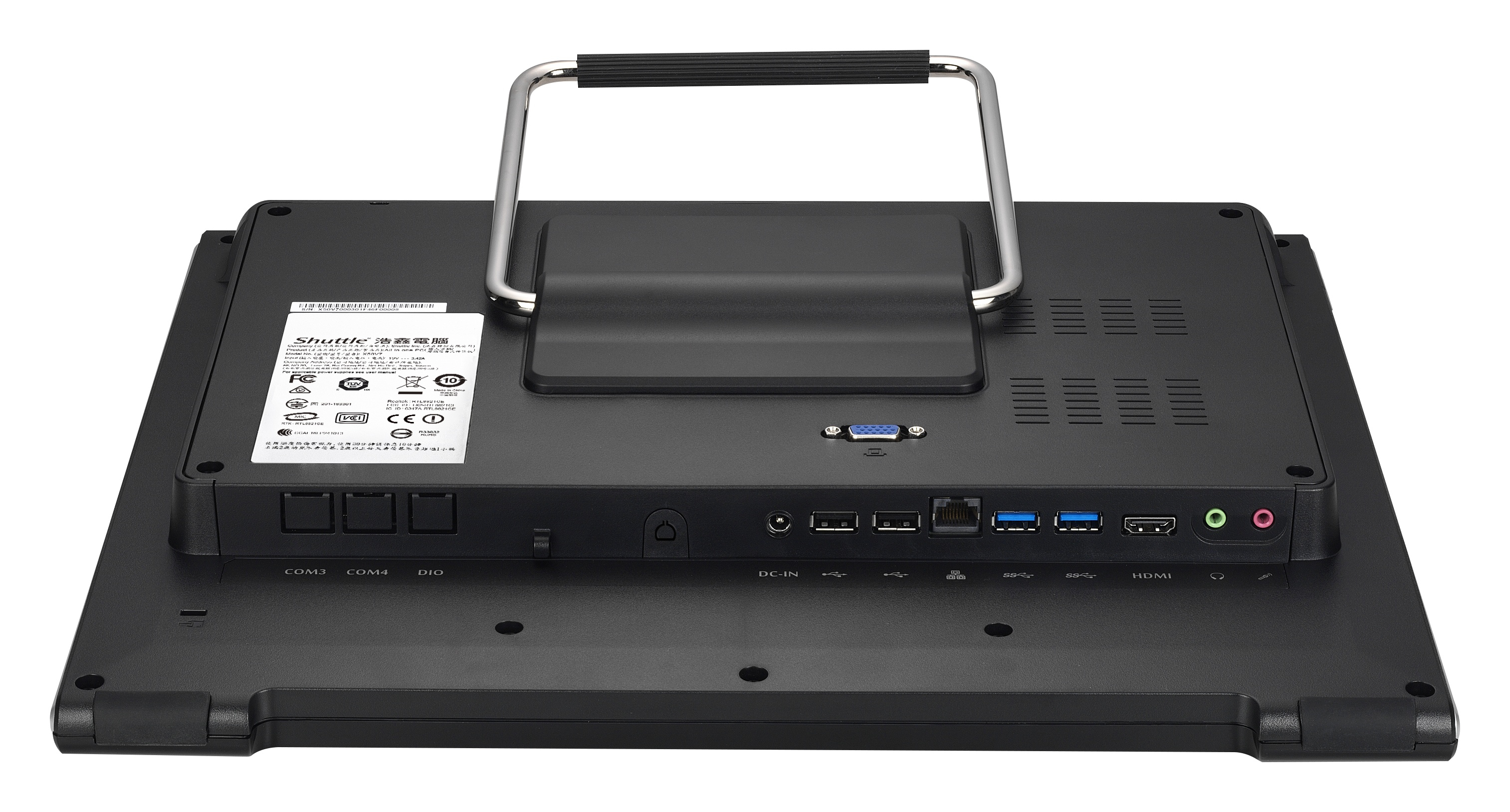

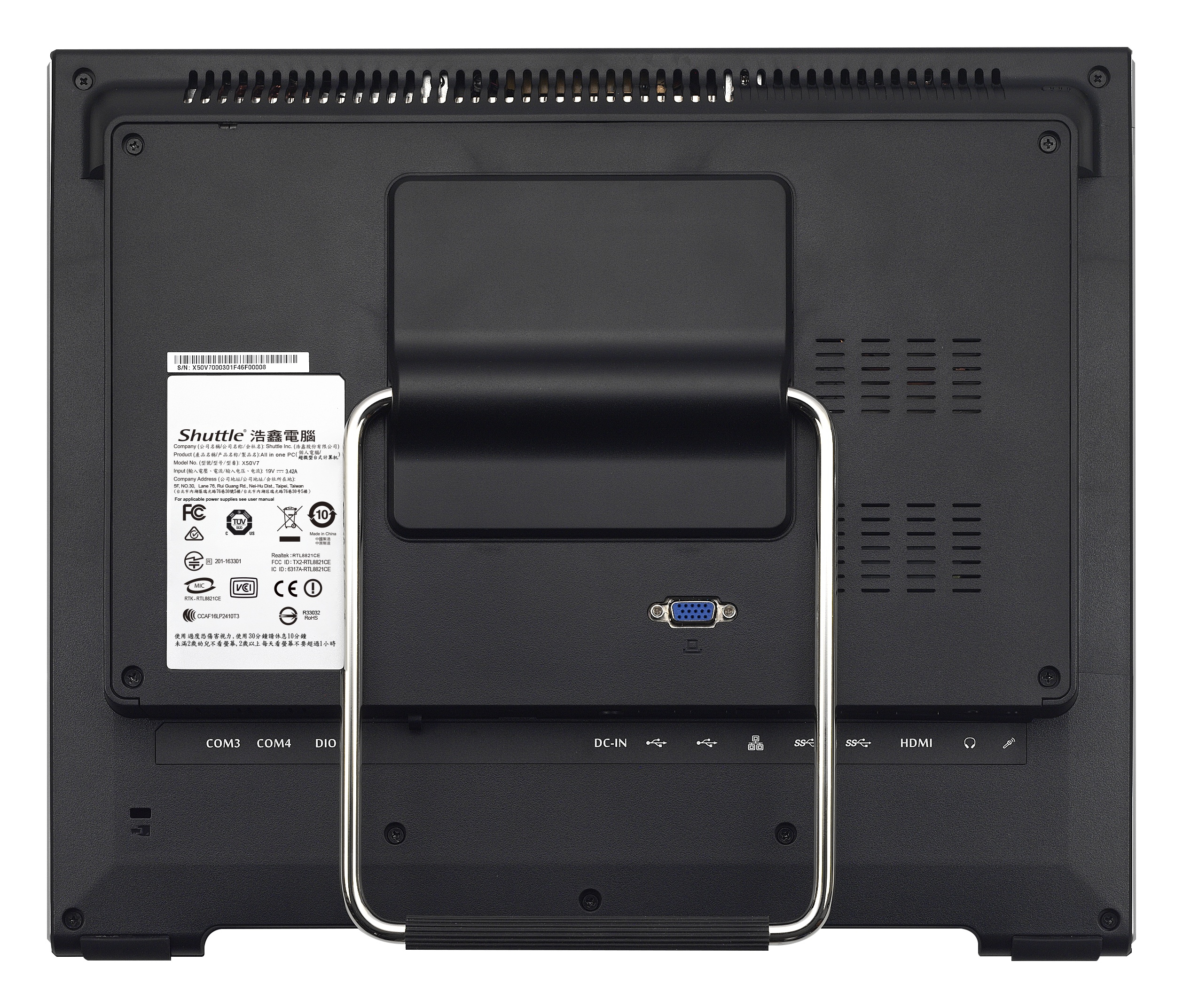

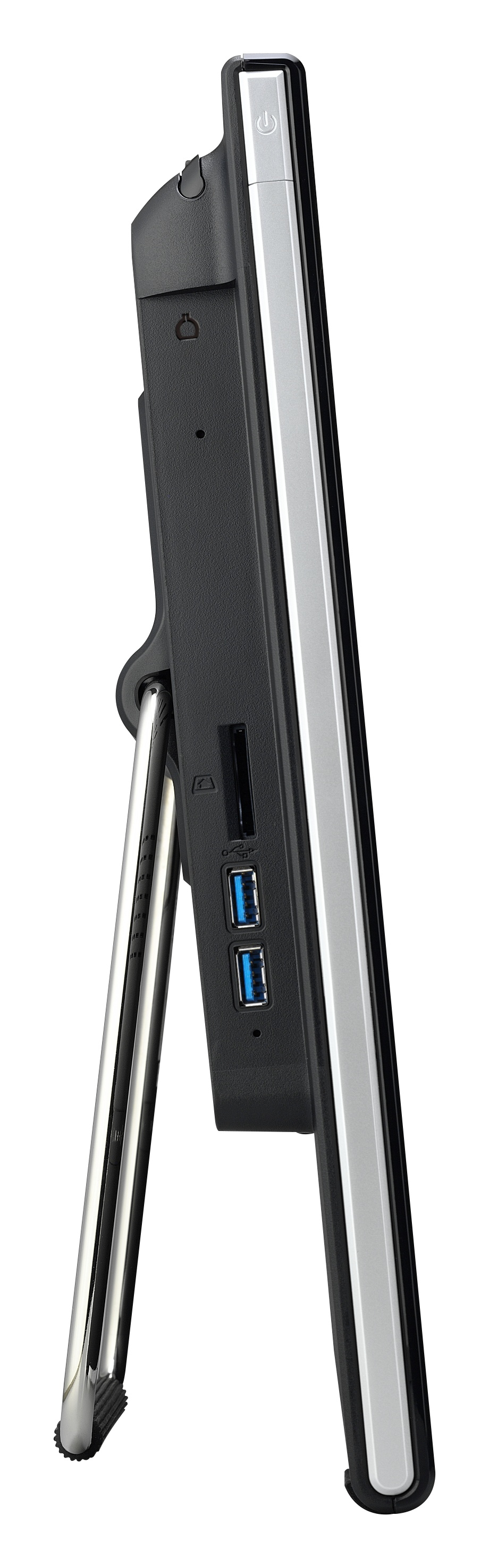

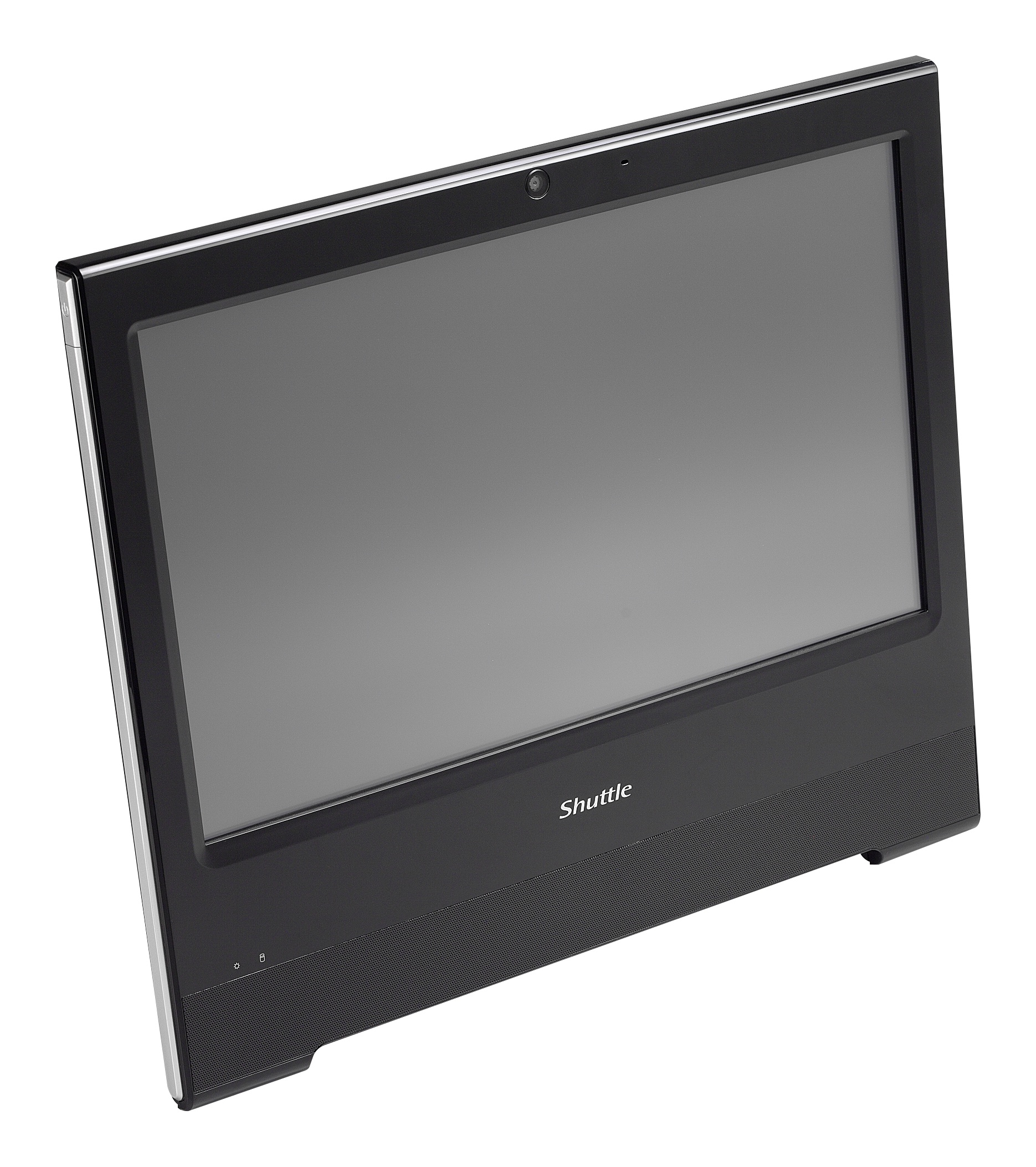

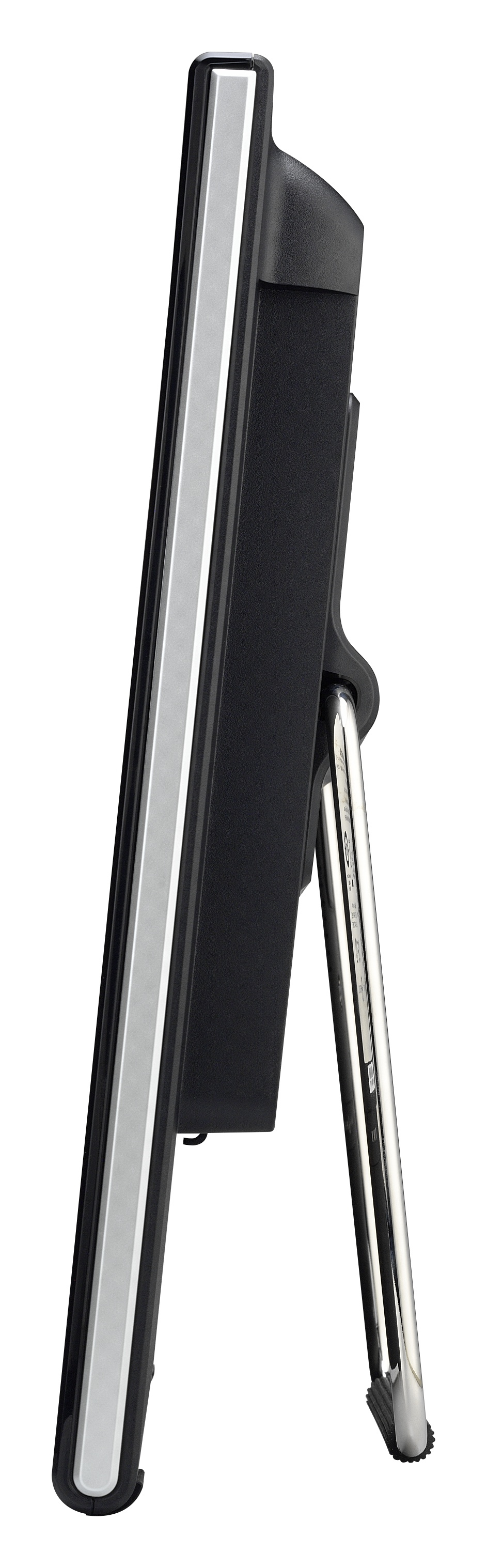

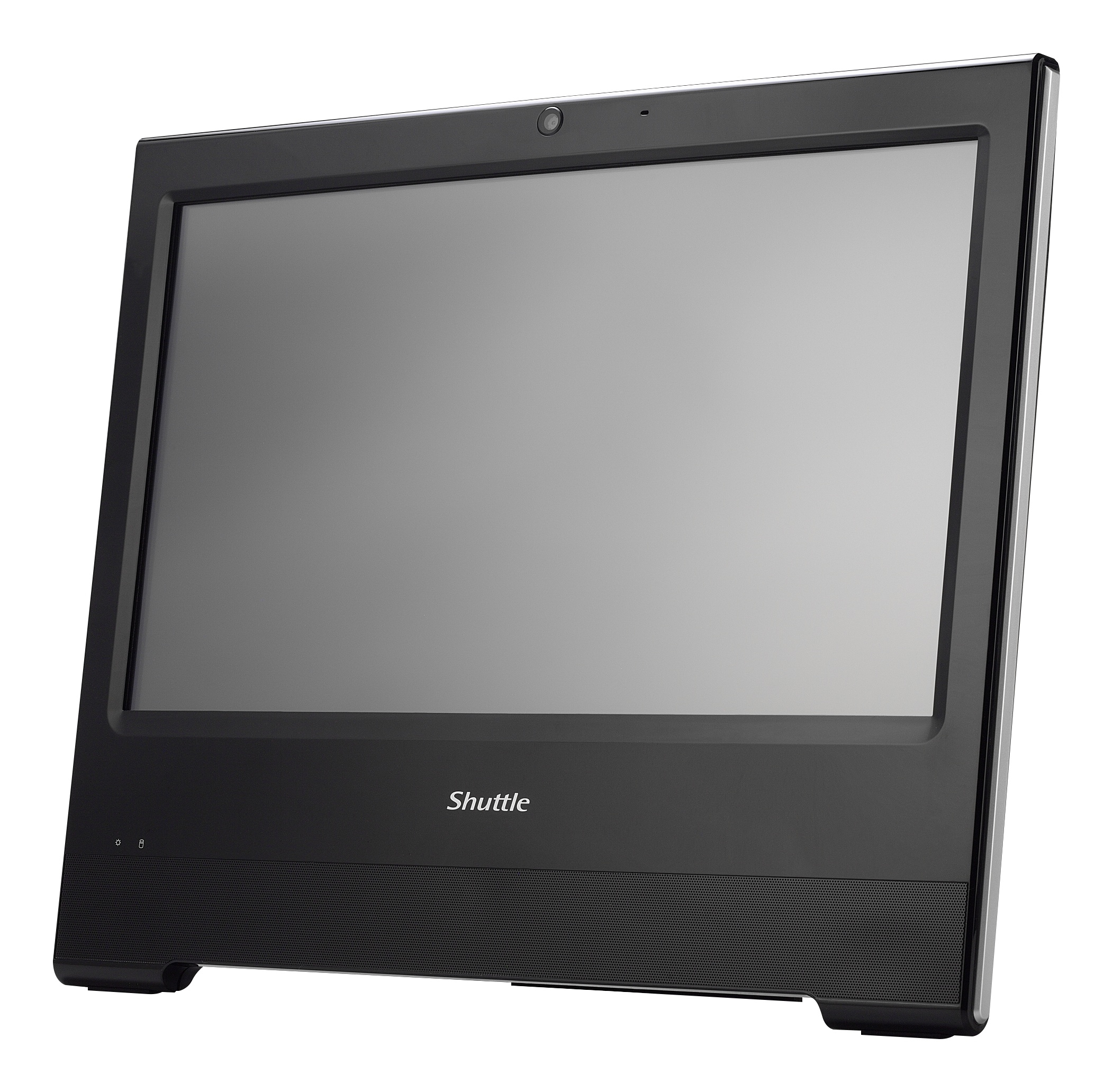

Shuttle XPC All in One System X5073TA (black)
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 15.6"
- Resolution
- 1366 x 768
- Processor line
- Intel Core i3
- Clock speed
- 2.1 GHz
- Capacity
- 8 GB
- Storage
- 120 GB
- NVMe
- Y
- Wi-Fi
- Y
- Display type
- HD
1 / 11
Shopping actions
Overview
The Shuttle XPC All in One System X5073TA (black) features Intel Core i3 processor, 2 cores, up to 3.9 GHz boost, 8 GB of memory and NVMe support. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
4 MB
Cores
2
Model
i3-8145U
Processor line
Intel Core i3
Socket
BGA 1528
Threads
4
Clock speed
2.1 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.9 GHz
CPU operating modes
64-bit
TDP
15 W
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
2
Ethernet ports
1
Logistics & Packaging
2 SPECS
Package weight
4800 g
Country of origin
China
Display
6 SPECS
Display type
HD
Panel type
LCD
Touchscreen
Yes
Screen size
15.6"
Resolution
1366 x 768
Aspect ratio
16:9
Memory
3 SPECS
Capacity
8 GB
Memory type
DDR4-SDRAM
Max memory
64 GB
Storage
3 SPECS
Capacity
120 GB
Form factor
M.2
Storage
120 GB
Physical
3 SPECS
Product type
All-in-One PC
Colour
Black
Customs (HS) code
84713000
Graphics
1 SPEC
Memory clock
2400 MHz
General
118 SPECS
NVMe
Yes
Wi-Fi
Yes
Bus type
OPI
64-bit support
Yes
Bluetooth
Yes
Tjunction
100
Audio chip
Realtek ALC269
DC-in jack
Yes
Idle power states
Yes
Audio output
Yes
Ethernet LAN
Yes
HDMI version
1.4a
Intel TSX-NI
No
Memory slots
2
Certifications
CE, FCC, BSMI, CB, BSMI, ETL
Microphone input
Yes
SSD interface
NVMe,PCI Express
Storage media
SSD
VESA mounting
Yes
Wall mountable
Yes
Built-in camera
Yes
Security lock slot
Yes
RMS power
2
Bus speed
4 GT/s
Wi-Fi standard
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
AC adapter power
65 W
Intel® OS Guard
Yes
Intel ARK ID
149090
Total megapixels
2
Bluetooth version
4.0
Camera resolution
1600 x 1200
Headphone outputs
1
Memory slots type
SO-DIMM
Depth (with stand)
42
Display brightness
220
Intel® Secure Key
Yes
Number of speakers
2
Optical drive type
No
Codename
Whiskey Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Width (with stand)
391
Built-in microphone
Yes
Built-in speaker(s)
Yes
Configurable TDP-up
25
Execute Disable (NX)
Yes
Height (with stand)
327
Total SSDs capacity
120
Weight (with stand)
3600
AC adapter frequency
50 / 60
Cable lock slot type
Kensington
Intel TSX-NI version
0.00
Generation
Intel Core i3-8xxx
Configurable TDP-down
10
Card reader
Yes
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
46x24
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Compliance certificates
RoHS
Ethernet LAN data rates
10,100,1000
AC adapter input voltage
100 - 240
Intel Flex Memory Access
Yes
Number of SSDs installed
1
AC adapter output voltage
19 V
Intel Enhanced Halt State
Yes
On-board GPU manufacturer
Intel
On-board graphics card ID
0x3EA0
PCI Express slots version
3.0
Long-term availability
No
Operating system
Windows 10 Pro
PCI Express configurations
1x2+2x1,1x4,2x2,4x1
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
Thunderbolt ports quantity
0
VGA ports
1
Operating temperature
0 - 40
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel UHD Graphics
Configurable TDP-up frequency
2.3
OS architecture
64-bit
Intel® Turbo Boost Technology
2.0
Configurable TDP-down frequency
0.8
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Operating humidity
10 - 90
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM,LPDDR3-SDRAM
Maximum on-board graphics card memory
32
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
300
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Smart Response Technology version
1.00
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2133,2400
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
37.5
Maximum internal memory supported by processor
32
On-board graphics card dynamic frequency (max)
1000
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
