ProDVX logo MPN: 6022200

ProDVX IPPC-22-6300 (R26-6300)

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Screen size
21.5"
Resolution
1920 x 1080
Capacity
8 GB
Weight
4200 g
DC-in jack
Y
Panel type
IPS
Audio input
3.5 mm
Touchscreen
Y
Battery type
CR2032 Lithium metal, non rechargeable
View 53 specifications
1 / 5
Shopping actions
Check price on Amazon

Overview

The ProDVX IPPC-22-6300 is an Intel Panel PC with a 21.5" Touch Display. The ProDVX IPPC-22-6300 standard comes with an Intel N150 (up to 3.6 GHz). This device can be connected through RJ45 LAN, WiFi (optional), Bluetooth (optional) and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module or VESA brackets. This product requires an additional Windows 11 IoT Enterprise LTSC license.

Technical Specifications

Display

9 SPECS
Panel type
IPS
Touchscreen
Yes
LED backlight
Yes
Screen size
21.5"
Resolution
1920 x 1080
Aspect ratio
16:9
Vertical viewing angle
178°
Contrast ratio
3000:1
Horizontal viewing angle
178°

Ports & Connectivity

1 SPEC
DisplayPorts quantity
1

Physical

2 SPECS
Weight
4200 g
Colour
Black

Processor

1 SPEC
CPU brand
Intel

Memory

1 SPEC
Capacity
8 GB

Storage

1 SPEC
Form factor
M.2

Power

1 SPEC
Power consumption (typical)
70 W

General

37 SPECS
DC-in jack
Yes
Audio input
3.5 mm
Audio output
Yes
Battery type
CR2032 Lithium metal, non rechargeable
Storage media
SSD
VESA mounting
Yes
Backlight type
Edge LED
Built-in camera
No
RMS power
6
Housing material
ABS synthetics
Touch technology
Multi-touch
Anti-glare screen
No
Display brightness
250
Number of speakers
2
AC adapter included
Yes
Built-in speaker(s)
Yes

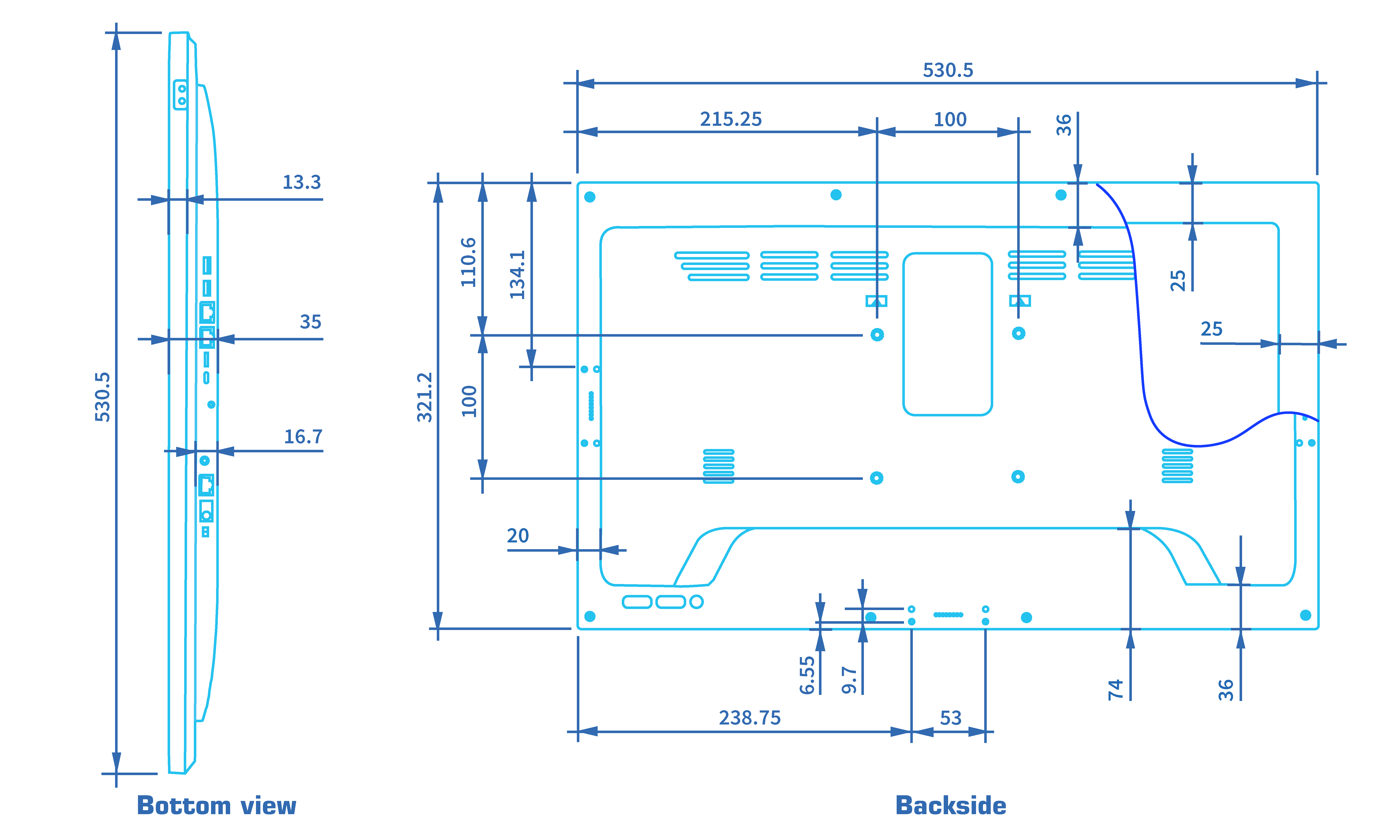

Depth (no stand)
35 mm
Width (no stand)
530.5 mm
Height (no stand)
321.22 mm
Integrated graphics
Yes
Weight (without stand)
4200 g
Audio formats
AAC,MP3,WMA
Compliance certificates
Federal Communications Commission (FCC),CE,RoHS,REACH,UKCA
Ethernet LAN data rates
1000,100,10
Video formats
AVI,MKV,MP4
Mini HDMI ports quantity
1
Panel mounting interface
100 x 100
AC adapter output current
5 A
AC adapter output voltage
12 V
On-board GPU manufacturer
Intel
Storage temperature
-10 - 55
Operating temperature
0 - 40
Storage relative humidity (H-H)
10 - 90
MTBF
50000 h
Operating humidity
10 - 90
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
