ProDVX logo MPN: 6010200

ProDVX IPPC-10SLB

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Screen size
10.1"
Resolution
1280 x 800
Processor line
Intel Atom x5
Clock speed
1.44 GHz
Capacity
4 GB
Storage
64 GB
Wi-Fi
Y
Weight
650 g
Display type
HD
View 91 specifications
1 / 11
Shopping actions
Check price on Amazon

Overview

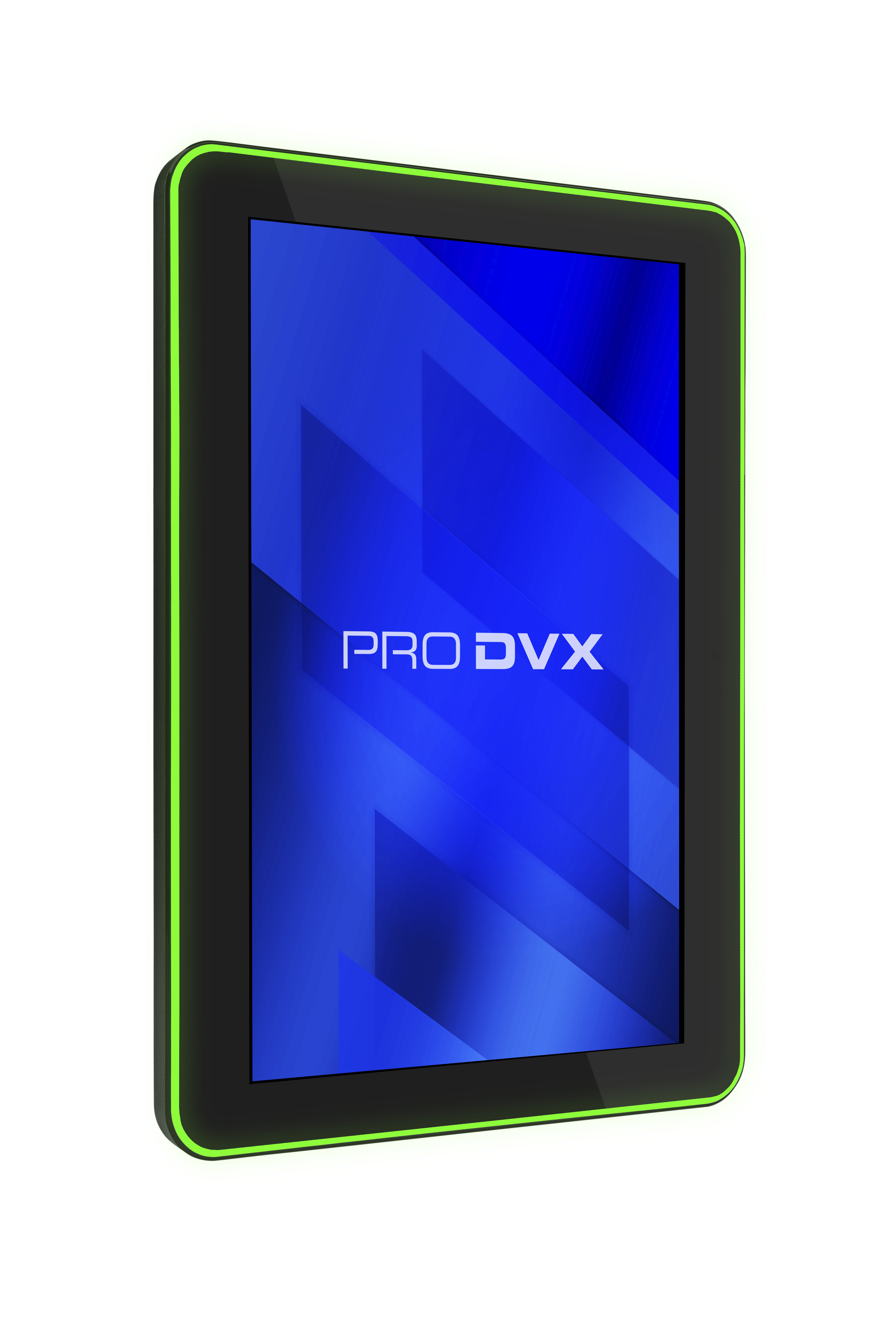

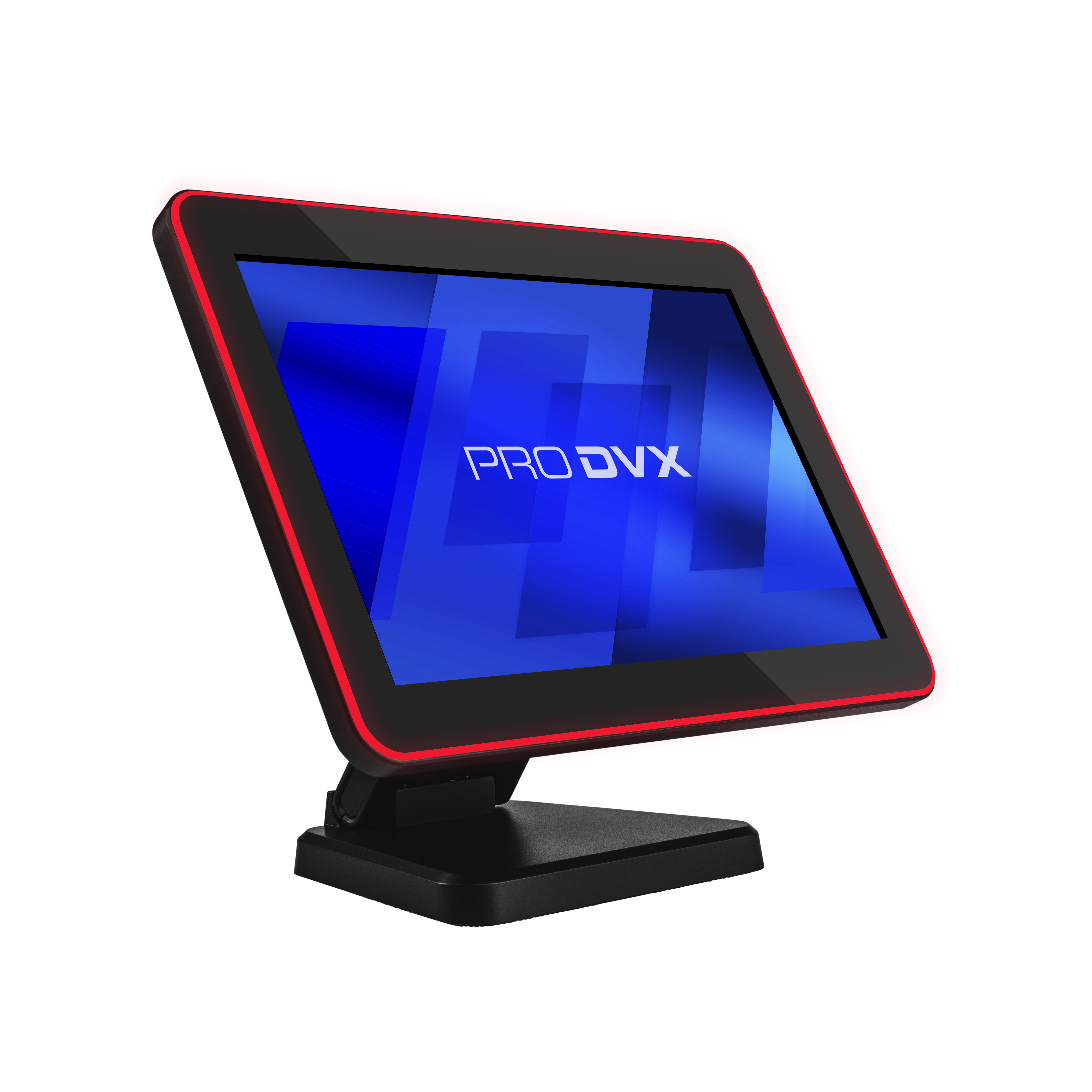

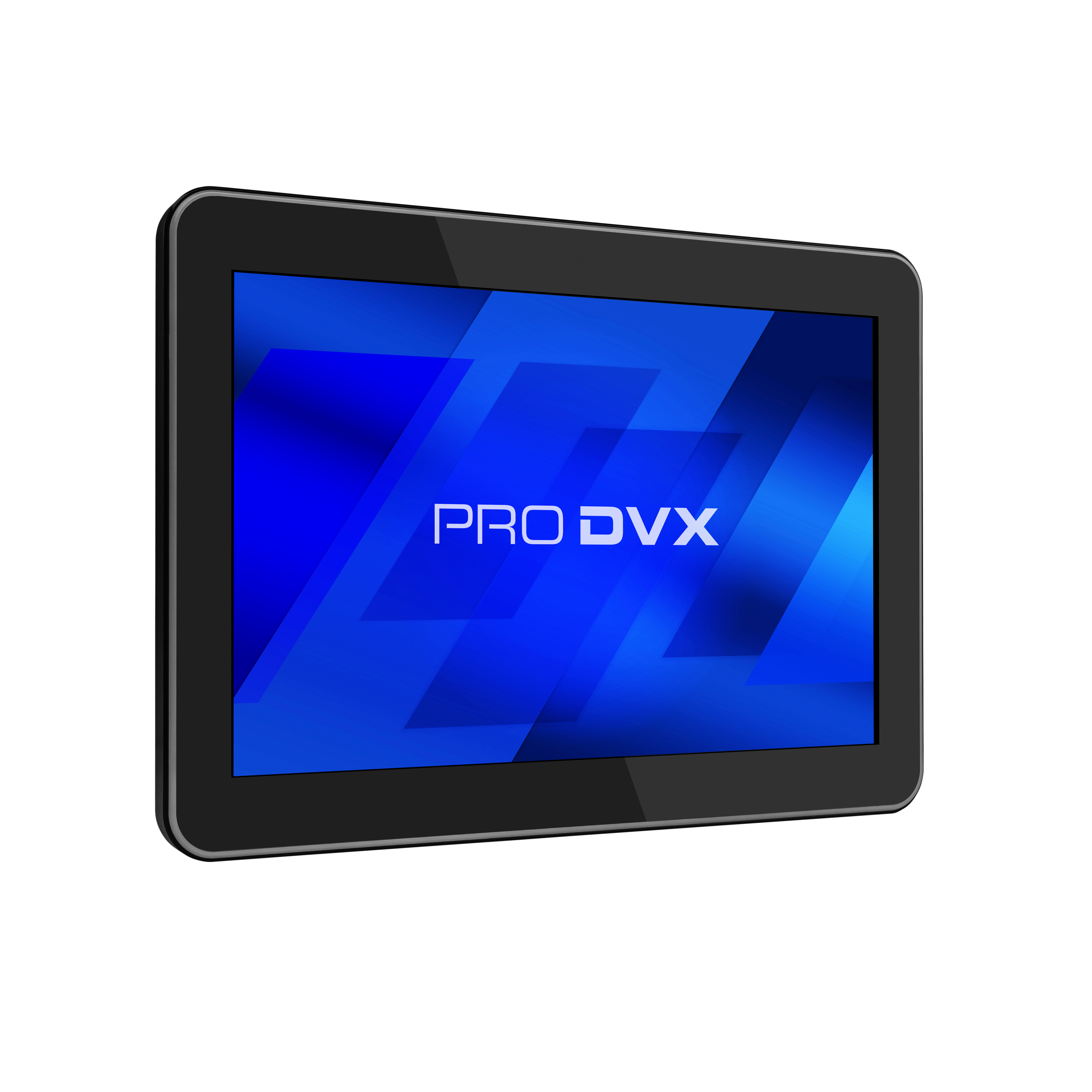

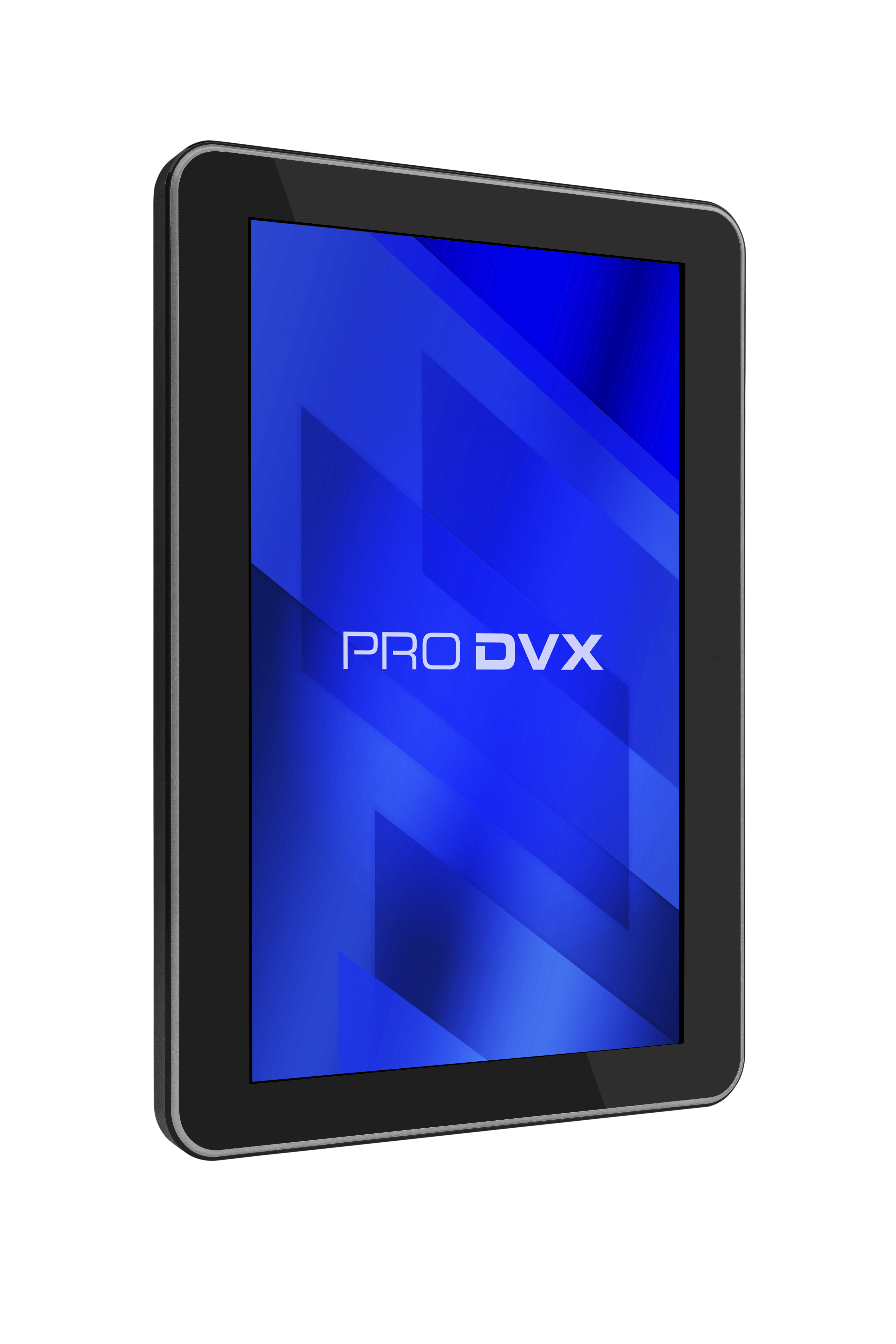

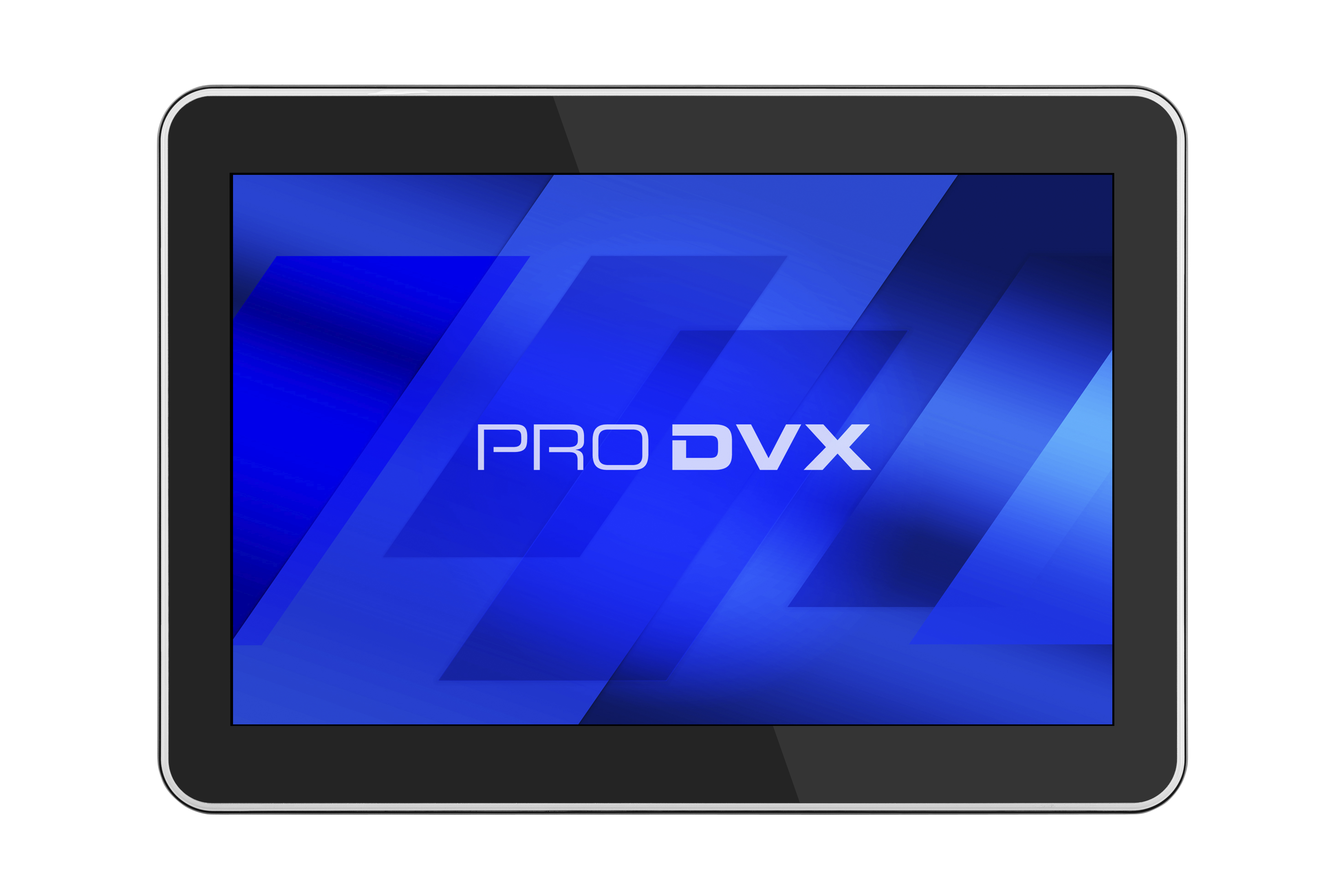

The ProDVX IPPC-10SLB is a Commercial Grade 10.1 inch Intel Panel PC with Power over Ethernet (PoE) and Surround LED Status Light Bar (Full RGB). With its Surround LED Bar it is the ideal solution for Room Booking, Room Signage and Access Control. This device can be connected through RJ45 LAN, WiFi and Bluetooth. The IPPC-10SLB Intel Panel PC standard comes with an Intel Atom X5-Z8350 Quad Core CPU and has a projected capacitive touch display and plastic housing. Optional accessories are a 1D/2D Barcode Scanner, Camera and NFC Module. This product requires an additional Windows 10 IoT Enterprise LTSC license.

Technical Specifications

Display

10 SPECS
Display type
HD
Panel type
IPS
Touchscreen
Yes
LED backlight
Yes
Screen size
10.1"
Resolution
1280 x 800
Aspect ratio
16:10
Vertical viewing angle
160°
Contrast ratio
800:1
Horizontal viewing angle
160°

Physical

4 SPECS
Weight
650 g
Product type
All-in-One tablet PC
Colour
Black
Customs (HS) code
84713000

Graphics

1 SPEC
Memory clock
1600 MHz

Power

1 SPEC
Power consumption (typical)
20 W

Processor

7 SPECS
Cache
2 MB
Cores
4
Model
x5-Z8350
Processor line
Intel Atom x5
Clock speed
1.44 GHz
CPU brand
Intel
Boost clock
1.92 GHz

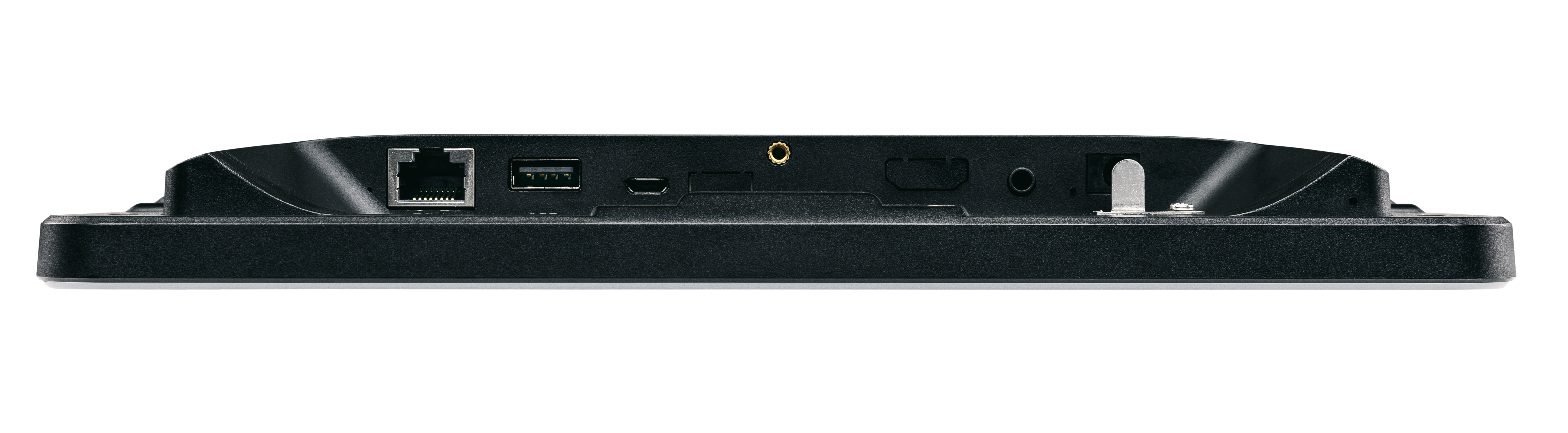

Ports & Connectivity

4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
1
Ethernet ports
1

Memory

2 SPECS
Capacity
4 GB
Memory type
DDR3L-SDRAM

Storage

1 SPEC
Storage
64 GB

General

61 SPECS
Wi-Fi
Yes
64-bit support
Yes
Backlight
Yes
Bluetooth
Yes
DC-in jack
Yes
Multi-touch
Yes
Audio output
Yes
Battery type
CR1220 - Lithium‐metal non‐rechargeable coin
Ethernet LAN
Yes
Certifications
FCC, CE, RoHS
Storage media
eMMC

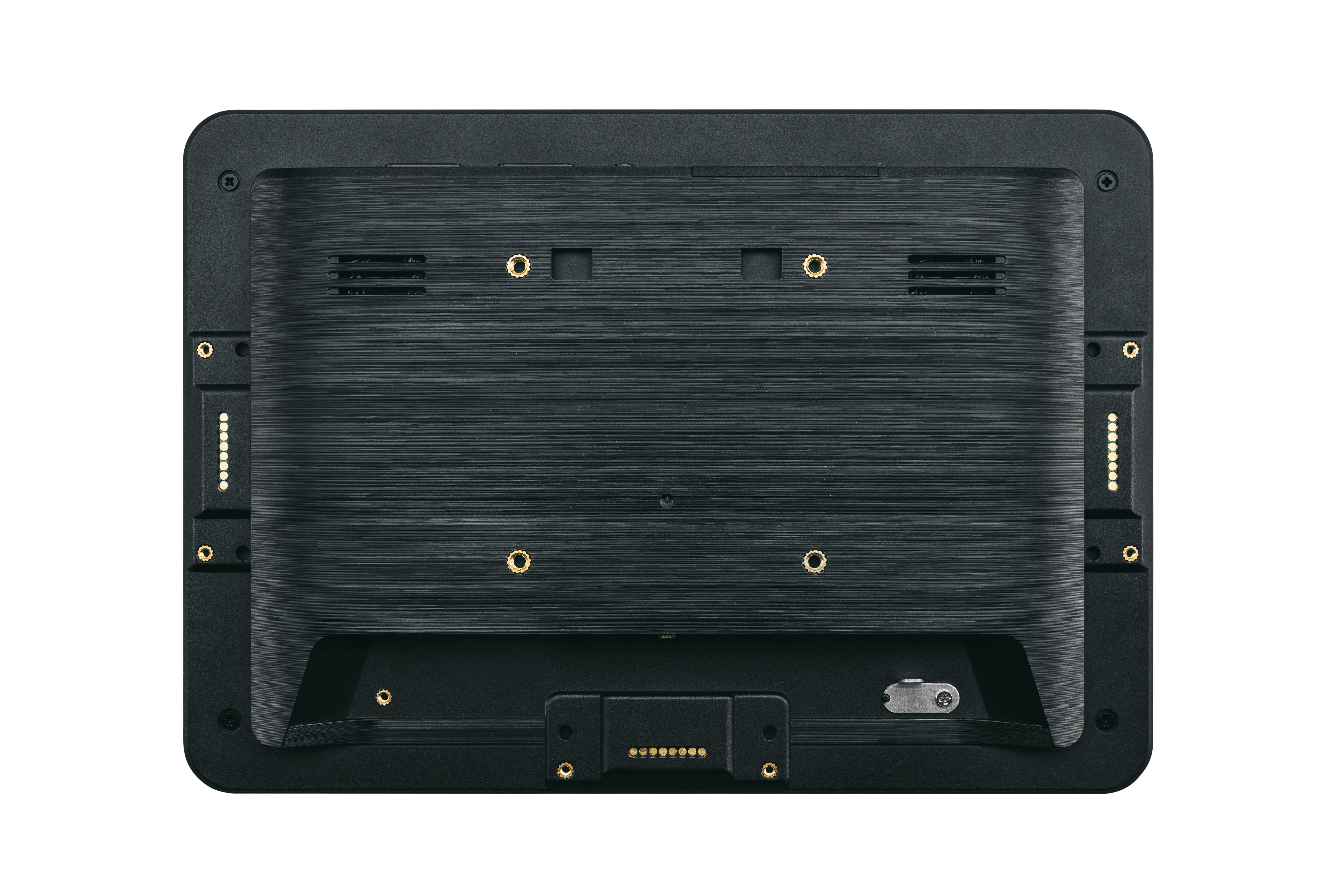

VESA mounting
Yes
Backlight type
Edge LED
Wall mountable
Yes
Built-in camera
No
Included cables
No
RMS power
4
Wi-Fi standard
Wi-Fi 5 (802.11ac)
Housing material
Plastic
Touch technology
Multi-touch
Bluetooth version
4.2
Intel Secure Boot
Yes
Display brightness
500
Number of speakers
2
Optical drive type
No
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
AC adapter included
No
Built-in microphone
Yes
Built-in speaker(s)
Yes
Depth (no stand)
26.7 mm
Width (no stand)
255.3 mm
Card reader
Yes
Dedicated graphics
No
Height (no stand)
181 mm
Integrated graphics
Yes
Weight (without stand)
650 g
Compatible memory cards
SD
Compliance certificates
Federal Communications Commission (FCC),CE,RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
1000,100,10
Micro-USB ports quantity
1
Panel mounting interface
75 x 75
AC adapter output current
2 A
AC adapter output voltage
12 V
On-board GPU manufacturer
Intel
Storage temperature
-10 - 55
Long-term availability
No
HDMI output ports quantity
1
Operating system
Windows 10
Operating temperature
0 - 40
Dedicated GPU model
Not available
Integrated GPU model
Intel HD Graphics
On-board graphics card family
Intel HD Graphics
Storage relative humidity (H-H)
10 - 90
MTBF
45000 h
Operating humidity
10 - 90
Intel Secure Boot Technology version
1.00
Virtualization (VT-x)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel Identity Protection Technology version
1.00
Intel Stable Image Platform Program (SIPP) version
0.00
