MPN:
50070010.108

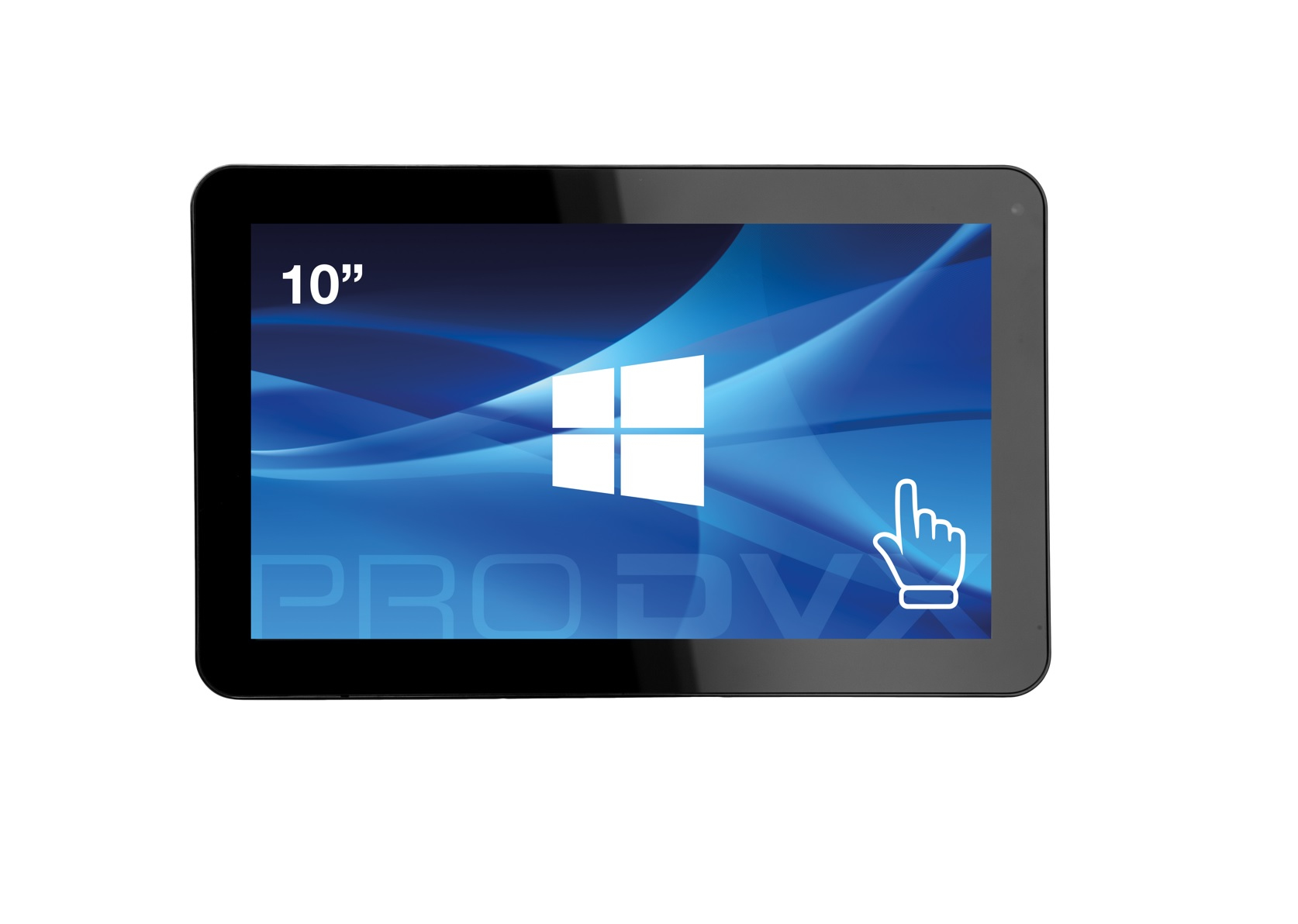

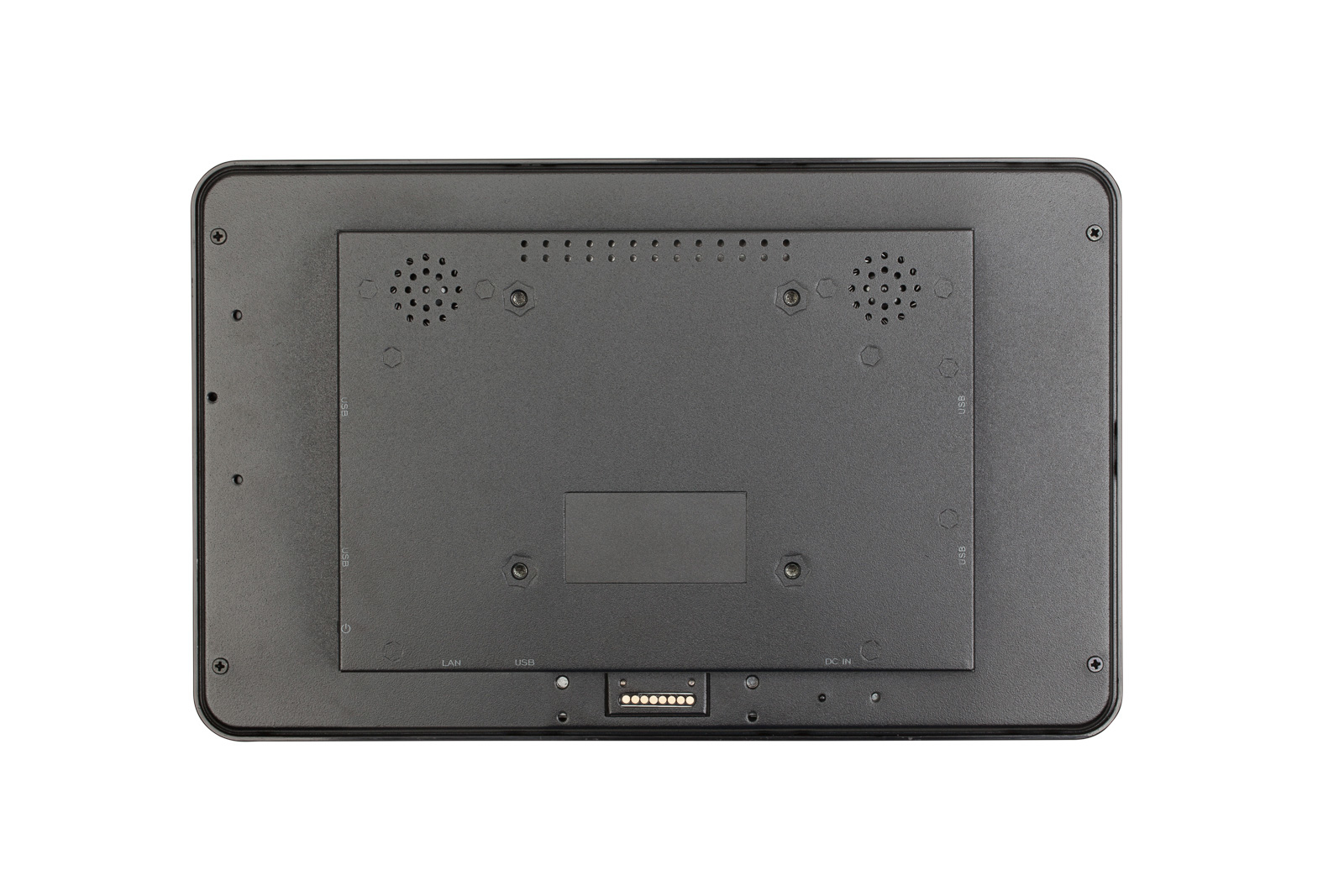

ProDVX IPPC-10 Intel® Celeron® N3160 25.4 cm (10″) 1024 x 600 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 64 GB SSD Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 10"
- Resolution
- 1024 x 600
- Processor line
- Intel Celeron
- Clock speed
- 1.6 GHz
- Capacity
- 4 GB
- Storage
- 64 GB
- UART
- Y
- Display type
- Not supported
- 64-bit support
- Y
1 / 2
Shopping actions
Overview
The ProDVX IPPC-10 Intel® Celeron® N3160 25.4 cm (10″) 1024 x 600 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 64 GB SSD Black features Intel Celeron processor, 4 cores, up to 2.24 GHz boost and 4 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
D1
Cache
2 MB
Cores
4
Model
N3160
Processor line
Intel Celeron
Socket
BGA 1170
Threads
4
Clock speed
1.6 GHz
Cache level
L2
Process node
14 nm
CPU brand
Intel
Boost clock
2.24 GHz
CPU operating modes
64-bit
TDP
6 W
Ports & Connectivity
2 SPECS
USB 2.0 ports
3
Ethernet ports
1
Graphics
1 SPEC
Memory clock
1600 MHz
Display
9 SPECS
Display type
Not supported
Touchscreen
Yes
LED backlight
Yes
Screen size
10"
Resolution
1024 x 600
Aspect ratio
5:3
Vertical viewing angle
130°
Contrast ratio
600:1
Horizontal viewing angle
140°
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR3L-SDRAM
Max memory
8 GB
Physical
2 SPECS
Product type
All-in-One PC
Colour
Black
Storage
1 SPEC
Storage
64 GB
General
102 SPECS
UART
Yes
64-bit support
Yes
Tjunction
90
Idle power states
Yes
Ethernet LAN
Yes
Memory slots
1
Screen shape
Flat screen
Storage media
SSD
VESA mounting
Yes
Mouse included
No
Processor code
SR2KP
Wall mountable
Yes
RMS power
4
AC adapter power
36 W
Housing material
Metal
Intel® OS Guard
No
Intel ARK ID
91831
Processor series
Intel Celeron N3000 series
Touch technology
Multi-touch
Intel Secure Boot
Yes
Keyboard included
No
Memory slots type
SO-DIMM
Depth (with stand)
25
Display brightness
450
Intel® Insider™
No
Intel® Secure Key
Yes
Optical drive type
No
Codename
Braswell
Width (with stand)
260.5
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Height (with stand)
195
Integrated 4G WiMAX
No
Weight (with stand)
1420
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
25 x 27
CPU configuration (max)
1
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Mini HDMI ports quantity
1
Panel mounting interface
75 x 75
Intel Enhanced Halt State
Yes
Number of execution units
12
PCI Express slots version
2.0
Storage temperature
-10 - 55
ECC memory support
No
Long-term availability
Yes
Operating system
No
PCI Express configurations
1x2+2x1,1x4,2x2,4x1
Thunderbolt ports quantity
0
VGA ports
0
Operating temperature
0 - 35
Scenario Design Power (SDP)
4
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics 400
Thunderbolt 3 ports quantity
0
Intel Rapid Storage Technology
No
Intel Smart Connect Technology
No
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
No
Thermal monitoring
Yes
Intel® Smart Response Technology
No
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
4
Memory types supported by processor
DDR3L-SDRAM
Intel Secure Boot Technology version
1.00
Maximum on-board graphics card memory
8
On-board graphics card base frequency
320
Intel Smart Connect Technology version
0.00
Virtualization (VT-x)
Yes
Memory channels supported by processor
Dual
On-board graphics card DirectX version
12.0
On-board graphics card burst frequency
640
Intel Smart Response Technology version
0.00
Intel® Wireless Display (Intel® WiDi)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
1600
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
0.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Small Business Advantage (Intel® SBA)
No
Maximum internal memory supported by processor
8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Intel® High Definition Audio (Intel® HD Audio)
Yes
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
