MPN:
5007160

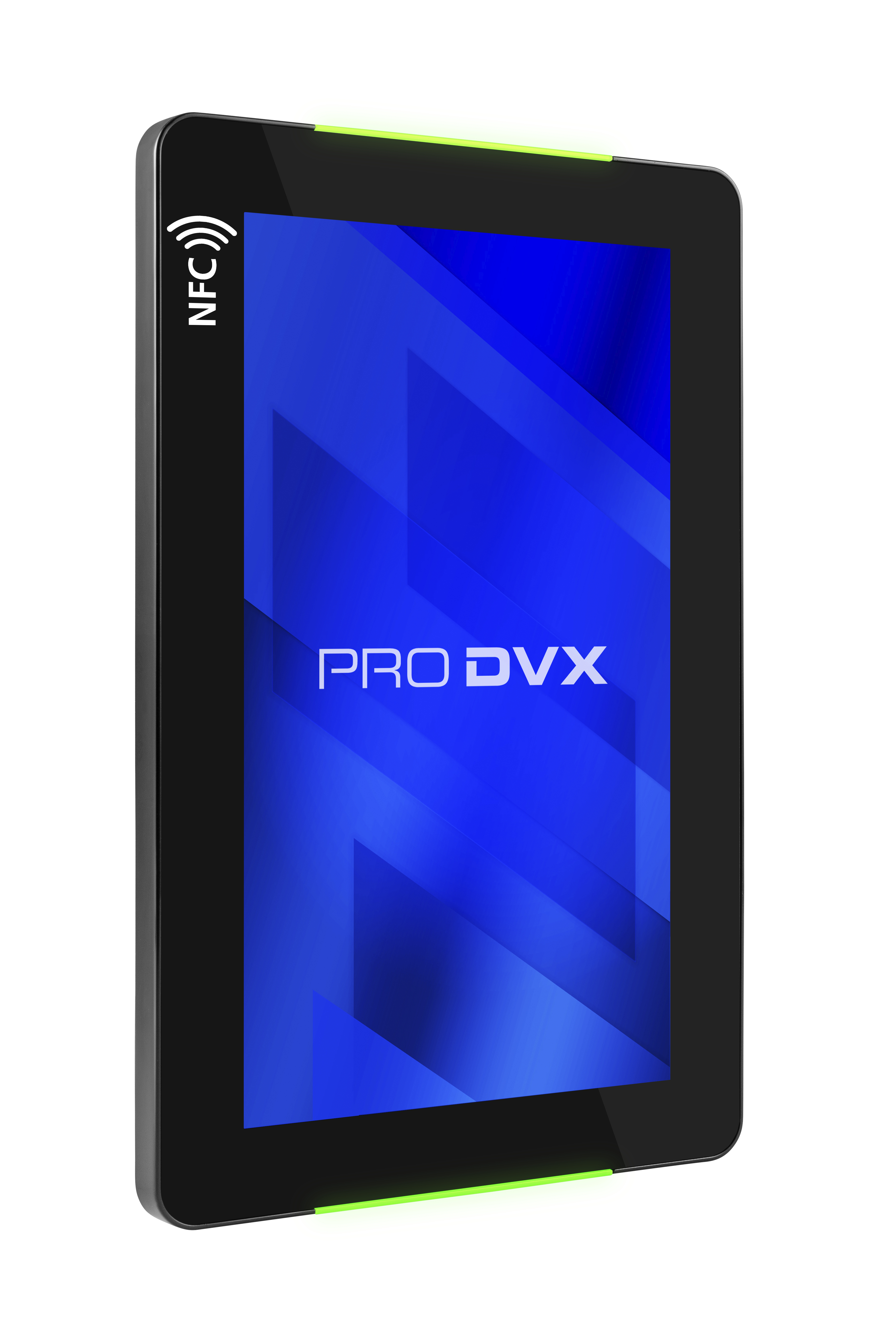

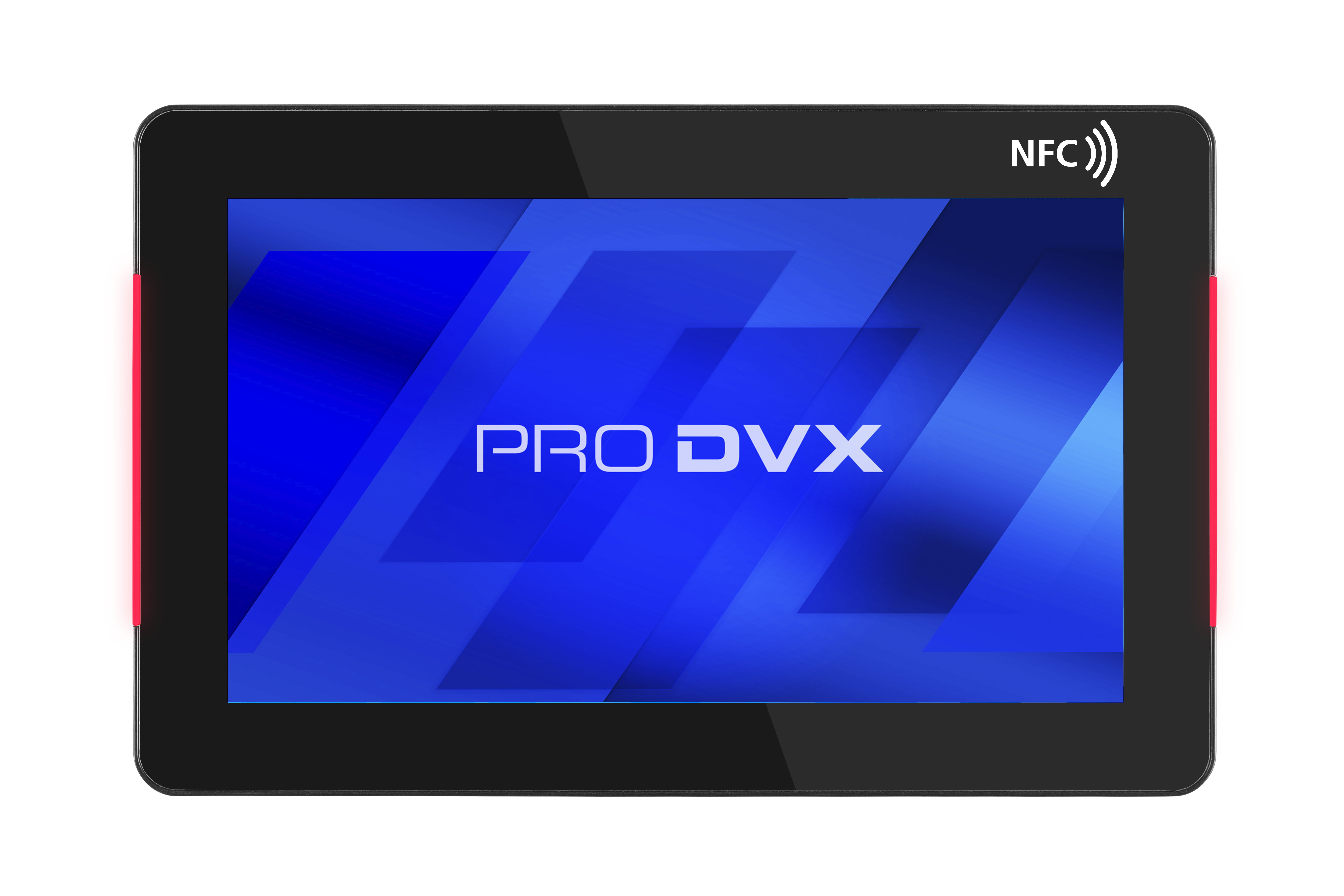

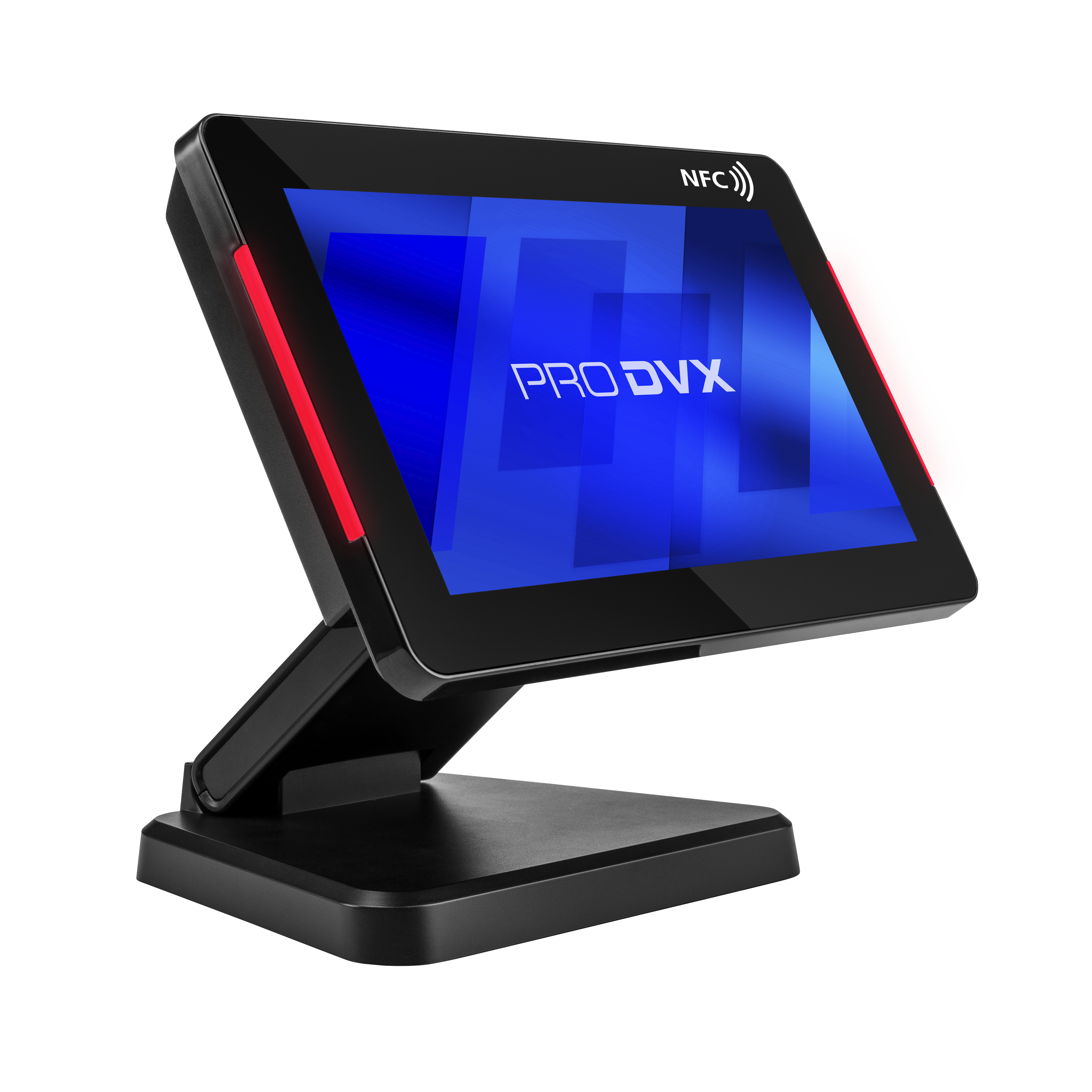

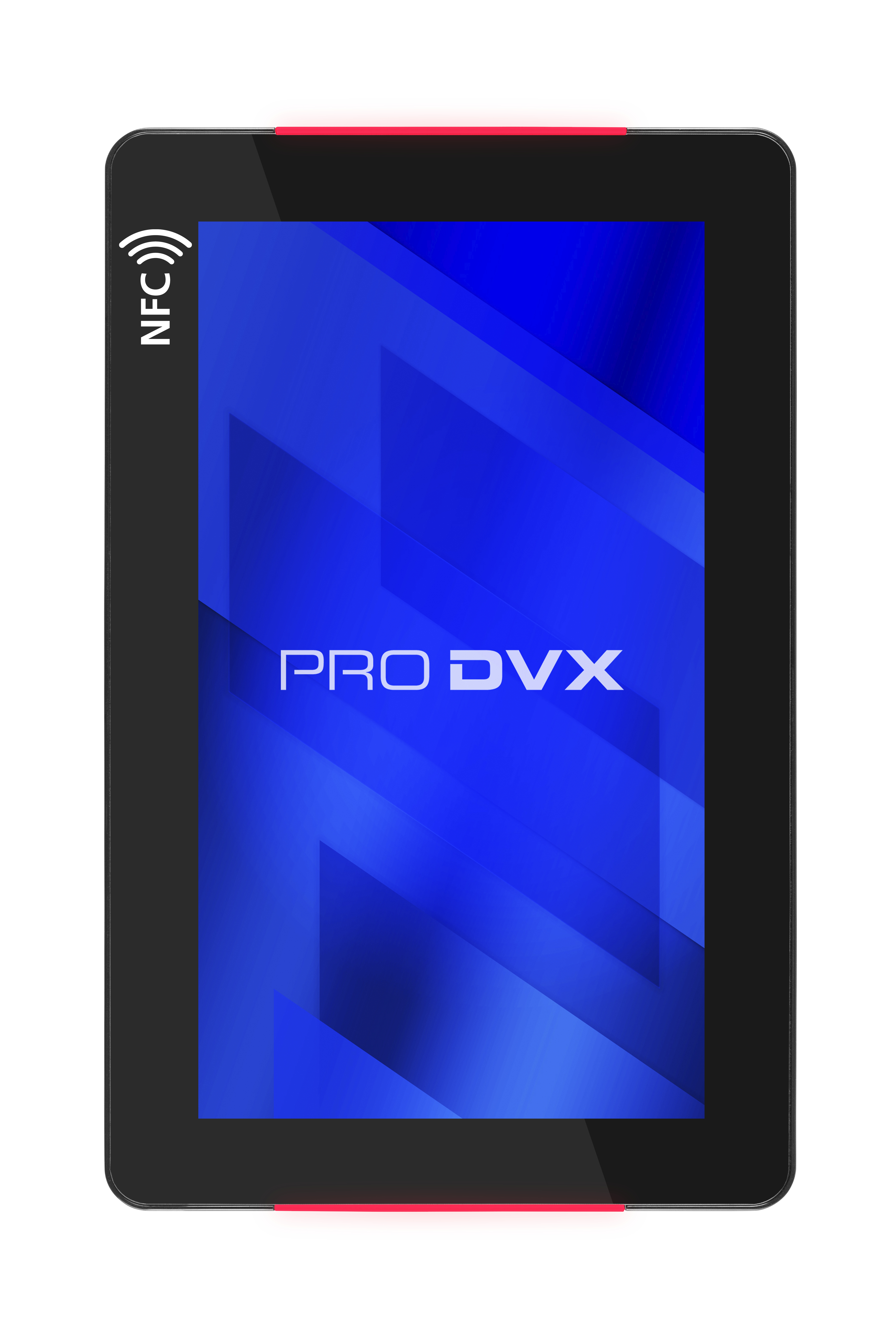

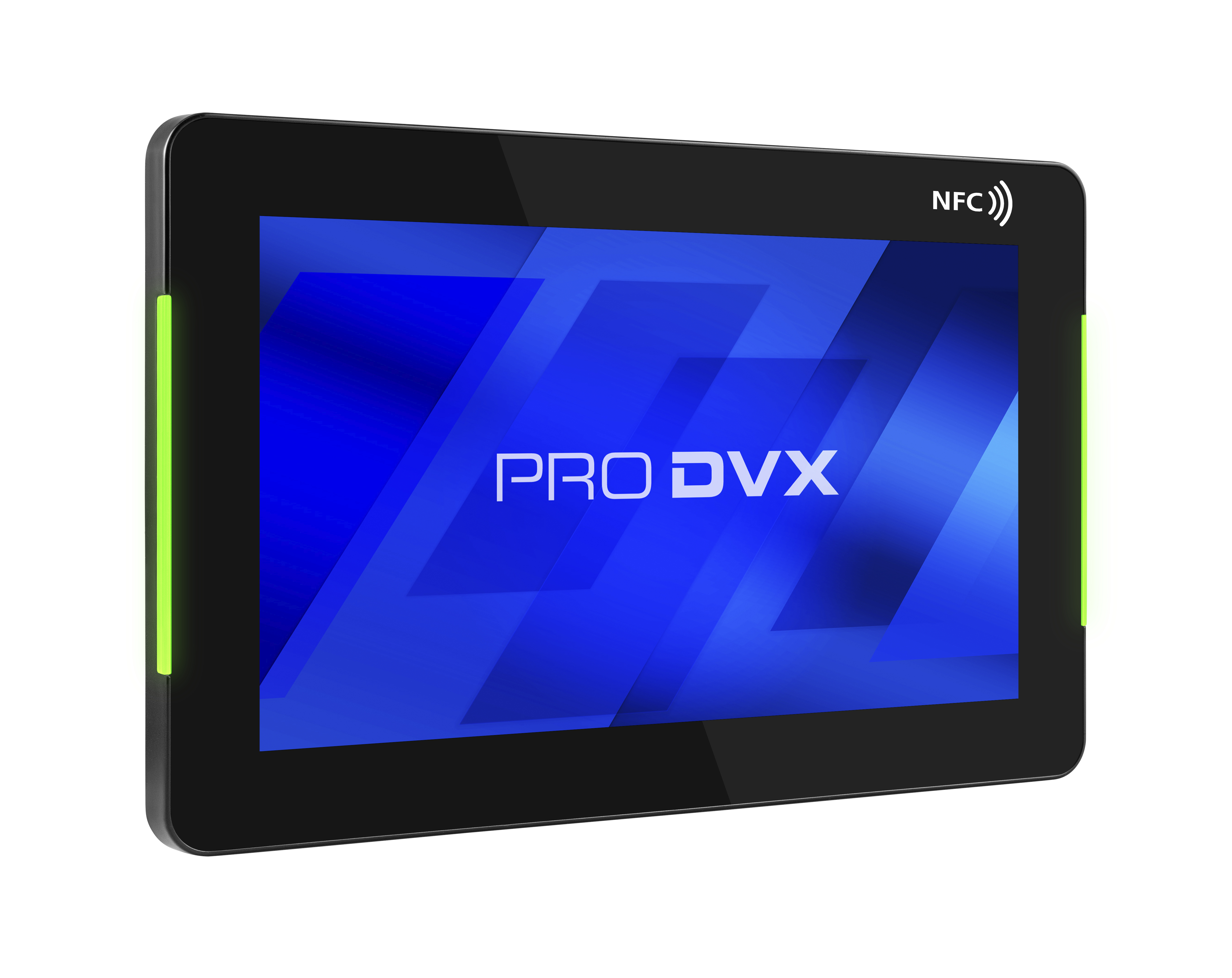

ProDVX APPC-7XPLN (RK3368H)
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 7"
- Resolution
- 1024 x 600
- Processor line
- Rockchip
- Capacity
- 2 GB
- Storage
- 16 GB
- Wi-Fi
- Y
- Weight
- 500 g
- Backlight
- Y
- Bluetooth
- Y
1 / 11
Shopping actions
Overview
The ProDVX APPC-7XPLN (RK3368H) features Rockchip processor, 8 cores, 2 GB of memory and DDR3-SDRAM. Full verified specifications are listed below.
Technical Specifications
Display
9 SPECS
Panel type
TFT-LCD
Touchscreen
Yes
LED backlight
Yes
Screen size
7"
Resolution
1024 x 600
Aspect ratio
17:10
Vertical viewing angle
130°
Contrast ratio
600:1
Horizontal viewing angle
140°
Physical
3 SPECS
Weight
500 g
Product type
All-in-One tablet PC
Colour
Black
Storage
1 SPEC
Storage
16 GB
Processor
4 SPECS
Cores
8
Model
RK3368H
Processor line
Rockchip
CPU brand
Rockchip
Ports & Connectivity
4 SPECS
HDMI ports
0
DisplayPorts quantity
1
USB 2.0 ports
1
Ethernet ports
1
Memory
2 SPECS
Capacity
2 GB
Memory type
DDR3-SDRAM
Power
1 SPEC
Power consumption (typical)
13 W
General
56 SPECS
Wi-Fi
Yes
Backlight
Yes
Bluetooth
Yes
DC-in jack
Yes
Audio output
Yes
Battery type
CR2032 - Lithium‐metal non‐rechargeable coin
Ethernet LAN
Yes
Certifications
FCC, CE, RoHS
Storage media
eMMC
VESA mounting
Yes
Backlight type
Edge LED
Wall mountable
Yes
Built-in camera
No
Included cables
No
RMS power
4
Wi-Fi standard
Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n),802.11a
Housing material
Plastic
Touch technology
Multi-touch
Bluetooth version
4.2
Display brightness
240
Number of speakers
2
Optical drive type
No
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
AC adapter included
No
Built-in microphone
Yes
Built-in speaker(s)
Yes
Depth (no stand)
25.2 mm
Width (no stand)
188.3 mm
Card reader
Yes
Dedicated graphics
No
Height (no stand)
120.3 mm
Integrated graphics
Yes
Weight (without stand)
500 g
Audio formats
AAC,ASF,MP2,OGG,WAV,WMA
Compatible memory cards
MiniSD
Compliance certificates
Federal Communications Commission (FCC),CE,RoHS
Ethernet LAN data rates
100,10
Video formats
3GP,ASF,AVI,DAT,FLV,MKV,MOV,MP4,MPG,RM,TS,VOB,WMV
Micro-USB ports quantity
1
Panel mounting interface
75 x 75
AC adapter output current
2 A
AC adapter output voltage
12 V
Storage temperature
-10 - 55
Operating system
Android 8.1
Thunderbolt ports quantity
0
Operating temperature
0 - 40
Dedicated GPU model
Not available
Integrated GPU model
PowerVR GC6110
Near Field Communication (NFC)
Yes
Storage relative humidity (H-H)
10 - 90
MTBF
40000 h
Operating humidity
10 - 90
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
