ProDVX logo MPN: 5022110

ProDVX APPC-22XP (RK3288)

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Screen size
21.5"
Resolution
1920 x 1080
Processor line
Rockchip
Capacity
2 GB
Storage
16 GB
Wi-Fi
Y
Weight
4200 g
Display type
Full HD
Backlight
Y
View 82 specifications
1 / 9
Shopping actions
Check price on Amazon

Overview

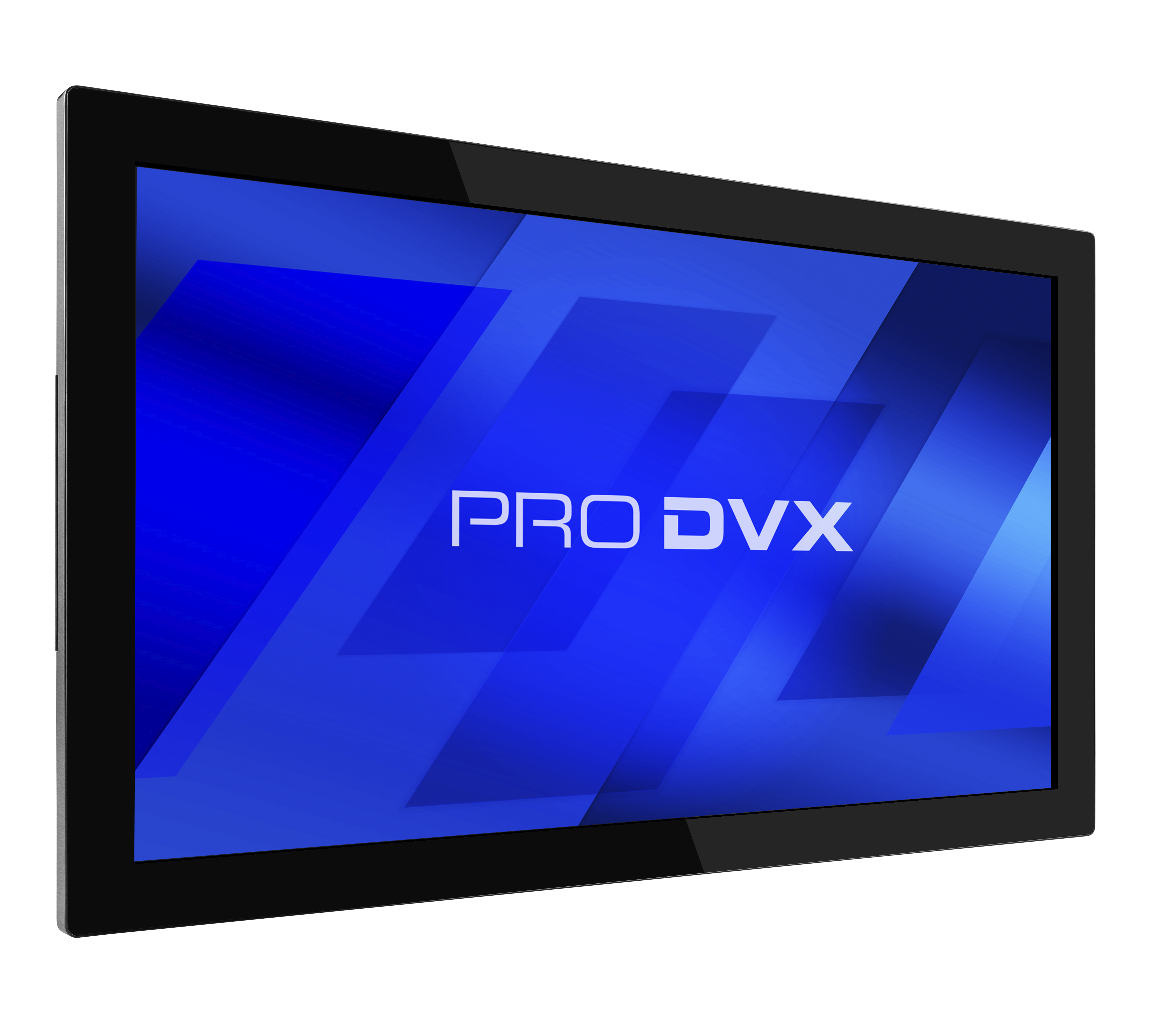

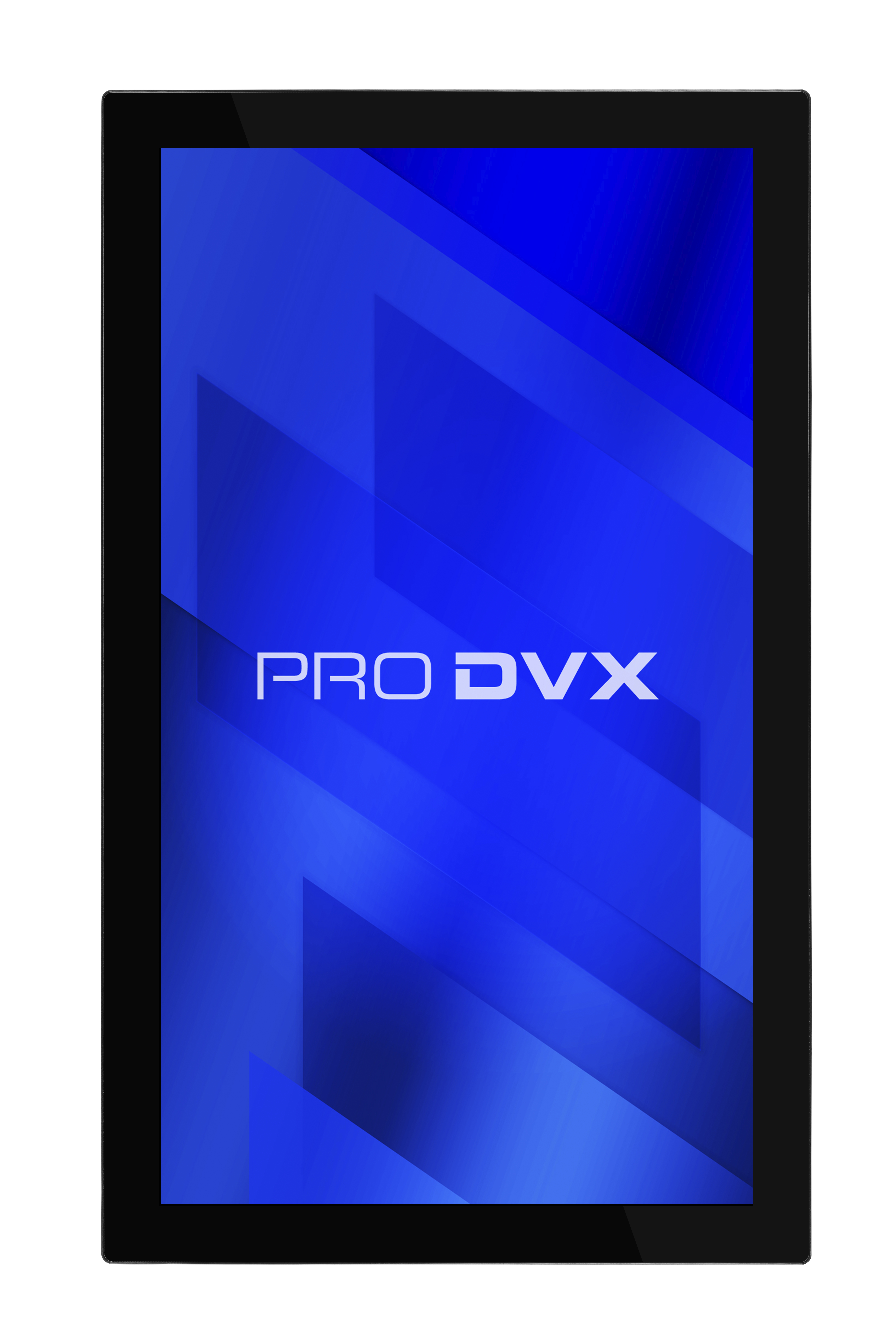

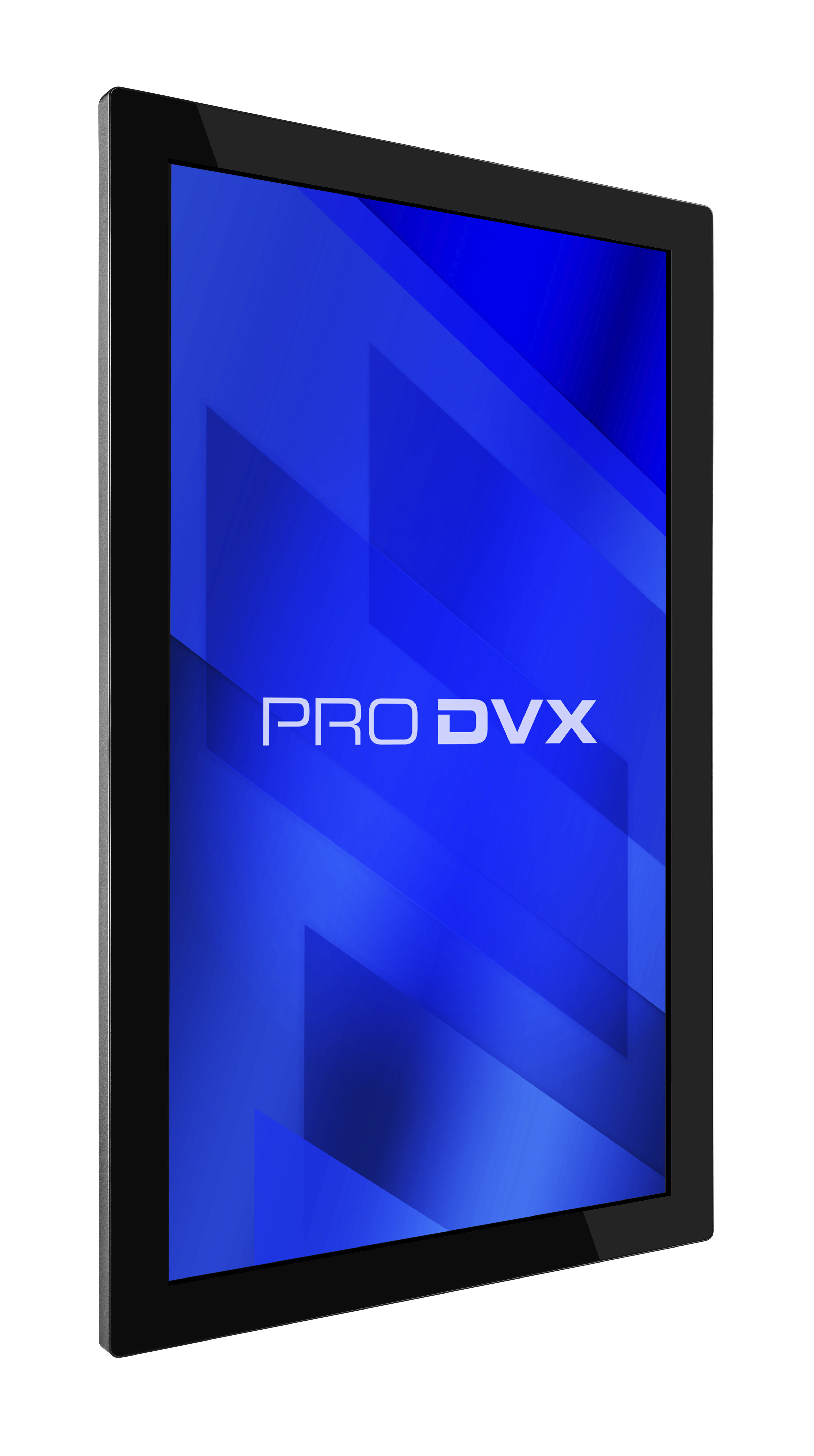

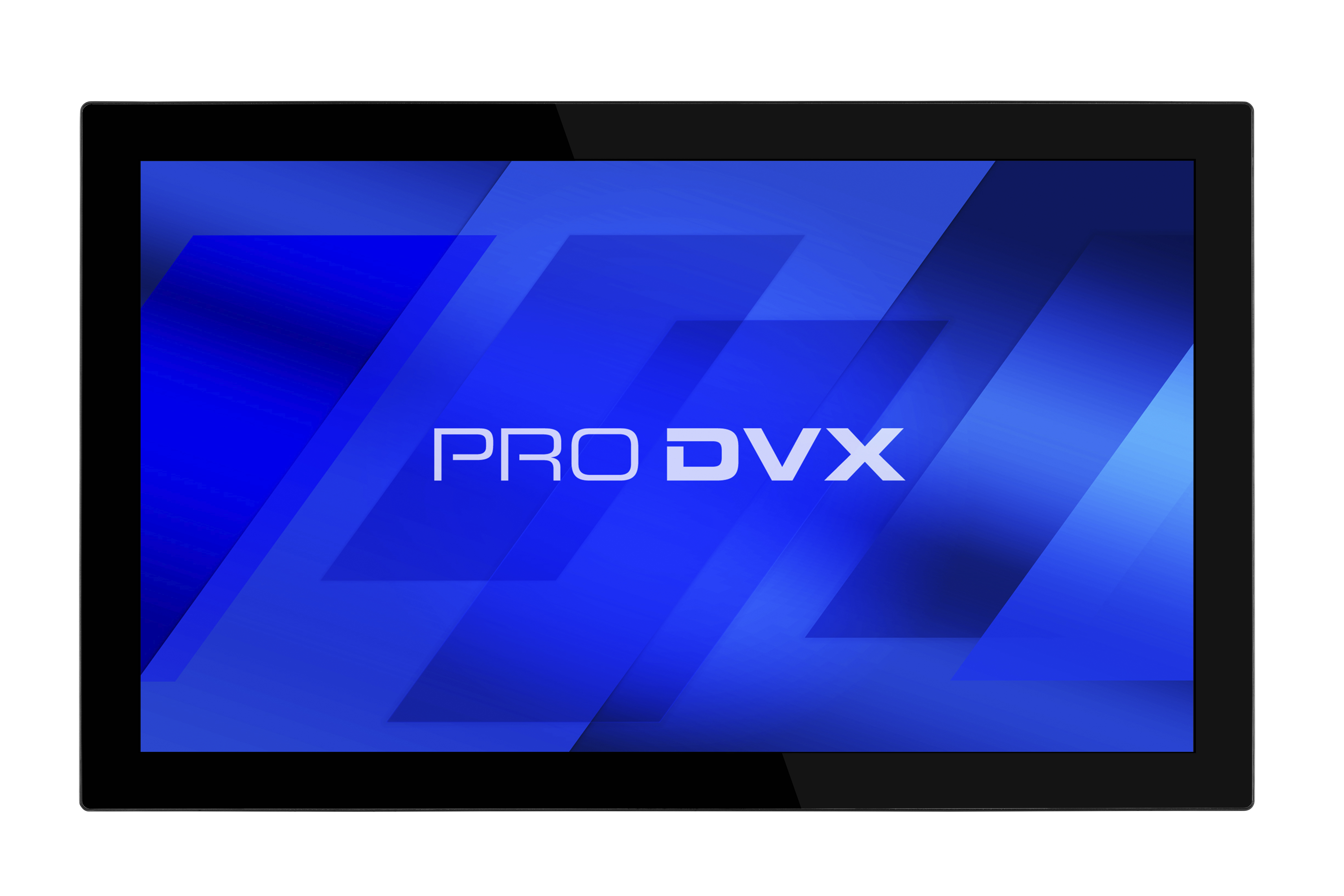

The ProDVX APPC-22XP is an Android Panel PC with a 21.5” Touch Display and Power over Ethernet (PoE). The ProDVX APPC-22XP comes with Android 9 (or optional Linux). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. The APPC-22XP features a Pogo pin connection for optional accessories (Barcode Scanner, NFC Module, Camera Module) and VESA 100, for mounting brackets.

Technical Specifications

Display

10 SPECS
Display type
Full HD
Panel type
IPS
Touchscreen
Yes
LED backlight
Yes
Screen size
21.5"
Resolution
1920 x 1080
Aspect ratio
16:9
Vertical viewing angle
178°
Contrast ratio
800:1
Horizontal viewing angle
178°

Physical

4 SPECS
Weight
4200 g
Product type
All-in-One tablet PC
Colour
Black
Customs (HS) code
84713000

Power

1 SPEC
Power consumption (typical)
45 W

Processor

4 SPECS
Cores
4
Model
RK3288
Processor line
Rockchip
CPU brand
Rockchip

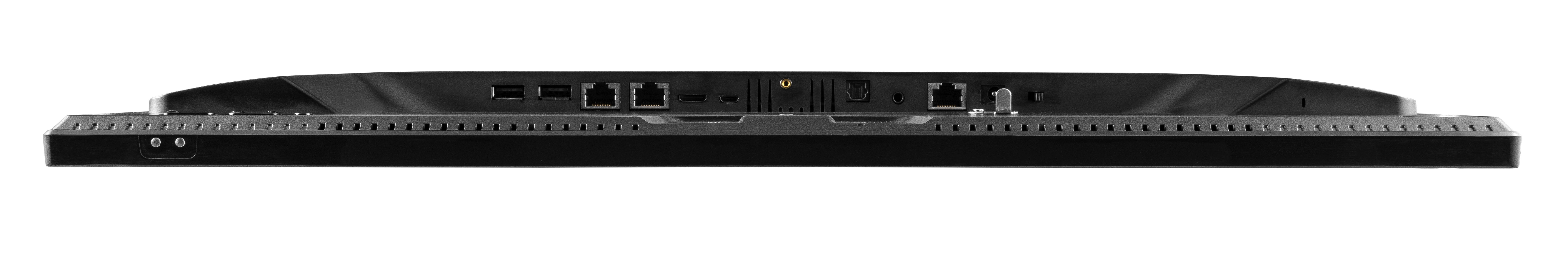

Ports & Connectivity

4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
1

Memory

2 SPECS
Capacity
2 GB
Memory type
DDR3-SDRAM

Storage

1 SPEC
Storage
16 GB

General

56 SPECS
Wi-Fi
Yes
Backlight
Yes
Bluetooth
Yes
DC-in jack
Yes
Multi-touch
Yes
Audio output
Yes
Battery type
CR1220 - Lithium‐metal non‐rechargeable coin
Ethernet LAN
Yes
Certifications
FCC, CE, RoHS
Storage media
eMMC
VESA mounting
Yes
Backlight type
Edge LED
Wall mountable
Yes
Built-in camera
No
RMS power
6
S/PDIF out port
Yes
Wi-Fi standard
Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n),802.11a
Housing material
Plastic
Touch technology
Multi-touch
Bluetooth version
4.2
COM ports quantity
2
Display brightness
250
Number of speakers
2
Optical drive type
No
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Depth (no stand)
35 mm
Width (no stand)
531 mm
Card reader
Yes
Dedicated graphics
No
Height (no stand)
322 mm
Integrated graphics
Yes
Weight (without stand)
4200 g
Audio formats
AAC,ASF,MP2,OGG,WAV,WMA
Compatible memory cards
SD
Compliance certificates
Federal Communications Commission (FCC),CE,RoHS
Ethernet LAN data rates
1000,100,10
Video formats
3GP,ASF,AVI,DAT,FLV,MKV,MOV,MP4,MPG,RM,TS,VOB,WMV
Micro-USB ports quantity
1
Mini HDMI ports quantity
1
Panel mounting interface
100 x 100
AC adapter output current
5 A
AC adapter output voltage
12 V
On-board GPU manufacturer
ARM
Storage temperature
-10 - 55
HDMI output ports quantity
1
Operating system
Android 9
Operating temperature
0 - 40
Dedicated GPU model
Not available
Integrated GPU model
ARM Mali-T764
On-board graphics card family
ARM Mali
Storage relative humidity (H-H)
10 - 90
MTBF
50000 h
Operating humidity
10 - 90
