ProDVX logo MPN: 5010230

ProDVX APPC-10XPLN (RK3288)

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Screen size
10.1"
Resolution
1280 x 800
Processor line
Rockchip
Capacity
2 GB
Storage
16 GB
Wi-Fi
Y
Weight
650 g
Backlight
Y
Bluetooth
Y
View 80 specifications
1 / 11
Shopping actions
Check price on Amazon

Overview

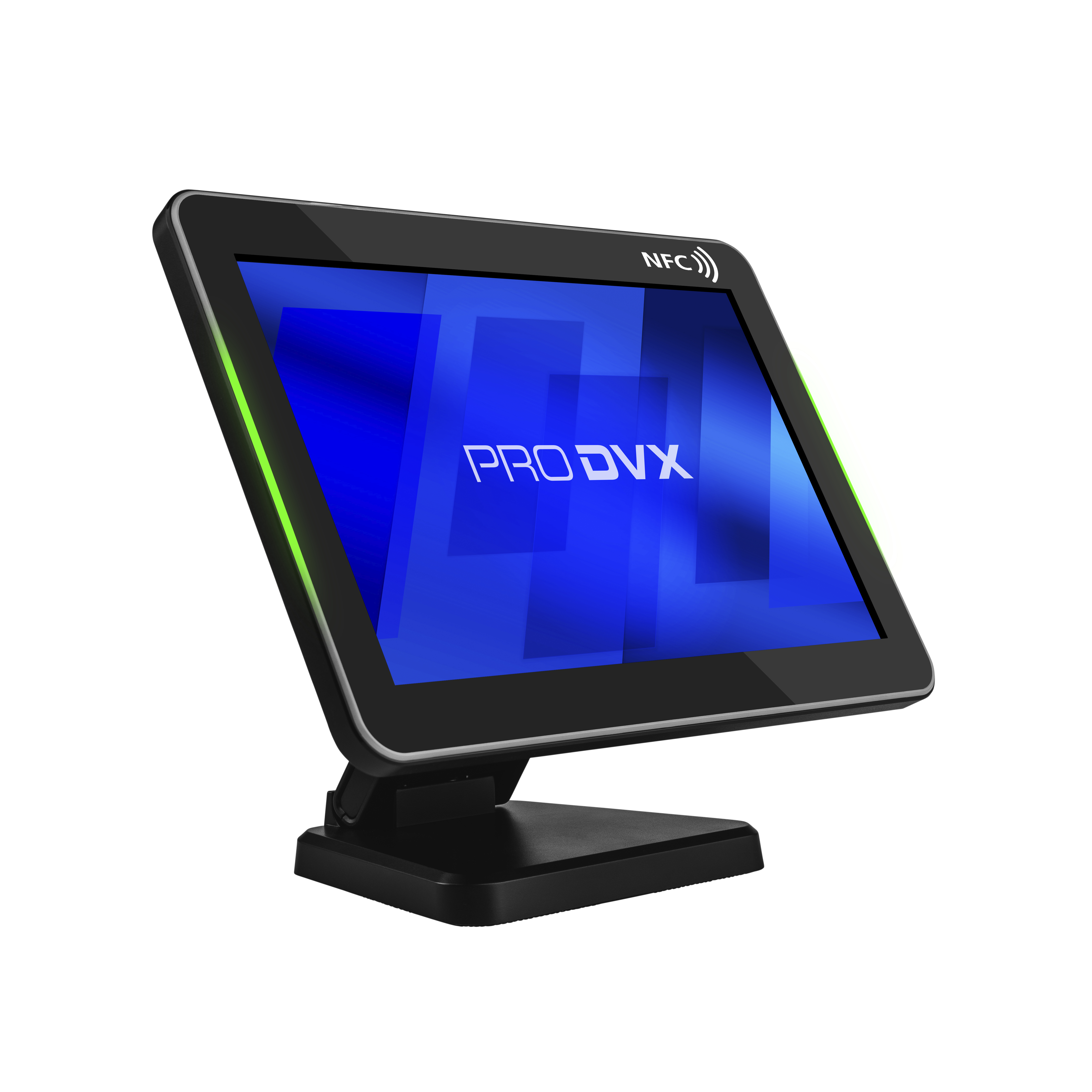

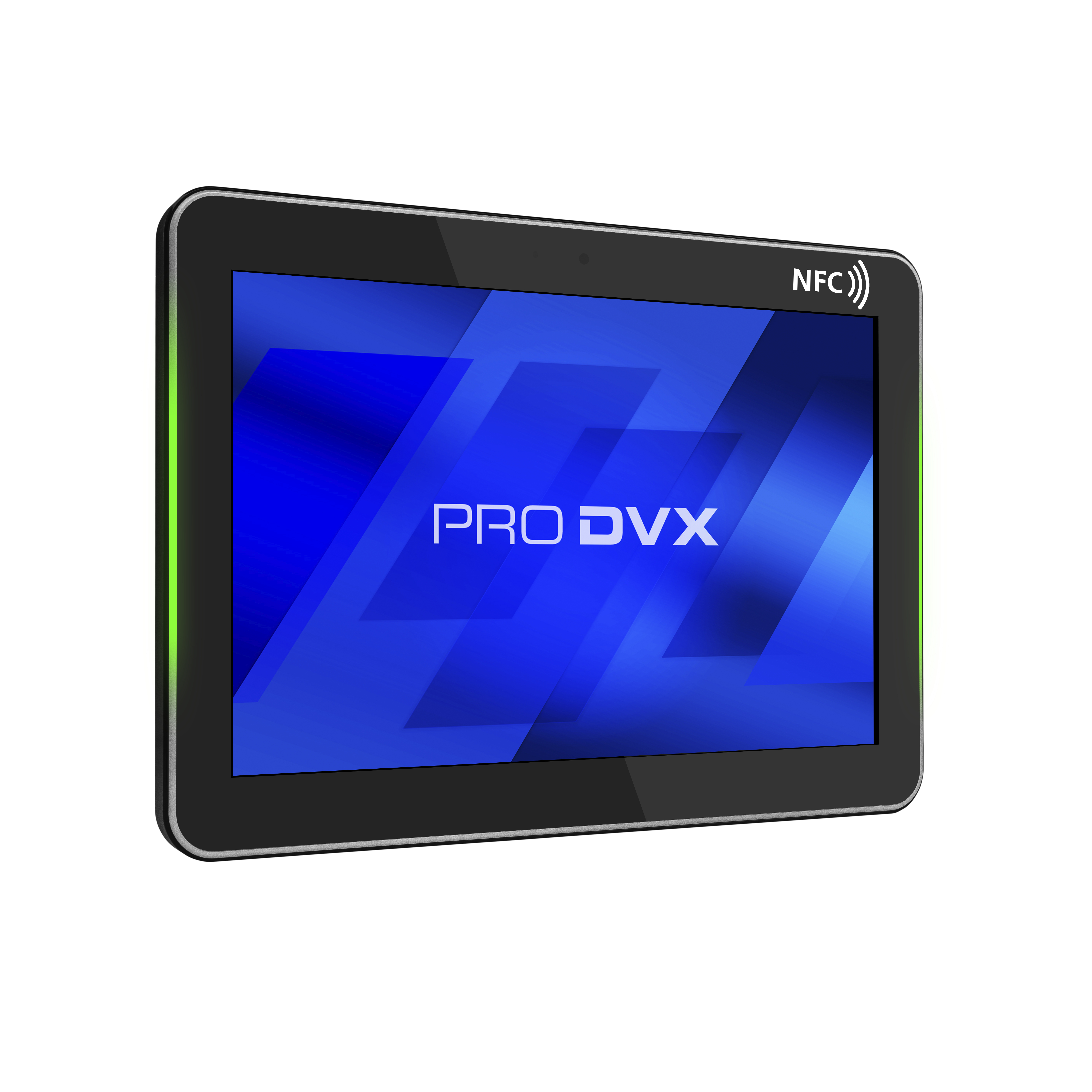

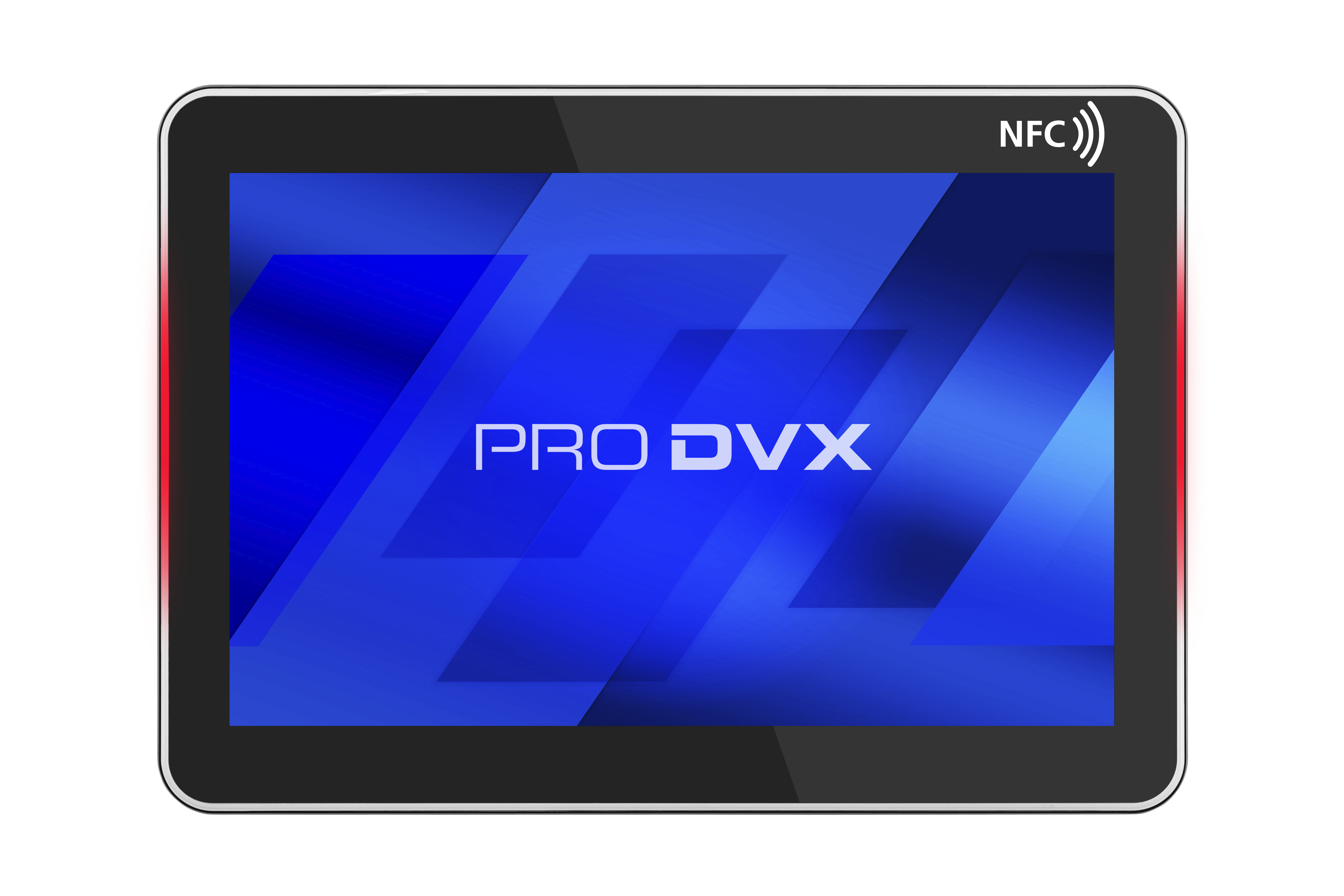

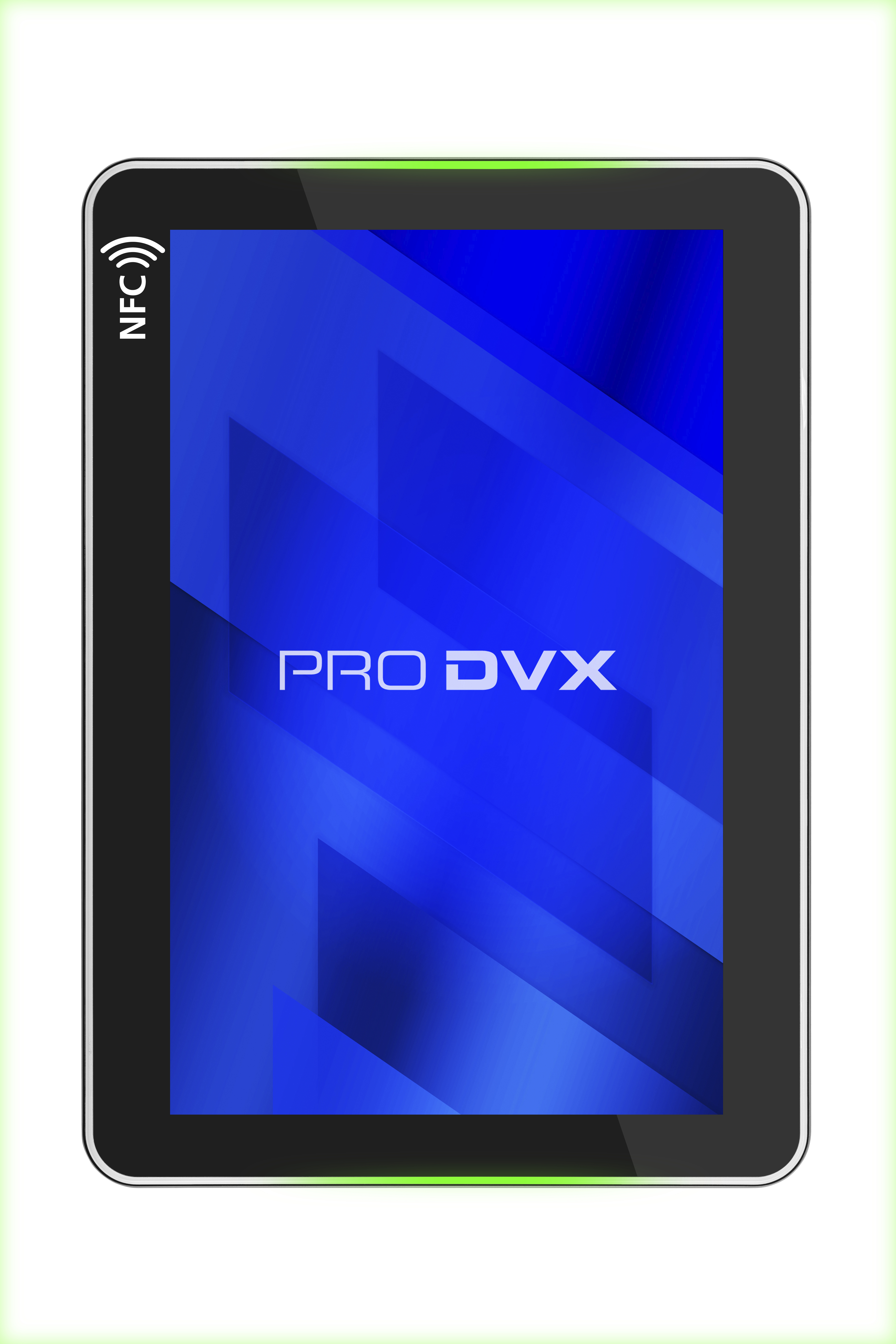

The ProDVX APPC-10XPLN is an Android Panel PC with a 10.1” Touch Display, Integrated NFC Module, Power over Ethernet (PoE) and 2 sided LED Bar (RGB). The ProDVX APPC-10XPLN comes with Android 9 (or optional Linux). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. It can be mounted using the VESA 75 brackets. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner and Camera.

Technical Specifications

Display

9 SPECS
Panel type
IPS
Touchscreen
Yes
LED backlight
Yes
Screen size
10.1"
Resolution
1280 x 800
Aspect ratio
16:10
Vertical viewing angle
160°
Contrast ratio
800:1
Horizontal viewing angle
160°

Physical

4 SPECS
Weight
650 g
Product type
All-in-One tablet PC
Colour
Black
Customs (HS) code
84713000

Power

1 SPEC
Power consumption (typical)
20 W

Processor

4 SPECS
Cores
4
Model
RK3288
Processor line
Rockchip
CPU brand
Rockchip

Ports & Connectivity

4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
1
Ethernet ports
1

Memory

2 SPECS
Capacity
2 GB
Memory type
DDR3-SDRAM

Storage

1 SPEC
Storage
16 GB

General

55 SPECS
Wi-Fi
Yes
Backlight
Yes
Bluetooth
Yes
DC-in jack
Yes
Multi-touch
Yes
Audio output
Yes
Battery type
CR1220 - Lithium‐metal non‐rechargeable coin
Ethernet LAN
Yes
Certifications
FCC, CE, RoHS
Storage media
eMMC
VESA mounting
Yes
Backlight type
Edge LED
Wall mountable
Yes
Built-in camera
No
Included cables
No
RMS power
4
Wi-Fi standard
Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n),802.11a
Housing material
Plastic
Touch technology
Multi-touch
Bluetooth version
4.2
Display brightness
500
Number of speakers
2
Optical drive type
No
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
AC adapter included
No
Built-in microphone
Yes
Built-in speaker(s)
Yes
Depth (no stand)
26.7 mm
Width (no stand)
255.3 mm
Card reader
Yes
Dedicated graphics
Yes
Height (no stand)
181 mm
Integrated graphics
Yes
Weight (without stand)
650 g
Audio formats
AAC,ASF,MP2,OGG,WAV,WMA
Compatible memory cards
SD
Compliance certificates
Federal Communications Commission (FCC),CE,RoHS
Ethernet LAN data rates
1000,100,10
Video formats
3GP,ASF,AVI,DAT,FLV,MKV,MOV,MP4,MPG,RM,TS,VOB,WMV
Micro-USB ports quantity
1
Panel mounting interface
75 x 75
AC adapter output current
2 A
AC adapter output voltage
12 V
On-board GPU manufacturer
ARM
Storage temperature
-10 - 55
HDMI output ports quantity
1
Operating system
Android 9
Operating temperature
0 - 40
Dedicated GPU model
Not available
Integrated GPU model
ARM Mali-T764
On-board graphics card family
ARM Mali
Near Field Communication (NFC)
Yes
Storage relative humidity (H-H)
10 - 90
MTBF
50000 h
Operating humidity
10 - 90
Powered by Icecat

Market Value History

Price history not started yet

Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.

Sources

Icecat product datasheet

Product lifecycle

In production

Still listed as on-market by the manufacturer — actively sold and supported.

Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
