MPN:
AP1941-EU-BD2502G50SXS

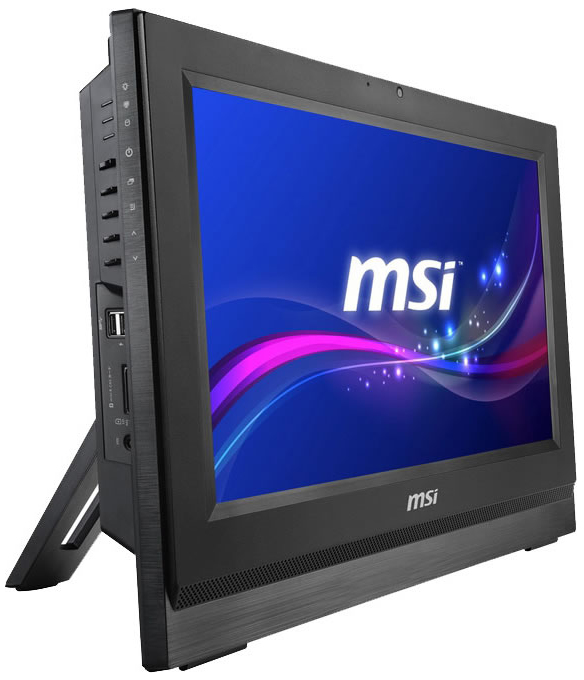

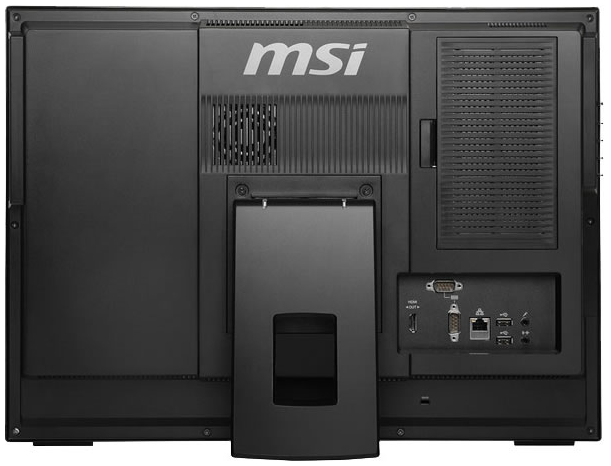

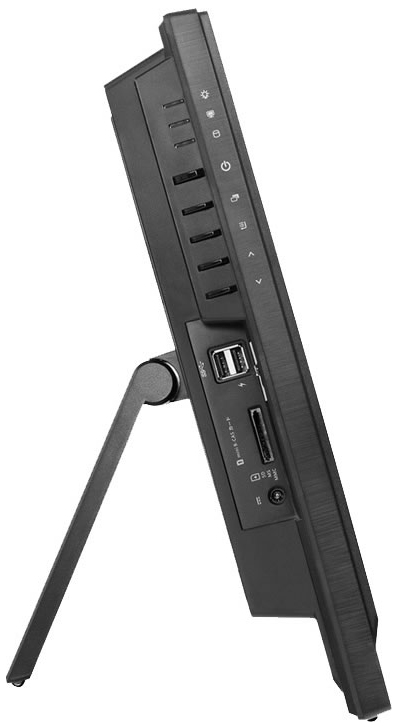

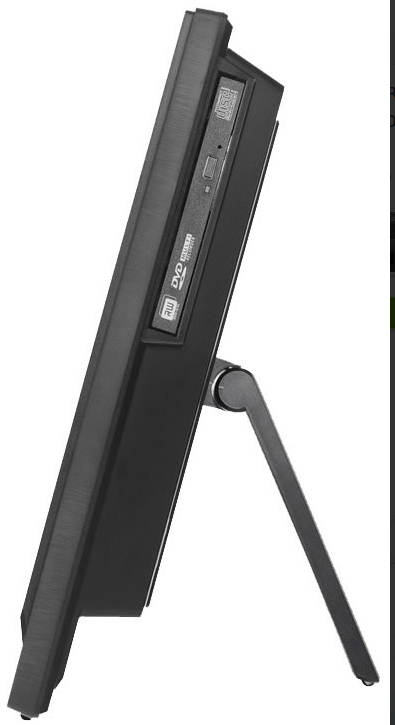

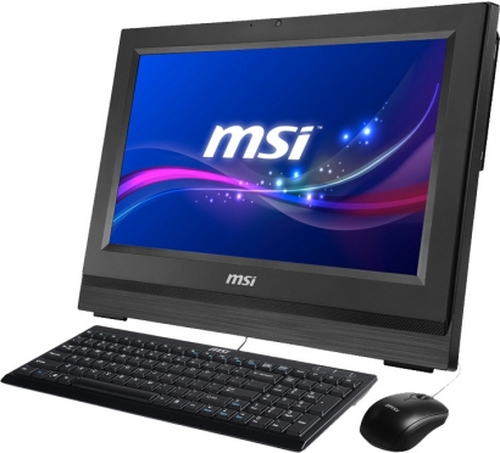

MSI Wind Top AP1941 Intel Atom® D2500 47 cm (18.5″) 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 500 GB HDD Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 18.5"
- Resolution
- 1366 x 768
- Processor line
- Intel Atom
- Clock speed
- 1.86 GHz
- Capacity
- 2 GB
- Storage
- 500 GB
- HDMI
- Y
- Wi-Fi
- Y
- Full HD
- N
1 / 5
Shopping actions
Overview
The MSI Wind Top AP1941 Intel Atom® D2500 47 cm (18.5″) 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 500 GB HDD Black features Intel Atom processor, 2 cores, 2 GB of memory and DDR3-SDRAM. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Stepping
B3
Cache
1 MB
Cores
2
Model
D2500
Processor line
Intel Atom
Socket
BGA 559
Threads
2
Clock speed
1.86 GHz
Cache level
L2
Process node
32 nm
CPU brand
Intel
CPU operating modes
64-bit
TDP
10 W
Graphics
1 SPEC
Memory clock
1066 MHz
Storage
1 SPEC
Storage
500 GB
Physical
1 SPEC
Colour
Black
Display
7 SPECS
Display type
Not supported
Touchscreen
Yes
LED backlight
Yes
Screen size
18.5"
Resolution
1366 x 768
Aspect ratio
16:9
Contrast ratio
1000:1
Memory
3 SPECS
Capacity
2 GB
Memory type
DDR3-SDRAM
Max memory
4 GB
Ports & Connectivity
3 SPECS
HDMI ports
1
USB 2.0 ports
4
Ethernet ports
1
Power
1 SPEC
Power consumption (typical)
16.29 W
General
112 SPECS
HDMI
Yes
Wi-Fi
Yes
Full HD
No
Bus type
DMI
64-bit support
Yes
Bluetooth
No
Spindle speed
7200 rpm
Tjunction
100
FSB Parity
No
Ethernet LAN
Yes
Memory slots
2
Drive interface
SATA II
Microphone input
Yes
Storage media
HDD
Mouse included
Yes
Processor code
SR0W0
Wall mountable
Yes
Built-in camera
Yes
Security lock slot
Yes
Camera included
Yes
Display surface
Matt
RMS power
6
Bus speed
2.5 GT/s
Wi-Fi standard
802.11b,802.11g,Wi-Fi 4 (802.11n)
64-bit computing
Yes
AC adapter power
65 W
Display included
Yes
Intel ARK ID
59682
Processor series
Intel Atom D2500 series
Total megapixels
1.3
Touch technology
Single-touch
Headphone outputs
1
Keyboard included
Yes
Memory slots type
SO-DIMM
COM ports quantity
2
Cabling technology
10/100/1000Base-T(X)
Depth (with stand)
91
Display brightness
250
Intel® Insider™
No
Optical drive type
DVD Super Multi
Codename
Cedarview
Width (with stand)
495
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Height (with stand)
359
Chipset
Intel NM10 Express
Weight (with stand)
6880
Graphics card family
Intel
Intel FDI Technology
No
Card reader
Yes
Mini PCI Express slots
2
Integrated graphics
Yes
Processor package size
22 mm
Compatible memory cards
Memory Stick (MS),microSD (TransFlash),miniSD,MMC,SD,xD
Conflict-free minerals
No
Ethernet LAN data rates
10,100,1000
Ethernet interface type
Gigabit Ethernet
Storage drive interface
Serial ATA II
Intel Fast Memory Access
No
Intel Flex Memory Access
No
Number of HDDs installed
1
Display diagonal (metric)
46.99
Display number of colours
16.78 million colours
Intel Enhanced Halt State
No
Intel ME Firmware Version
No
Storage temperature
-20 - 60
ECC memory support
No
Long-term availability
No
Operating system
No
Instruction sets
SSE2,SSE3,SSSE3
VGA ports
0
Operating temperature
10 - 35
Power draw (standby)
0.78 W
Eco certifications
ENERGY STAR
Intel Clear Video Technology
No
Intel Demand Based Switching
No
Memory layout (slots x size)
1 x 2
Intel Rapid Storage Technology
No
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
No
Storage relative humidity (H-H)
0 - 90
Thermal monitoring
No
Total number of SATA connectors
2
Physical Address Extension (PAE)
36
Operating humidity
40 - 85
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
No
Intel® Quick Sync Video Technology
No
PCIe lanes
4
Memory types supported by processor
DDR3-SDRAM
Intel Dual Display Capable Technology
Yes
On-board graphics card base frequency
400
Virtualization (VT-x)
No
Memory channels supported by processor
Single
Intel® Wireless Display (Intel® WiDi)
No
Intel® My WiFi Technology (Intel® MWT)
No
Intel VT-x with Extended Page Tables (EPT)
No
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
800,1066
Intel® AES New Instructions (Intel® AES-NI)
No
Memory bandwidth supported by processor (max)
6.4
Maximum internal memory supported by processor
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
Intel® High Definition Audio (Intel® HD Audio)
Yes
Number of displays supported (on-board graphics)
2
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Directed I/O virtualization (VT-d)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
