MPN:
AE2031-020XTR

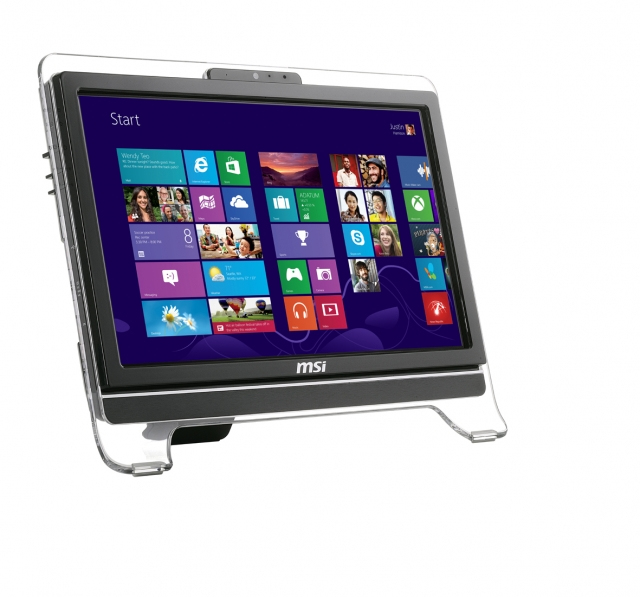

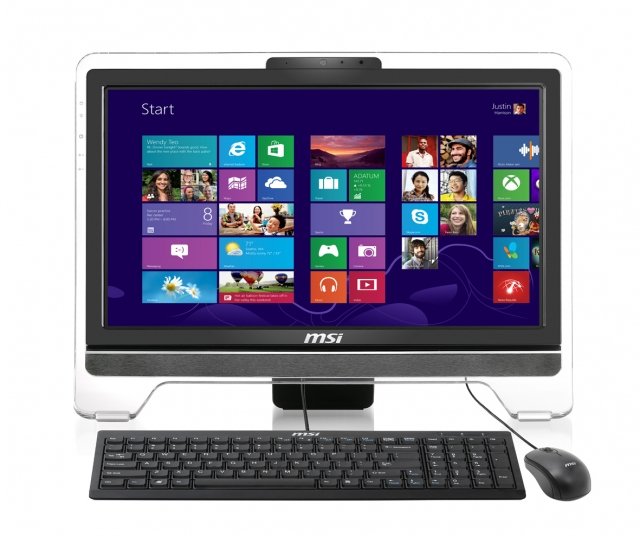

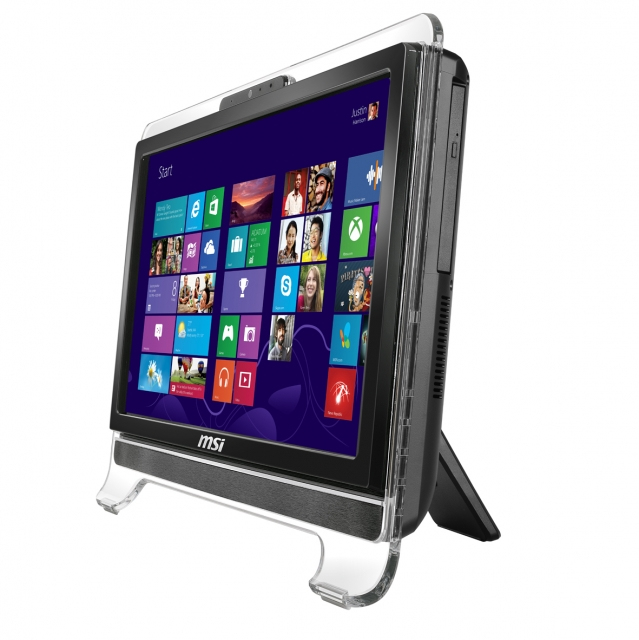

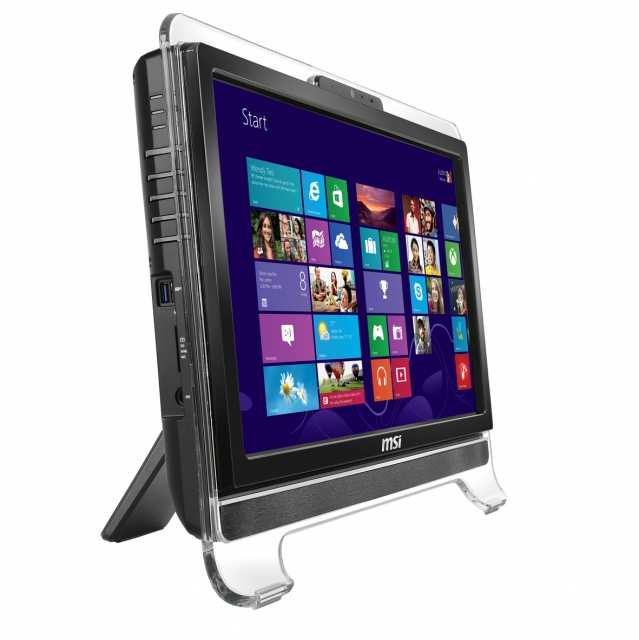

MSI Wind Top AE2031-020XTR All-in-One PC/workstation Intel® Celeron® B830 50.8 cm (20″) 1600 x 900 pixels Touchscreen 4 GB DDR3-SDRAM 500 GB HDD FreeDOS Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 20"
- Resolution
- 1600 x 900
- Processor line
- Intel Celeron
- Clock speed
- 1.8 GHz
- Capacity
- 4 GB
- Storage
- 500 GB
- Wi-Fi
- Y
- Full HD
- N
- Display type
- HD+
1 / 5
Shopping actions
Overview
The MSI Wind Top AE2031-020XTR All-in-One PC/workstation Intel® Celeron® B830 50.8 cm (20″) 1600 x 900 pixels Touchscreen 4 GB DDR3-SDRAM 500 GB HDD FreeDOS Black features Intel Celeron processor, 2 cores, 4 GB of memory and DDR3-SDRAM. Full verified specifications are listed below.
Technical Specifications
Processor
12 SPECS
Cache
2 MB
Cores
2
Model
B830
Processor line
Intel Celeron
Socket
rPGA988B
Threads
2
Clock speed
1.8 GHz
Cache level
L3
Process node
32 nm
CPU brand
Intel
CPU operating modes
64-bit
TDP
35 W
Physical
2 SPECS
Product type
All-in-One PC
Colour
Black
Graphics
1 SPEC
Memory clock
1333 MHz
Display
6 SPECS
Display type
HD+
Touchscreen
Yes
LED backlight
Yes
Screen size
20"
Resolution
1600 x 900
Aspect ratio
16:9
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR3-SDRAM
Max memory
4 GB
Ports & Connectivity
3 SPECS
HDMI ports
2
USB 2.0 ports
4
Ethernet ports
1
Storage
1 SPEC
Storage
500 GB
General
99 SPECS
Wi-Fi
Yes
Full HD
No
Bus type
DMI
64-bit support
Yes
Bluetooth
No
Tjunction
100
DC-in jack
Yes
FSB Parity
No
Idle power states
Yes
Audio system
SRS Premium Sound
Ethernet LAN
Yes
Memory slots
1
Autonomy mode
No
Drive interface
SATA II
Microphone input
Yes
Storage media
HDD
Mouse included
No
Built-in camera
Yes
RMS power
6
Bus speed
5 GT/s
Wi-Fi standard
802.11b,802.11g,Wi-Fi 4 (802.11n)
AC adapter power
90 W
Intel ARK ID
71141
Processor series
Intel Celeron Processor B800 series for Mobile
Headphone outputs
1
Keyboard included
No
Memory slots type
SO-DIMM
Depth (with stand)
87.7
Intel® Insider™
No
Optical drive type
DVD Super Multi
Codename
Sandy Bridge
Width (with stand)
513.2
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Height (with stand)
392.1
Integrated 4G WiMAX
No
Chipset
Intel HM65 Express
Weight (with stand)
7310
Intel FDI Technology
Yes
Card reader
Yes
Mini PCI Express slots
2
Integrated graphics
Yes
Processor package size
37.5x37.5 (rPGA988B)
CPU configuration (max)
1
Compatible memory cards
Memory Stick (MS),MMC,SD,xD
Conflict-free minerals
No
Ethernet LAN data rates
10,100,1000
Storage drive interface
Serial ATA II
Intel Fast Memory Access
Yes
Intel Flex Memory Access
Yes
Number of HDDs installed
1
Intel Enhanced Halt State
Yes
PCI Express slots version
2.0
ECC memory support
No
Long-term availability
No
Graphics & IMC lithography
32
Operating system
FreeDOS
PCI Express configurations
1x16,2x8,1x8+2x4
Instruction sets
SSE4.x
Thunderbolt ports quantity
0
VGA ports
0
Dedicated GPU model
Not available
Intel Clear Video Technology
No
Intel Demand Based Switching
No
Memory layout (slots x size)
1 x 4
Integrated GPU model
Intel HD Graphics
On-board graphics card family
Intel HD Graphics
Intel Rapid Storage Technology
No
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
No
CPU multiplier (bus/core ratio)
18
Thermal monitoring
Yes
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
No
PCIe lanes
16
Memory types supported by processor
DDR3-SDRAM
Intel Dual Display Capable Technology
Yes
On-board graphics card base frequency
650
Virtualization (VT-x)
Yes
Memory channels supported by processor
Dual
Intel® Wireless Display (Intel® WiDi)
No
Intel® My WiFi Technology (Intel® MWT)
No
Intel VT-x with Extended Page Tables (EPT)
No
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
1066,1333
Intel® AES New Instructions (Intel® AES-NI)
No
Memory bandwidth supported by processor (max)
21.3
Maximum internal memory supported by processor
16
On-board graphics card dynamic frequency (max)
1050
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of displays supported (on-board graphics)
2
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Directed I/O virtualization (VT-d)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
