MPN:
10YS0094GE

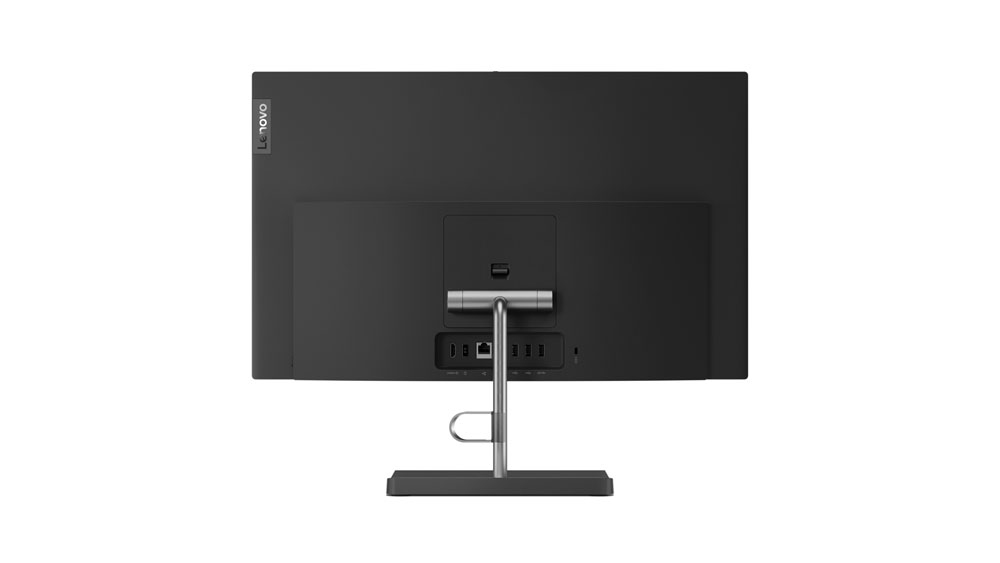

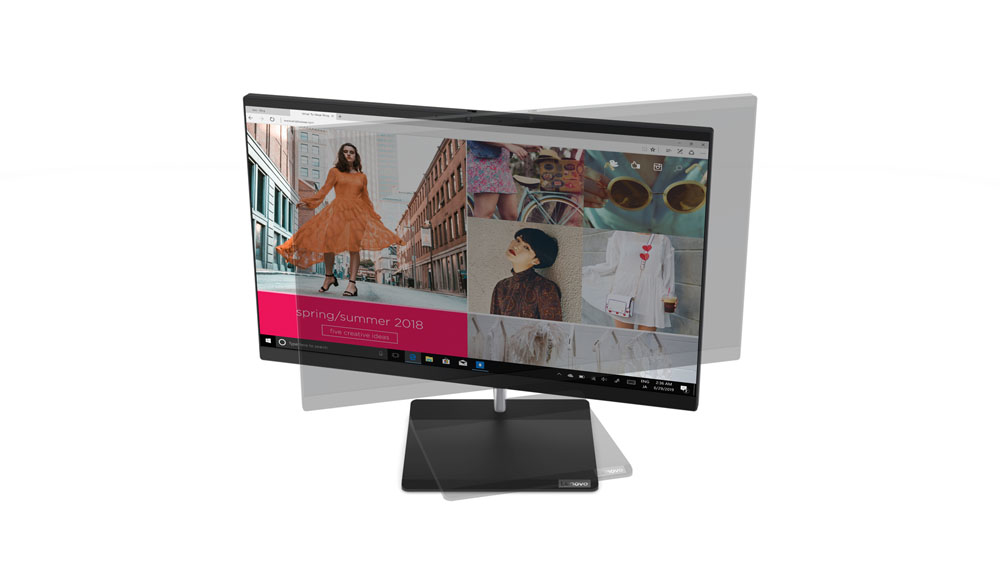

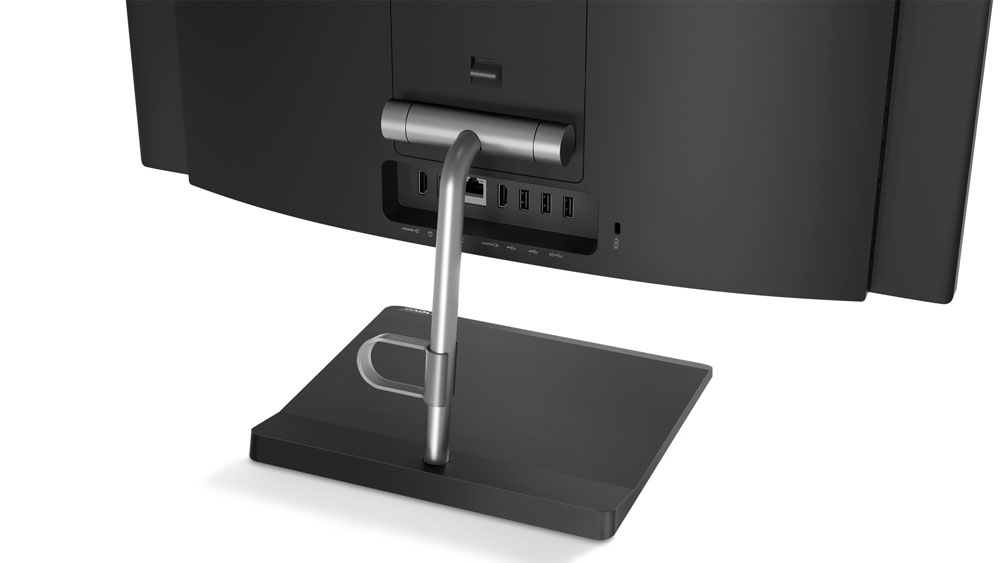

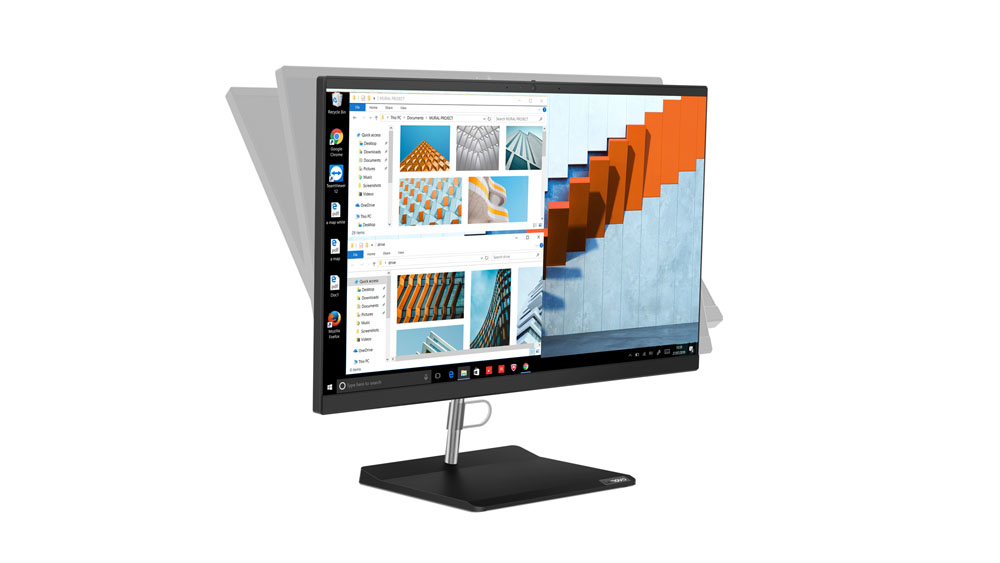

Lenovo V540 Intel® Core™ i5 i5-8265U 60.5 cm (23.8″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 23.8"
- Resolution
- 1920 x 1080
- Processor line
- Intel Core i5
- Clock speed
- 1.6 GHz
- Capacity
- 8 GB
- Storage
- 256 GB
- 3D
- N
- NVMe
- Y
- Wi-Fi
- Y
1 / 6
Shopping actions
Overview
The Lenovo V540 Intel® Core™ i5 i5-8265U 60.5 cm (23.8″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Black features Intel Core i5 processor, 4 cores, up to 3.9 GHz boost, 8 GB of memory and NVMe support. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
6 MB
Cores
4
Model
i5-8265U
Processor line
Intel Core i5
Socket
BGA 1528
Threads
8
Clock speed
1.6 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.9 GHz
CPU operating modes
64-bit
TDP
15 W
Storage
3 SPECS
Capacity
256 GB
Form factor
M.2
Storage
256 GB
Physical
2 SPECS
Product type
All-in-One PC
Colour
Black
Display
7 SPECS
Display type
Full HD
Panel type
WVA
Touchscreen
No
LED backlight
Yes
Screen size
23.8"
Resolution
1920 x 1080
Aspect ratio
16:9
Memory
4 SPECS
Capacity
8 GB
Form factor
DIMM/SO-DIMM
Memory type
DDR4-SDRAM
Max memory
32 GB
Ports & Connectivity
3 SPECS
HDMI ports
2
USB 2.0 ports
4
Ethernet ports
1
Graphics
1 SPEC
Memory clock
2666 MHz
General
132 SPECS
3D
No
NVMe
Yes
Wi-Fi
Yes
Bus type
OPI
64-bit support
Yes
Bluetooth
Yes
Tjunction
100
Audio chip
Realtek ALC233
DC-in jack
Yes
Idle power states
Yes
Antenna type
2x2
Audio system
HD
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2
Pen included
No
Screen shape
Flat screen
Autonomy mode
No
Microphone input
No
On/off button
Yes
SSD interface
NVMe,PCI Express
Storage media
SSD
Camera HD type
HD
Mouse included
Yes
Built-in camera
Yes
Security lock slot
Yes
RMS power
6
Bus speed
4 GT/s
Wi-Fi standard
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
AC adapter power
65 W
Intel® OS Guard
Yes
Intel ARK ID
149088
Bluetooth version
4.0
HDD user password
Yes
Headphone outputs
1
Keyboard included
Yes
Memory slots type
SO-DIMM
Depth (with stand)
214
Detachable display
No
Display brightness
250
Intel® Secure Key
Yes
Number of speakers
2
Optical drive type
No
Codename
Whiskey Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Width (with stand)
541
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Configurable TDP-up
25
Execute Disable (NX)
Yes
Height (with stand)
450
Total SSDs capacity
256
Weight (with stand)
6400
AC adapter frequency
50/60
Camera signal format
720p
Intel TSX-NI version
0.00
Generation
Intel Core i5-8xxx
Configurable TDP-down
10
Depth (no stand)
59.7 mm
WLAN controller model
Intel Dual Band Wireless-AC 9560
Width (no stand)
541 mm
Card reader
Yes
Dedicated graphics
No
Height (no stand)
337 mm
Integrated graphics
Yes
Processor package size
46x24
Weight (without stand)
4800 g
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Ethernet LAN data rates
10,100,1000
AC adapter input voltage
100 - 240
Combo headphone/mic port
Yes
Intel Flex Memory Access
Yes
Number of SSDs installed
1
HDMI input ports quantity
1
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x3EA0
PCI Express slots version
3.0
Long-term availability
No
HDMI output ports quantity
1
Operating system
Windows 10 Pro
PCI Express configurations
1x4,2x2
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
Thunderbolt ports quantity
0
Eco certifications
Blue Angel,EPEAT Silver,ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Memory layout (slots x size)
2 x 4
Integrated GPU model
Intel UHD Graphics
Thunderbolt 3 ports quantity
0
Configurable TDP-up frequency
1.8
On-board graphics card family
Intel UHD Graphics
OS architecture
64-bit
Trusted Platform Module (TPM)
Yes
Intel® Turbo Boost Technology
2.0
Configurable TDP-down frequency
0.8
Thermal monitoring
Yes
Intel® Smart Response Technology
Yes
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM,LPDDR3-SDRAM
Maximum on-board graphics card memory
32
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
300
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Smart Response Technology version
1.00
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2133
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
37.5
Maximum internal memory supported by processor
32
On-board graphics card dynamic frequency (max)
1100
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
