MPN:
10NY0004US

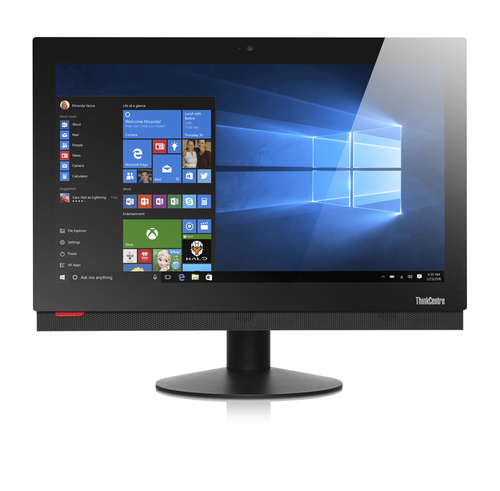

Lenovo ThinkCentre M810z Intel® Core™ i5 i5-7500 54.6 cm (21.5″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 21.5"
- Resolution
- 1920 x 1080
- Processor line
- Intel Core i5
- Clock speed
- 3.4 GHz
- Capacity
- 8 GB
- Storage
- 256 GB
- Wi-Fi
- Y
- Display type
- Full HD
- Bus type
- DMI3
1 / 9
Shopping actions
Overview
The Lenovo ThinkCentre M810z Intel® Core™ i5 i5-7500 54.6 cm (21.5″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Black features Intel Core i5 processor, 4 cores, up to 3.8 GHz boost and 8 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
B0
Cache
6 MB
Cores
4
Model
i5-7500
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
4
Clock speed
3.4 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.8 GHz
CPU operating modes
64-bit
TDP
65 W
Physical
2 SPECS
Product type
All-in-One PC
Colour
Black
Graphics
1 SPEC
Memory clock
2400 MHz
Display
6 SPECS
Display type
Full HD
Touchscreen
No
LED backlight
Yes
Screen size
21.5"
Resolution
1920 x 1080
Aspect ratio
16:9
Memory
4 SPECS
Capacity
8 GB
Form factor
DIMM/SO-DIMM
Memory type
DDR4-SDRAM
Max memory
32 GB
Ports & Connectivity
4 SPECS
HDMI ports
0
DisplayPorts quantity
1
USB 2.0 ports
0
Ethernet ports
1
Storage
1 SPEC
Storage
256 GB
General
106 SPECS
Wi-Fi
Yes
Bus type
DMI3
64-bit support
Yes
Bluetooth
Yes
Tjunction
100
Idle power states
Yes
Scalability
1S
Antenna type
2x2
Ethernet LAN
Yes
Intel TSX-NI
Yes
Memory slots
2
Screen shape
Flat screen
Autonomy mode
No
Microphone input
Yes
Storage media
SSD
Mouse included
Yes
Processor code
SR335
Built-in camera
Yes
Display surface
Matt
RMS power
2
Bus speed
8 GT/s
Wi-Fi standard
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
AC adapter power
150 W
Intel® OS Guard
Yes
Intel ARK ID
97123
Processor series
Intel Core i5-7500 Desktop Series
Headphone outputs
1
Keyboard included
Yes
Memory slots type
SO-DIMM
Detachable display
No
Intel® Secure Key
Yes
Optical drive type
DVD±RW
Codename
Kaby Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Built-in microphone
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Number of QPI links
0
Intel TSX-NI version
1.00
Generation
Intel Core i5-7xxx
USB Sleep-and-Charge
Yes
Depth (no stand)
45 mm
Width (no stand)
535 mm
Card reader
Yes
Dedicated graphics
No
Height (no stand)
363 mm
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Combo headphone/mic port
Yes
Intel Enhanced Halt State
Yes
On-board graphics card ID
5912
PCI Express slots version
3.0
ECC memory support
No
Long-term availability
Yes
Operating system
Windows 10 Pro
PCI Express configurations
1x16,1x8+2x4,2x8
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
Thunderbolt ports quantity
0
USB Sleep-and-Charge ports
1
VGA ports
0
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel HD Graphics 630
Thunderbolt 3 ports quantity
0
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Thermal solution specification
PCG 2015C
Thermal monitoring
Yes
Trusted Execution (TXT)
Yes
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Maximum on-board graphics card memory
64
Memory voltage supported by processor
1.35
On-board graphics card OpenGL version
4.4
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
Memory channels supported by processor
Dual
On-board graphics card DirectX version
12.0
Intel Stable Image Platform Program (SIPP)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1333,1600,2133,2400
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1100
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
1.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
