MPN:
F0DE00EEFR

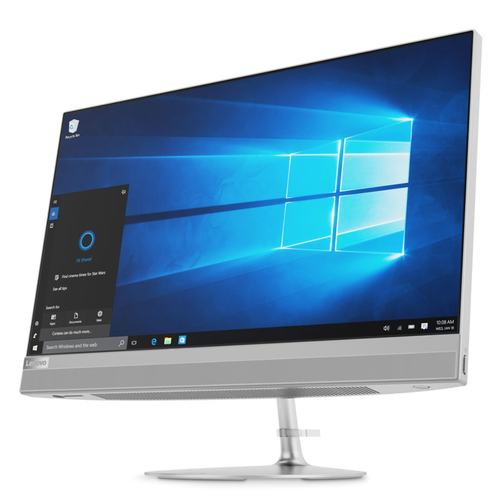

Lenovo IdeaCentre 520 Intel® Core™ i5 i5-8400T 68.6 cm (27″) 2560 x 1440 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Home Wi-Fi 5 (802.11ac) Silver
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 27"
- Resolution
- 2560 x 1440
- Processor line
- Intel Core i5
- Clock speed
- 1.7 GHz
- Capacity
- 8 GB
- Storage
- 256 GB
- NVMe
- Y
- Wi-Fi
- Y
- Display type
- Quad HD
Shopping actions
Overview
The Lenovo IdeaCentre 520 Intel® Core™ i5 i5-8400T 68.6 cm (27″) 2560 x 1440 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Home Wi-Fi 5 (802.11ac) Silver features Intel Core i5 processor, 6 cores, up to 3.3 GHz boost, 8 GB of memory and NVMe support. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
U0
Cache
9 MB
Cores
6
Model
i5-8400T
Processor line
Intel Core i5
Socket
LGA 1151 (Socket H4)
Threads
6
Clock speed
1.7 GHz
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Boost clock
3.3 GHz
CPU operating modes
64-bit
TDP
35 W
Ports & Connectivity
3 SPECS
HDMI ports
2
USB 2.0 ports
2
Ethernet ports
1
Display
5 SPECS
Display type
Quad HD
Touchscreen
No
Screen size
27"
Resolution
2560 x 1440
Aspect ratio
16:9
Memory
4 SPECS
Capacity
8 GB
Form factor
DIMM/SO-DIMM
Memory type
DDR4-SDRAM
Max memory
16 GB
Storage
3 SPECS
Capacity
256 GB
Form factor
M.2
Storage
256 GB
Physical
2 SPECS
Product type
All-in-One PC
Colour
Silver
General
108 SPECS
NVMe
Yes
Wi-Fi
Yes
Bus type
DMI3
64-bit support
Yes
Bluetooth
Yes
Tjunction
100
Idle power states
Yes
Scalability
1S
Antenna type
1x1
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2
Microphone input
Yes
SSD interface
NVMe,PCI Express
Storage media
SSD
Mouse included
Yes
Processor code
SR3X6
Built-in camera
Yes
RMS power
6
Bus speed
8 GT/s
Wi-Fi standard
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
AC adapter power
120 W
Intel® OS Guard
Yes
Intel ARK ID
129940
Bluetooth version
4.0
Headphone outputs
1
Keyboard included
Yes
Memory slots type
SO-DIMM
Depth (with stand)
252.85
Display brightness
350
Intel® Secure Key
Yes
Number of speakers
2
Optical drive type
No
Codename
Coffee Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Width (with stand)
615
Built-in microphone
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Height (with stand)
479.4
Chipset
Intel B360
Total SSDs capacity
256
Weight (with stand)
8830
AC adapter frequency
50/60
Intel TSX-NI version
0.00
Generation
Intel Core i5-8xxx
Configurable TDP-down
25
Card reader
Yes
Dedicated graphics
No
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Compatible memory cards
SD,SDHC,SDXC
Compliance certificates
RoHS
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
AC adapter input voltage
100 - 240
Number of SSDs installed
1
Intel Enhanced Halt State
Yes
On-board GPU manufacturer
Intel
On-board graphics card ID
0x3E92
PCI Express slots version
3.0
Long-term availability
No
Operating system
Windows 10 Home
PCI Express configurations
1x16,1x8+2x4,2x8
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Intel Clear Video Technology
Yes
Integrated GPU model
Intel UHD Graphics 630
OS architecture
64-bit
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
2.0
Thermal solution specification
PCG 2015A
Configurable TDP-down frequency
1.2
Thermal monitoring
Yes
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM
Maximum on-board graphics card memory
64
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2666
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
41.6
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1050
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
