MPN:
07F7C

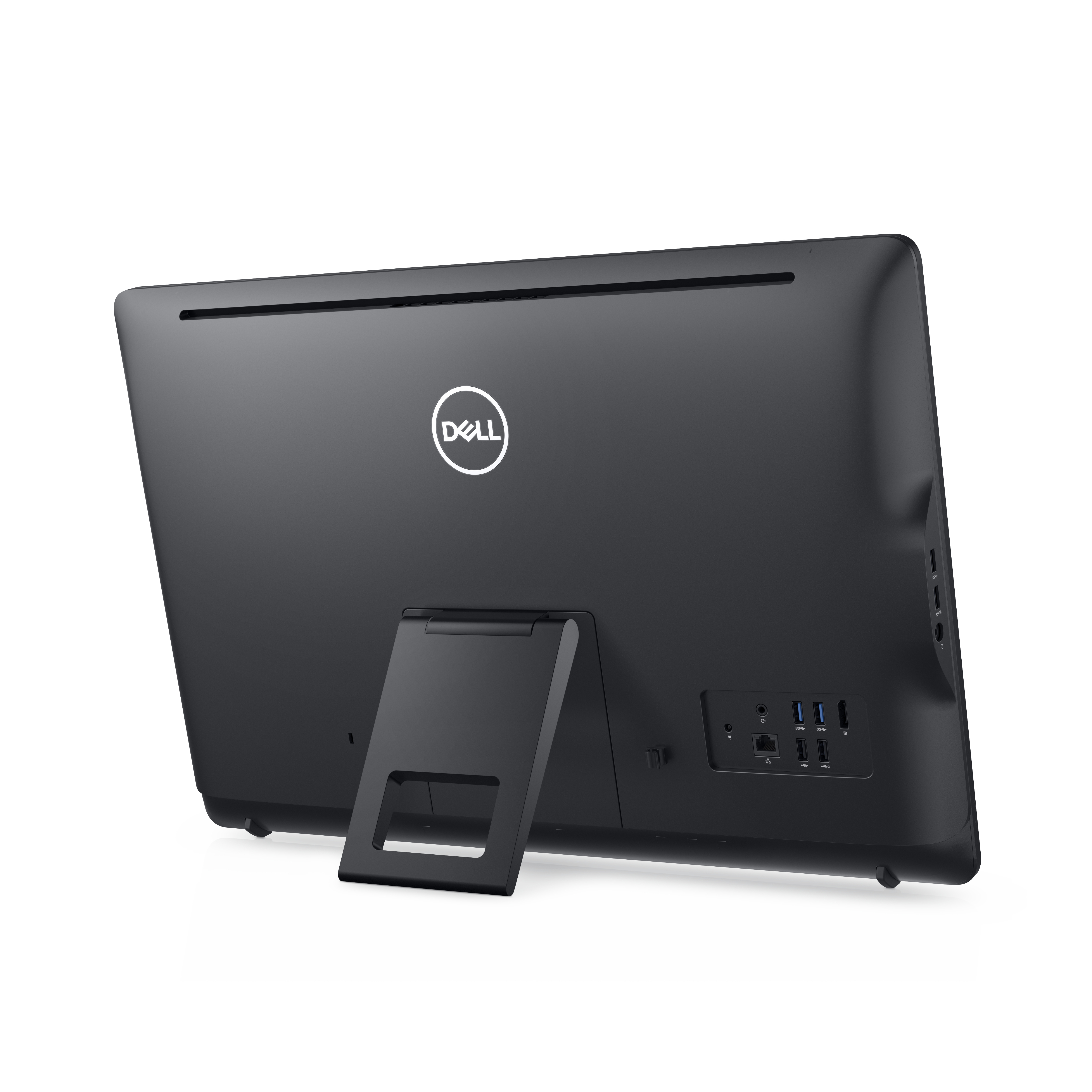

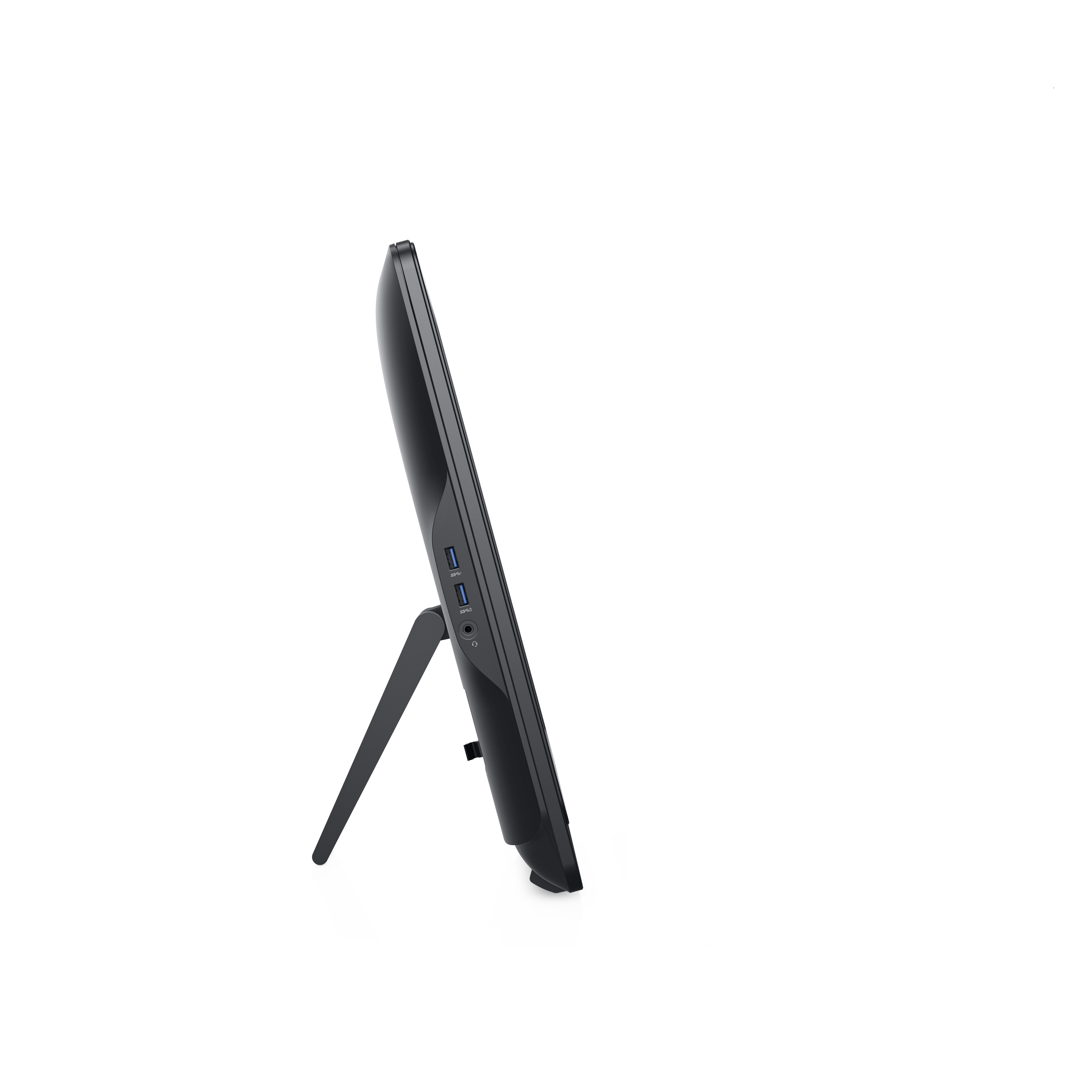

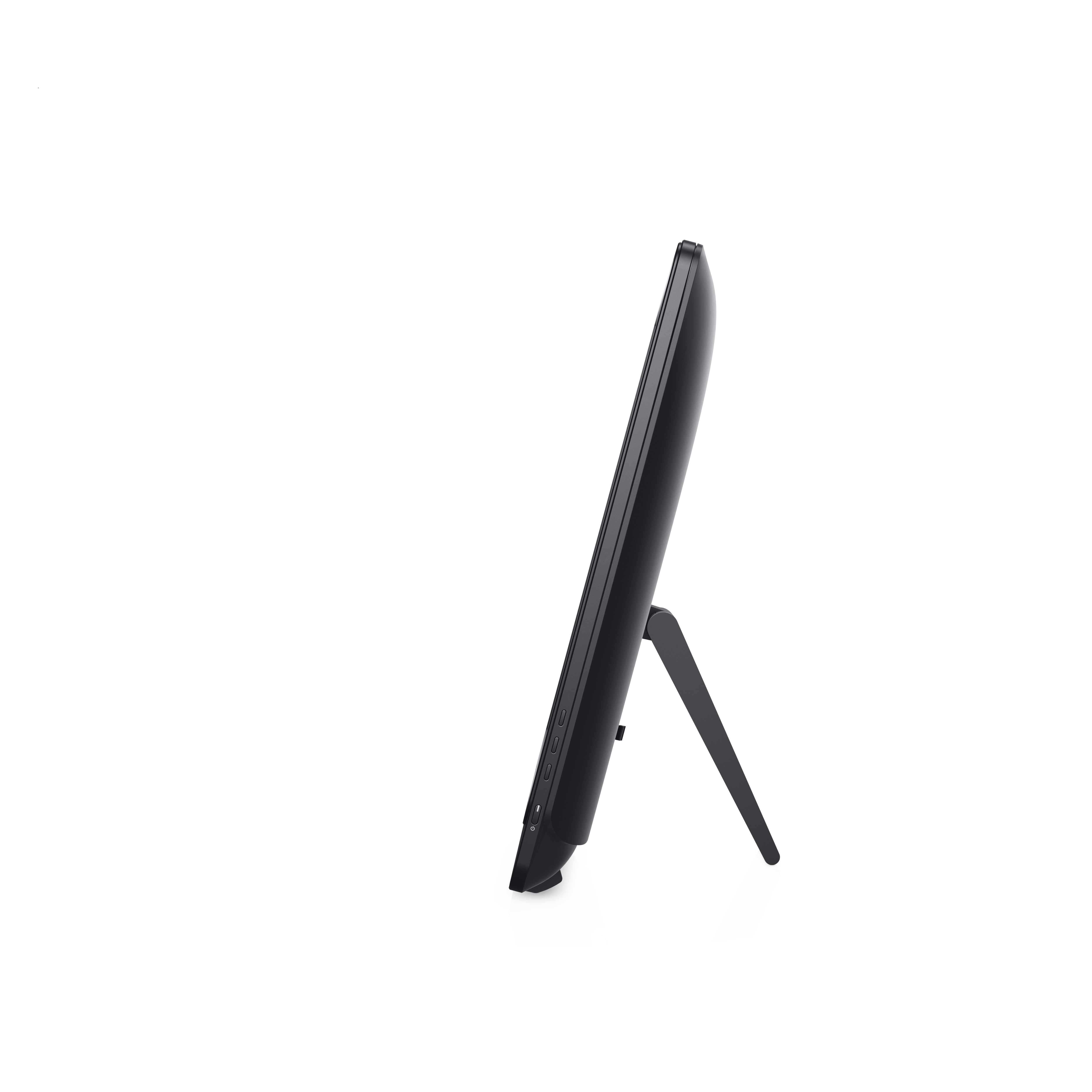

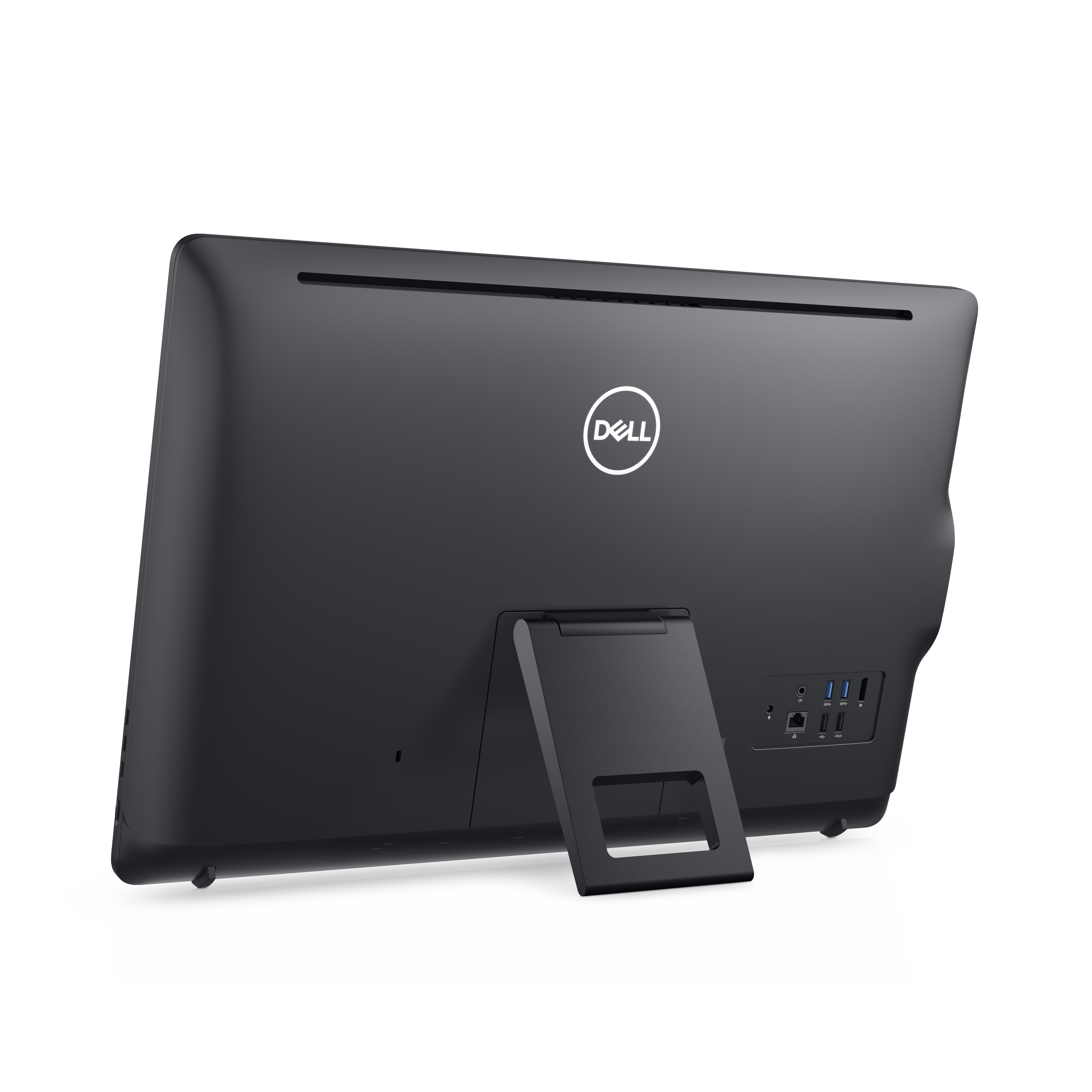

Dell Wyse 5470 Intel® Celeron® J4005 60.5 cm (23.8″) 1920 x 1080 pixels All-in-One thin client 4 GB DDR4-SDRAM 16 GB eMMC Wyse ThinOS Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 23.8"
- Resolution
- 1920 x 1080
- Processor line
- Intel Celeron
- Clock speed
- 2 GHz
- Capacity
- 4 GB
- Storage
- 16 GB
- 3D
- N
- UART
- Y
- Wi-Fi
- N
1 / 6
Shopping actions
Overview
The Dell Wyse 5470 Intel® Celeron® J4005 60.5 cm (23.8″) 1920 x 1080 pixels All-in-One thin client 4 GB DDR4-SDRAM 16 GB eMMC Wyse ThinOS Black features Intel Celeron processor, 2 cores, up to 2.7 GHz boost and 4 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
12 SPECS
Cache
4 MB
Cores
2
Model
J4005
Processor line
Intel Celeron
Socket
BGA 1090
Threads
2
Clock speed
2 GHz
Process node
14 nm
CPU brand
Intel
Boost clock
2.7 GHz
CPU operating modes
64-bit
TDP
10 W
Ports & Connectivity
4 SPECS
HDMI ports
0
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
1
Physical
2 SPECS
Product type
All-in-One thin client
Colour
Black
Display
7 SPECS
Display type
Full HD
Touchscreen
No
LED backlight
Yes
Response time
25 ms
Screen size
23.8"
Resolution
1920 x 1080
Aspect ratio
16:9
Memory
4 SPECS
Capacity
4 GB
Form factor
DIMM/SO-DIMM
Memory type
DDR4-SDRAM
Max memory
8 GB
Logistics & Packaging
4 SPECS
Package depth
184 mm
Package width
684 mm
Package height
509 mm
Package weight
9250 g
Storage
1 SPEC
Storage
16 GB
General
118 SPECS
3D
No
UART
Yes
Wi-Fi
No
Manual included
Yes
64-bit support
Yes
Bluetooth
No
Tjunction
105
DC-in jack
Yes
PowerShare
Yes
Stand type
Easel stand
Idle power states
Yes
Audio output
Yes
Ethernet LAN
Yes
Memory slots
2
Pen included
No
Screen shape
Flat screen
Autonomy mode
No
Microphone input
No
On/off button
Yes
Pixel density
82
Storage media
eMMC
eMMC capacity
16
Camera HD type
HD
Built-in camera
Yes
Security lock slot
Yes
Operating shock resistance
110
RMS power
3
AC adapter power
90 W
Intel® OS Guard
Yes
Intel ARK ID
128992
Total megapixels
1
Camera resolution
1280 x 720
Headphone outputs
0
Memory slots type
SO-DIMM
Detachable display
No
Display brightness
250
Intel® Secure Key
Yes
Operating altitude
-15.2 - 3048
Optical drive type
No
Codename
Gemini Lake
Width (with stand)
576.2
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Non-operating shock resistance
160
Operating vibration tolerance
0.66
Power cord included
Yes
AC adapter frequency
50/60
Cable lock slot type
Kensington
Camera signal format
720p
Depth (no stand)
54 mm
Number of microphones
2
Width (no stand)
576.2 mm
Card reader
No
Dedicated graphics
No
Height (no stand)
385.3 mm
Non-operating altitude
-15.2 - 10668
Integrated graphics
Yes
Processor package size
25 x 24
CPU configuration (max)
1
Compatible memory cards
Not supported
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Non-operating vibration tolerance
1.3
AC adapter input voltage
100 - 240
Combo headphone/mic port
Yes
AC adapter output current
4.62 A
AC adapter output voltage
19.5 V
Intel Enhanced Halt State
Yes
Number of execution units
12
On-board graphics card ID
0x3185
PCI Express slots version
2.0
Storage temperature
-40 - 65
Long-term availability
No
Operating system
Wyse ThinOS
PCI Express configurations
1x2,1x2+2x1,1x4,2x1,4x1
Thunderbolt ports quantity
0
Operating temperature
0 - 35
Eco certifications
ENERGY STAR
Dedicated GPU model
Not available
Integrated GPU model
Intel UHD Graphics 600
Thunderbolt 3 ports quantity
0
Intel® Turbo Boost Technology
No
Storage relative humidity (H-H)
0 - 95
Thermal monitoring
Yes
Intel® Smart Response Technology
No
Operating humidity
10 - 90
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
6
Memory types supported by processor
DDR4-SDRAM,LPDDR4-SDRAM
Maximum on-board graphics card memory
8
On-board graphics card base frequency
250
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
On-board graphics card burst frequency
700
Intel Smart Response Technology version
0.00
Mouse included on selected markets only
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
2400
Intel Software Guard Extensions (Intel SGX)
Yes
Number of USB ports with PowerShare support
1
Intel Identity Protection Technology version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Maximum internal memory supported by processor
8
On-board graphics card dynamic frequency (max)
700
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of displays supported (on-board graphics)
3
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
