MPN:
CAD005Y320661AU

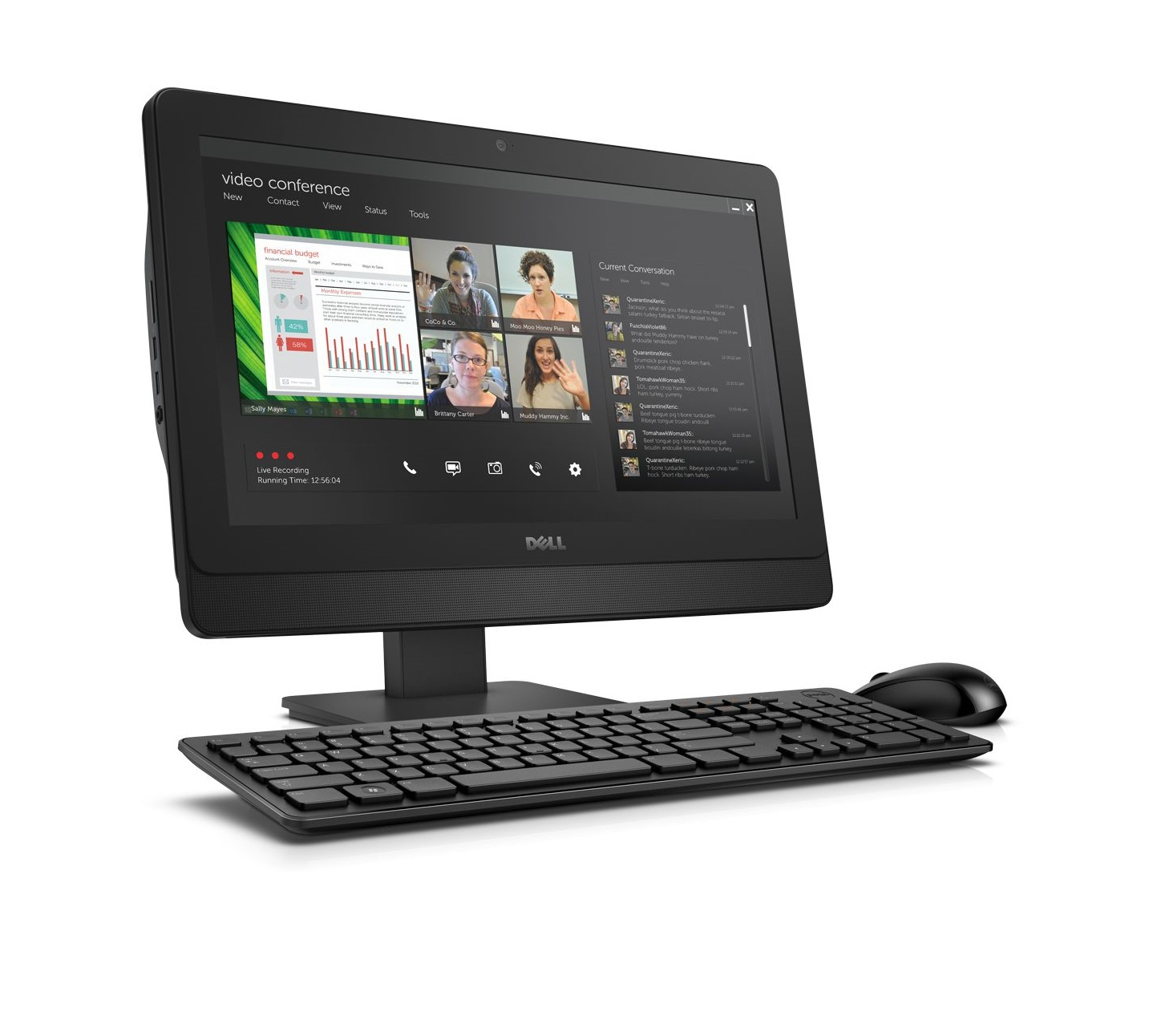

DELL OptiPlex 3030 Intel® Core™ i3 i3-4160 49.5 cm (19.5″) 1600 x 900 pixels All-in-One PC 4 GB DDR3L-SDRAM 500 GB HDD Windows 7 Professional Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 19.5"
- Resolution
- 1600 x 900
- Processor line
- Intel Core i3
- Clock speed
- 3.6 GHz
- Capacity
- 4 GB
- Storage
- 500 GB
- 3D
- N
- Max case temperature (Tcase)
- 72 °C
- Wi-Fi
- Y
Shopping actions
Overview
The DELL OptiPlex 3030 Intel® Core™ i3 i3-4160 49.5 cm (19.5″) 1600 x 900 pixels All-in-One PC 4 GB DDR3L-SDRAM 500 GB HDD Windows 7 Professional Black features Intel Core i3 processor, 2 cores, 4 GB of memory and DDR3L-SDRAM. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Stepping
C0
Cache
3 MB
Cores
2
Model
i3-4160
Processor line
Intel Core i3
Socket
LGA 1150 (Socket H3)
Threads
4
Clock speed
3.6 GHz
Cache level
Smart Cache
Process node
22 nm
CPU brand
Intel
CPU operating modes
64-bit
TDP
54 W
Physical
2 SPECS
Product type
All-in-One PC
Colour
Black
Storage
1 SPEC
Storage
500 GB
Display
6 SPECS
Display type
HD+
Touchscreen
No
LED backlight
Yes
Screen size
19.5"
Resolution
1600 x 900
Aspect ratio
16:9
Memory
3 SPECS
Capacity
4 GB
Memory type
DDR3L-SDRAM
Max memory
16 GB
Ports & Connectivity
3 SPECS
HDMI ports
0
USB 2.0 ports
4
Ethernet ports
1
Graphics
1 SPEC
Memory clock
1600 MHz
General
134 SPECS
3D
No
Max case temperature (Tcase)
72 °C
Wi-Fi
Yes
Full HD
No
Bus type
DMI
64-bit support
Yes
Bluetooth
No
Spindle speed
5400 rpm
DC-in jack
Yes
FSB Parity
No
Idle power states
Yes
Scalability
1S
Audio system
HD
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2
Autonomy mode
No
Drive interface
SATA
Microphone input
No
Storage media
HDD
Warranty card
Yes
Mouse included
Yes
Processor code
SR1PK
Built-in camera
Yes
Display surface
Matt
Bus speed
5 GT/s
Wi-Fi standard
802.11a,802.11g,Wi-Fi 4 (802.11n)
AC adapter power
180 W
Drivers included
Yes
Intel ARK ID
77488
Processor series
Intel Core i3-4100 Desktop series
Total megapixels
0.92
Camera resolution
1280 x 720
Headphone outputs
0
Keyboard included
Yes
Memory slots type
SO-DIMM
Quick start guide
Yes
Depth (with stand)
204.58
Detachable display
No
Intel® Insider™
No
Intel® Secure Key
Yes
Operating altitude
-15.24 - 3048
Optical drive type
DVD Super Multi
Codename
Haswell
Width (with stand)
489.92
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Execute Disable (NX)
Yes
Height (with stand)
385.58
Intel® Smart Cache
Yes
Chipset
Intel H81
Number of QPI links
0
Power cord included
Yes
Weight (with stand)
5870
AC adapter frequency
50/60
Disc types supported
CD,DVD
Intel FDI Technology
No
Intel TSX-NI version
0.00
Generation
Intel Core i3-4xxx
Depth (no stand)
67.62 mm
Intel segment tagging
Enterprise,Small Business
Card reader
Yes
Integrated graphics
Yes
Processor package size
37.5 x 37.5
CPU configuration (max)
1
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
Storage drive interface
Serial ATA
AC adapter input voltage
100 - 240
Combo headphone/mic port
Yes
Intel Fast Memory Access
No
Intel Flex Memory Access
No
Number of HDDs installed
1
AC adapter output voltage
19.5 V
Intel Enhanced Halt State
Yes
On-board graphics card ID
0x41E
PCI Express slots version
3.0
Recovery operating system
Windows 8.1 Pro
Storage temperature
-40 - 65
ECC memory support
Yes
Long-term availability
No
Graphics & IMC lithography
22
Operating system
Windows 7 Professional
PCI Express configurations
1x16,2x8,1x8+2x4
Instruction sets
AVX 2.0,SSE4.1,SSE4.2
Thunderbolt ports quantity
0
VGA ports
0
Operating temperature
5 - 35
Dedicated GPU model
Not available
Intel Clear Video Technology
No
Intel Demand Based Switching
No
Memory layout (slots x size)
1 x 4
Integrated GPU model
Intel HD Graphics 4400
On-board graphics card family
Intel HD Graphics
OS architecture
64-bit
Intel Rapid Storage Technology
No
Intel® InTru™ 3D Technology
Yes
Intel® Turbo Boost Technology
No
Thermal solution specification
PCG 2013C
Storage relative humidity (H-H)
10 - 95
Thermal monitoring
Yes
Operating humidity
10 - 90
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR3-SDRAM
Intel Dual Display Capable Technology
No
Maximum on-board graphics card memory
1.7
On-board graphics card base frequency
350
Virtualization (VT-x)
Yes
Memory channels supported by processor
Dual
On-board graphics card DirectX version
11.1
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® My WiFi Technology (Intel® MWT)
No
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
1333,1600
Intel Small Business Advantage (SBA) version
1.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
25.6
Maximum internal memory supported by processor
32
On-board graphics card dynamic frequency (max)
1150
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Directed I/O virtualization (VT-d)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
