MPN:
5490-5925

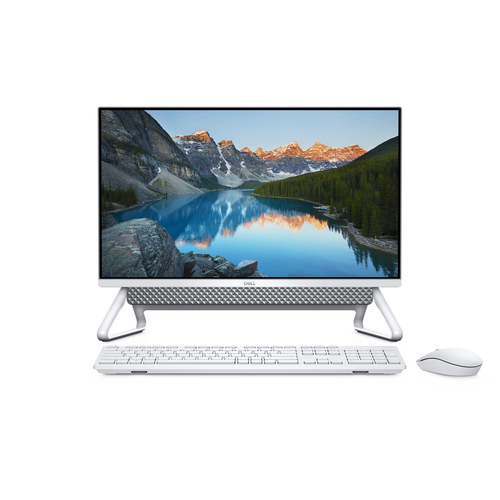

DELL Inspiron 5490 Intel® Core™ i7 i7-10510U 60.5 cm (23.8″) 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR4-SDRAM 1.25 TB HDD+SSD NVIDIA® GeForce® MX110 Windows 10 Home Wi-Fi 5 (802.11ac) Silver
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 23.8"
- Resolution
- 1920 x 1080
- Processor line
- Intel Core i7
- Clock speed
- 1.8 GHz
- Capacity
- 16 GB
- Storage
- 1256 GB
- NVMe
- Y
- Wi-Fi
- Y
- Manual included
- Y
1 / 8
Shopping actions
Overview
The DELL Inspiron 5490 Intel® Core™ i7 i7-10510U 60.5 cm (23.8″) 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR4-SDRAM 1.25 TB HDD+SSD NVIDIA® GeForce® MX110 Windows 10 Home Wi-Fi 5 (802.11ac) Silver features Intel Core i7 processor, 4 cores, up to 4.9 GHz boost, 2 GB of video memory and NVMe support. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
8 MB
Cores
4
Model
i7-10510U
Bundled software
Financial Tracker & Retail Information
Processor line
Intel Core i7
Socket
BGA 1528
Threads
8
Clock speed
1.8 GHz
Process node
14 nm
CPU brand
Intel
Boost clock
4.9 GHz
CPU operating modes
64-bit
TDP
15 W
Memory
4 SPECS
Capacity
16 GB
Form factor
DIMM/SO-DIMM
Memory type
DDR4-SDRAM
Max memory
32 GB
Storage
4 SPECS
Capacity
1 TB
Capacity
256 GB
Form factor
M.2
Storage
1256 GB
Graphics
2 SPECS
Memory clock
2666 MHz
VRAM
2 GB
Logistics & Packaging
12 SPECS
Package depth
663 mm
Package width
257 mm
Package height
531 mm
Package weight
7900 g
Layers per pallet
2
Pallet gross width
1000
Pallet gross length
1200
Pallet gross weight
102800
Products per pallet
12
Pallet volume weight
240400
Products per pallet layer
6
Maximum number of stacking cartons
4
Display
7 SPECS
Display type
Full HD
Pixel pitch
0.2745 x 0.2745
Touchscreen
Yes
LED backlight
Yes
Response time
25 ms
Screen size
23.8"
Resolution
1920 x 1080
Ports & Connectivity
3 SPECS
HDMI ports
2
USB 2.0 ports
1
Ethernet ports
1
Physical
2 SPECS
Product type
All-in-One PC
Colour
Silver
General
157 SPECS
NVMe
Yes
Wi-Fi
Yes
Manual included
Yes
Drive form factor
2.5
64-bit support
Yes
Bluetooth
Yes
Spindle speed
5400 rpm
Tjunction
100
Audio chip
Realtek ALC3289-CG
DC-in jack
Yes
Stand type
Pafilia stand
Colour name
Silver
Idle power states
Yes
Antenna type
1x1
Audio output
Yes
Audio system
Waves MaxxAudio Pro
EPEAT rating
77.08
Ethernet LAN
Yes
Intel TSX-NI
No
Memory slots
2
Screen shape
Flat screen
Autonomy mode
No
Drive interface
SATA
Microphone input
No
SSD interface
NVMe,PCI Express
Storage media
HDD+SSD
Camera HD type
HD
Built-in camera
Yes
Operating shock resistance
40
RMS power
10
Bus speed
4 GT/s
Wi-Fi standard
Wi-Fi 5 (802.11ac)
AC adapter power
130 W
Intel® OS Guard
Yes
Package material
Corrugated cardboard,Low-density polyethylene (LDPE)
Intel ARK ID
196449
Total megapixels
0.92
Camera resolution
1280 x 720
Headphone outputs
0
Memory slots type
SO-DIMM
Depth (with stand)
202.3
Detachable display
No
Display brightness
250
Intel® Secure Key
Yes
Number of speakers
2
Operating altitude
0 - 3048
Optical drive type
No
Codename
Comet Lake
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Width (with stand)
539.8
AC adapter included
Yes
Built-in microphone
Yes
Built-in speaker(s)
Yes
Configurable TDP-up
25
Execute Disable (NX)
Yes
Height (with stand)
412.9
Non-operating shock resistance
105
Operating vibration tolerance
0.26
Placement supported
Horizontal
Total HDDs capacity
1000
Total SSDs capacity
256
Weight (with stand)
5350
AC adapter frequency
50 - 60
Camera signal format
720p
Generation
Intel Core i7-10xxx
Configurable TDP-down
10
Depth (no stand)
41.8 mm
Width (no stand)
539.8 mm
Card reader
Yes
Dedicated graphics
Yes
Height (no stand)
352.1 mm
Non-operating altitude
0 - 10668
Integrated graphics
Yes
Processor package size
46 x 24
Weight (without stand)
4720 g
CPU configuration (max)
1
Compatible memory cards
MicroSD (TransFlash),MicroSDHC,MicroSDXC,SD,SDHC,SDXC
Ethernet LAN data rates
10,100,1000
Non-operating vibration tolerance
1.37
AC adapter input voltage
100 - 240
Intel Flex Memory Access
Yes
Number of HDDs installed
1
Number of SSDs installed
1
AC adapter output voltage
19.5 V
HDMI input ports quantity
1
Number of execution units
24
On-board GPU manufacturer
Intel
On-board graphics card ID
0x9B41
PCI Express slots version
3.0
Storage temperature
-40 - 65
Long-term availability
No
HDMI output ports quantity
1
Operating system
Windows 10 Home
PCI Express configurations
1x4,2x2,1x2+2x1,4x1
Instruction sets
SSE4.1,SSE4.2,AVX 2.0
Thunderbolt ports quantity
0
Operating temperature
5 - 35
Eco certifications
ENERGY STAR
Dedicated GPU model
NVIDIA GeForce MX110
Intel Clear Video Technology
Yes
Memory layout (slots x size)
2 x 8
Integrated GPU model
Intel UHD Graphics
Thunderbolt 3 ports quantity
0
Configurable TDP-up frequency
2.3
Discrete graphics memory type
GDDR5
OS architecture
64-bit
Grey board content per package
0
Intel® Turbo Boost Technology
2.0
Configurable TDP-down frequency
0.8
Storage relative humidity (H-H)
5 - 95
Thermal monitoring
Yes
Operating humidity
20 - 80
Trusted Execution (TXT)
No
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
Yes
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM,LPDDR3-SDRAM
Other materials content per package
40
Polystyrene (PS) content per package
0
Maximum on-board graphics card memory
32
On-board graphics card OpenGL version
4.5
On-board graphics card base frequency
300
Paper molded pulp content per package
0
Bamboo molded pulp content per package
0
Virtualization (VT-x)
Yes
On-board graphics card DirectX version
12.0
Polypropylene (PP) content per package
0
Mouse included on selected markets only
Yes
Corrugated cardboard content per package
1480
Intel® My WiFi Technology (Intel® MWT)
Yes
Products per intermodal container (20ft)
180
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Keyboard included on selected markets only
Yes
Memory clock speeds supported by processor
2666,2133
Intel Software Guard Extensions (Intel SGX)
Yes
Wheat straw molded pulp content per package
0
Products per intermodal container (40ft, HC)
504
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
41.66
Maximum internal memory supported by processor
64
On-board graphics card dynamic frequency (max)
1150
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Number of displays supported (on-board graphics)
3
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Low-density polyethylene (LDPE) content per package
400
Corrugated cardboard content per box for accessories
200
High-density polyethylene (HDPE) content per package
0
Intel® Identity Protection Technology (Intel® IPT)
Yes
Polyethylene terephthalate (PET) content per package
0
Corrugated cardboard content per shipping (inner) case
1140
Corrugated cardboard content per sleeve for accessories
140
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
