MPN:
551316

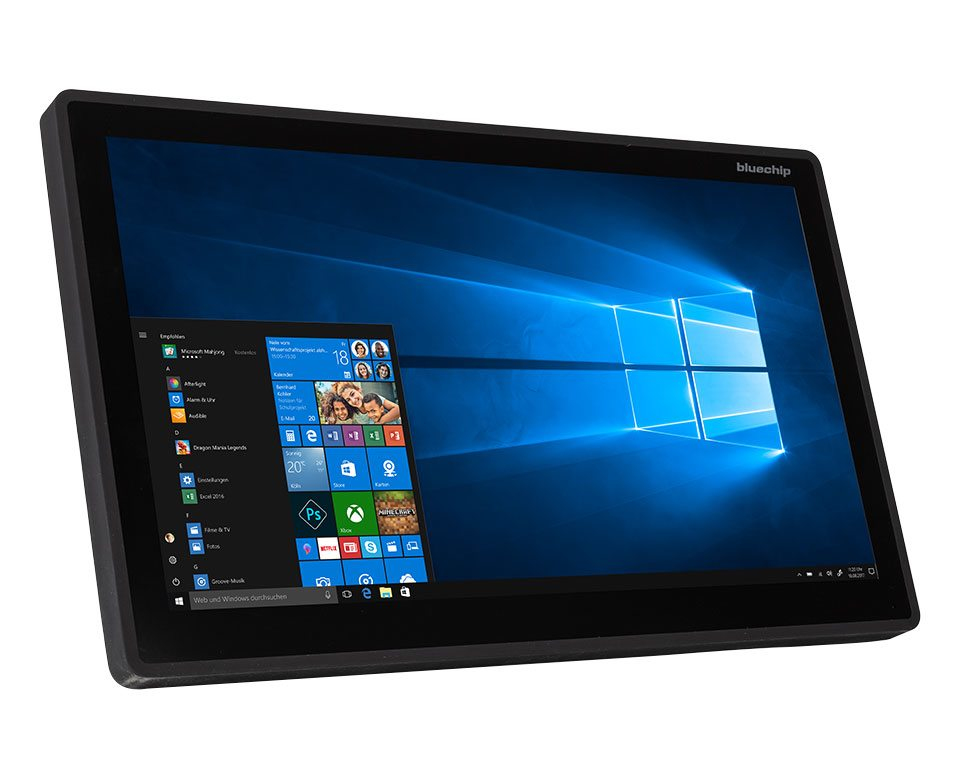

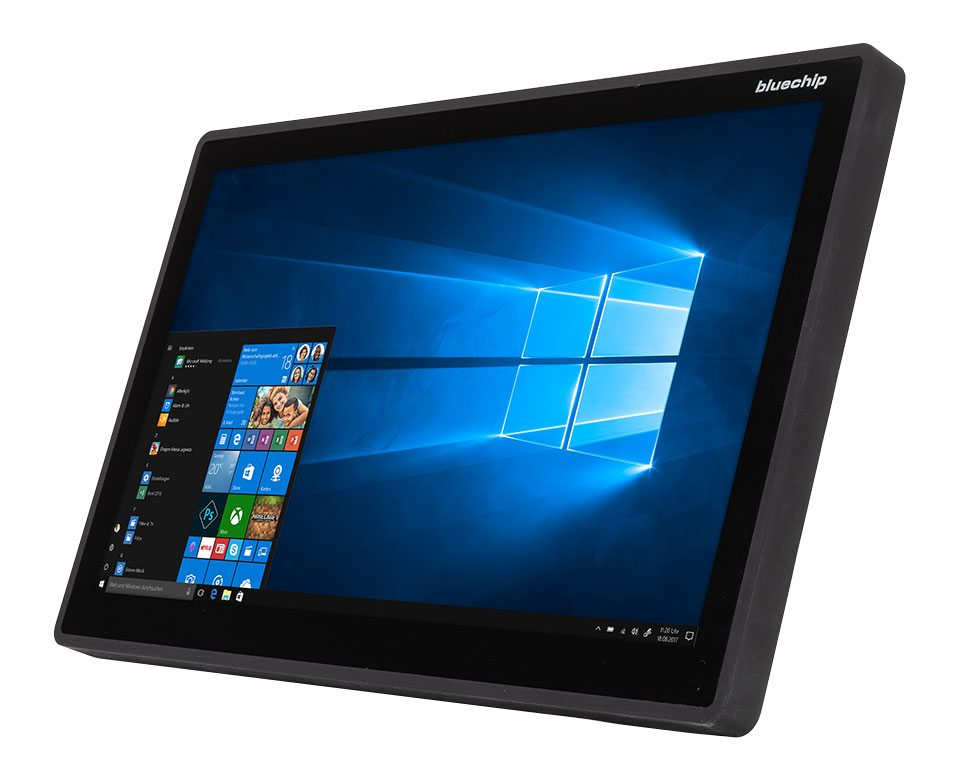

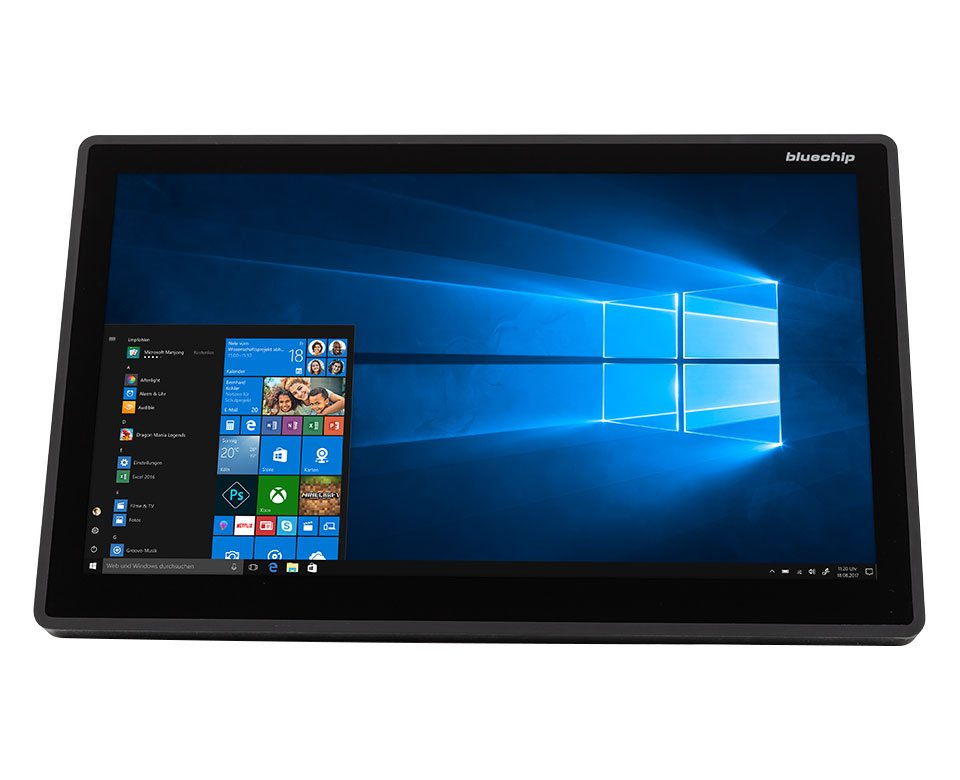

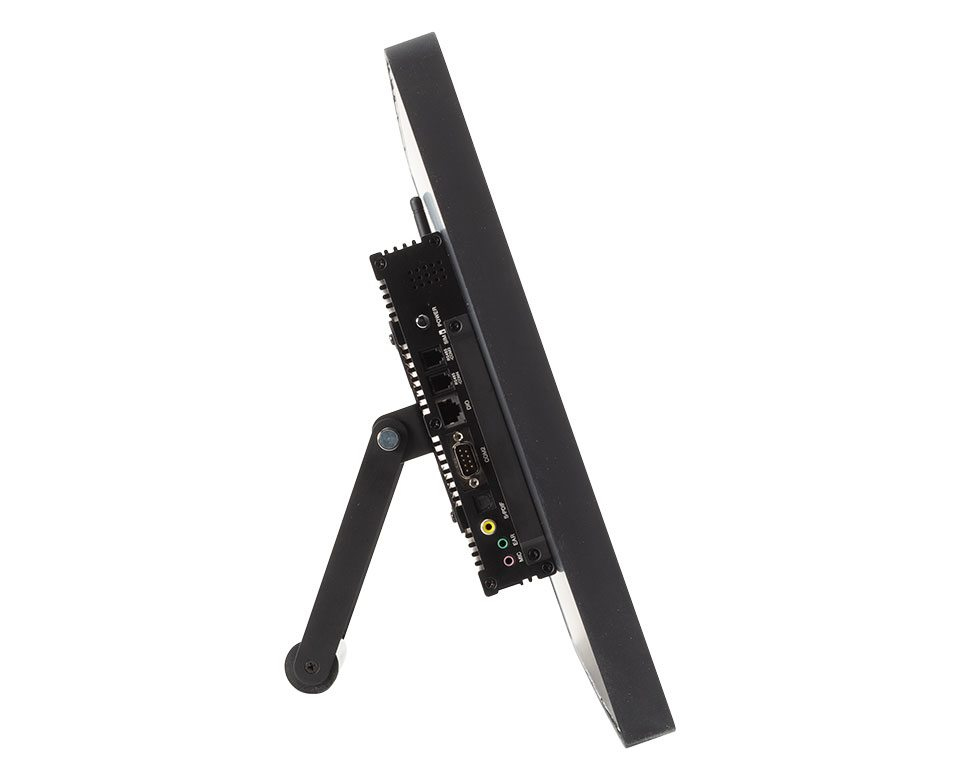

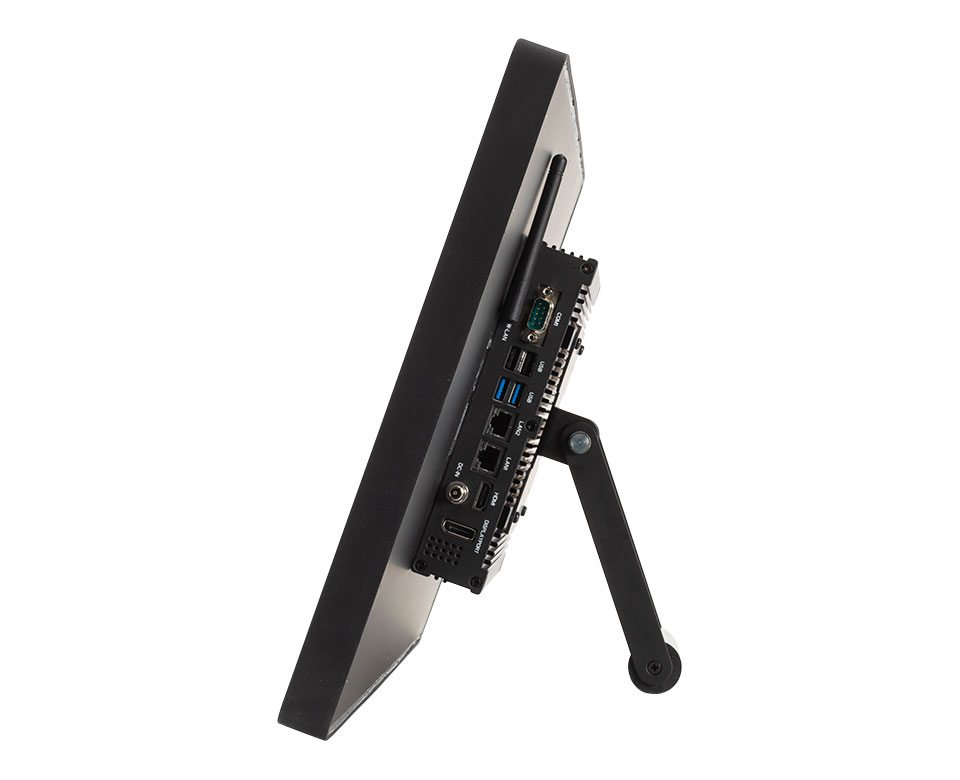

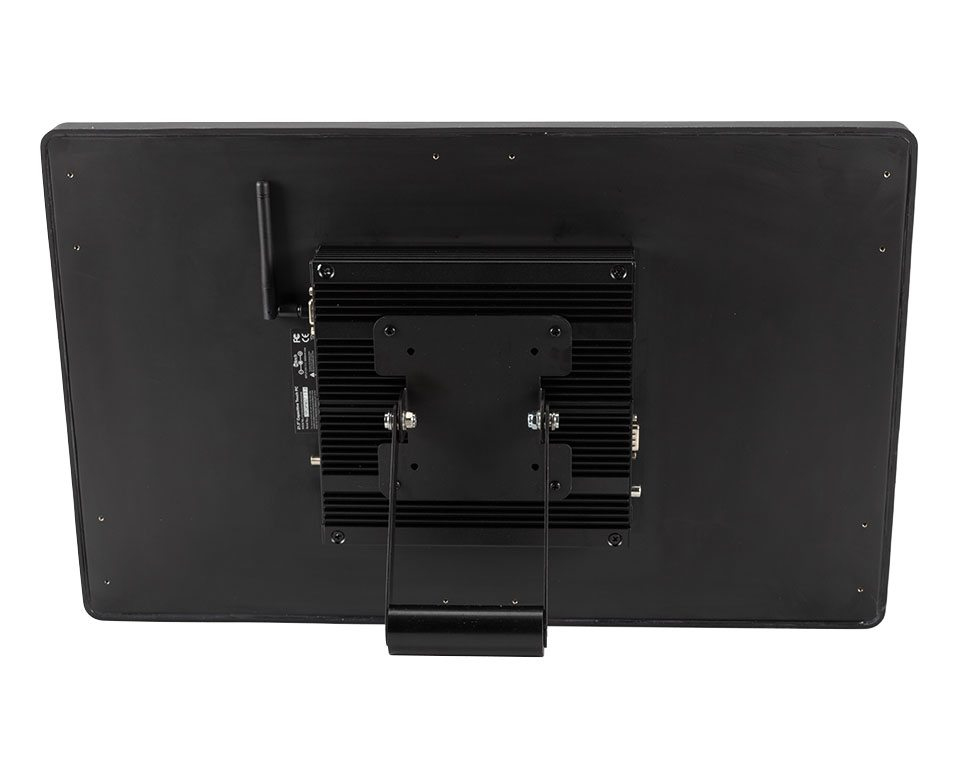

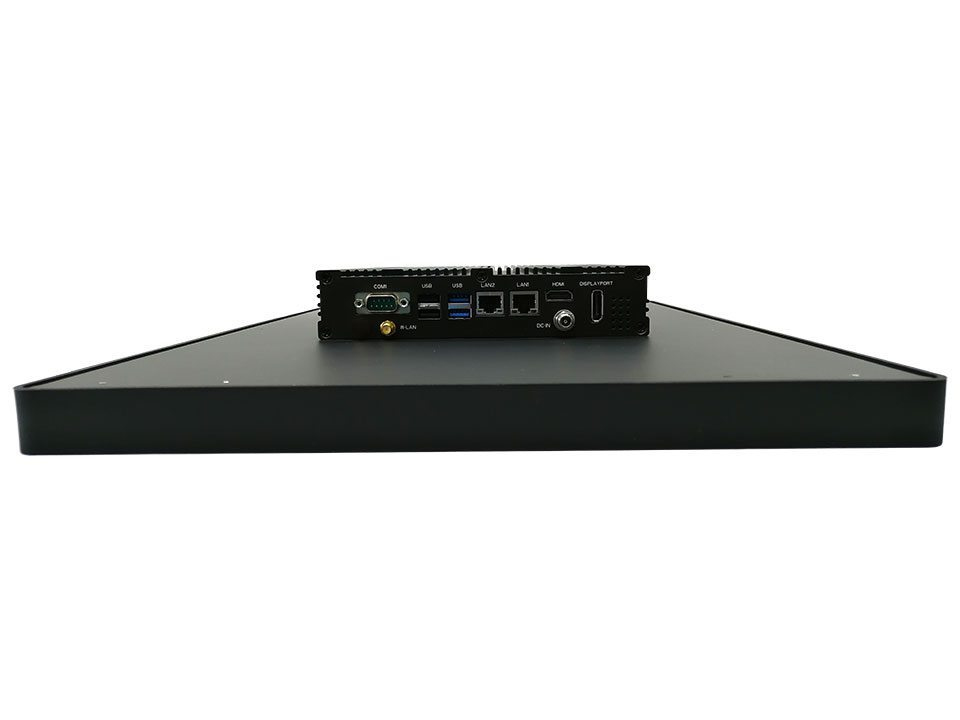

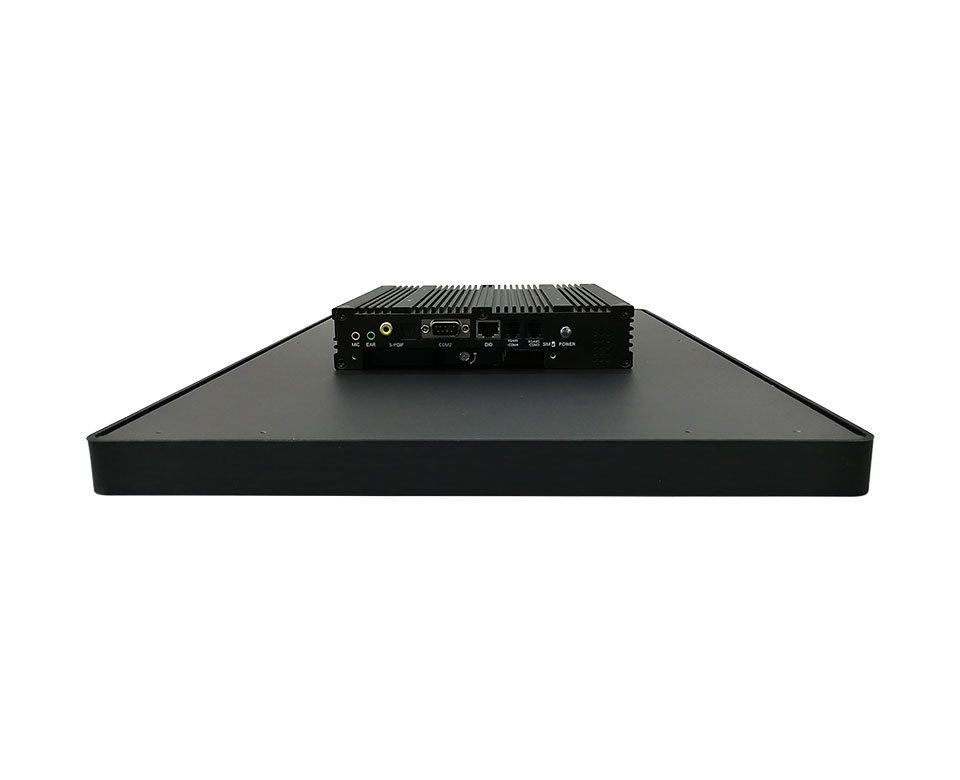

bluechip INDUSTRYline P156KT-1000
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Screen size
- 15.6"
- Resolution
- 1920 x 1080
- Processor line
- Intel Pentium
- Clock speed
- 1.1 GHz
- Capacity
- 4 GB
- Storage
- 128 GB
- ECC support
- N
- HDMI
- Y
- UART
- Y
1 / 8
Shopping actions
Overview
The bluechip INDUSTRYline P156KT-1000 features Intel Pentium processor, 4 cores, up to 2.5 GHz boost and 4 GB of memory. Full verified specifications are listed below.
Technical Specifications
Processor
13 SPECS
Cache
2 MB
Cores
4
Model
N4200
Processor line
Intel Pentium
Socket
BGA 1296
Threads
4
Clock speed
1.1 GHz
Cache level
L2
Process node
14 nm
CPU brand
Intel
Boost clock
2.5 GHz
CPU operating modes
64-bit
TDP
6 W
Memory
3 SPECS
ECC support
No
Capacity
4 GB
Memory type
DDR3L
Graphics
1 SPEC
Max resolution
1920 x 1200
Logistics & Packaging
1 SPEC
Package weight
6100 g
Display
10 SPECS
Display type
Full HD
Touchscreen
Yes
LED backlight
Yes
Response time
15 ms
Screen size
15.6"
Resolution
1920 x 1080
Aspect ratio
16:9
Vertical viewing angle
170°
Contrast ratio
800:1
Horizontal viewing angle
170°
Ports & Connectivity
4 SPECS
HDMI ports
1
DisplayPorts quantity
1
USB 2.0 ports
2
Ethernet ports
2
Storage
2 SPECS
Capacity
128 GB
Storage
128 GB
Power
1 SPEC
Power consumption (typical)
16 W
General
97 SPECS
HDMI
Yes
UART
Yes
Wi-Fi
Yes
Chipset
Intel E3800
64-bit support
Yes
Tjunction
105
Idle power states
Yes
Multi-touch
Yes
Audio system
Realtek ALC3236
Ethernet LAN
Yes
Microphone input
Yes
Storage media
SSD
VESA mounting
Yes
Backlight type
LED
Wall mountable
Yes
Housing material
Aluminium,Silicone
Intel® OS Guard
Yes
Intel ARK ID
95592
Processor series
Intel Pentium Processor N4000 Series for Mobile
Touch technology
Multi-touch
Intel Secure Boot
Yes
Depth (with stand)
49.3
Display brightness
250
Intel® Insider™
No
Intel® Secure Key
Yes
Codename
Apollo Lake
Width (with stand)
390
AC adapter included
Yes
Execute Disable (NX)
Yes
Height (with stand)
247
Weight (with stand)
4200
Serial ports
2
Integrated graphics
Yes
Processor package size
24 x 31
CPU configuration (max)
1
Conflict-free minerals
Yes
Ethernet LAN data rates
10,100,1000
AC adapter input voltage
100 - 240
Combo headphone/mic port
Yes
Number of SSDs installed
1
Panel mounting interface
100 x 100
AC adapter output voltage
12 V
Display diagonal (metric)
39.6
Intel Enhanced Halt State
Yes
Number of execution units
18
On-board GPU manufacturer
Intel
On-board graphics card ID
0x5A84
PCI Express slots version
2.0
Long-term availability
No
Operating system
Windows 10 IoT Enterprise
PCI Express configurations
1x2,1x2+2x1
Operating temperature
-10 - 60
Power draw (standby)
1 W
Scenario Design Power (SDP)
4
Intel Clear Video Technology
Yes
Memory layout (slots x size)
1 x 4
Integrated GPU model
Intel HD Graphics 505
Intel Rapid Storage Technology
No
Intel Smart Connect Technology
No
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
No
Thermal monitoring
Yes
Intel® Smart Response Technology
No
Operating humidity
10 - 90
Trusted Execution (TXT)
No
Number of storage drives installed
1
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
Yes
PCIe lanes
6
Memory types supported by processor
DDR3L,LPDDR3-SDRAM,LPDDR4-SDRAM
Intel Secure Boot Technology version
1.00
Maximum on-board graphics card memory
8
On-board graphics card base frequency
200
Intel Smart Connect Technology version
0.00
Virtualization (VT-x)
Yes
On-board graphics card burst frequency
750
Intel Smart Response Technology version
0.00
Intel® Wireless Display (Intel® WiDi)
No
Intel Stable Image Platform Program (SIPP)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
1866,2400
Intel Identity Protection Technology version
1.00
Intel Small Business Advantage (SBA) version
0.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Small Business Advantage (Intel® SBA)
No
Maximum internal memory supported by processor
8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Intel® High Definition Audio (Intel® HD Audio)
Yes
Number of displays supported (on-board graphics)
3
Intel Stable Image Platform Program (SIPP) version
0.00
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
