HP logo MPN: PL766AT

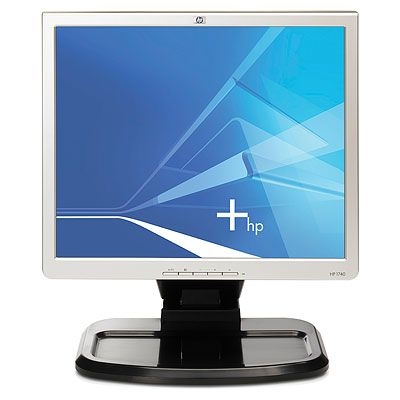

HP L1740 computer monitor 43.2 cm (17″) 1280 x 1024 pixels LCD Black, Silver

Released: Jan 1, 2005 22 years ago
Price not yet available US · Amazon.com
4.7 10 ratings

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

3D
N
Pivot
Y
DVI port
Y
Panel type
TFT
Swivelling
Y
Audio input
N
Pivot angle
0 - 90
Pixel pitch
0.264 x 0.264
Touchscreen
N
View 79 specifications
1 / 2
Shopping actions
Check price on Amazon

Overview

The HP L1740 computer monitor 43.2 cm (17″) 1280 x 1024 pixels LCD Black, Silver features a 17" display, at 1280 x 1024 and a TFT panel. Full verified specifications are listed below.

Technical Specifications

Display

11 SPECS
Panel type
TFT
Pixel pitch
0.264 x 0.264
Touchscreen
No
Response time
13 ms
Screen size
17"
Resolution
1280 x 1024
Aspect ratio
4:3
Vertical viewing angle
135°
Contrast ratio
500:1
Horizontal viewing angle
150°
Brightness
300 cd/m²

Power

1 SPEC
Power consumption (typical)
40 W

Logistics & Packaging

5 SPECS
Package depth
216 mm
Package width
445 mm
Package height
445 mm
Package weight
8800 g
Country of origin
China

Ports & Connectivity

2 SPECS
HDMI ports
0
DVI-D ports quantity
1

Physical

2 SPECS
Colour
Black,Silver
Market segment
Business

General

58 SPECS
3D
No
Pivot
Yes
DVI port
Yes
I/O ports
USB 2.0 Hub: Self-powered, one upstream, two downstream ports (cable included) 15-pin D-sub mini connector, detached
Swivelling
Yes
Audio input
No
Pivot angle
0 - 90
Aspect ratio
4:3
Audio output
No
AC (power) in
Yes
On/off switch
Yes
Plug and Play
Yes
User controls
4-button OSD (auto-adjust, menu, minus, plus); power on/off; second-level OSD buttons include dual-input switch Size and positioning, contrast, brightness, clock, clock phase, selectable color temperature, serial number, mode displayed, sleep timer, input
VESA mounting
Yes
LED indicators
Yes
Built-in camera
No
Security lock slot
Yes
Included cables
AC
Display surface
Matt
Pixel frequency
140
Tilt adjustment
Yes
AC input voltage
90 - 265
Tilt angle range
-5 - 35
Height adjustment
No
Security features
Kensington Lock-ready
Surface treatment
Active Matrix TFT (thin film transistor)
Depth (with stand)
267
Display technology
LCD
Power requirements
Auto-ranging, 90 to 265 VAC, Internal power supply (built-in power supply)
Swivel angle range
-170 - 170
Width (with stand)
371
Built-in speaker(s)
No
Height (with stand)
351
Built-in TV tuner
No
Vertical scan range
56 - 76
Cable lock slot type
Kensington
Depth (no stand)
64 mm
Horizontal scan range
30 - 83
Thin client installed
No
Width (no stand)
381 mm
Height (no stand)
615 mm
Weight (without stand)
7000 g
Power consumption (max)
60
Panel mounting interface
100 x 100
Included power adapter
No audio at platform level
Display number of colours
16.78 million colours
Display scanning frequency
Horizontal frequency: 30-83 kHz, Vertical frequency: 56-76 Hz
Package dimensions (WxDxH)
446 x 234 x 446
VGA ports
1
Operating temperature
5 - 35
Power consumption (average)
33
Power draw (standby)
2 W
Display tilt and swivel range
Tilt range: -5° to + 35° vertical tilt, swivel range: -45° to +45°, pivot rotation: 90° into portrait orientation, Height Adjustable base: attached
Supported graphics resolutions
1280 x 1024 (SXGA)
Display resolution at frequency
Max Resolution (analog and digital): 1280 x 1024 @ 75 Hz; Preset VESA Modes (non-interlaced): 640 x 480 @ 60 Hz, 72 Hz, 75 Hz - 720 x 400 @ 70 Hz - 800 x 600 @ 60 Hz, 72 Hz, 75 Hz - 1024 x 768 @ 60 Hz, 70 Hz, 75 Hz - 1280 x 1024 @ 60 Hz, 75 Hz; Preset MAC Mode: 832 x 624 @ 75 Hz - 1152 x 870 @75 Hz; Preset SUN Mode: 1152 x 900 @ 76 Hz
Display video input type connector
Two connectors: one 15-pin mini D-sub analog VGA and one DVI-D (VGA analog or digital)
USB Type-A downstream ports quantity
0
Non-operating relative humidity (non-condensing)
5 - 90
