MPN:
ITPSA500

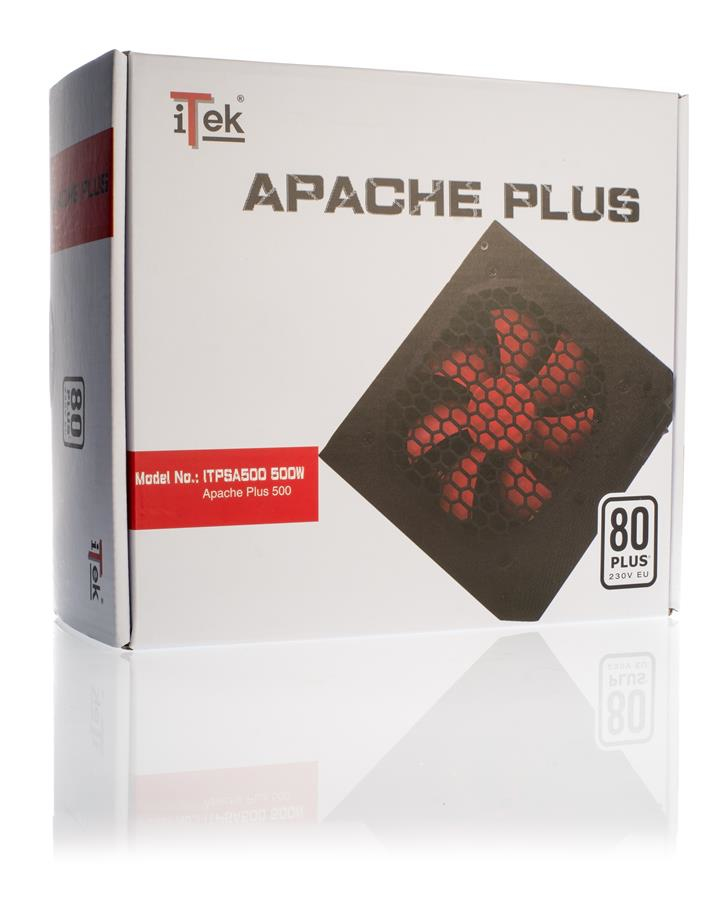

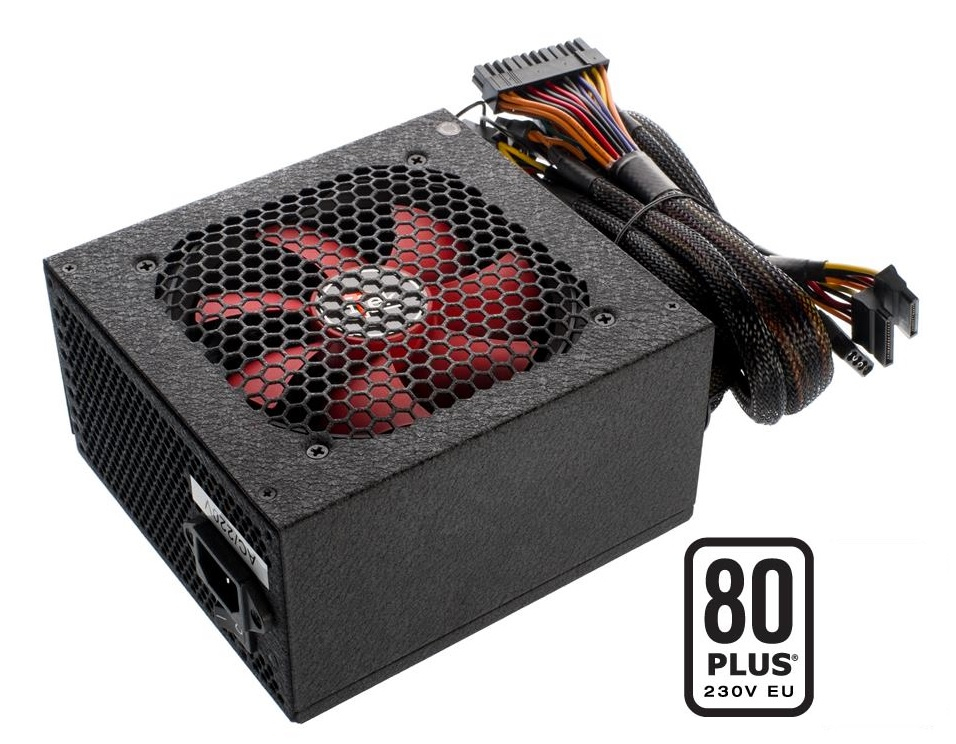

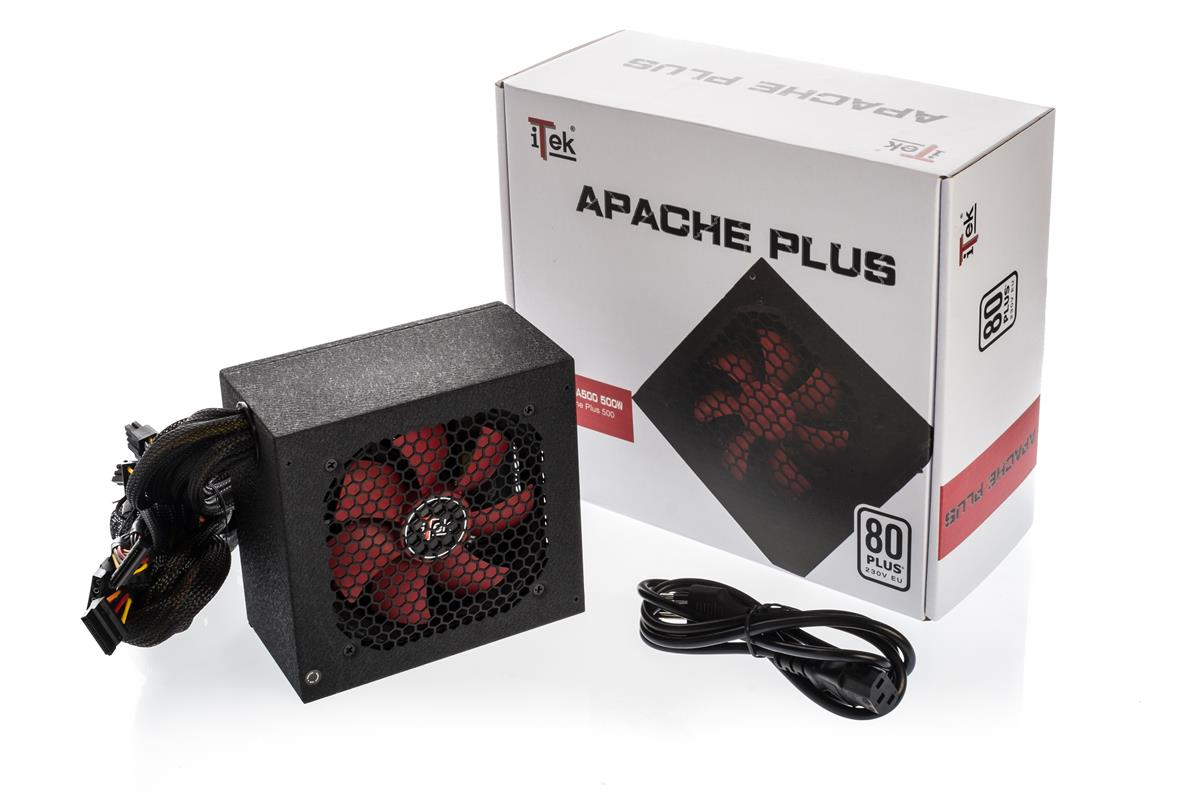

itek APACHE PLUS 500 power supply unit 500 W 20+4 pin ATX ATX Black, Red
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 500 W
- Efficiency rating
- 80 PLUS
- Manual included
- Y
- Weight
- 2200 g
- Purpose
- PC
- Efficiency
- 85
- ATX version
- 2.31
- Cabling type
- Non-Modular
- Cooling type
- Active
1 / 4
Shopping actions
Overview
The itek APACHE PLUS 500 power supply unit 500 W 20+4 pin ATX ATX Black, Red features 500 W output, 80 PLUS 80 PLUS efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Cooling
3 SPECS
Cooling type
Active

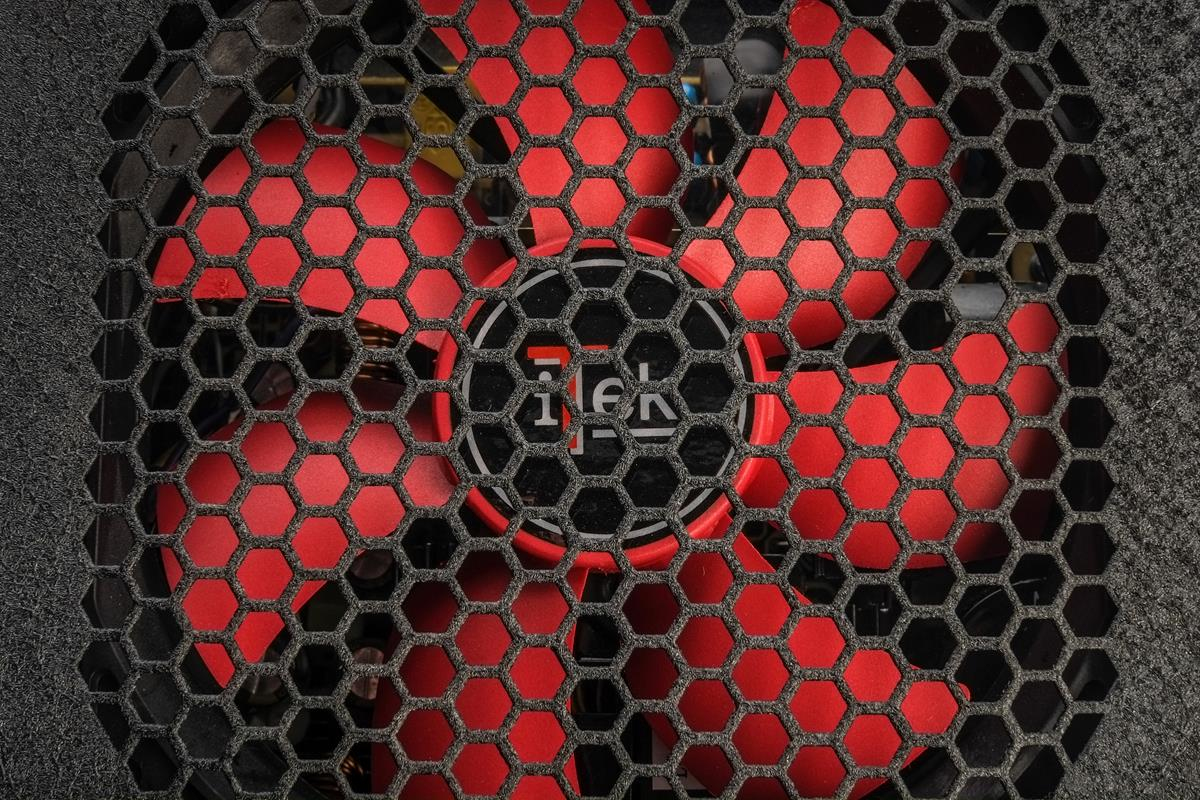

Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
500 W
Efficiency rating
80 PLUS
Physical
2 SPECS
Weight
2200 g
Colour
Black,Red
General
34 SPECS
Manual included
Yes
Purpose
PC
Efficiency
85
ATX version
2.31
Cabling type
Non-Modular
Packaging type
Box
Certifications
CE EMI
Input current
5
On/off switch
Yes
Warranty card
Yes
AC input voltage
200 - 240
AC input frequency
50
Combined power (+5V)
100
Combined power (+12V)
490
Combined power (-12V)
3.6
Combined power (+3.3V)
100
Combined power (+5Vsb)
12.5
Max output current (+5V)
18
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Short circuit,Under voltage
Max output current (+12V1)
22
Max output current (+12V2)
22
Max output current (+3.3V)
18
Max output current (+5Vsb)
2.5
EPS power connector (8-pin)
Yes
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Number of SATA power connectors
4
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
2
