MPN:
PS750W

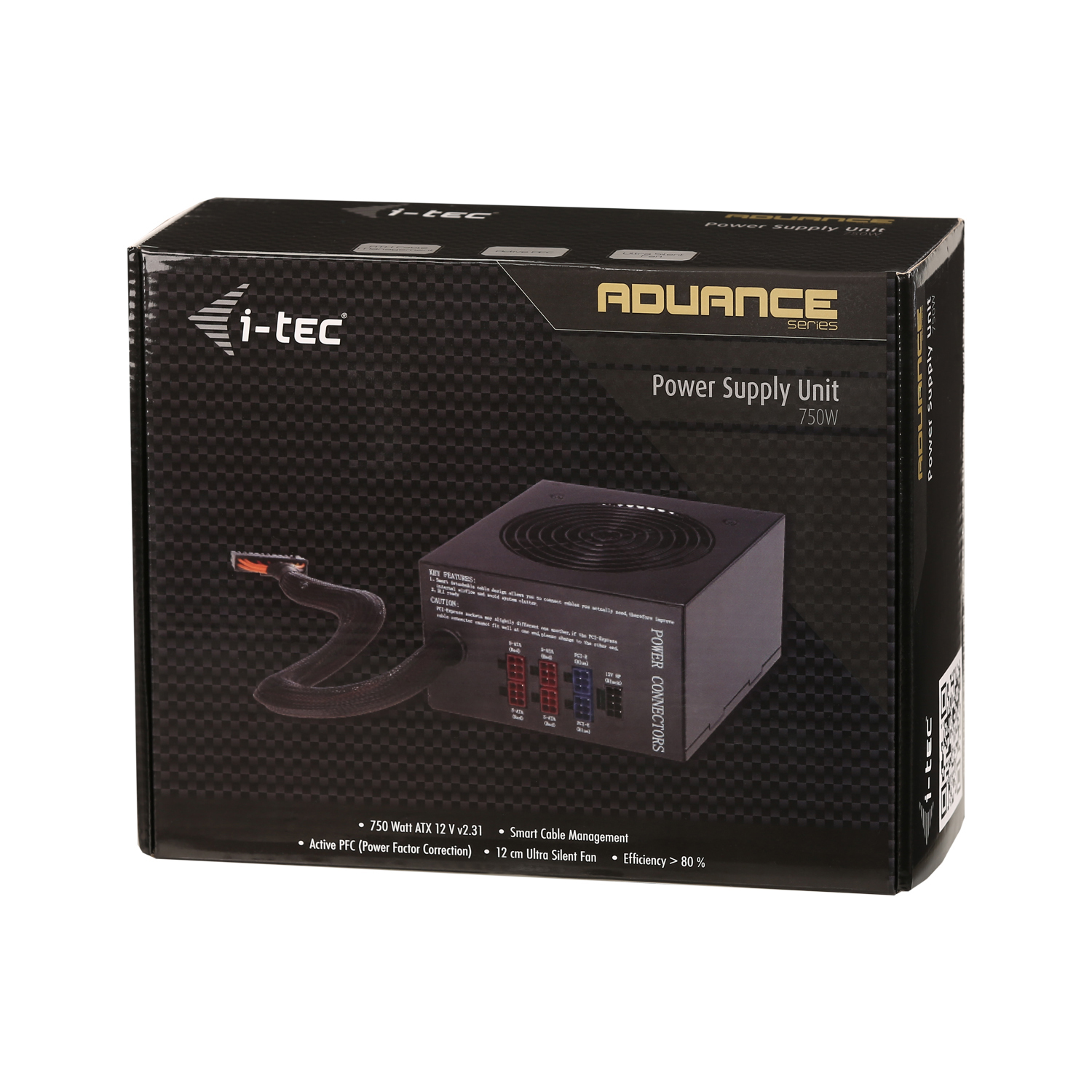

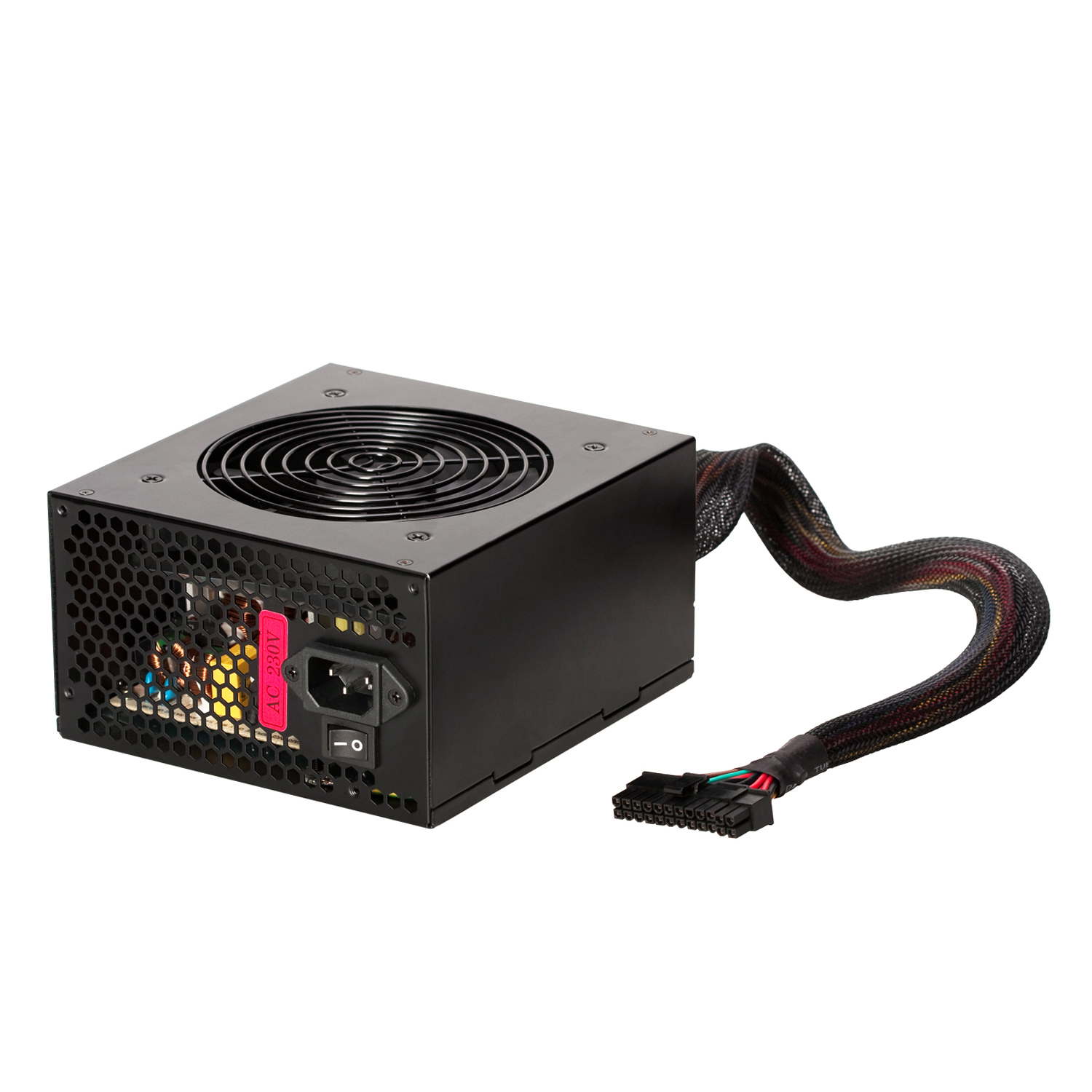

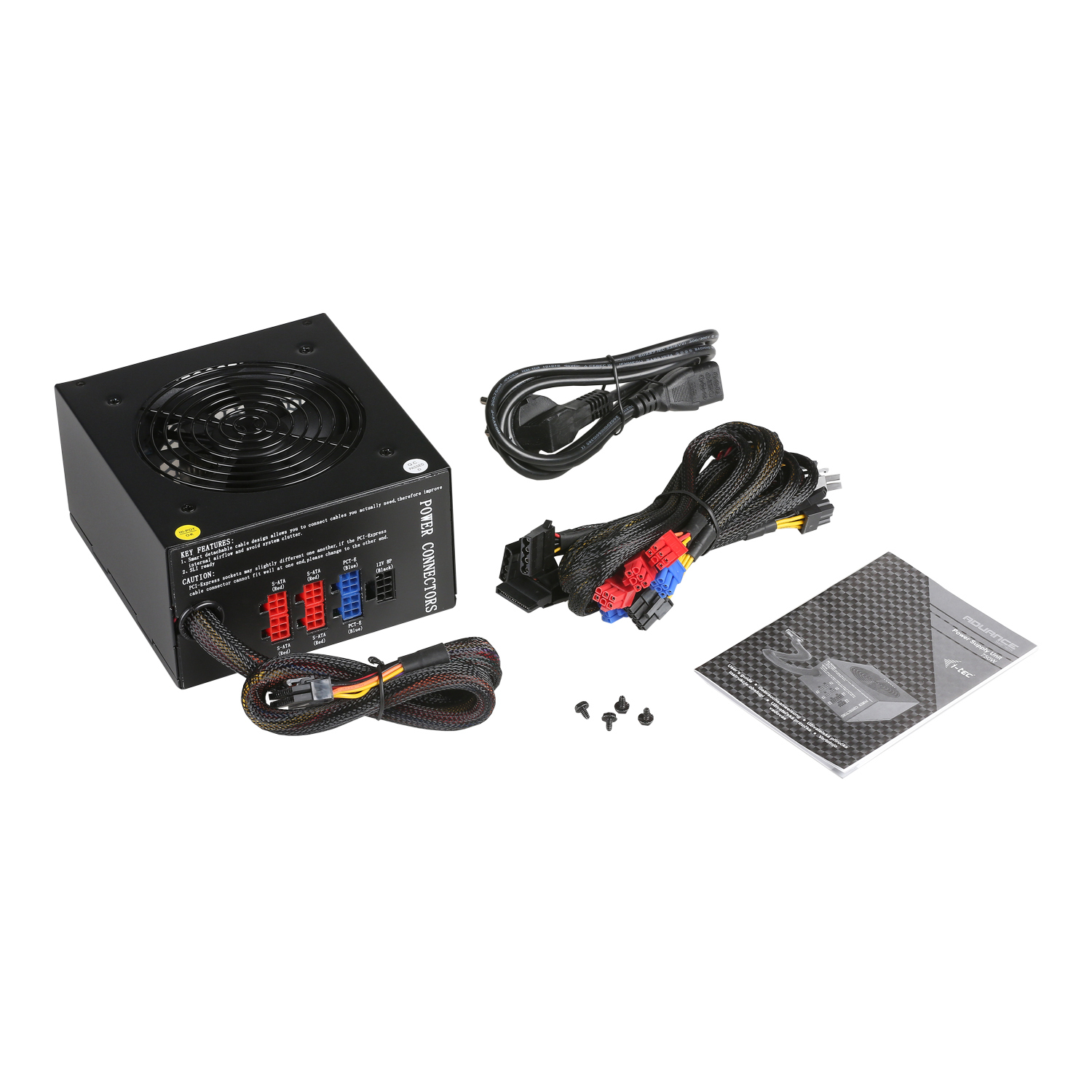

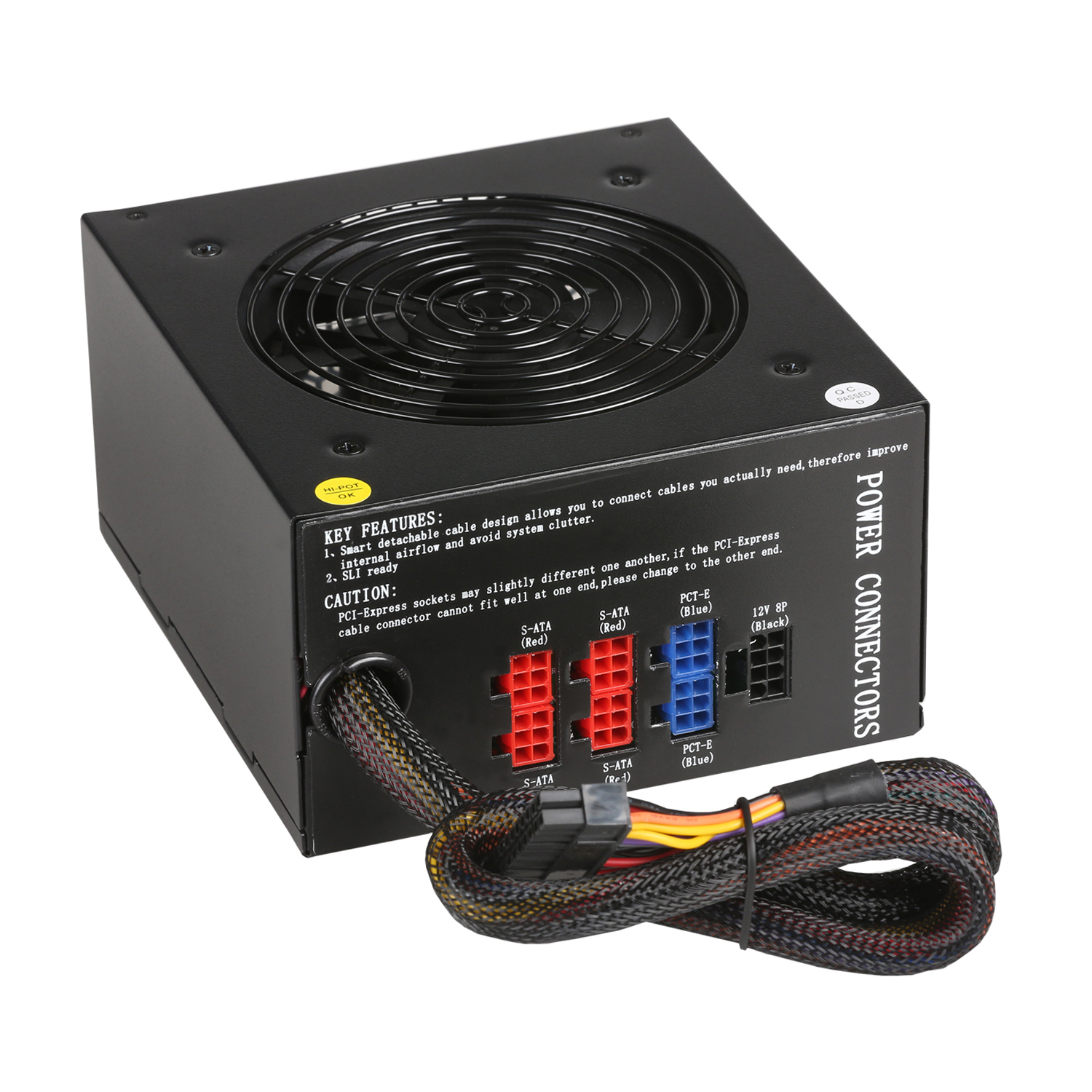

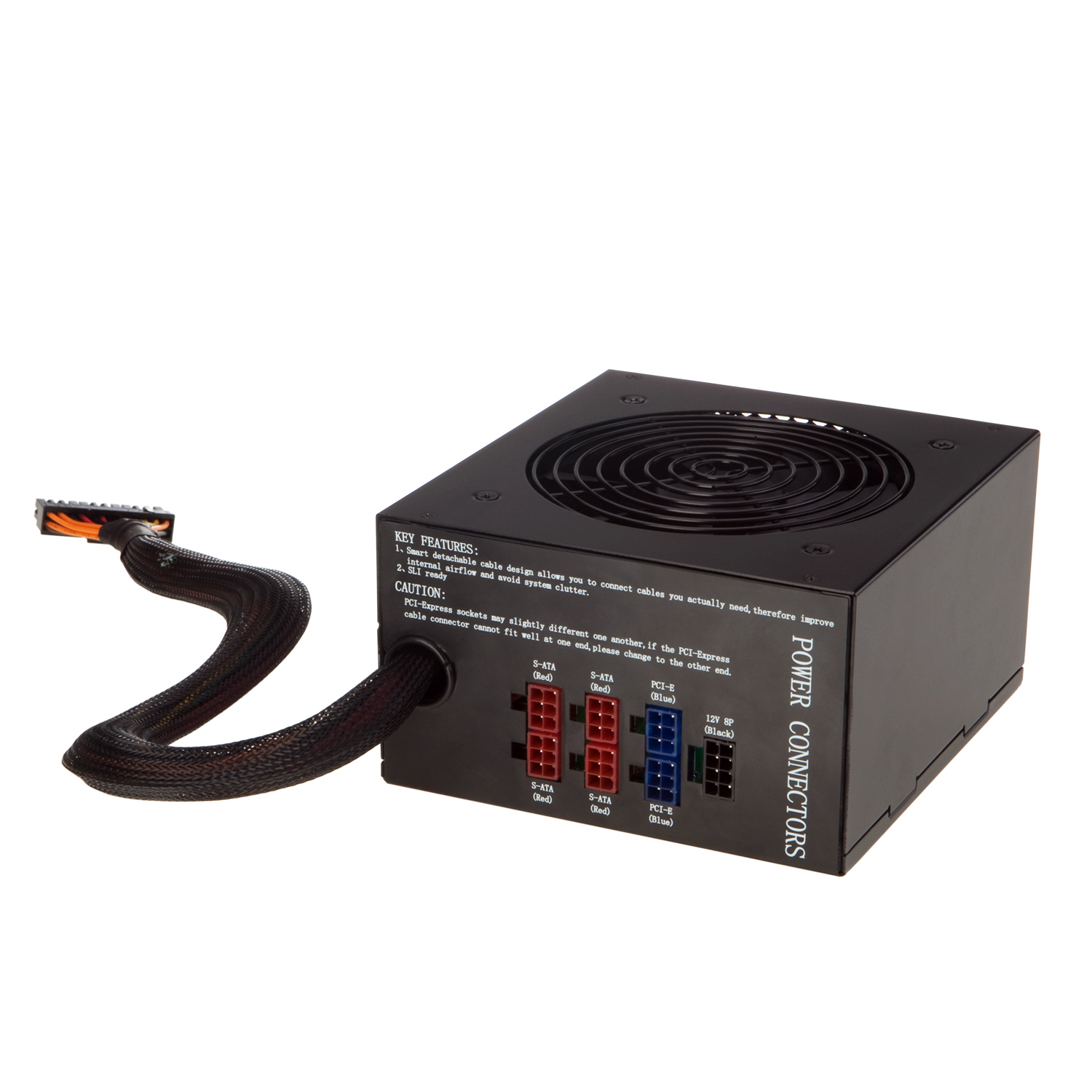

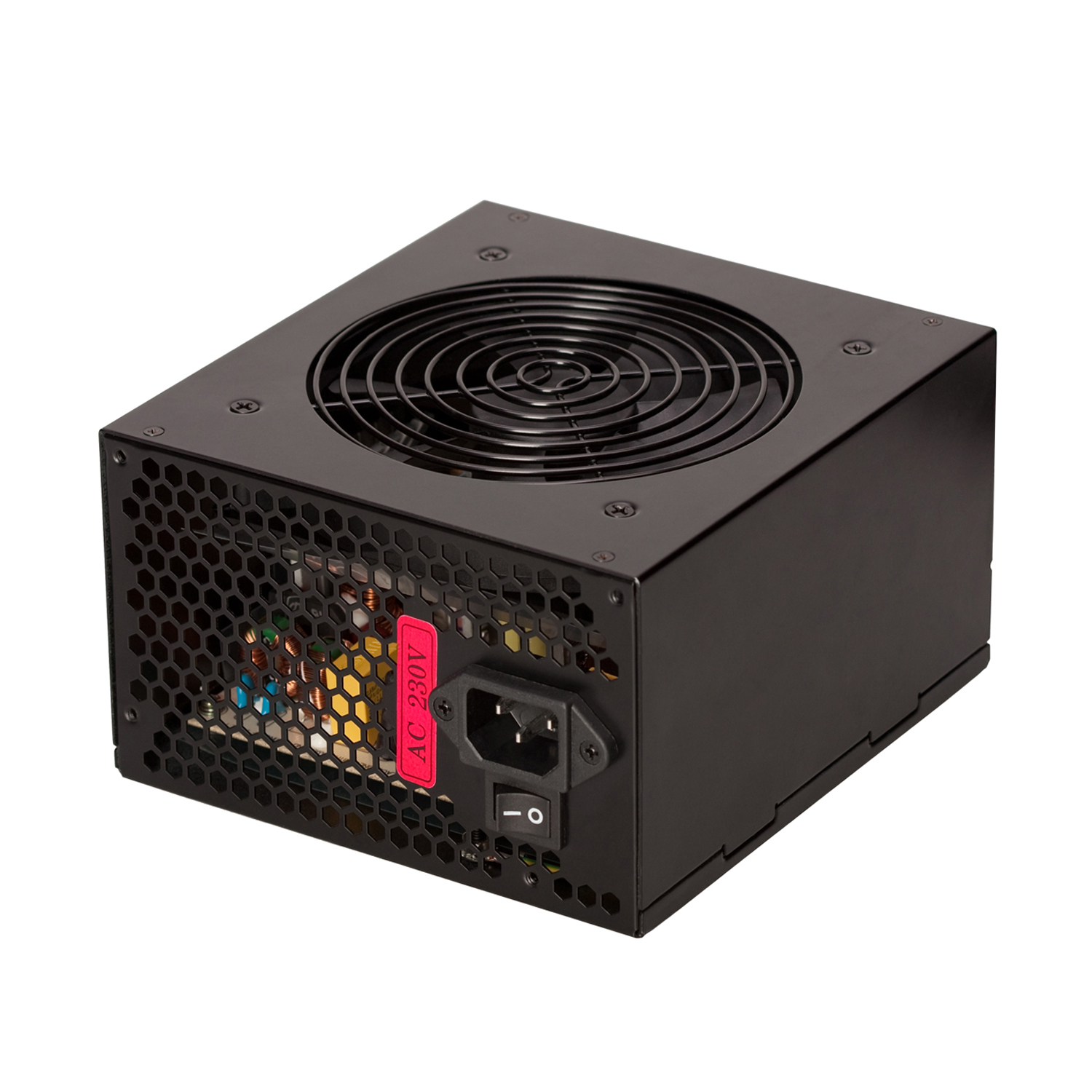

i-tec PS750W power supply unit 750 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 750 W
- Depth
- 150 mm
- Width
- 160 mm
- Height
- 86 mm
- Manual included
- Y
- Weight
- 1398 g
- Purpose
- PC
- Efficiency
- 80
- ATX version
- 2.31
1 / 6
Shopping actions
Overview
The i-tec PS750W power supply unit 750 W 20+4 pin ATX ATX Black features 750 W output and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
160 mm
Height
86 mm
Weight
1398 g
Colour
Black
Cooling
1 SPEC
Fan size
120
Logistics & Packaging
4 SPECS
Package depth
206 mm
Package width
262 mm
Package height
101 mm
Package weight
2026 g
Power
1 SPEC
Wattage
750 W
General
39 SPECS
Manual included
Yes
Purpose
PC
Efficiency
80
ATX version
2.31
Cabling type
Semi-Modular
Packaging type
Box
Certifications
FCC, CE, WEEE
Input current
8
On/off switch
Yes
Included cables
AC
AC input voltage
230
Cable management
Yes
AC input frequency
50
Combined power (+5V)
245
Combined power (+12V)
504
Combined power (-12V)
16
PCI Express connector
Yes
Combined power (+3.3V)
245
Combined power (+5Vsb)
16
Compliance certificates
RoHS
Max output current (+5V)
28
Max output current (-12V)
0.5
Power protection features
Over power,Over voltage,Short circuit
Max output current (+12V1)
42
Max output current (+12V2)
42
Max output current (+3.3V)
32
Max output current (+5Vsb)
2
EPS power connector (8-pin)
Yes
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
4
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
1
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
4
