MPN:
PSU010020

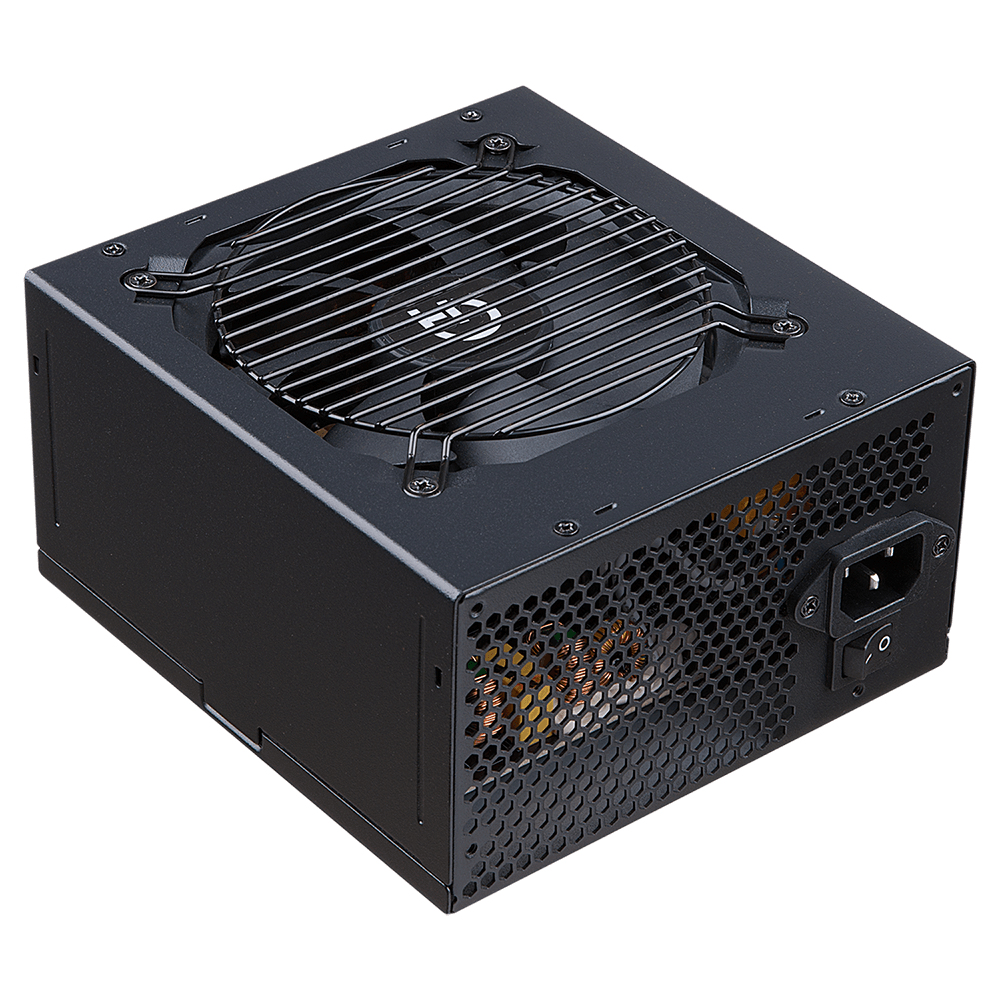

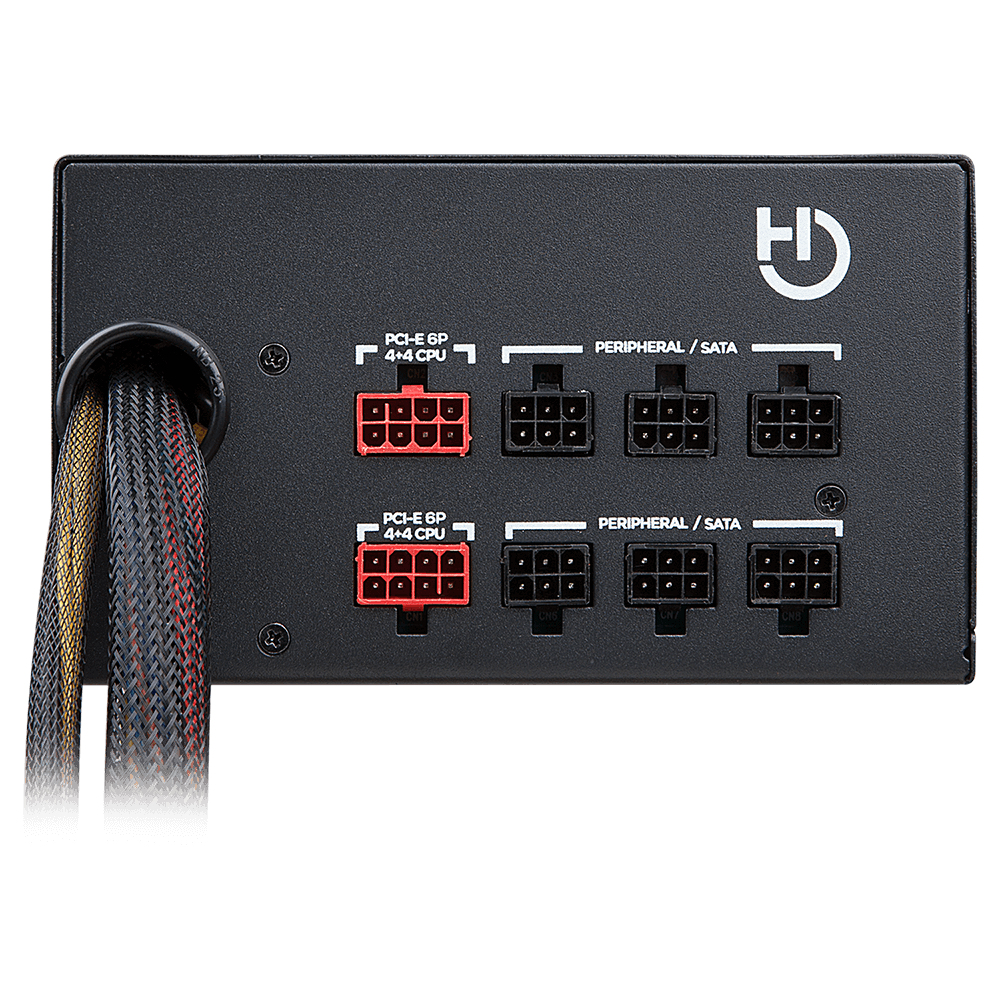

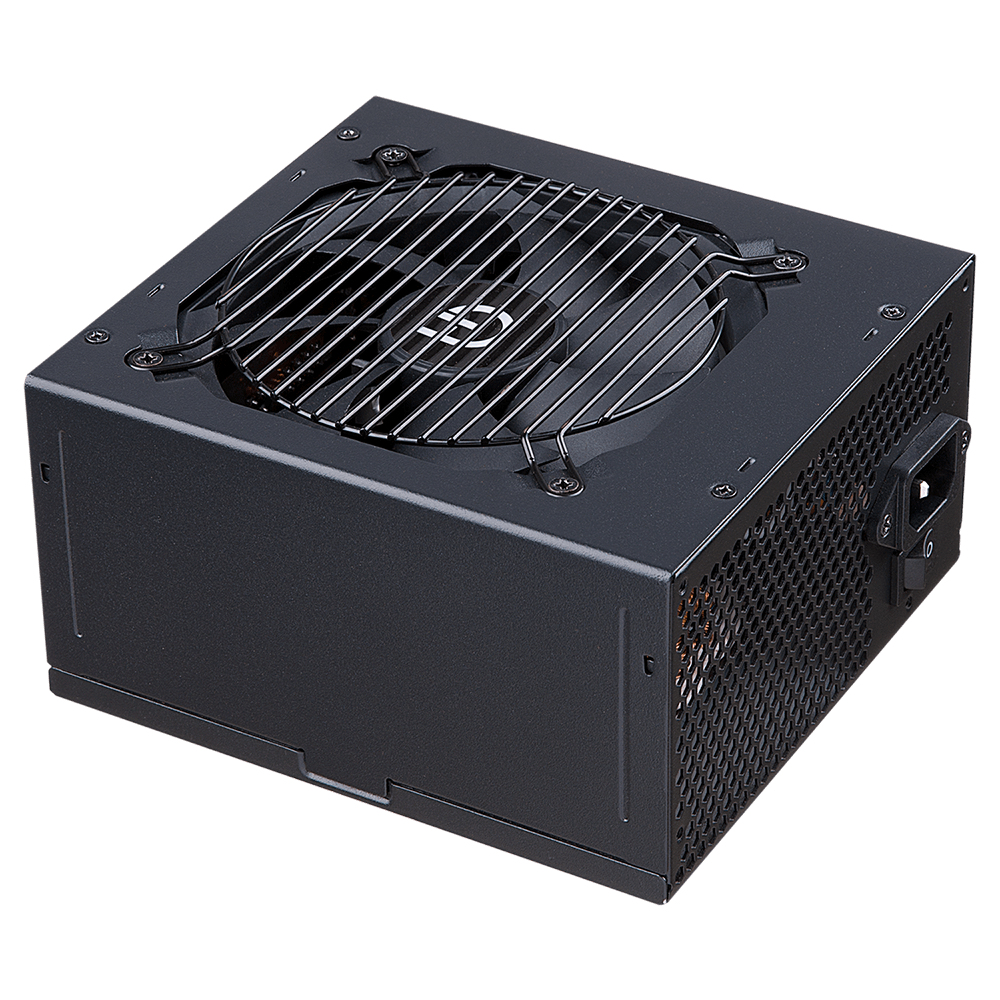

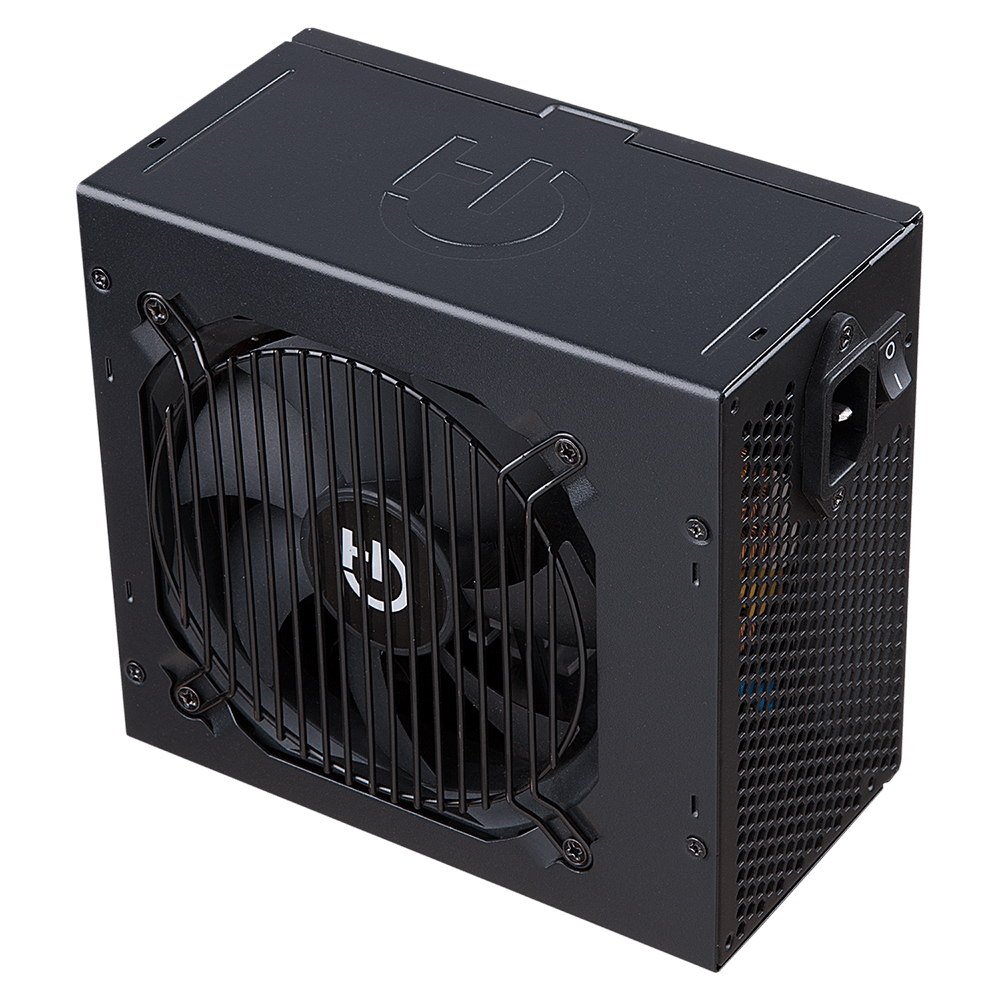

Hiditec BZM650 power supply unit 650 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 650 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 85 mm
- Width
- 150 mm
- Height
- 160 mm
- Weight
- 1750 g
- Purpose
- PC
- ATX version
- 2.4
- Silent mode
- Y
1 / 5
Shopping actions
Overview
The Hiditec BZM650 power supply unit 650 W 20+4 pin ATX ATX Black features 650 W output, 80 PLUS 80 PLUS Bronze efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
85 mm
Width
150 mm
Height
160 mm
Weight
1750 g
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
650 W
Efficiency rating
80 PLUS Bronze
General
30 SPECS
Purpose
PC
ATX version
2.4
Silent mode
Yes
Cabling type
Semi-Modular
Certifications
CE, RoHs
AC input voltage
230
AC input frequency
50 - 60
CPU power cable length
600
SATA power cable length
600
Max output current (+5V)
20
Max output current (+12V)
54
Max output current (-12V)
0.5
Power protection features
Over voltage,Overload,Under voltage
Max output current (+3.3V)
20
Max output current (+5Vsb)
3
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Floppy disk drive cable length
550
Motherboard power cable length
600
PCI Express power cable length
600
Number of SATA power connectors
5
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
2
Peripheral (Molex) power cable length
600
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
2
