MPN:
PPA5505500

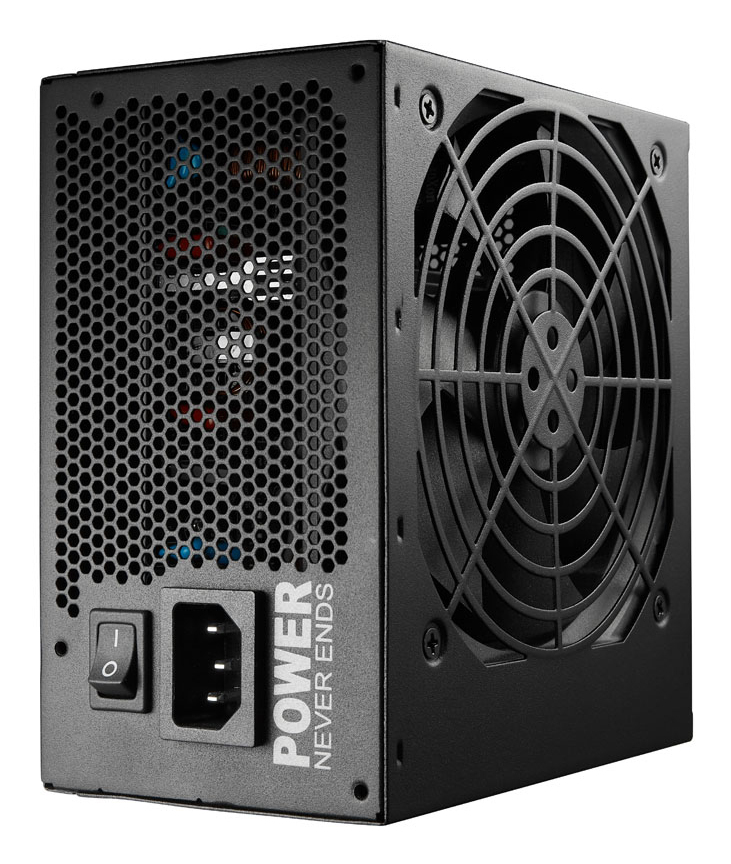

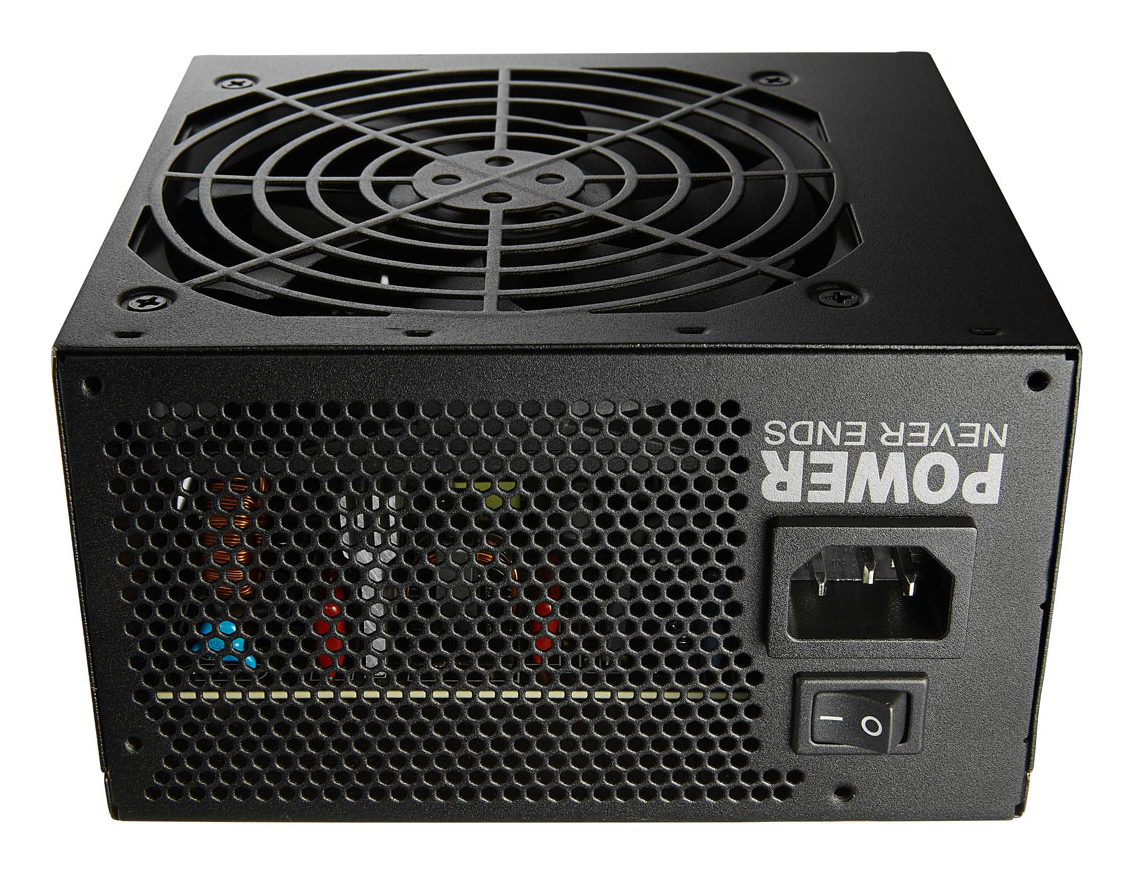

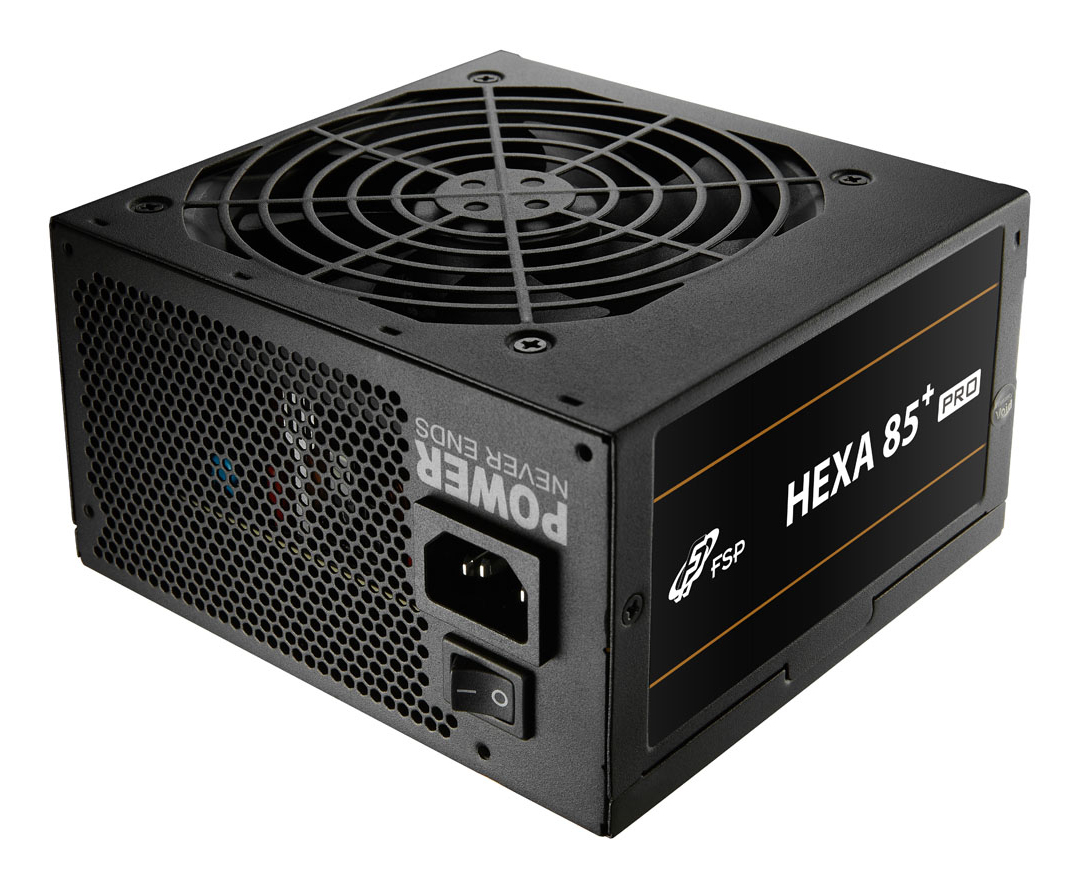

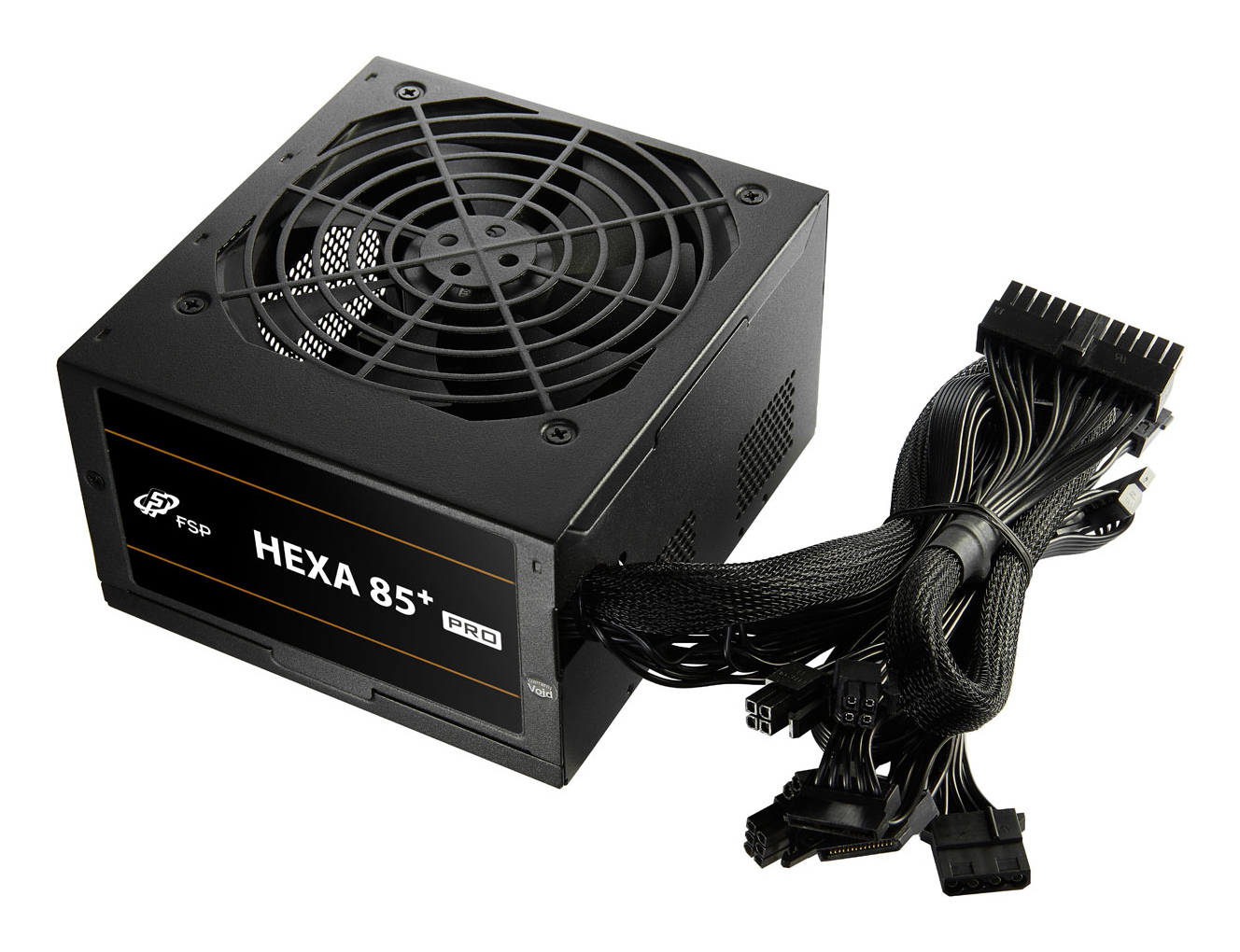

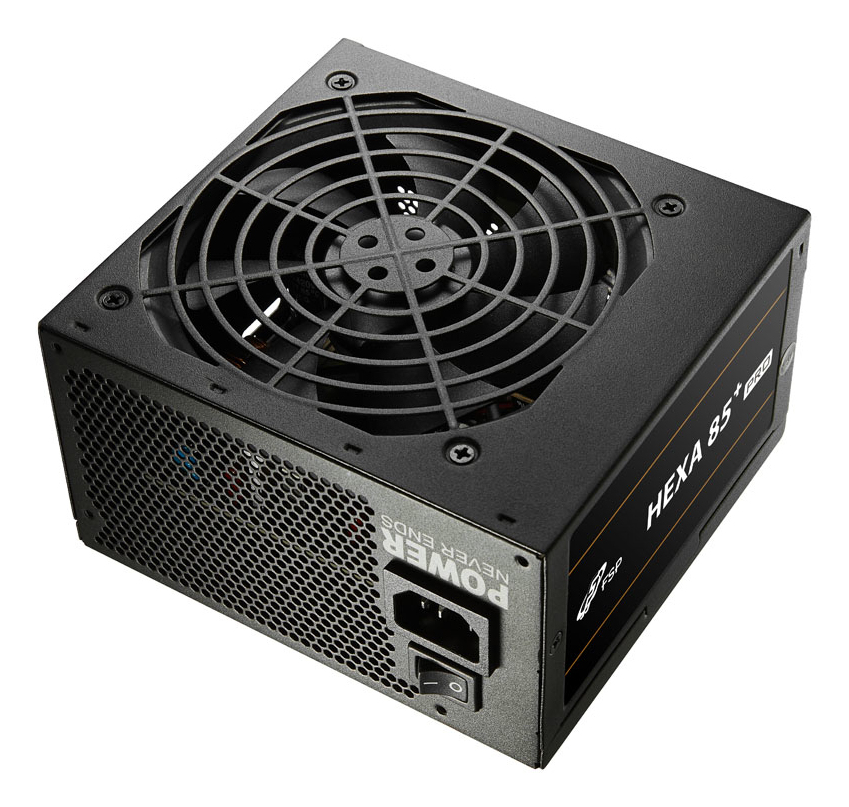

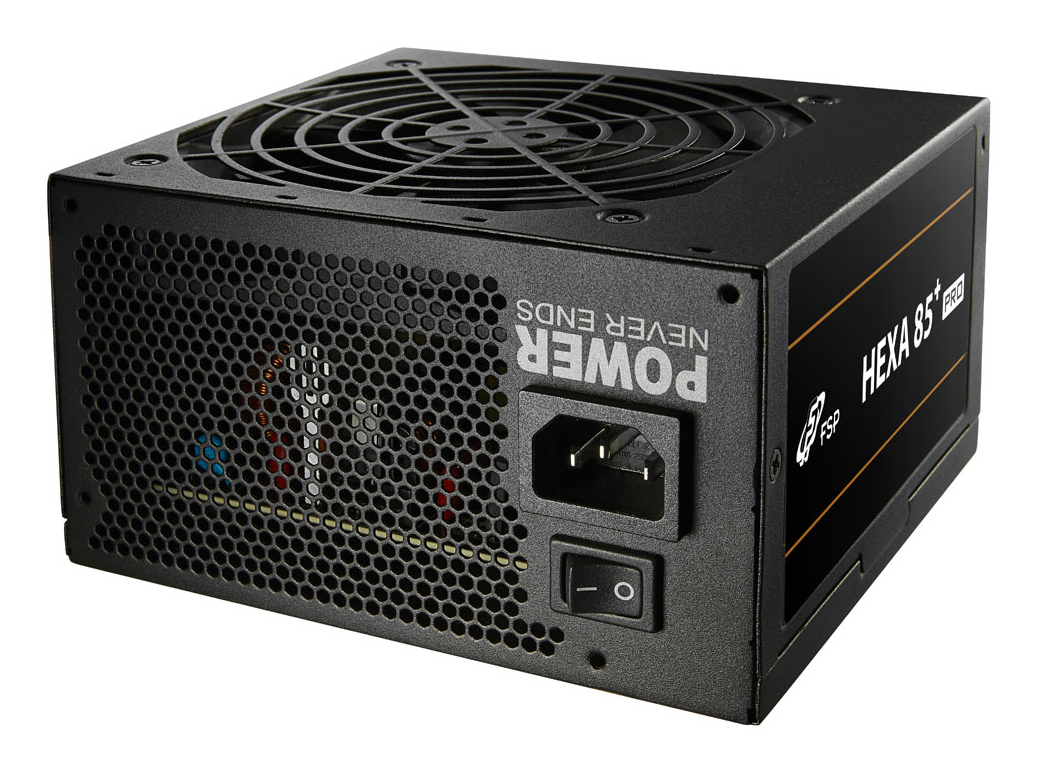

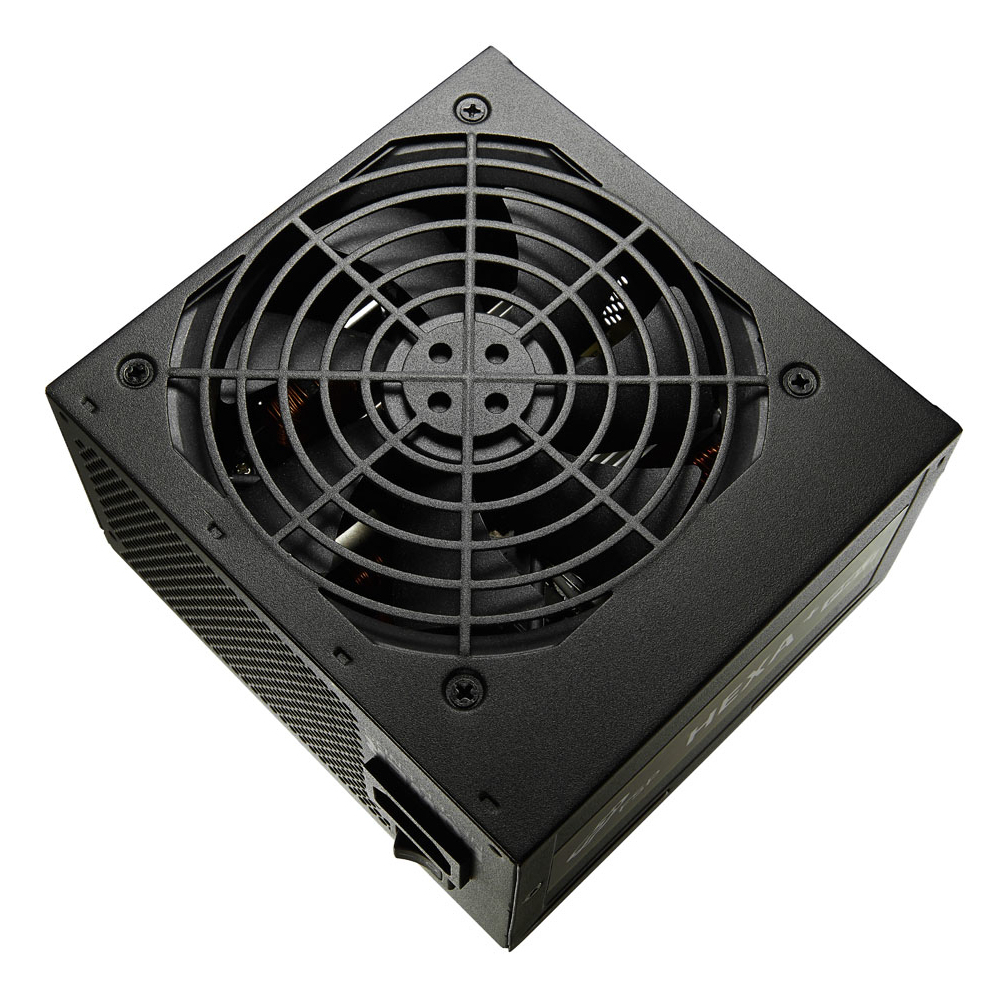

FSP HEXA 85+ PRO 550W Power supply unit ATX ATX2.5 Black
Released: Not on record
$186.59
from
US · Amazon.com
Updated 2 weeks ago
Last updated Sep 3, 2026 03:14 UTC
Ratings & price sourced from Amazon.com (United States).
- Wattage
- 550 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 150 mm
- Width
- 140 mm
- Height
- 86 mm
- Weight
- 1328 g
- Purpose
- PC/server
- Hold time
- 17
- Efficiency
- 85
1 / 12
Shopping actions
Overview
The FSP HEXA 85+ PRO 550W Power supply unit ATX ATX2.5 Black features 550 W output, 80 PLUS 80 PLUS Bronze efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
6 SPECS
Depth
150 mm
Width
140 mm
Height
86 mm
Weight
1328 g
Colour
Black
Customs (HS) code
84733020
Cooling
3 SPECS
Cooling type
Active

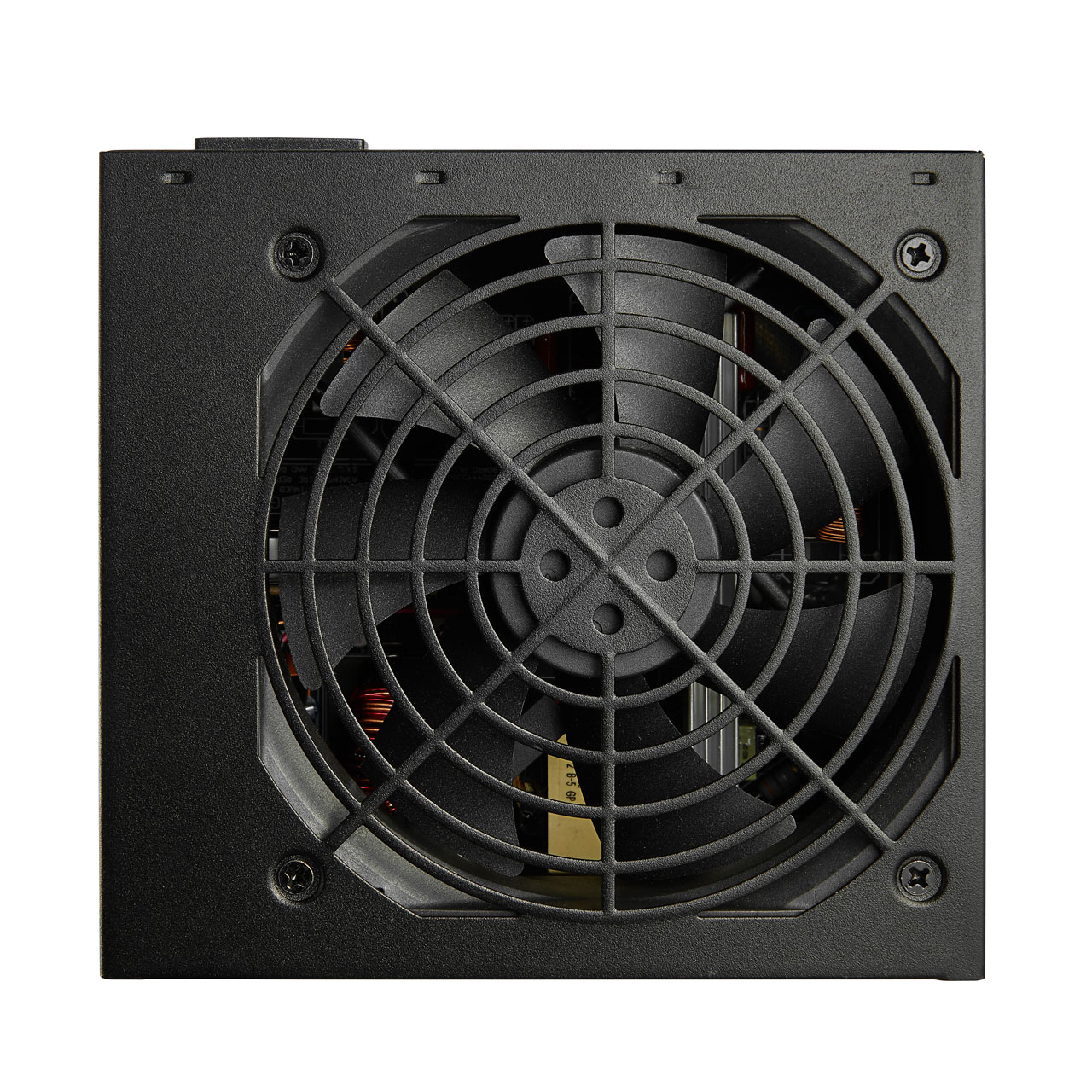

Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
550 W
Efficiency rating
80 PLUS Bronze
General
35 SPECS
Purpose
PC/server
Hold time
17
Efficiency
85
ATX version
2.5
EPS version
2.92
Cabling type
Non-Modular
Input current
7.5 - 3
On/off switch
Yes

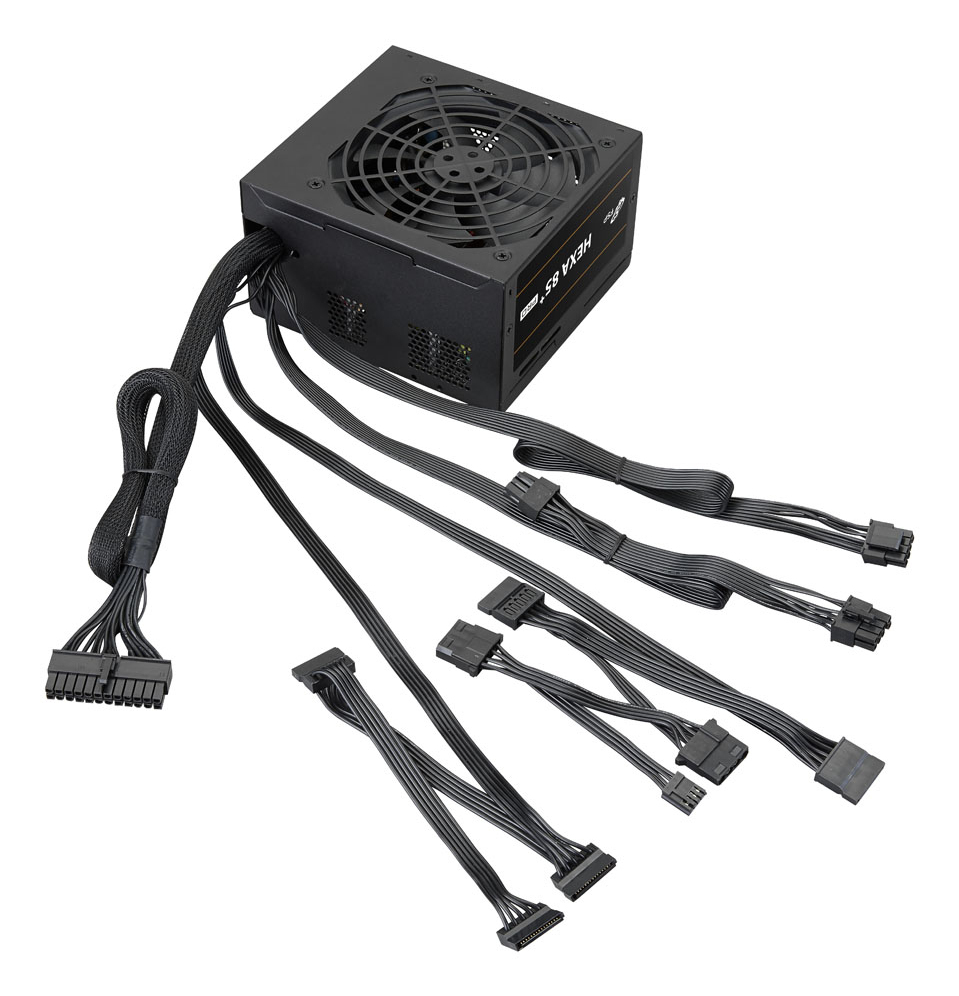

Included cables
CPU,PCIe,Peripheral (Molex),SATA
Warranty period
5
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
Sleeve
Combined power (+5V)
100
Combined power (+12V)
550
Combined power (-12V)
3.6
PCI Express connector
Yes
Combined power (+3.3V)
100
Combined power (+5Vsb)
12.5
Max output current (+5V)
20
Max output current (+12V)
45.83
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Short circuit
Max output current (+3.3V)
20
Max output current (+5Vsb)
2.5
Floppy disk drive connector
Yes
Motherboard power connector
24-pin ATX
ATX Power connector (24-pin)
Yes
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Number of SATA power connectors
8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
2
