MPN:
SPS-850C
Chieftec SPS-850C power supply unit 850 W 20+4 pin ATX ATX Red
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 850 W
- Efficiency rating
- 80 PLUS Silver
- Purpose
- PC
- Efficiency
- 88
- ATX version
- 2.3
- Cabling type
- Fully-Modular
- Cooling type
- Active
- Fan size
- 140
- Fan location
- Top
1 / 7
Shopping actions
Overview

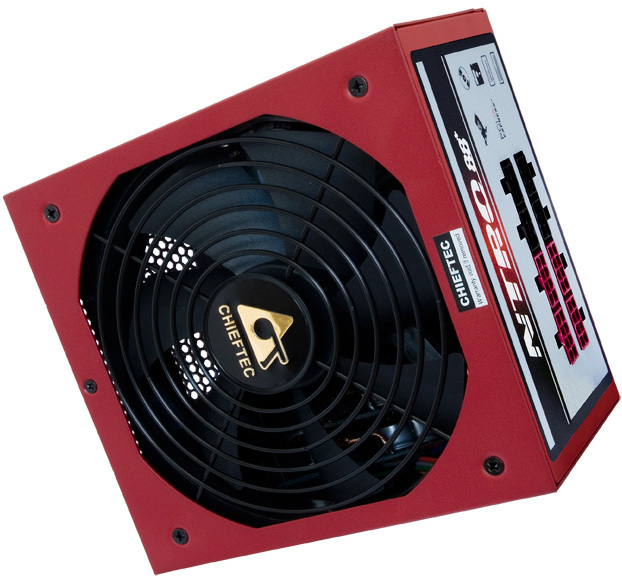

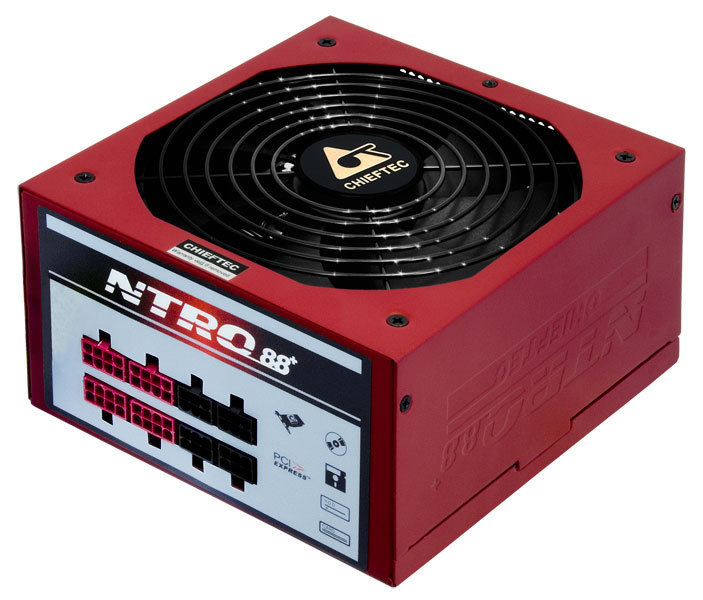

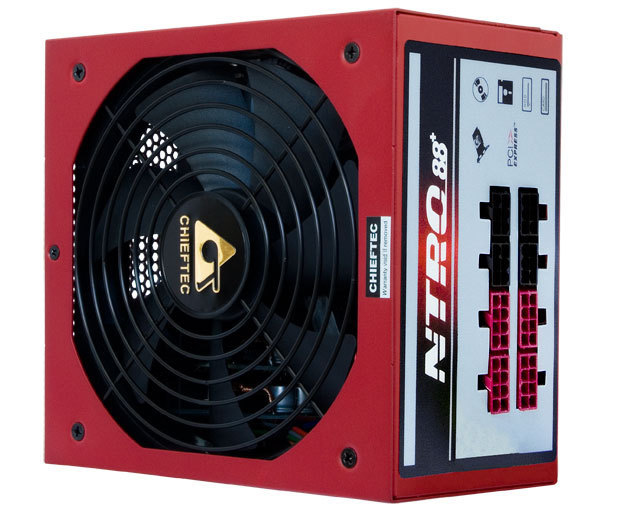

The Chieftec SPS-850C power supply unit 850 W 20+4 pin ATX ATX Red features 850 W output, 80 PLUS 80 PLUS Silver efficiency, a 140 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Cooling
3 SPECS
Cooling type
Active
Fan size
140
Number of fans
1
Power
2 SPECS
Wattage
850 W
Efficiency rating
80 PLUS Silver
Physical
1 SPEC
Colour
Red
General
32 SPECS
Purpose
PC
Efficiency
88
ATX version
2.3
Cabling type
Fully-Modular
Fan location
Top
Certifications
CE, CB, TUV, R33030
Monitor outlet
No
AC input voltage
115 - 230
AC input frequency
50 - 60
Combined power (+5V)
150
Combined power (+12V)
816
Combined power (+3.3V)
150
Compliance certificates
RoHS
Max output current (+5V)
25
Max output current (+12V)
68
Max output current (-12V)
0.5
Power protection features
Over voltage,Overheating,Overload,Short circuit,Under current,Under voltage
Max output current (+12V1)
68
Max output current (+12V2)
68
Max output current (+3.3V)
25
Max output current (+5Vsb)
3
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V,+3.3V,+5V,-12V,-5Vsb
Number of SATA power connectors
8
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Parallel processing technology support
2-Way SLI,3-Way SLI
Peripheral (Molex) power connectors (4-pin)
4
